77318-816 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 77318-816

77318-816: DescriptionBoard Connector, 9 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size219KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

77318-816 Overview

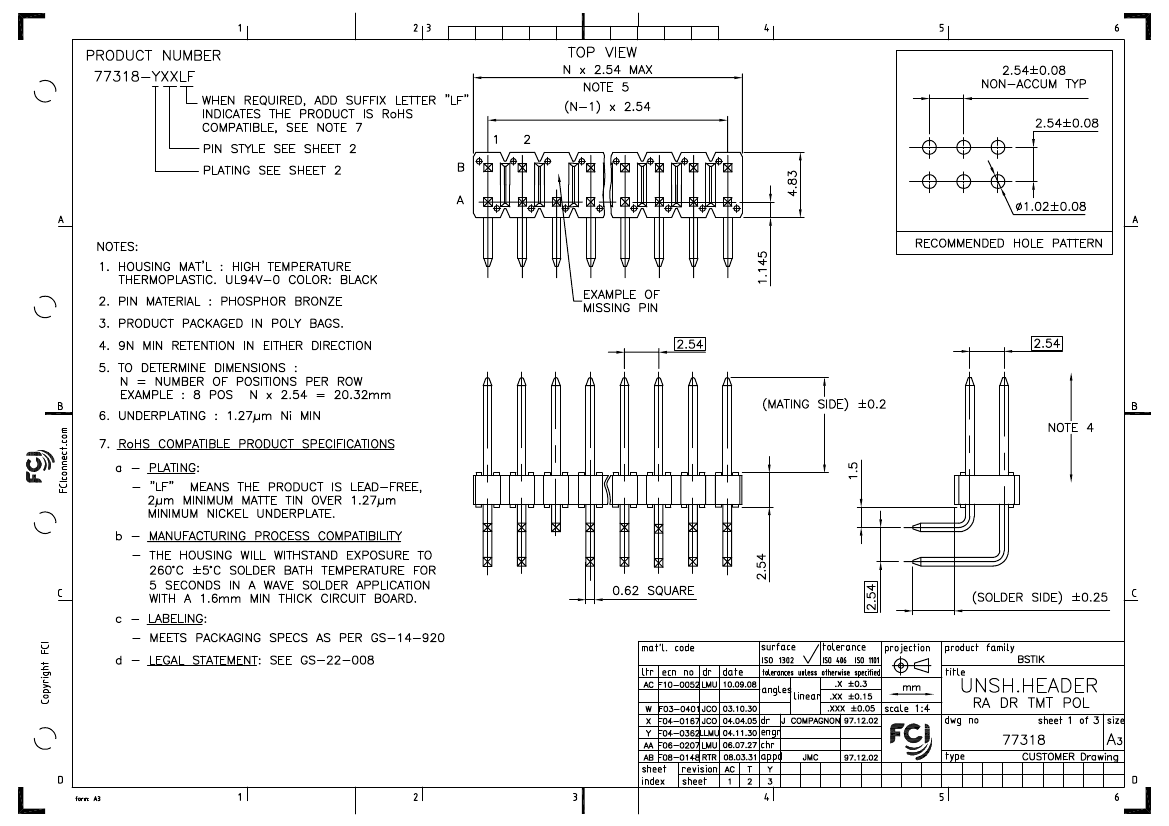

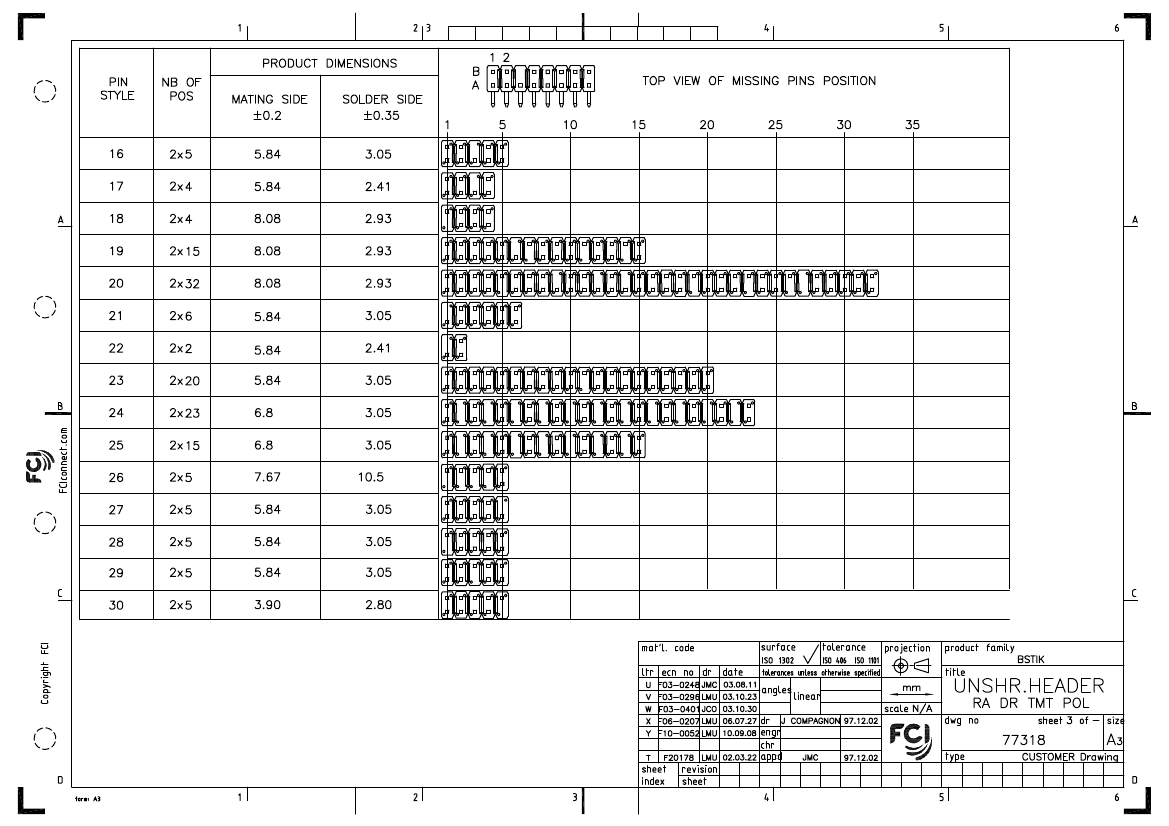

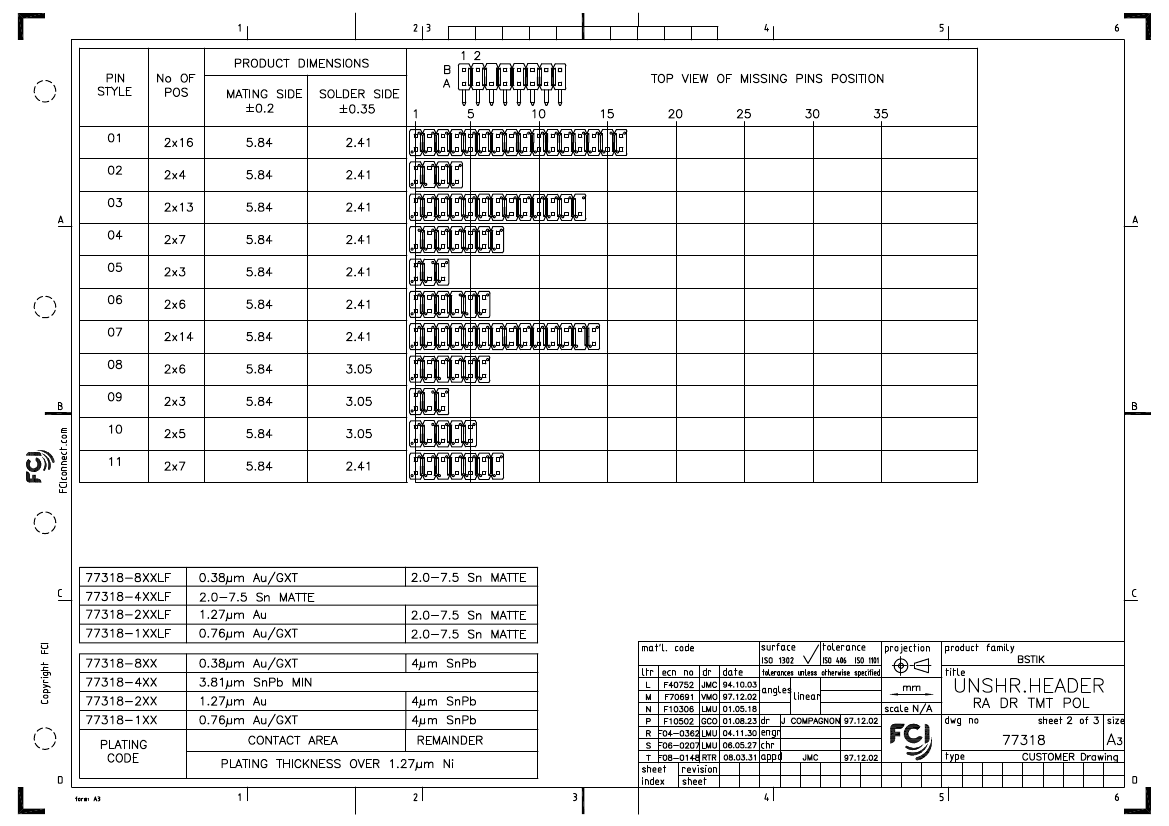

Board Connector, 9 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

77318-816 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN LEAD (157) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	77318
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

PDM: Rev:AC

STATUS:

Released

Printed: Sep 09, 2010

77318-816 Related Products

	77318-816	0625P1-2-050	0625P1-2-055	77318-216LF	77318-216	77318-416LF	77318-416	77318-816LF
Description	Board Connector, 9 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	625VA Open Style, with Leads	625VA Open Style, with Leads	Board Connector, 9 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT	Board Connector, 9 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 9 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT	Board Connector, 9 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 9 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT
Maker	Amphenol	-	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	-	-	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	-	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	TIN LEAD (157) OVER NICKEL	-	-	MATTE TIN (295) OVER NICKEL	TIN LEAD (157) OVER NICKEL	MATTE TIN (295) OVER NICKEL	TIN LEAD (150) OVER NICKEL	MATTE TIN (295) OVER NICKEL
Contact point gender	MALE	-	-	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	-	-	NO	NO	NO	NO	NO
Filter function	NO	-	-	NO	NO	NO	NO	NO
IEC compliance	NO	-	-	NO	NO	NO	NO	NO
JESD-609 code	e0	-	-	e3	e0	e3	e0	e3
MIL compliance	NO	-	-	NO	NO	NO	NO	NO
Manufacturer's serial number	77318	-	-	77318	77318	77318	77318	77318
Mixed contacts	NO	-	-	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	-	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	-	-	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	-	-	2	2	2	2	2
Options	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	-	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	-	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	9	-	-	9	9	9	9	9
UL Flammability Code	94V-0	-	-	94V-0	94V-0	94V-0	94V-0	94V-0
