74650-1169: DescriptionBoard Connector, 60 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Pin, Black Insulator, Receptacle; CategoryThe connector The connector; File Size354KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

74650-1169 Overview

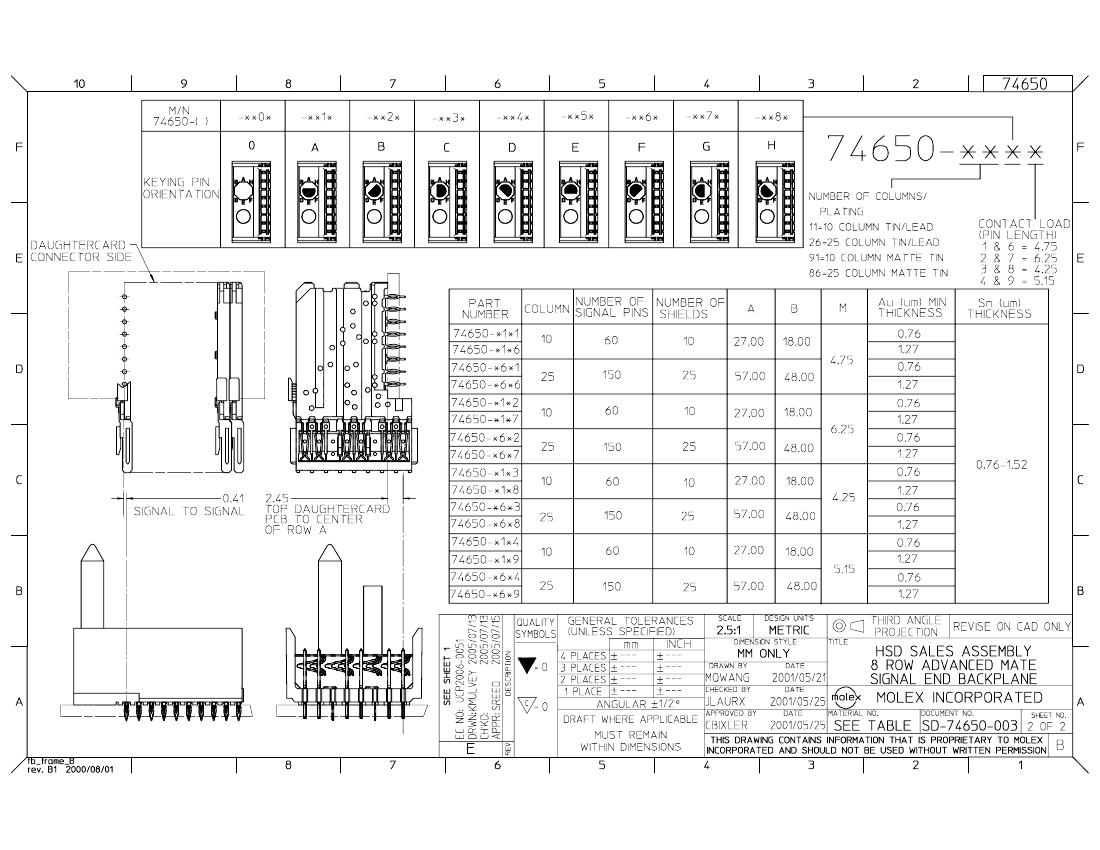

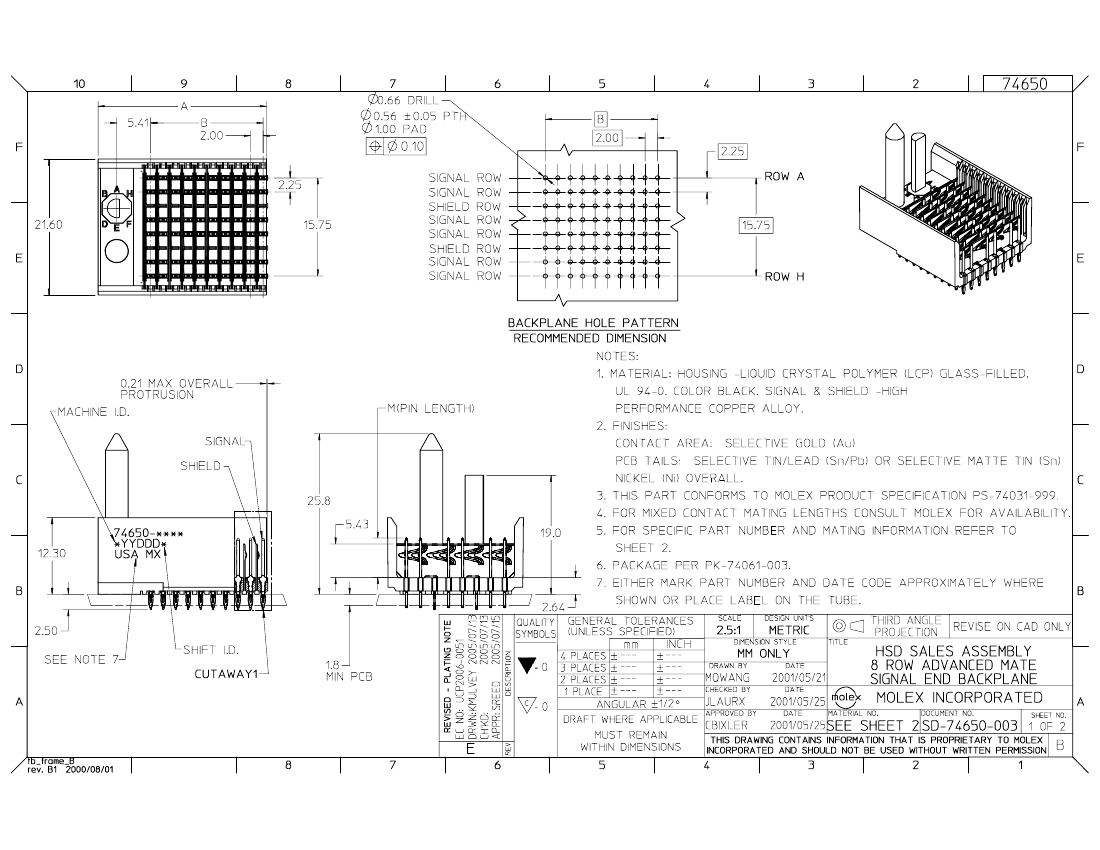

Board Connector, 60 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Pin, Black Insulator, Receptacle

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PANEL MOUNTABLE, POLARIZATION AVAILABLE, 10 SHIELD CONTACTS IN 2 ROWS
body width	0.85 inch
subject depth	0.484 inch
body length	1.063 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	18 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.3892 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	74650
Plug contact pitch	0.079 inch
Match contact row spacing	0.089 inch
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	8
Number of rows loaded	6
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.286 mm
Plating thickness	50u inch
polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	60
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
