GM71V17803BT-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> GM71V17803BT-6

GM71V17803BT-6: DescriptionEDO DRAM, 2MX8, 60ns, CMOS, PDSO28,; Categorystorage storage; File Size2MB，25 Pages; ManufacturerSK Hynix; Websitehttp://www.hynix.com/eng/

Download Datasheet Parametric Compare View All

GM71V17803BT-6 Overview

EDO DRAM, 2MX8, 60ns, CMOS, PDSO28,

GM71V17803BT-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SK Hynix
package instruction	TSOP, TSOP28,.46
Reach Compliance Code	compliant
Maximum access time	60 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
memory density	16777216 bit
Memory IC Type	EDO DRAM
memory width	8
Number of terminals	28
word count	2097152 words
character code	2000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Encapsulate equivalent code	TSOP28,.46
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	2048
self refresh	NO
Maximum standby current	0.001 A
Maximum slew rate	0.12 mA
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

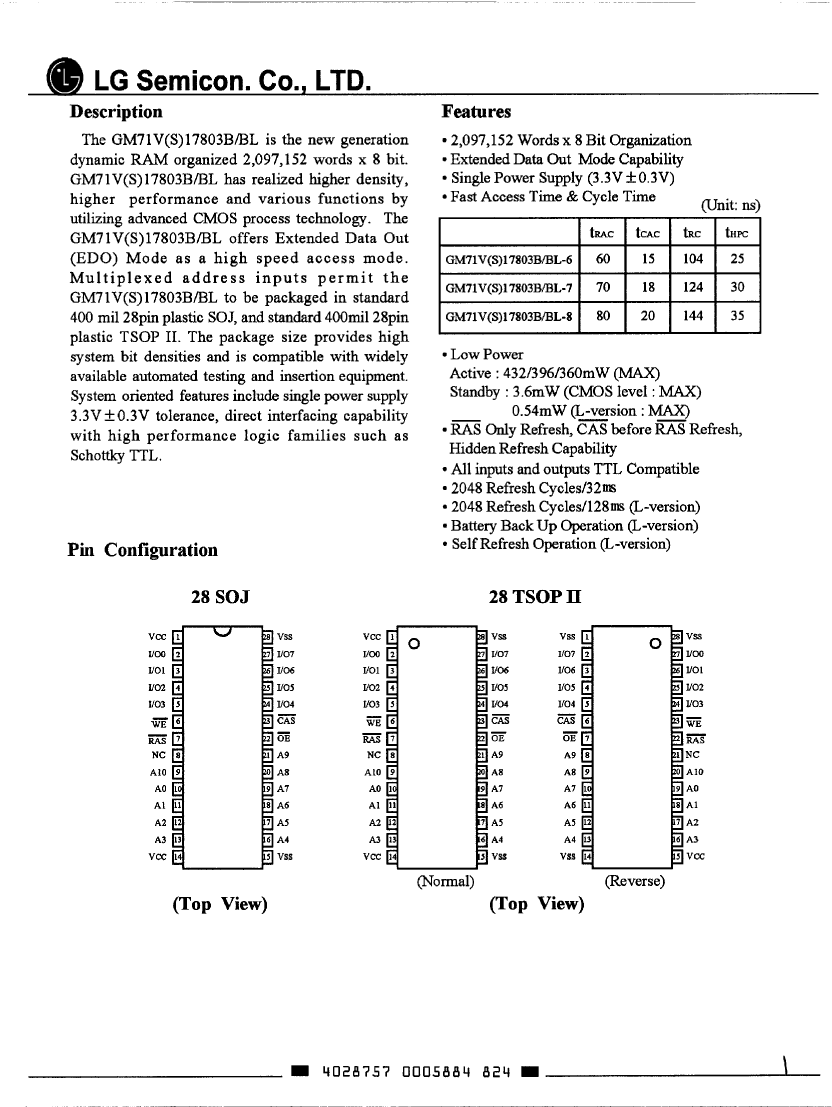

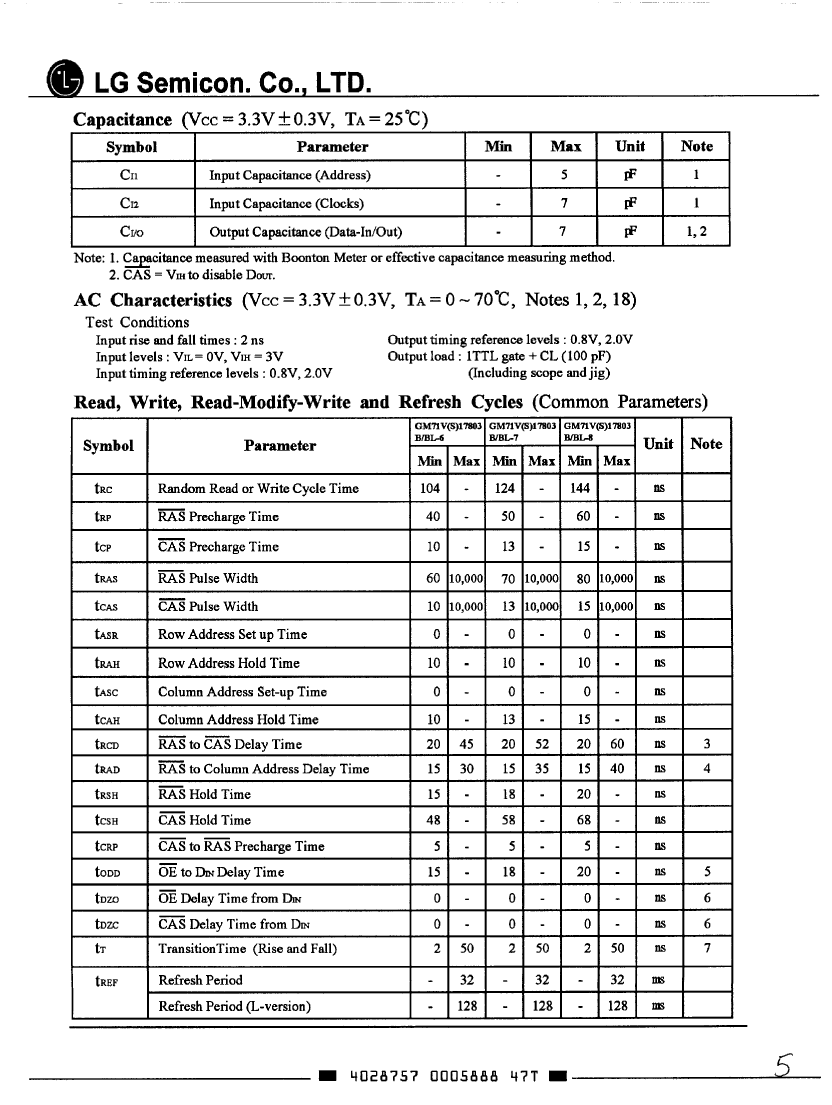

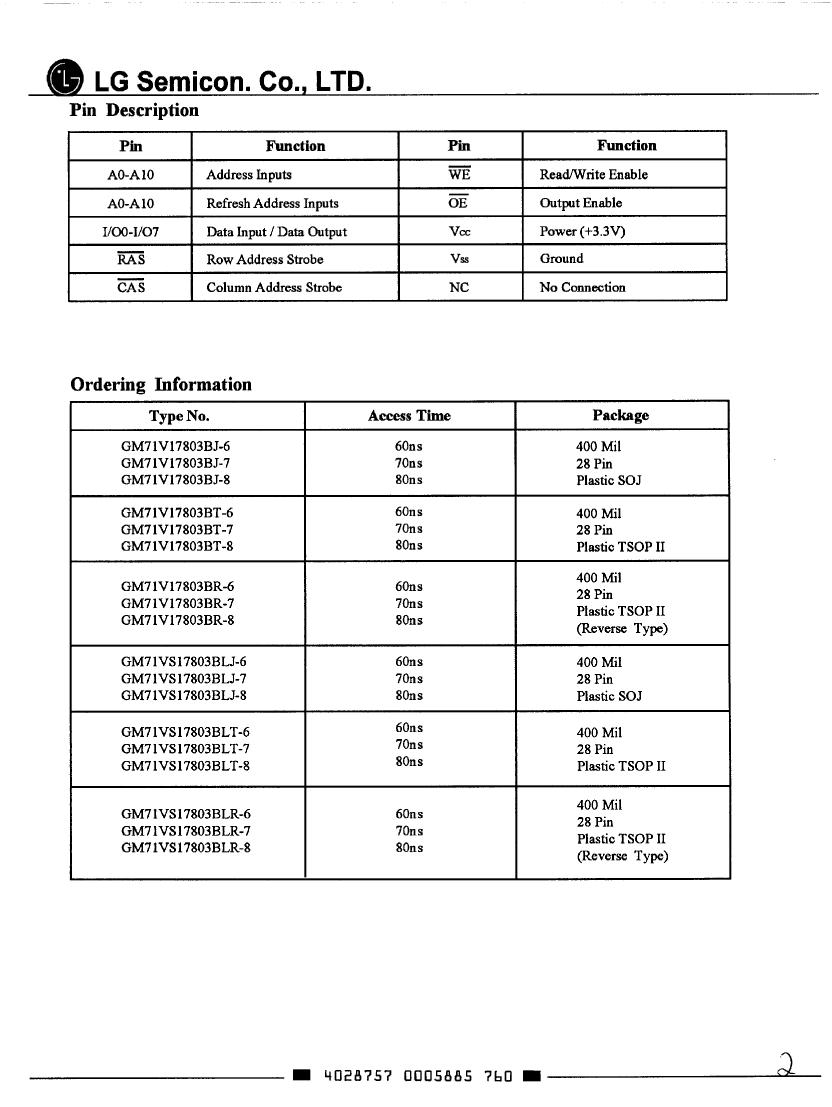

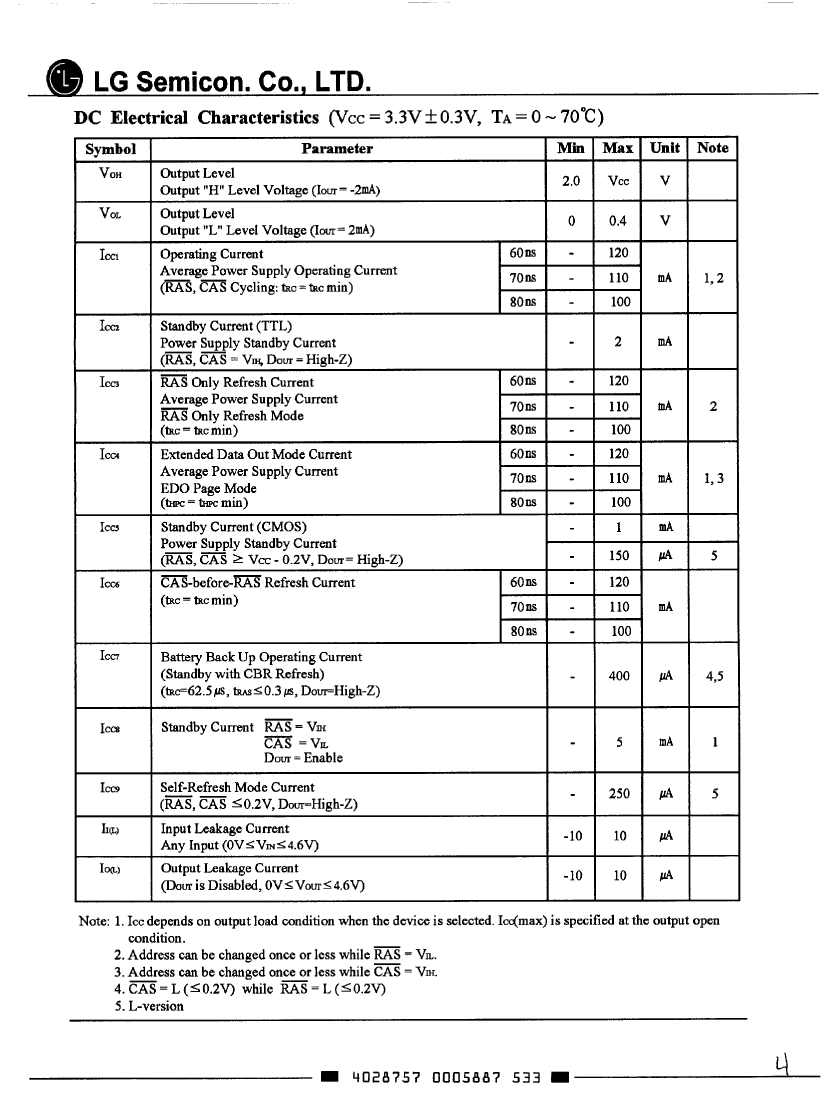

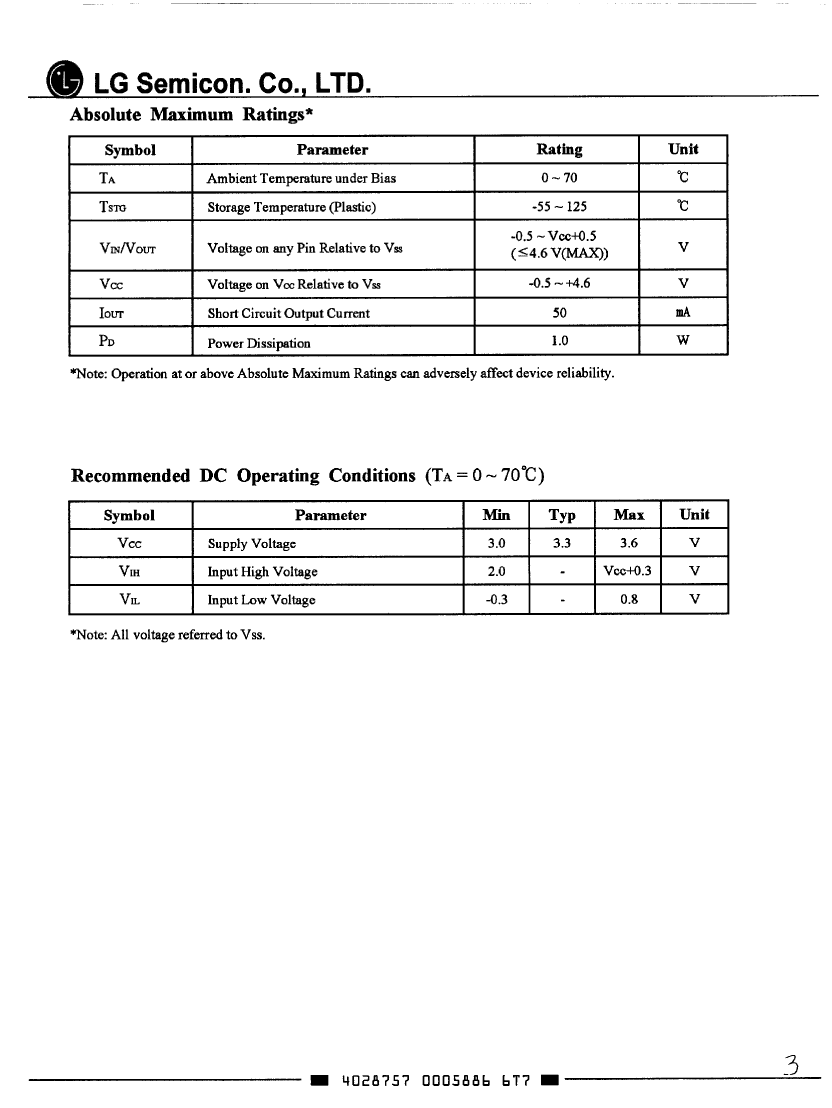

Preview

Download Datasheet

View All

GM71V17803BT-6 Related Products

	GM71V17803BT-6	GM71V17803BR-7	GM71VS17803BLR-7	GM71VS17803BLR-8
Description	EDO DRAM, 2MX8, 60ns, CMOS, PDSO28,	EDO DRAM, 2MX8, 70ns, CMOS, PDSO28,	EDO DRAM, 2MX8, 70ns, CMOS, PDSO28,	EDO DRAM, 2MX8, 80ns, CMOS, PDSO28,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	SK Hynix	SK Hynix	SK Hynix	SK Hynix
package instruction	TSOP, TSOP28,.46	TSOP, TSOP28,.46	TSOP, TSOP28,.46	TSOP, TSOP28,.46
Reach Compliance Code	compliant	compliant	compliant	compliant
Maximum access time	60 ns	70 ns	70 ns	80 ns
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28
JESD-609 code	e0	e0	e0	e0
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM
memory width	8	8	8	8
Number of terminals	28	28	28	28
word count	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	2MX8	2MX8	2MX8	2MX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP	TSOP	TSOP	TSOP
Encapsulate equivalent code	TSOP28,.46	TSOP28,.46	TSOP28,.46	TSOP28,.46
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
power supply	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	2048	2048	2048	2048
self refresh	NO	NO	YES	YES
Maximum standby current	0.001 A	0.001 A	0.00015 A	0.00015 A
Maximum slew rate	0.12 mA	0.11 mA	0.11 mA	0.1 mA
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
reverse pinout	-	YES	YES	YES
