5059-0-15-80-34-27-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 5059-0-15-80-34-27-10-0

5059-0-15-80-34-27-10-0: DescriptionPCB Terminal, ROHS COMPLIANT; CategoryThe connector terminals; File Size117KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5059-0-15-80-34-27-10-0 Overview

PCB Terminal, ROHS COMPLIANT

5059-0-15-80-34-27-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	5059-0
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL

Preview

Download Datasheet

View All

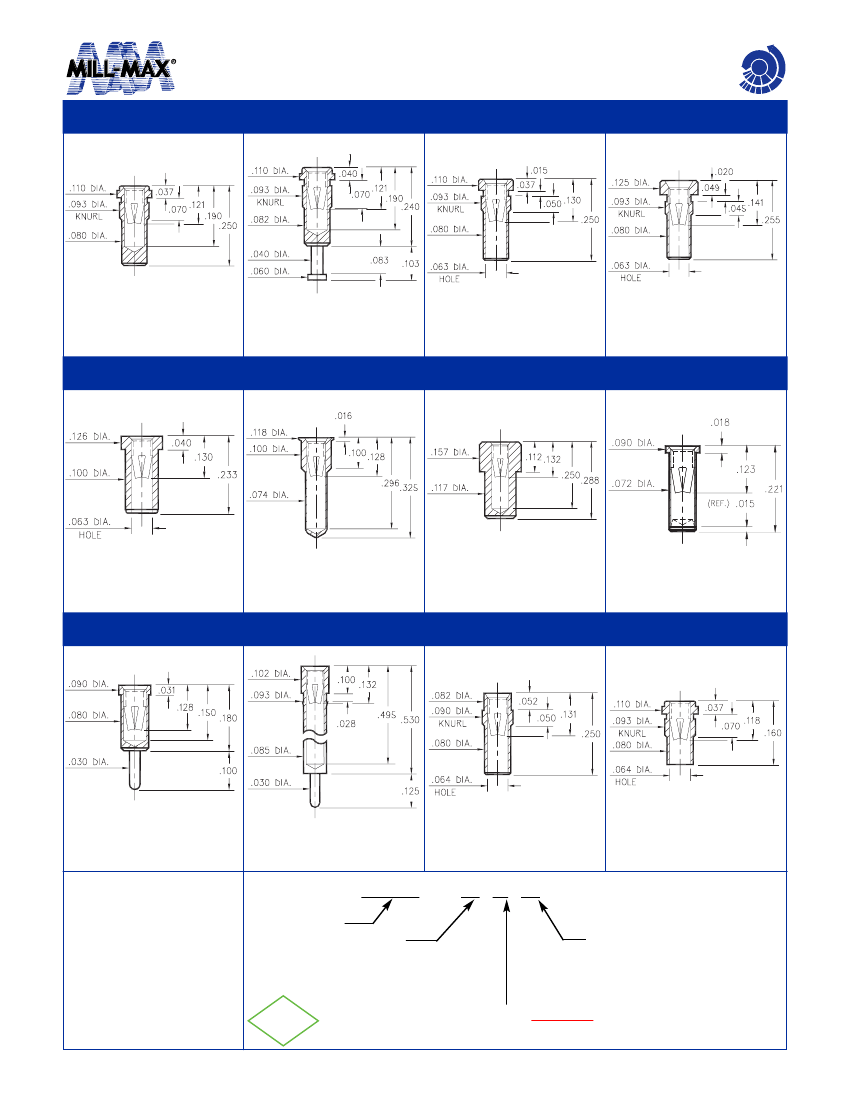

PIN RECEPTACLES

for .032” - .046” diameter pins

CHI

PINS

0359

0358

0360

0343

0359-0-15-XX-34-XX-10-0

Press-fit in .090 mounting hole

0358-0-15-XX-34-XX-10-0

Press-fit in .090 mounting hole

0360-0-15-XX-34-XX-10-0

Press-fit in .090 mounting hole

0343-0-15-XX-34-XX-10-0

Press-fit in .090 mounting hole

0356

6659

0347

0329

0356-0-15-XX-34-XX-10-0

Solder mount in .102 min.

mounting hole

6659-0-15-XX-34-XX-10-0

Solder mount in .102 min.

mounting hole

0347-0-15-XX-34-XX-10-0

Solder mount in .120 min.

mounting hole

0329-0-15-XX-34-XX-10-0

Solder mount in .075 min. mounting

hole. “knock out” bottom.

0814

5059

8360

9359

0814-0-15-XX-34-XX-04-0

Solder mount in .082 min.

mounting hole

5059-0-15-XX-34-XX-04-0

Press-fit in .090 mounting hole

8360-0-15-XX-34-XX-10-0

Press-fit in .087 mounting hole

9359-0-15-XX-34-XX-10-0

Press-fit in .090 mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - 0 - 15 - XX - 34 - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200μ” TIN/LEAD OVER NICKEL

200μ” TIN OVER NICKEL

10μ” GOLD OVER NICKEL

SPECIFY CONTACT FINISH:

200μ” TIN/LEAD OVER NICKEL

200μ” TIN OVER NICKEL

30μ” GOLD OVER NICKEL

CONTACT

#34

CONTACT (DATA ON PAGE 212)

w w w. m i l l - m a x . c o m

152

516-922-6000

5059-0-15-80-34-27-10-0 Related Products

	5059-0-15-80-34-27-10-0	5059-0-15-80-34-80-10-0	0814-0-15-80-34-80-10-0	0814-0-15-80-34-27-10-0	0814-0-15-15-34-27-10-0	0814-0-15-01-34-01-10-0	0814-0-15-15-34-80-10-0	MFR-50BRD52370R	MFR50SDBD26-267R	MFR50SDBD26-360K
Description	PCB Terminal, ROHS COMPLIANT	PCB Terminal, ROHS COMPLIANT	PCB Terminal, ROHS COMPLIANT	PCB Terminal, ROHS COMPLIANT	PCB Terminal, ROHS COMPLIANT	PCB Terminal	PCB Terminal, ROHS COMPLIANT	Fixed Resistor, Metal Film, 0.5W, 370ohm, 350V, 0.1% +/-Tol, -25,25ppm/Cel,	Fixed Resistor, Metal Film, 0.5W, 267ohm, 300V, 0.5% +/-Tol, -25,25ppm/Cel,	Fixed Resistor, Metal Film, 0.5W, 360000ohm, 300V, 0.5% +/-Tol, -25,25ppm/Cel,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	incompatible	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Contains lead	Lead free	-	-	-
Maker	Mill-Max	-	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max	-	-	-
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	-	-	-
Manufacturer's serial number	5059-0	5059-0	0814-0	0814-0	0814-0	0814-0	0814-0	-	-	-
terminal gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	-	-	-
Terminal and terminal strip types	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	-	-	-
Base Number Matches	-	1	1	1	1	1	1	-	-	-
