DCR1575SY36 datasheet, PDF - EEWORLD Datasheet

DCR1575SY36: DescriptionSilicon Controlled Rectifier, 1740000mA I(T), 3600V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size327KB，8 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

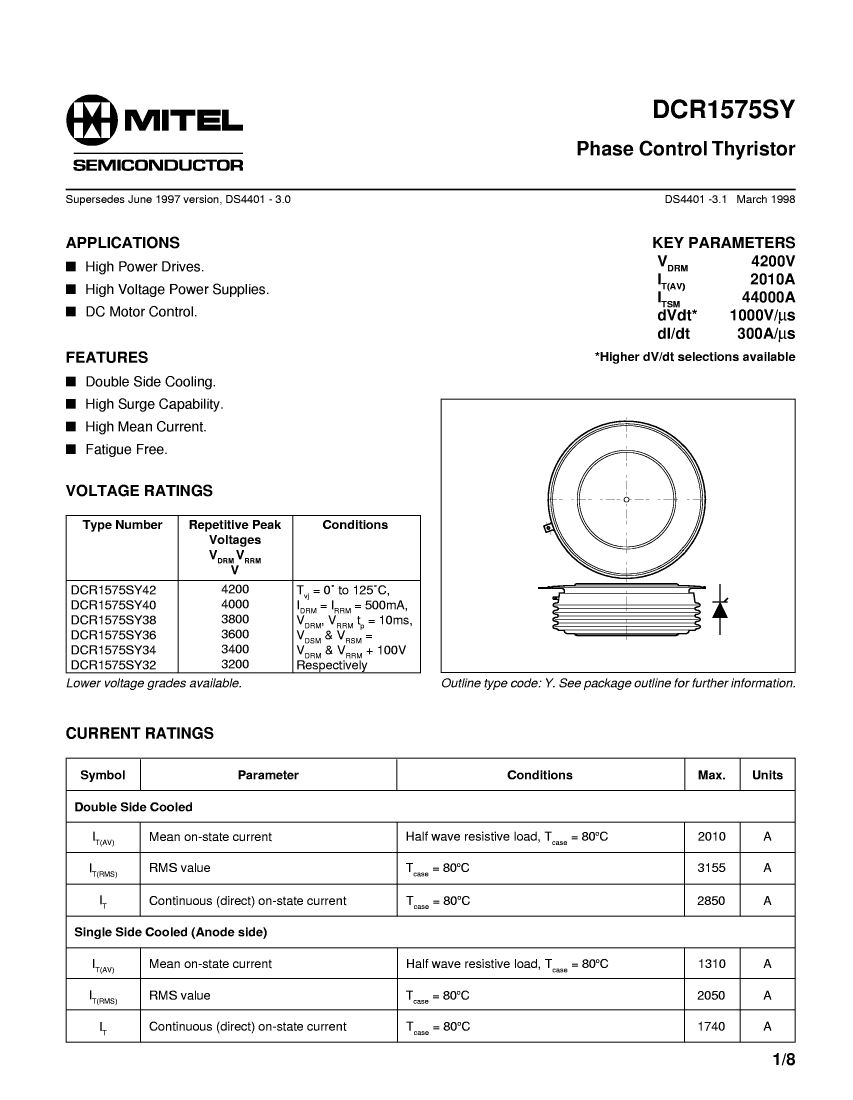

DCR1575SY36 Overview

Silicon Controlled Rectifier, 1740000mA I(T), 3600V V(DRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
Reach Compliance Code	unknown
ECCN code	EAR99

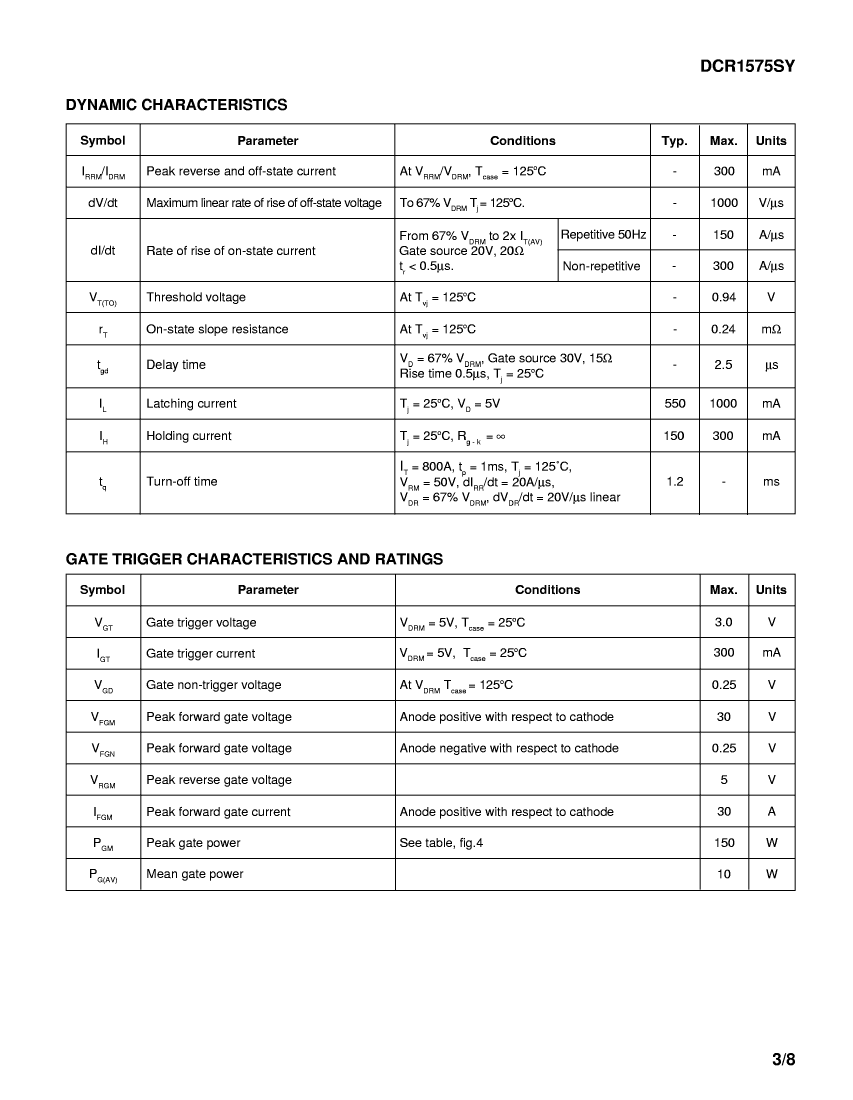

Nominal circuit commutation break time	1200 µs
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	300 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	300 mA

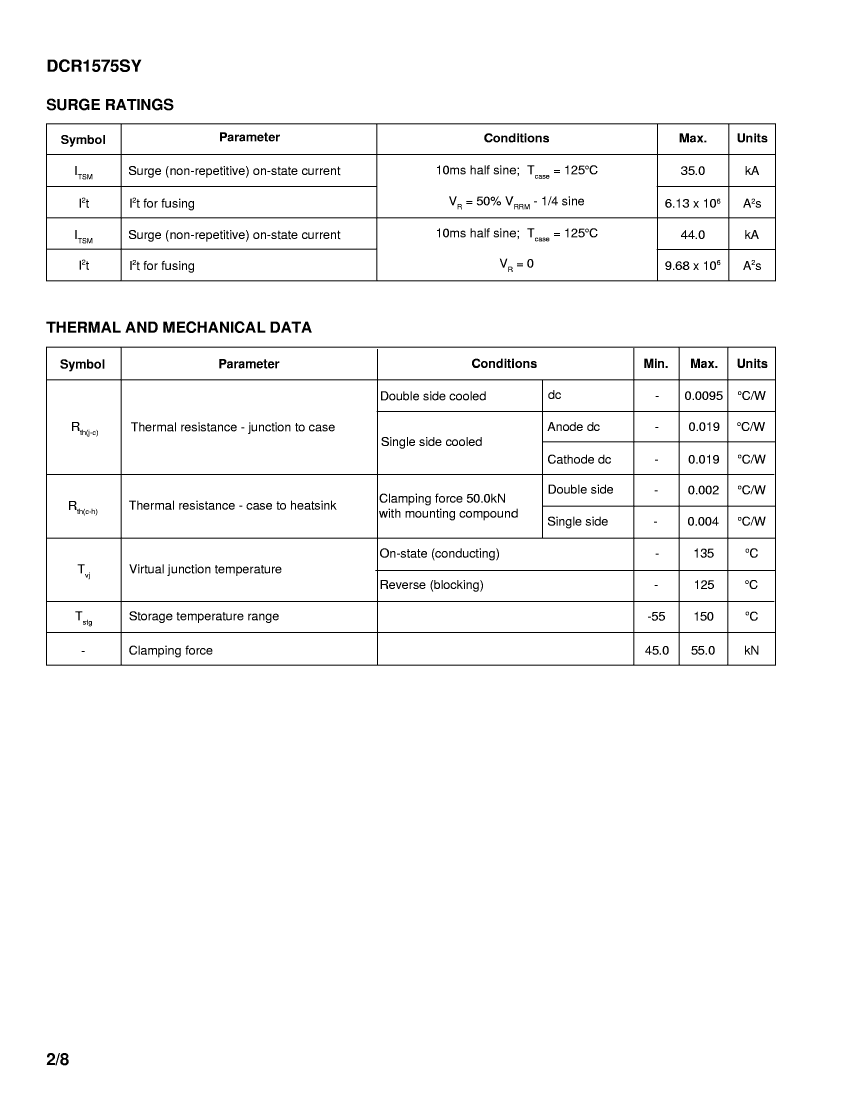

On-state non-repetitive peak current	35000 A

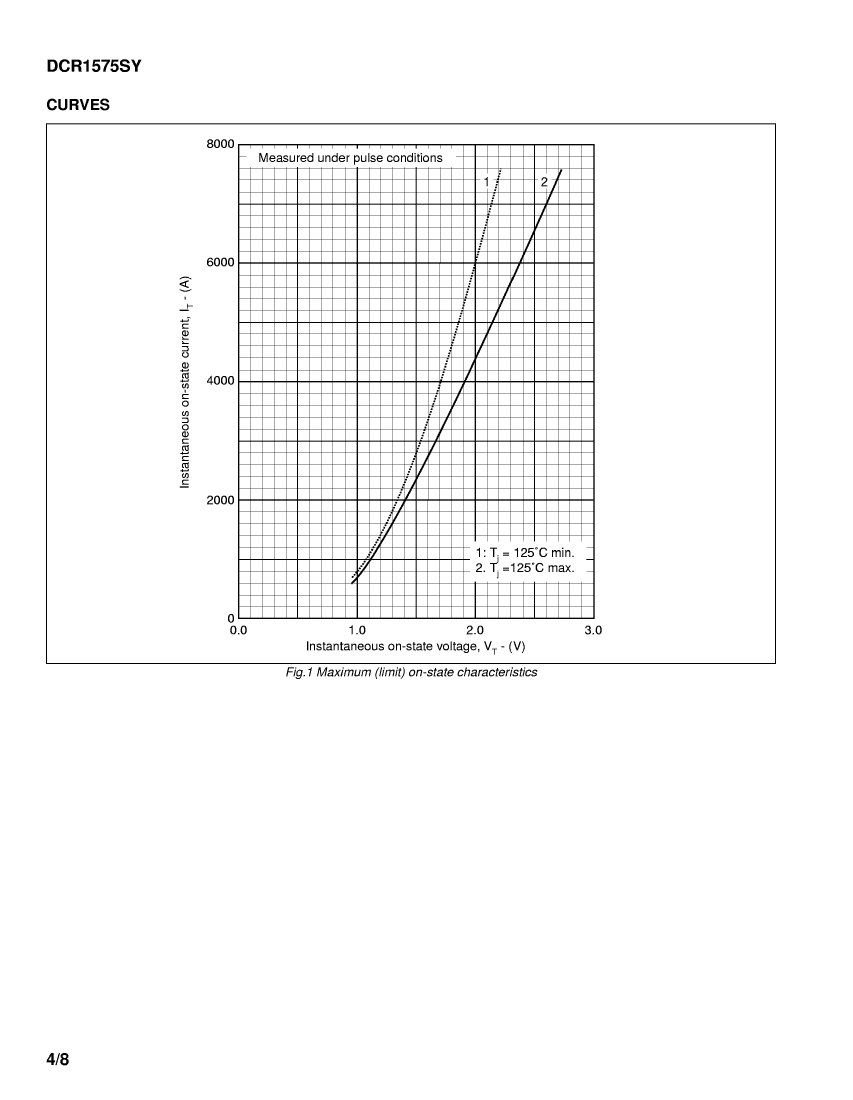

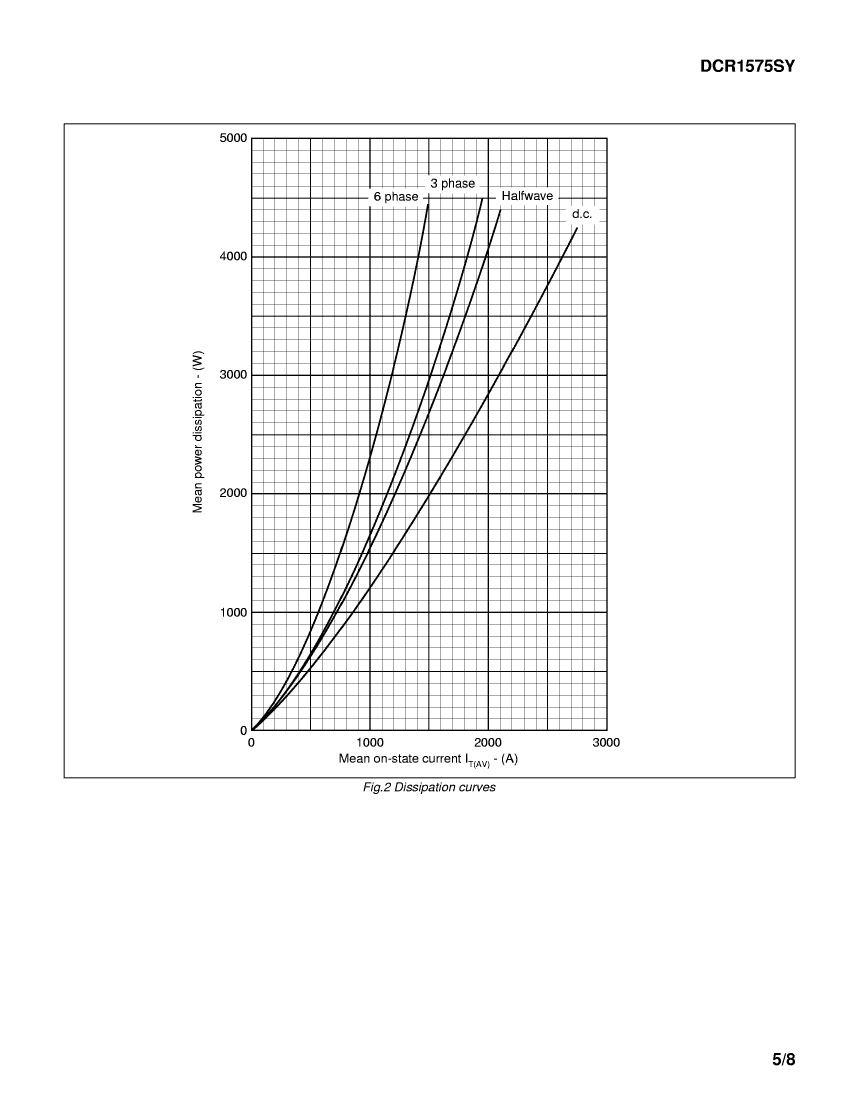

Maximum on-state current	1740000 A
Maximum operating temperature	125 °C
Off-state repetitive peak voltage	3600 V
surface mount	NO
Trigger device type	SCR

DCR1575SY36 Related Products

	DCR1575SY36	DCR1575SY32	DCR1575SY34	DCR1575SY38	DCR1575SY40	DCR1575SY42
Description	Silicon Controlled Rectifier, 1740000mA I(T), 3600V V(DRM),	Silicon Controlled Rectifier, 1740000mA I(T), 3200V V(DRM),	Silicon Controlled Rectifier, 1740000mA I(T), 3400V V(DRM),	Silicon Controlled Rectifier, 1740000mA I(T), 3800V V(DRM),	Silicon Controlled Rectifier, 1740000mA I(T), 4000V V(DRM),	Silicon Controlled Rectifier, 1740000mA I(T), 4200V V(DRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Nominal circuit commutation break time	1200 µs	1200 µs	1200 µs	1200 µs	1200 µs	1200 µs
Critical rise rate of minimum off-state voltage	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us
Maximum DC gate trigger current	300 mA	300 mA	300 mA	300 mA	300 mA	300 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V	3 V	3 V
Maximum holding current	300 mA	300 mA	300 mA	300 mA	300 mA	300 mA
On-state non-repetitive peak current	35000 A	35000 A	35000 A	35000 A	35000 A	35000 A
Maximum on-state current	1740000 A	1740000 A	1740000 A	1740000 A	1740000 A	1740000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Off-state repetitive peak voltage	3600 V	3200 V	3400 V	3800 V	4000 V	4200 V
surface mount	NO	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR
