DCR1674SZ39 datasheet, PDF - EEWORLD Datasheet

DCR1674SZ39: DescriptionSilicon Controlled Rectifier, 2650000mA I(T), 3900V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size324KB，8 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

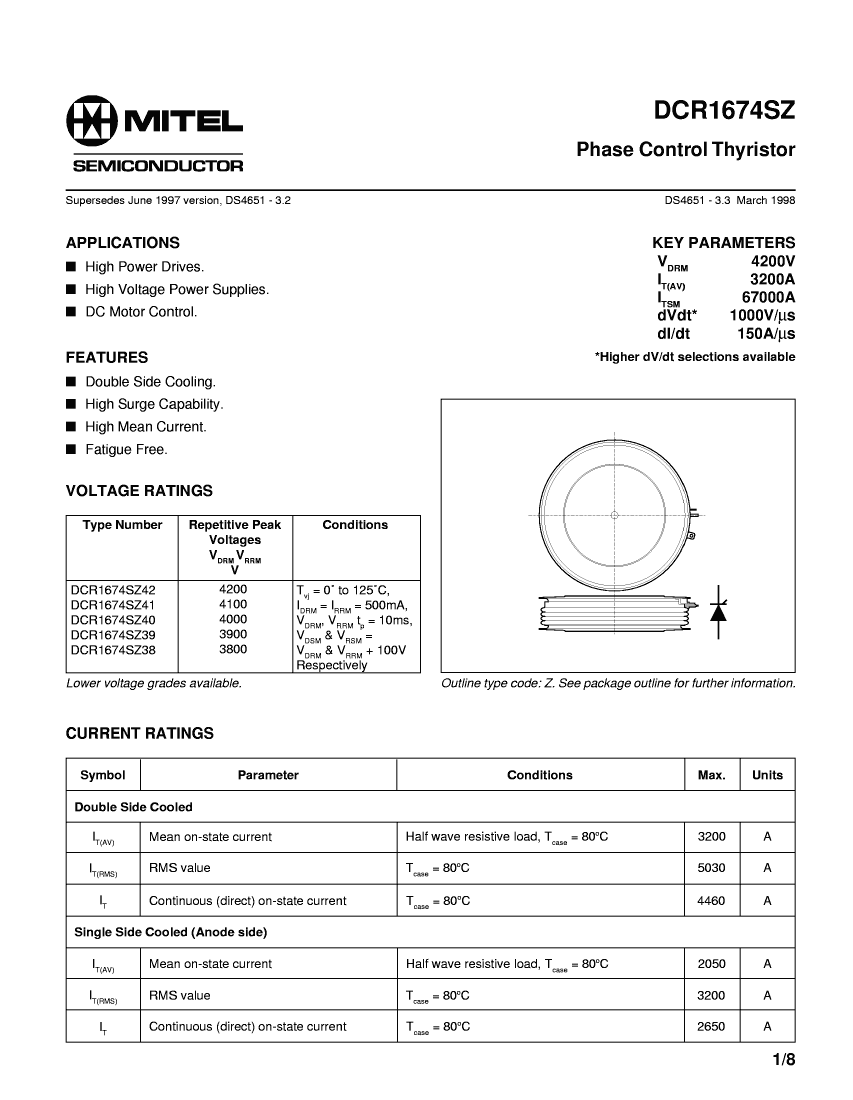

DCR1674SZ39 Overview

Silicon Controlled Rectifier, 2650000mA I(T), 3900V V(DRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
Reach Compliance Code	unknown
ECCN code	EAR99

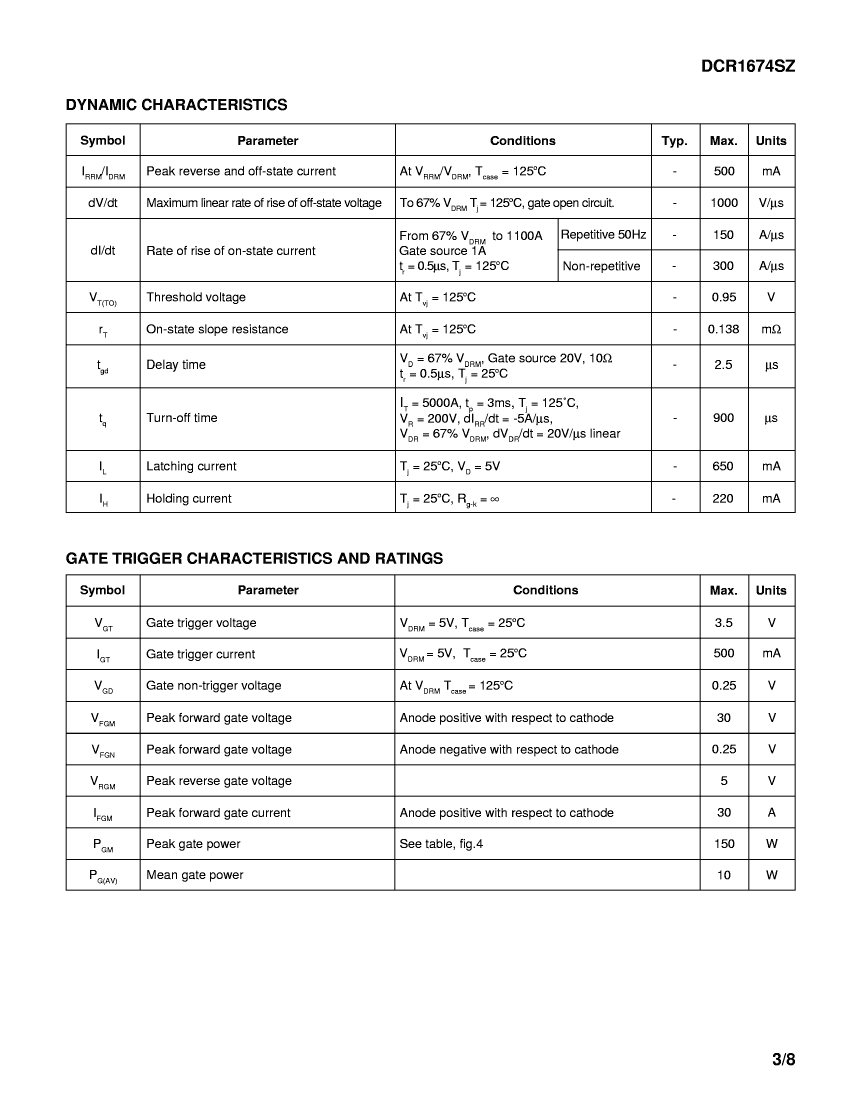

Nominal circuit commutation break time	900 µs
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	500 mA
Maximum DC gate trigger voltage	3.5 V
Maximum holding current	220 mA

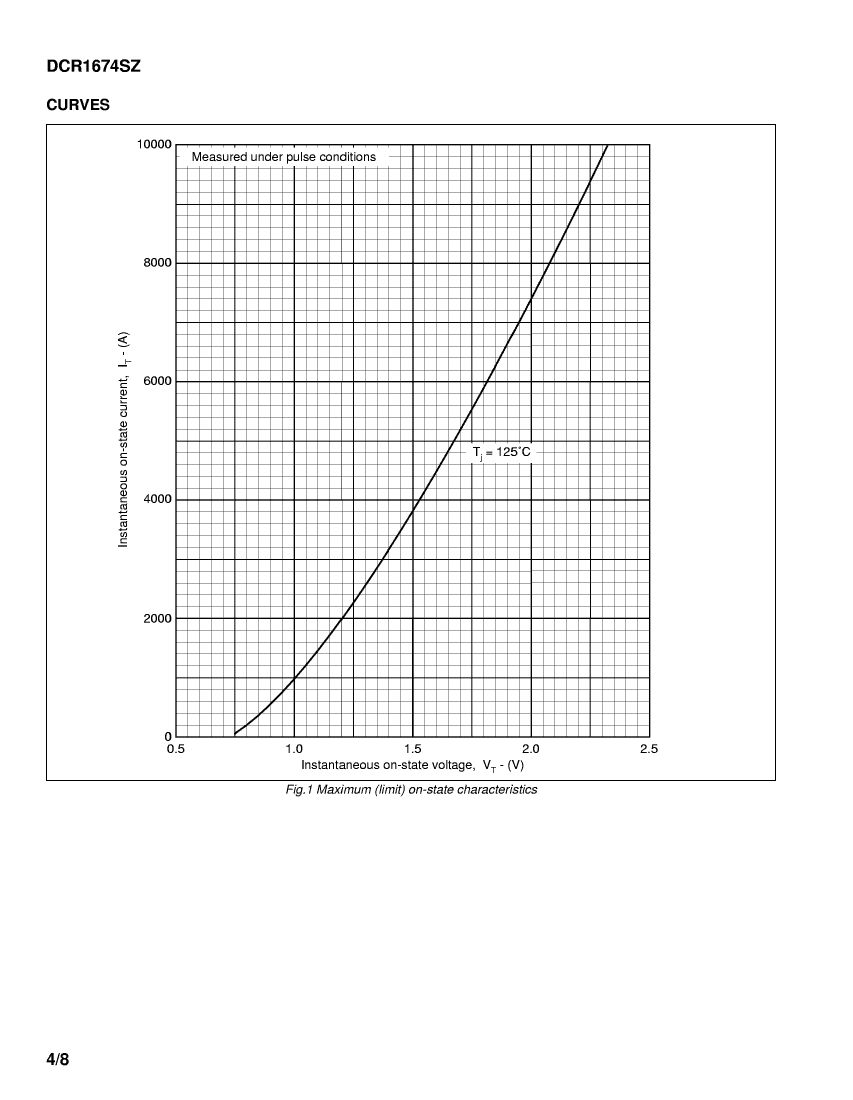

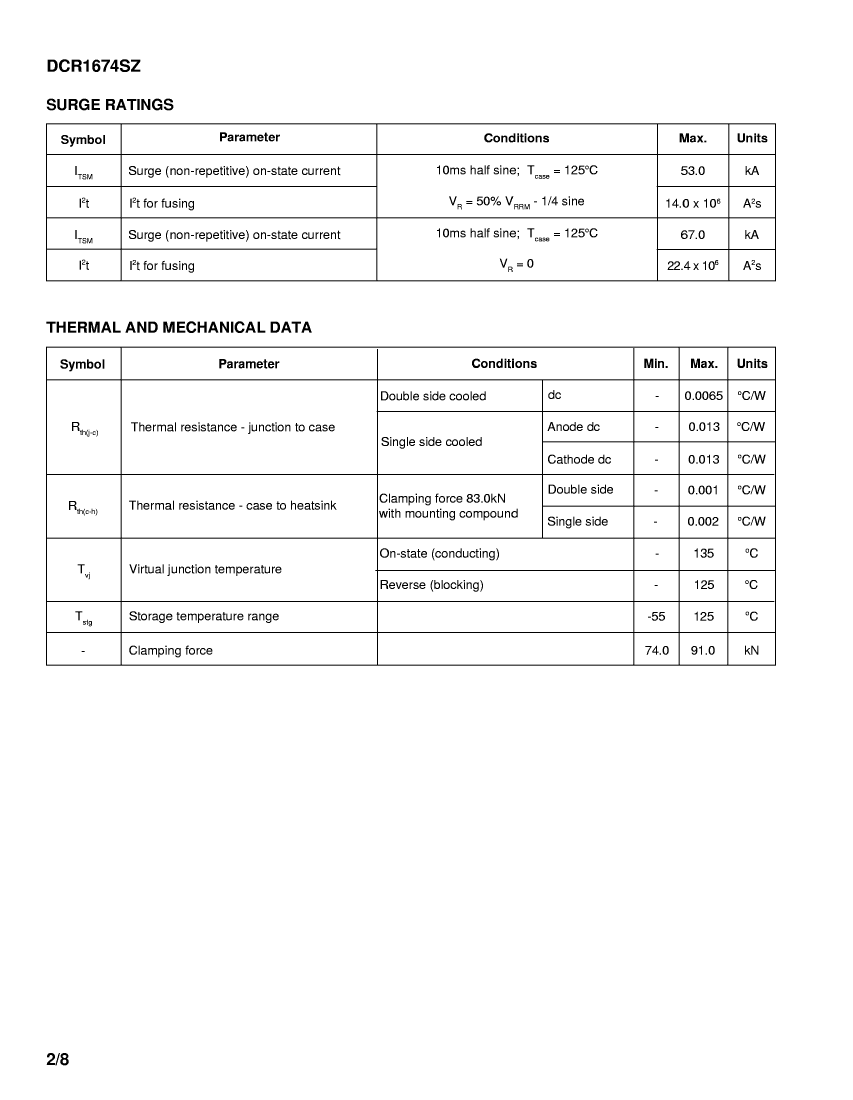

On-state non-repetitive peak current	53000 A

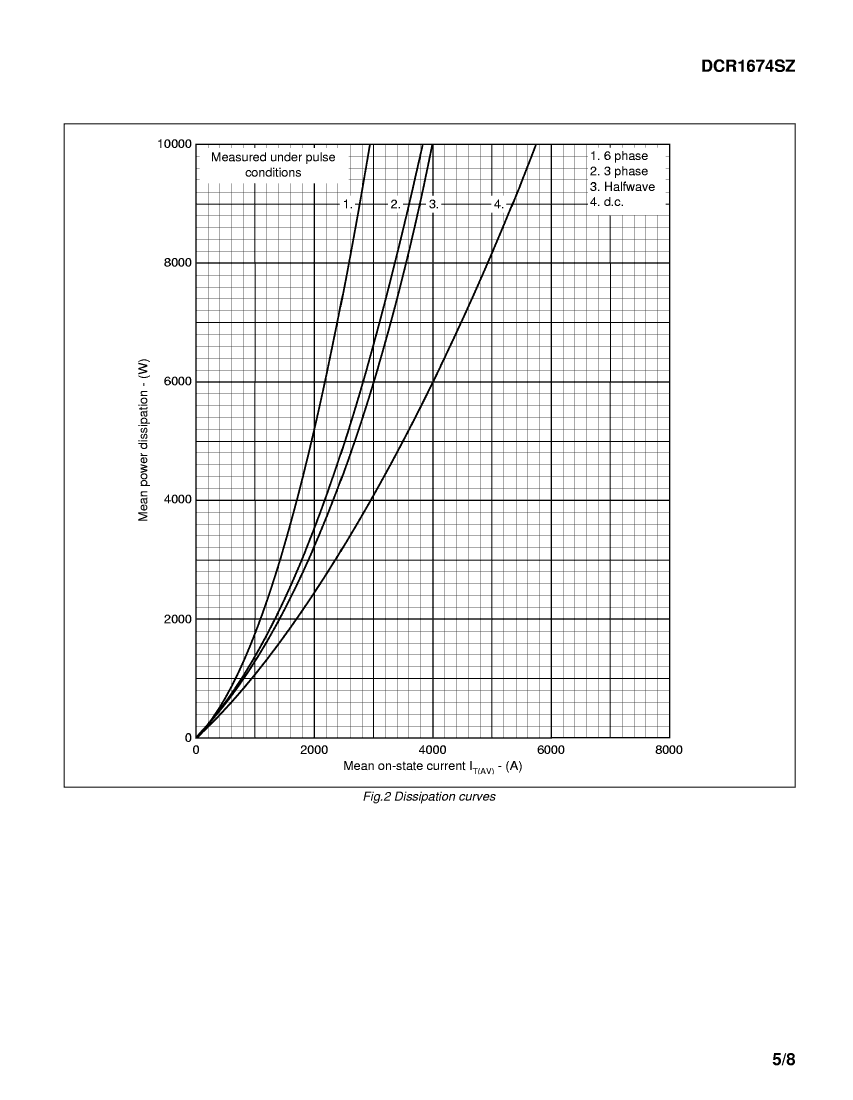

Maximum on-state current	2650000 A
Maximum operating temperature	125 °C
Off-state repetitive peak voltage	3900 V
surface mount	NO
Trigger device type	SCR

	DCR1674SZ39	DCR1674SZ38	DCR1674SZ40	DCR1674SZ41	DCR1674SZ42
Description	Silicon Controlled Rectifier, 2650000mA I(T), 3900V V(DRM),	Silicon Controlled Rectifier, 2650000mA I(T), 3800V V(DRM),	Silicon Controlled Rectifier, 2650000mA I(T), 4000V V(DRM),	Silicon Controlled Rectifier, 2650000mA I(T), 4100V V(DRM),	Silicon Controlled Rectifier, 2650000mA I(T), 4200V V(DRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Nominal circuit commutation break time	900 µs	900 µs	900 µs	900 µs	900 µs
Critical rise rate of minimum off-state voltage	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us
Maximum DC gate trigger current	500 mA	500 mA	500 mA	500 mA	500 mA
Maximum DC gate trigger voltage	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V
Maximum holding current	220 mA	220 mA	220 mA	220 mA	220 mA
On-state non-repetitive peak current	53000 A	53000 A	53000 A	53000 A	53000 A
Maximum on-state current	2650000 A	2650000 A	2650000 A	2650000 A	2650000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Off-state repetitive peak voltage	3900 V	3800 V	4000 V	4100 V	4200 V
surface mount	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR
