Part Number

Search

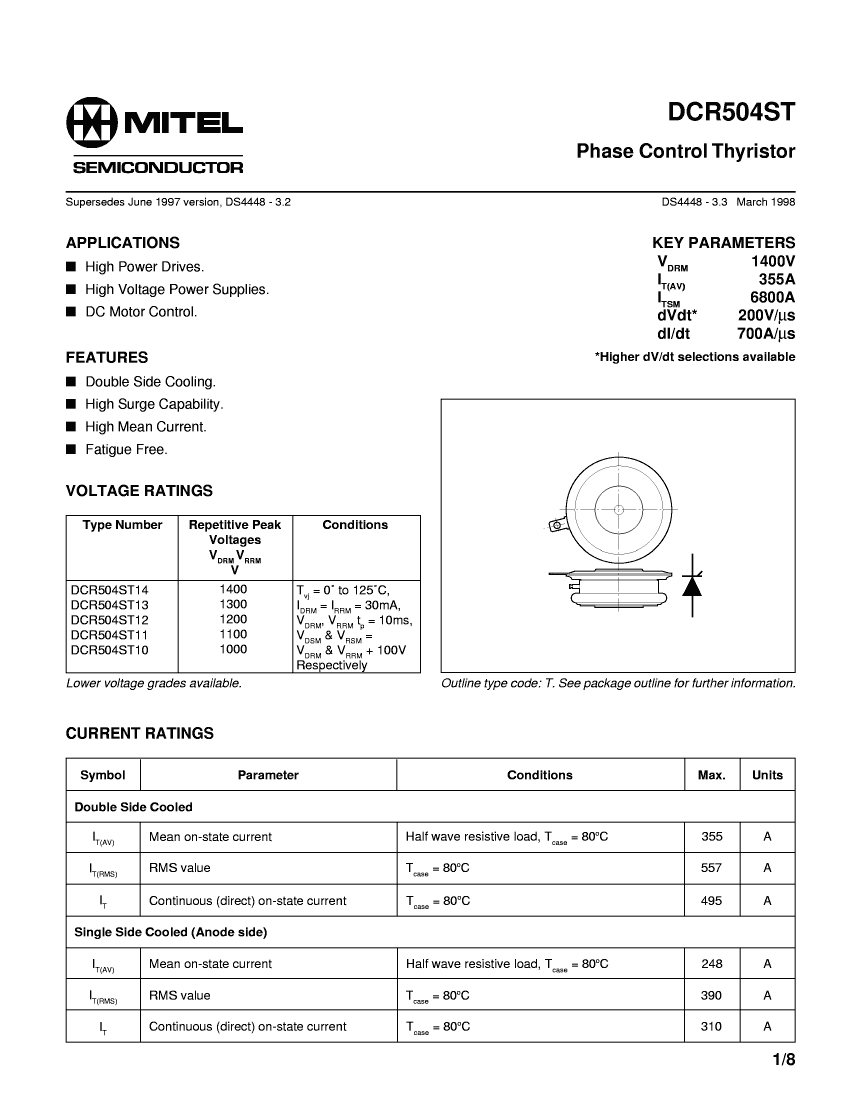

DCR504ST14

Description
Silicon Controlled Rectifier, 310000mA I(T), 1400V V(DRM),
CategoryAnalog mixed-signal IC    Trigger device
File Size309KB,8 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric Compare View All

DCR504ST14 Overview

Silicon Controlled Rectifier, 310000mA I(T), 1400V V(DRM),

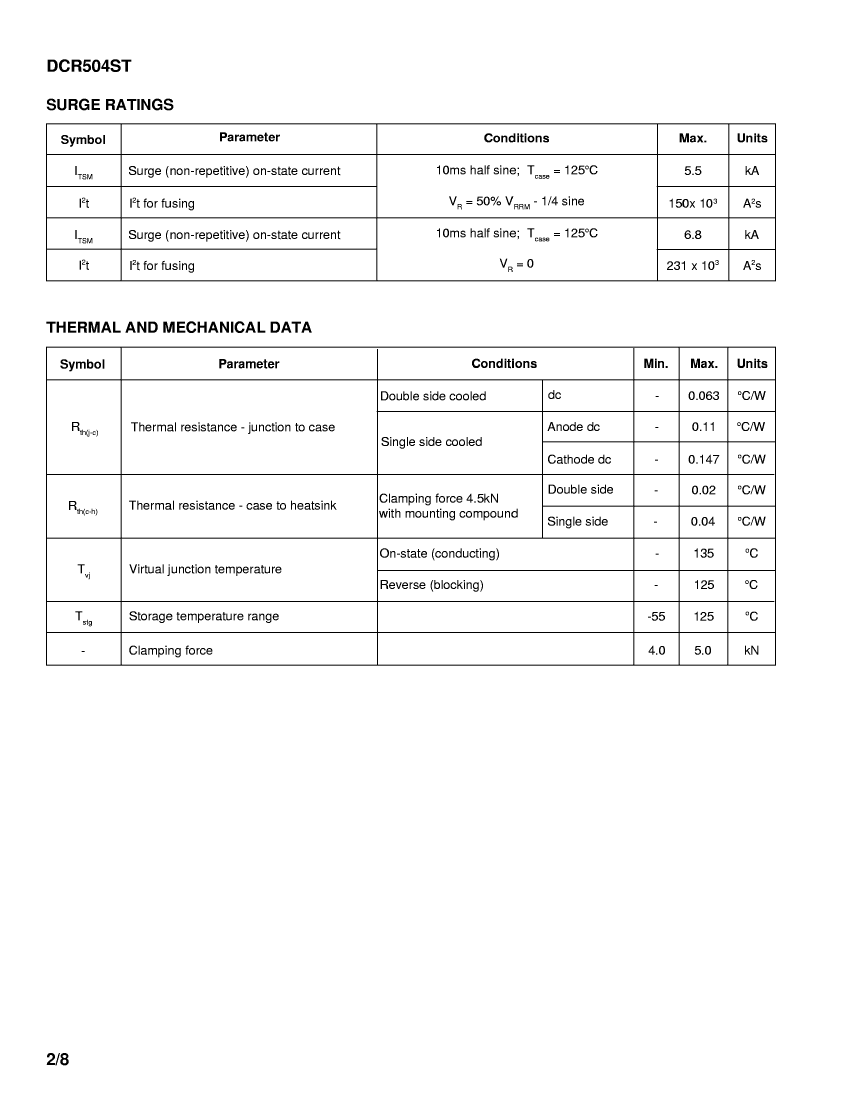

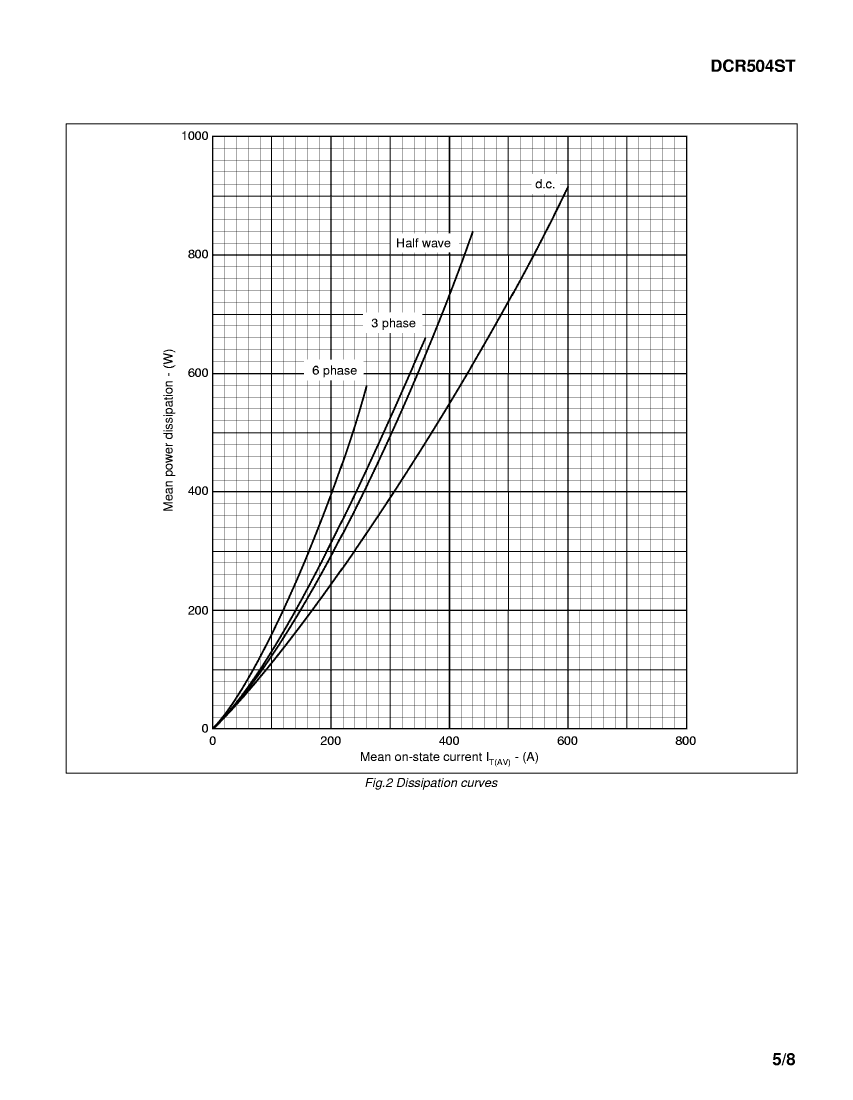

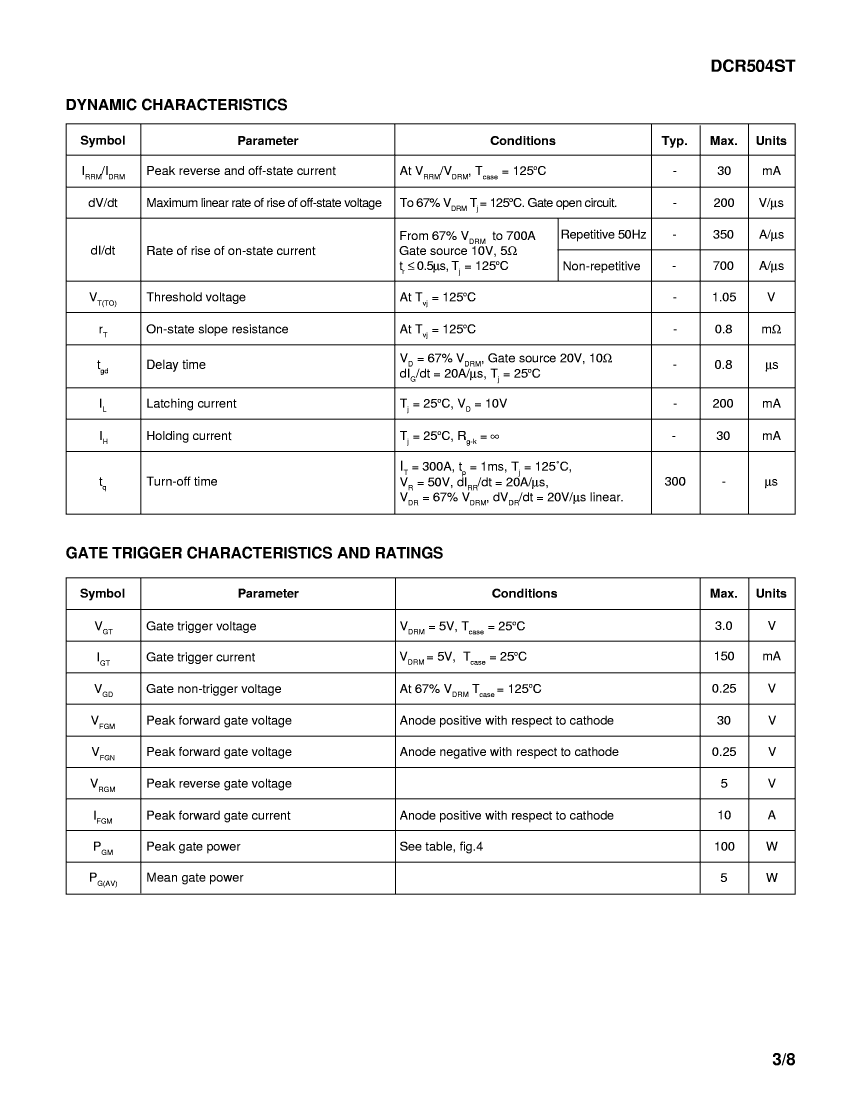

DCR504ST14 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMicrosemi
Reach Compliance Codeunknown
ECCN codeEAR99
Nominal circuit commutation break time300 µs
Critical rise rate of minimum off-state voltage200 V/us
Maximum DC gate trigger current150 mA
Maximum DC gate trigger voltage3 V
Maximum holding current30 mA
On-state non-repetitive peak current5500 A
Maximum on-state current310000 A
Maximum operating temperature125 °C
Off-state repetitive peak voltage1400 V
surface mountNO
Trigger device typeSCR

DCR504ST14 Related Products

DCR504ST14 DCR504ST10 DCR504ST11 DCR504ST12 DCR504ST13
Description Silicon Controlled Rectifier, 310000mA I(T), 1400V V(DRM), Silicon Controlled Rectifier, 310000mA I(T), 1000V V(DRM), Silicon Controlled Rectifier, 310000mA I(T), 1100V V(DRM), Silicon Controlled Rectifier, 310000mA I(T), 1200V V(DRM), Silicon Controlled Rectifier, 310000mA I(T), 1300V V(DRM),
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible
Maker Microsemi Microsemi Microsemi Microsemi Microsemi
Reach Compliance Code unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99
Nominal circuit commutation break time 300 µs 300 µs 300 µs 300 µs 300 µs
Critical rise rate of minimum off-state voltage 200 V/us 200 V/us 200 V/us 200 V/us 200 V/us
Maximum DC gate trigger current 150 mA 150 mA 150 mA 150 mA 150 mA
Maximum DC gate trigger voltage 3 V 3 V 3 V 3 V 3 V
Maximum holding current 30 mA 30 mA 30 mA 30 mA 30 mA
On-state non-repetitive peak current 5500 A 5500 A 5500 A 5500 A 5500 A
Maximum on-state current 310000 A 310000 A 310000 A 310000 A 310000 A
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C
Off-state repetitive peak voltage 1400 V 1000 V 1100 V 1200 V 1300 V
surface mount NO NO NO NO NO
Trigger device type SCR SCR SCR SCR SCR
