DCR1275SD25 datasheet, PDF - EEWORLD Datasheet

DCR1275SD25: DescriptionSilicon Controlled Rectifier, 1200000mA I(T), 2500V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size310KB，8 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

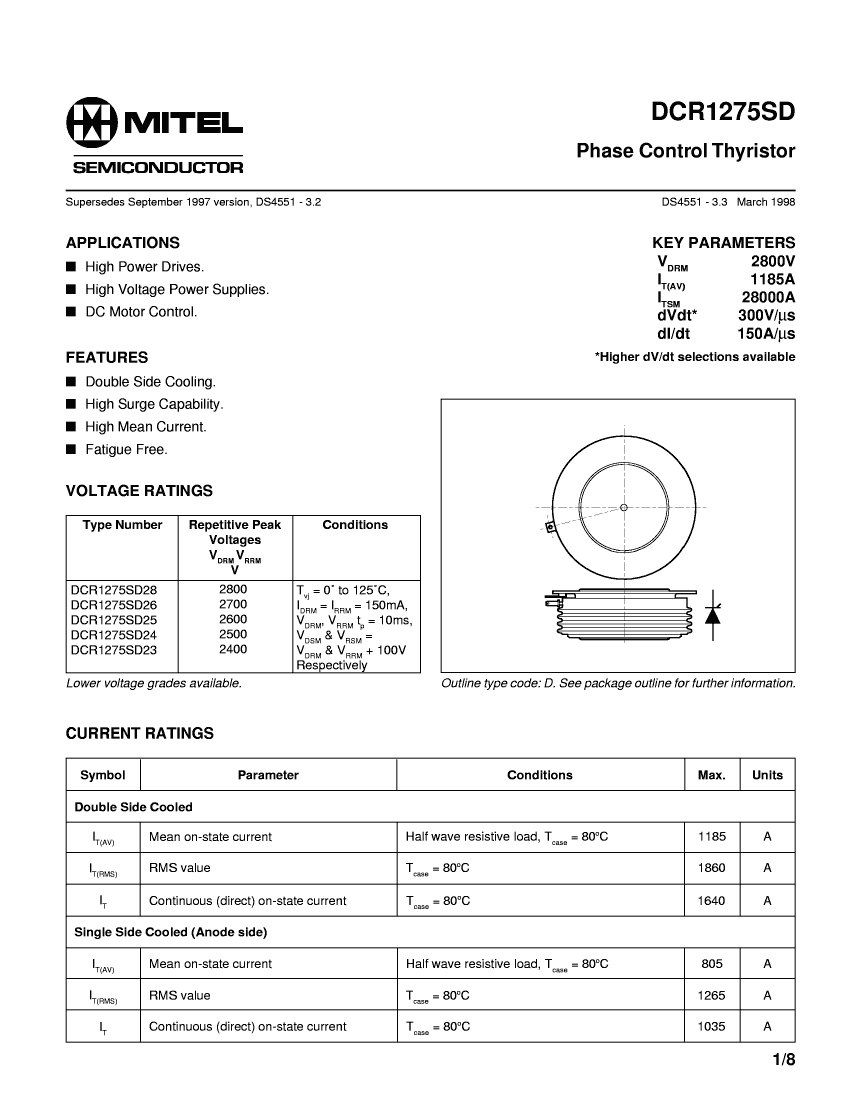

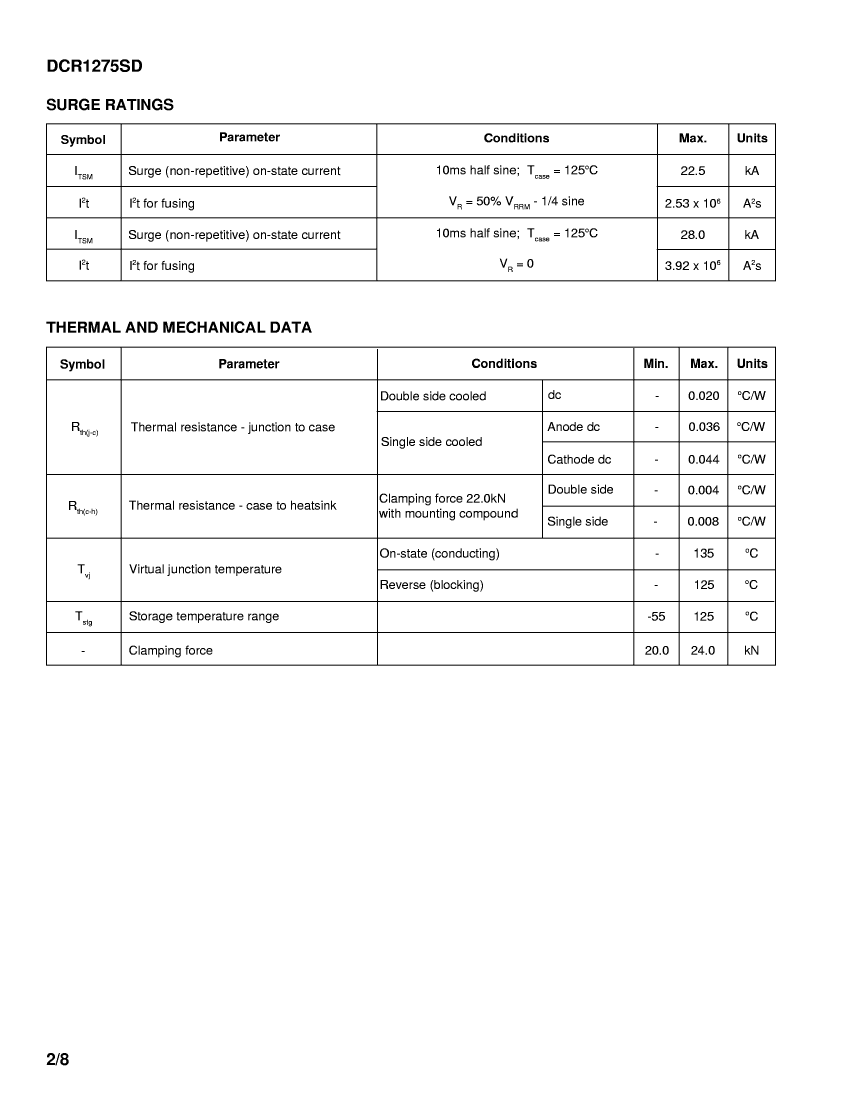

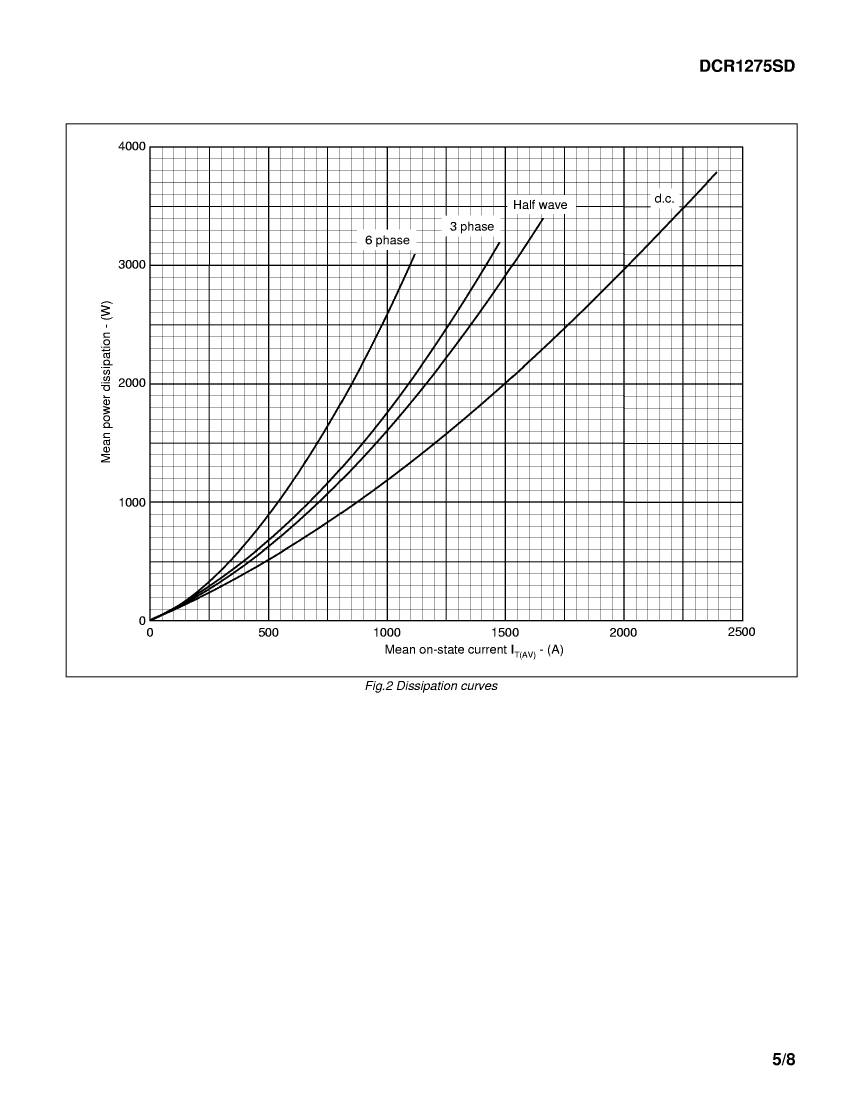

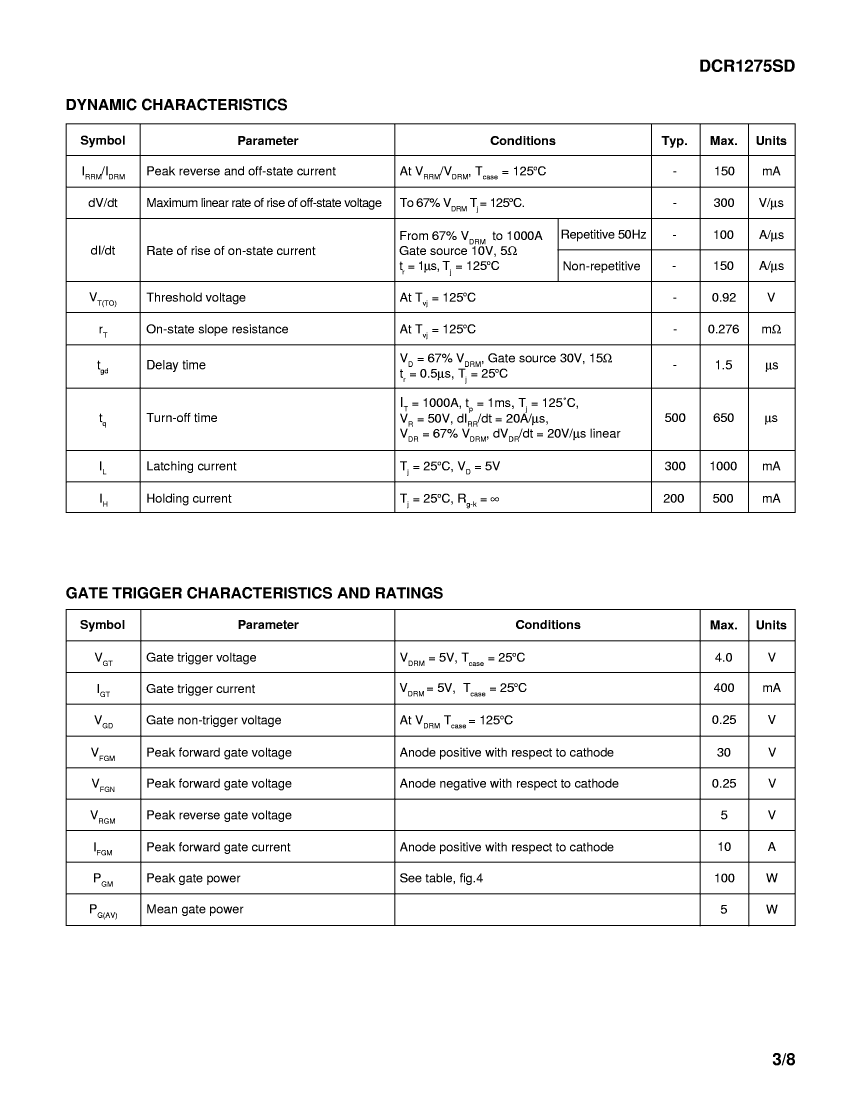

DCR1275SD25 Overview

Silicon Controlled Rectifier, 1200000mA I(T), 2500V V(DRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
Reach Compliance Code	unknown
ECCN code	EAR99
Nominal circuit commutation break time	500 µs
Critical rise rate of minimum off-state voltage	300 V/us
Maximum DC gate trigger current	400 mA
Maximum DC gate trigger voltage	4 V
Maximum holding current	500 mA
Maximum leakage current	150 mA
On-state non-repetitive peak current	23000 A
Maximum on-state current	1200000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Off-state repetitive peak voltage	2500 V
surface mount	NO
Trigger device type	SCR

	DCR1275SD25	DCR1275SD23	DCR1275SD24	DCR1275SD26	DCR1275SD28
Description	Silicon Controlled Rectifier, 1200000mA I(T), 2500V V(DRM),	Silicon Controlled Rectifier, 1200000mA I(T), 2300V V(DRM),	Silicon Controlled Rectifier, 1200000mA I(T), 2400V V(DRM),	Silicon Controlled Rectifier, 1200000mA I(T), 2600V V(DRM),	Silicon Controlled Rectifier, 1200000mA I(T), 2800V V(DRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Nominal circuit commutation break time	500 µs	500 µs	500 µs	500 µs	500 µs
Critical rise rate of minimum off-state voltage	300 V/us	300 V/us	300 V/us	300 V/us	300 V/us
Maximum DC gate trigger current	400 mA	400 mA	400 mA	400 mA	400 mA
Maximum DC gate trigger voltage	4 V	4 V	4 V	4 V	4 V
Maximum holding current	500 mA	500 mA	500 mA	500 mA	500 mA
Maximum leakage current	150 mA	150 mA	150 mA	150 mA	150 mA
On-state non-repetitive peak current	23000 A	23000 A	23000 A	23000 A	23000 A
Maximum on-state current	1200000 A	1200000 A	1200000 A	1200000 A	1200000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Off-state repetitive peak voltage	2500 V	2300 V	2400 V	2600 V	2800 V
surface mount	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR
