LegacyPlus

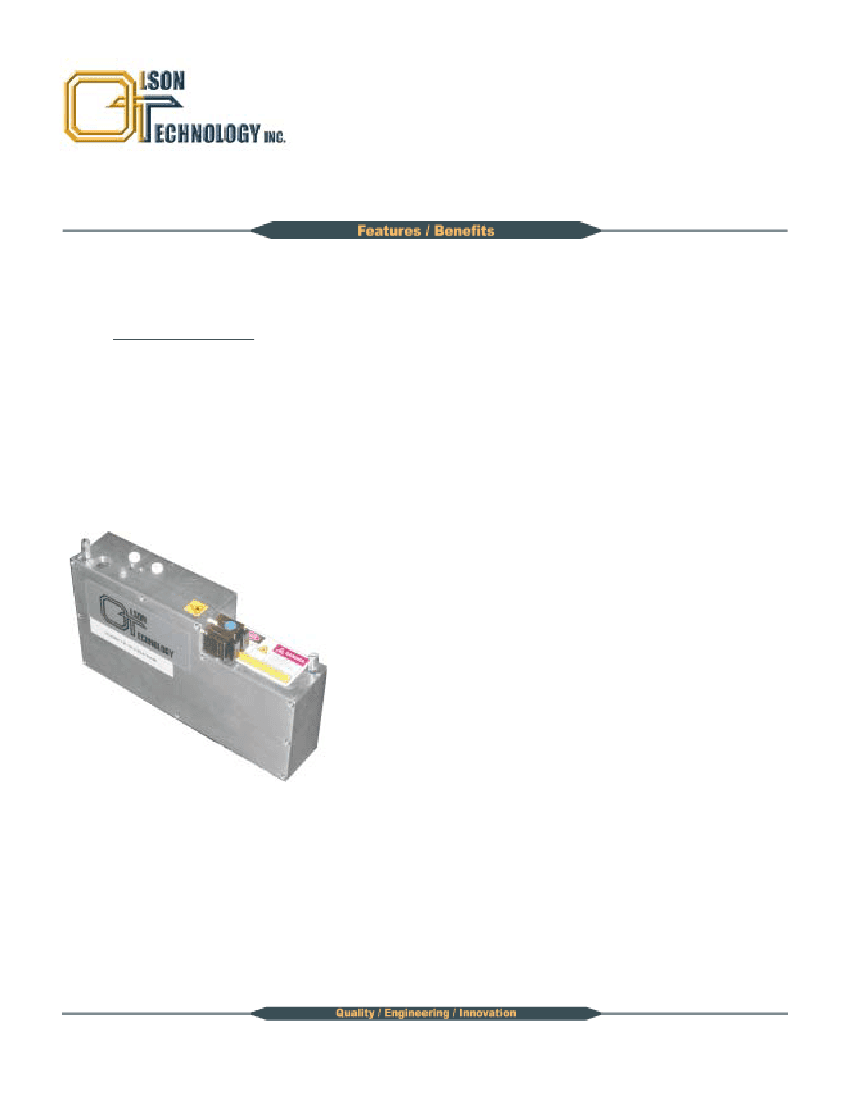

ISX-30xx Return Path Transmitter
Replacement/Upgrade Transmitter Modules for ADC/C-COR ISX30xx HFC Nodes
•
•
•
•
•
•
•
•
•
•
F-P, DFB (1310 or 1550nm) or CWDM (ITU-grid 1470-1610nm) return path optical transmitters
For the installed base of ADC/C-COR ISX-30xx HFC optical nodes
Designed to perform significantly better than or equal to the original Model # IX40-RPTX modules
Reduced laser clipping in VoIP deployments via DFB or CWDM module replacement of F-P lasers
Also ideal for systems undergoing “node splitting” for return path segmentation purposes
DUAL LASER OPTION in the module to facilitate return path segmentation and/or redundancy
Plug-in pad attenuator facilitates easy adjustment of RF Input drive level
Convenient DC test point scaled to Optical Output power (1V/mW)
Low power consumption & good heat dissipation for increased service life and reliability
Field proven since 1999: Olson TX & RX modules successfully deployed in 1000’s of nodes worldwide
The
OLSON TECHNOLOGY, INC. ( OTI )
LegacyPlus series of Replacement & Upgrade Modules for Installed HFC Optical
Nodes
is a high performance, low cost, field proven group of custom engineered products specifically designed to upgrade the
functionality of installed optical nodes from many major manufacturers by dramatically increasing upstream or downstream
bandwidth without having to replace optical nodes or deploy extra fiber, 1550nm ITU grid DWDM lasers, baseband digital
reverse modules, or other expensive return path segmentation technologies.
OLSON TECHNOLOGY, INC. ( OTI )
LegacyPlus ISX-30xx Return Path
Transmitter Modules
have been specifically designed so that node modules
can be replaced, if needed, with any module or unit of the same type and the
same optical and electrical specifications from ADC/C-COR, the original
manufacturer of the ISX-30xx node family. Hence, the replacement of a node
based Return Path Transmitter Module does not require replacement of the
corresponding headend optical receiver or vice versa.
LegacyPlus
products provide outstanding return path performance, system
design flexibility and scalability in almost any network architecture from
traditional Hybrid Fiber Coax (HFC) to the newer fiber deep Targeted Service
Delivery (TSD) area topologies. There are two general types of reverse
transmitters available: (1) Fabry-Perot (F-P) type, which are lower priced and
designed for low traffic data carrier transmission applications with less
stringent performance requirements (i.e. element management, set top box
communications, etc.), and; (2) DFB/CWDM-type, which support analog video
channels and/or high capacity data traffic (i.e. Internet access, telephony, etc.).
The introduction of VoIP telephony adds even tougher constraints to return path performance. Originally deployed F-P
transmitter modules tend to exhibit laser clipping. One of the end results of clipping is packet loss, which is very detrimental to
VoIP.
LegacyPlus
DFB & CWDM TX modules, with their inherently higher dynamic range, provide cost effective and robust
migration alternatives to F-P laser reverse transmitters during pre-VoIP plant upgrades.
In addition to the many “standard”
LegacyPlus
modules currently available to system operators,
OLSON TECHNOLOGY, INC.
( OTI )
continues to work with MSOs to define, refine, develop and manufacture new solutions custom tailored to their individual
system requirements. For the latest information or to discuss possible module availability or design for unlisted nodes, please
contact
OLSON TECHNOLOGY, INC. ( OTI )
directly.
www.olsontech.com
LegacyPlus
ISX30xx Return Path Transmitter
Specifications
(Return Path Optical Transmitters: F-P, DFB & CWDM)
RF INPUT & PERFORMANCE PARAMETERS:
Frequency Response Range
(+/- 1.0 dB)
Return Path NPR
(DFB/CWDM)
*
Return Path Threshold
(DFB/CWDM)
*
Return Path NPR
(F-P)
*
Return Path Threshold
(F-P)
*
Input Return Loss
Input Level **
5 MHz to 220 MHz
> 15dB over 41dB NPR*
-57 dBmV/Hz
(@41dB NPR Threshold)
> 15dB over 37 dB NPR*
-57 dBmV/Hz
(@37 dB NPR Threshold)
> 16 dB
(see graph)
**

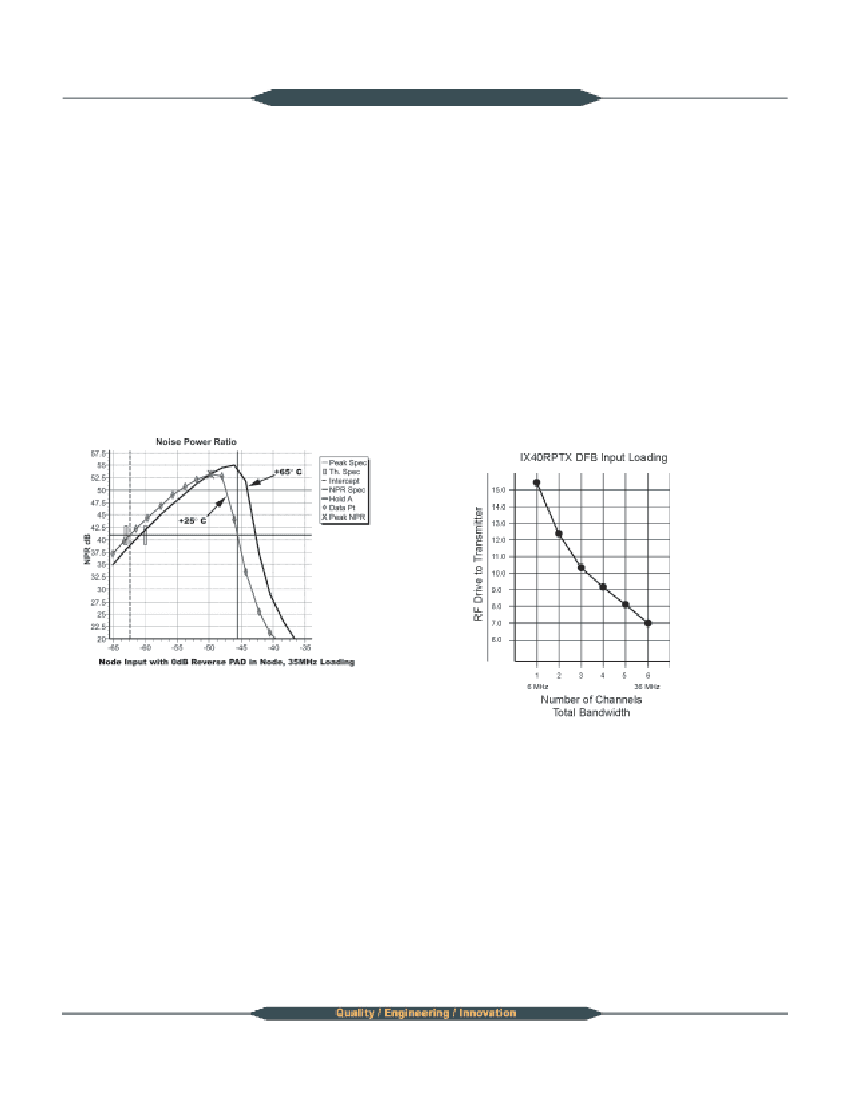

* NOTE: As measured with 10dB of fiber & Olson Model # OTOR-300 Return Receiver and 6-channel 35MHz loading, with +7
dBmV per channel RF Input (to transmitter).
** NOTE: Olson ISX-30xx DFB/CWDM R-TXs have minimum 7dB of additional gain available for CNR improvement in lower
channel or bandwidth loading scenarios. For example, if only 2 channels are used, the NPR curve (see graph) allows for an
additional 5 dB of RF input level without inducing laser clipping to improve the CNR level accordingly.
OPTICAL OUTPUT PARAMETERS:
Optical Output
(F-P)
Optical Output
(DFB)
Optical Output
(CWDM)
Return Loss
Optical Connector
USER INTERFACE
Optical Output Level
Optical Power Alarm
Interstage RF Plug-In SXP Pad Pad
2.0 mW (unisolated and isolated versions) @ 1310nm
1.0, 2.0 or 3.0 mW @ 1310nm / 2.5 mW @ 1550nm
2.5mW @ 1470, 1490, 1510, 1530, 1550, 1570, 1590 or 1610nm
> 60 dB with APC connector
SC/APC standard; FC/APC optional (8°APC); SC/UPC optional
1V/mW
Green / Red LED
7 dB to control Input RF signal path to laser
www.olsontech.com
LegacyPlus
ISX30xx Return Path Transmitter
Specifications
(continued)
ELECTRICAL, ENVIRONMENTAL& MECHANICALPARAMETERS
Dimensions
(WxHxD)
1.3” x 6” x 3.9” ( 3.5 cm x 15 cm x 9.75 cm)
Weight
1.37 lbs (0.624 kg)
Operating Temperature Range
-40 to +70ºC
(temperature at the mounting plate)
Powering
+5 VDC / -5 VDC
Power Dissipation
<4W
Mounting
inside ADC/C-COR ISX-30xx optical node
Ordering Information
Model Nunber
IX40RPTX-SA/302
IX40RPTX-SA/303
IX40RPTX-SA/304
IX40RPTX-SA/304/1MW
IX40RPTX-SA/304/2MW
IX40RPTX-SA/505
IX40RPTX-SA/547
IX40RPTX-SA/549
IX40RPTX-SA/551
IX40RPTX-SA/553
IX40RPTX-SA/555
IX40RPTX-SA/557
IX40RPTX-SA/559
IX40RPTX-SA/561
IX40RPTX-SA/304/505
IX40RPTX-SA/5xx/5xx
Description (Optical Output Power; Wavelength; Laser Type; Optical Connector)
R-TX Module; ADC ISX; 5-220MHz; 2mW unisolated 1310nm F-P; SC/APC
R-TX Module; ADC ISX; 5-220MHz; 2mW isolated 1310nm F-P; SC/APC
R-TX Module; ADC ISX; 5-220MHz; 3mW 1310nm DFB; SC/APC
R-TX Module; ADC ISX; 5-220MHz; 1mW 1310nm DFB; SC/APC
R-TX Module; ADC ISX; 5-220MHz; 2mW 1310nm DFB; SC/APC
R-TX Module; ADC ISX; 5-220MHz; 2.5mW 1550nm DFB; SC/APC
R-TX Module; ADC ISX; 5-220MHz; 2.5mW 1470nm CWDM DFB; SC/APC
R-TX Module; ADC ISX; 5-220MHz; 2.5mW 1490nm CWDM DFB; SC/APC
R-TX Module; ADC ISX; 5-220MHz; 2.5mW 1510nm CWDM DFB; SC/APC
R-TX Module; ADC ISX; 5-220MHz; 2.5mW 1530nm CWDM DFB; SC/APC
R-TX Module; ADC ISX; 5-220MHz; 2.5mW 1550nm CWDM DFB; SC/APC
R-TX Module; ADC ISX; 5-220MHz; 2.5mW 1570nm CWDM DFB; SC/APC
R-TX Module; ADC ISX; 5-220MHz; 2.5mW 1590nm CWDM DFB; SC/APC
R-TX Module; ADC ISX; 5-220MHz; 2.5mW 1610nm CWDM DFB; SC/APC
R-TX DUAL Module; ADC ISX; 5-220MHz; 1310 & 1550nm DFBs; SC/APC
R-TX DUAL Module; ADC ISX; 5-220MHz; 15xx & 15xxnm CWDM DFBs; SC/APC
* NOTE: Substitute “SU” for “SA” if SC/UPC optical connector is required
NOTE: Substitute “FA” for “SA” if FC/APC optical connector is required
NOTE: Substitute “FU” for “SA” if FC/UPC optical connector is required

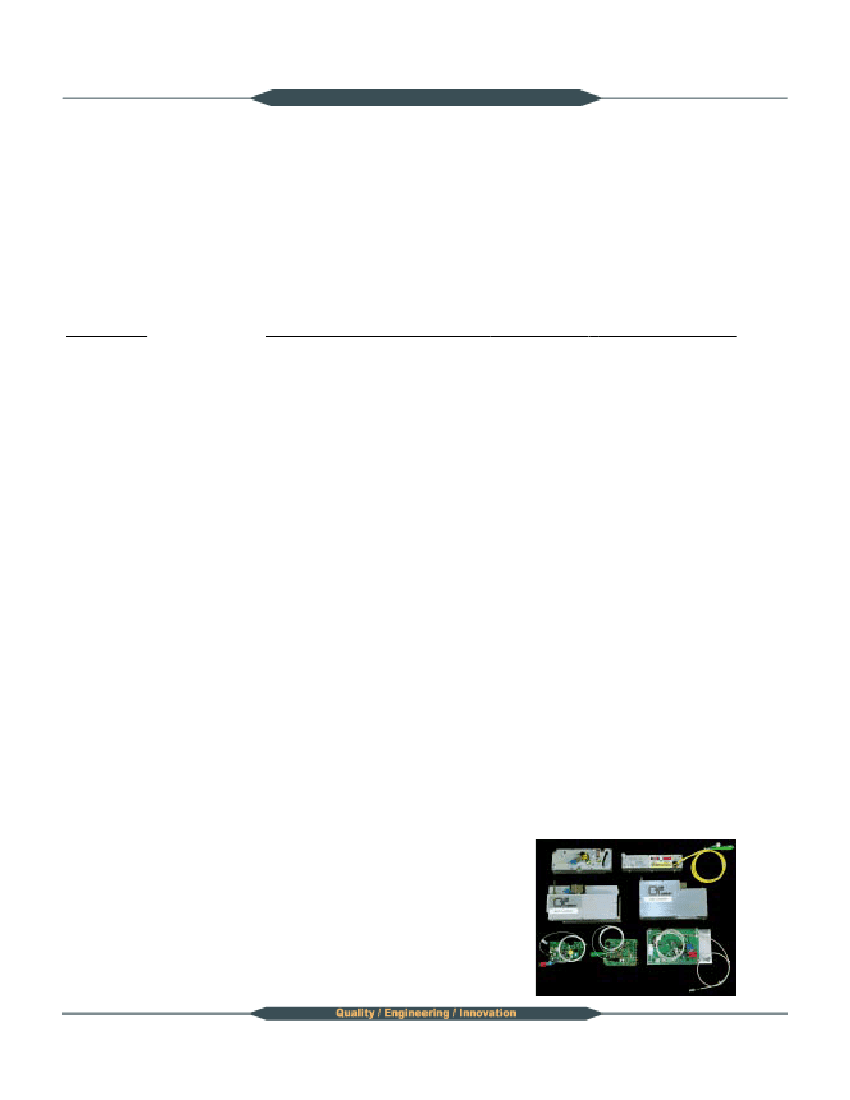

Additional HFC Optical Nodes supported by Olson’s LegacyPlus
The following is a partial list of HFC optical nodes for which Return Transmitter and/or Forward Receiver Modules are either
available or under development.
Please contact
OLSON TECHNOLOGY, INC. ( OTI )
regarding availability of units not listed below.
* ADC/C-COR
* Antec/Texscan
* Arris/Antec
* Augat
* Harmonic
* Motorola/GI
* Philips/Magnavox
* Scientific-Atlanta
ISX-3030/3040 & 3021
Gateway II , GlassPal & FlameThrower
LLRX100, LLRX200, LLRX400 Gemini
Megaflex
HLR3830 & HLN3841/3842/3843/3844 PWRBlazer
BTN-2 , AM-MBR & SG2000/2440
7-OR Diamond Point
6920, 6940/6942/6944 & Gainmaker
www.olsontech.com

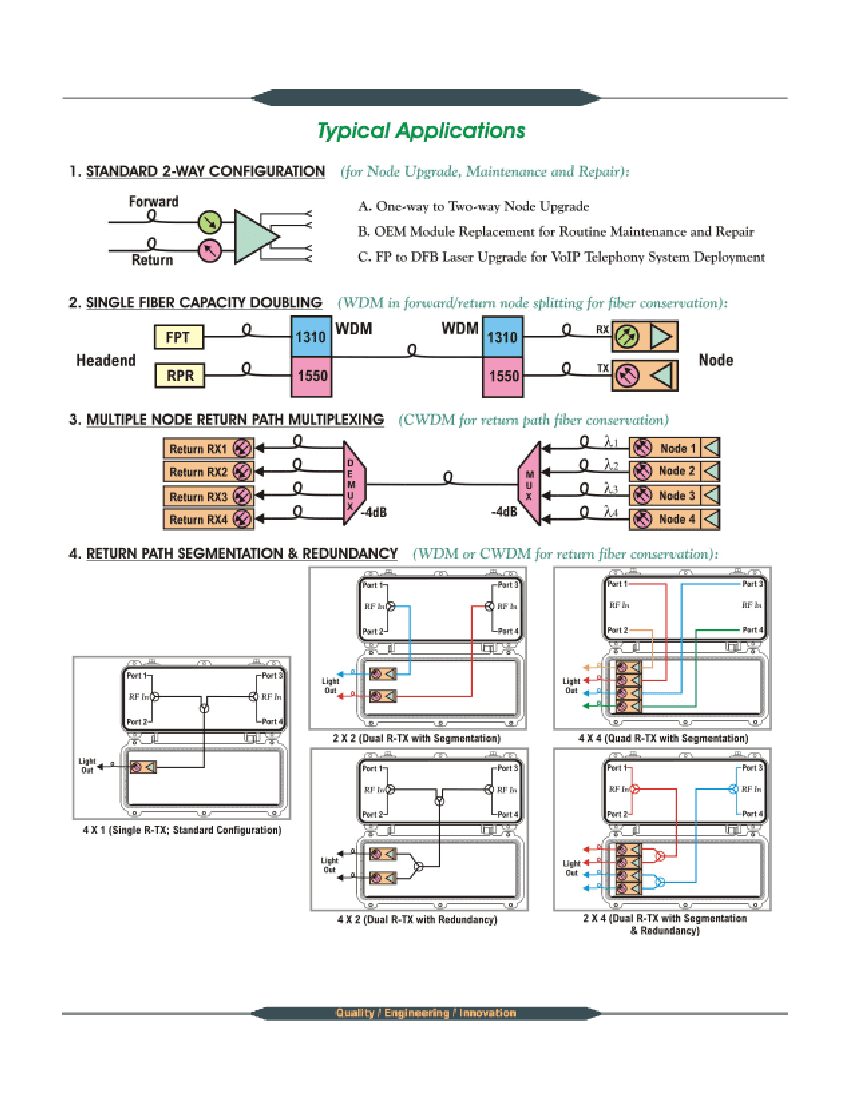

LegacyPlus
ISX30xx Return Path Transmitter
www.olsontech.com
