MB81V17405B-50PJ datasheet, PDF

Datasheet> All Categories > storage> storage> MB81V17405B-50PJ

MB81V17405B-50PJ: DescriptionEDO DRAM, 4MX4, 50ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-26/24; Categorystorage storage; File Size1MB，32 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

MB81V17405B-50PJ Overview

EDO DRAM, 4MX4, 50ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-26/24

MB81V17405B-50PJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	FUJITSU
package instruction	SOJ, SOJ24/26,.34
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	50 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-PDSO-J24
JESD-609 code	e0
length	17.15 mm
memory density	16777216 bit
Memory IC Type	EDO DRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	24
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX4
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ24/26,.34
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	2048
Maximum seat height	3.75 mm
self refresh	NO
Maximum standby current	0.0005 A
Maximum slew rate	0.12 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

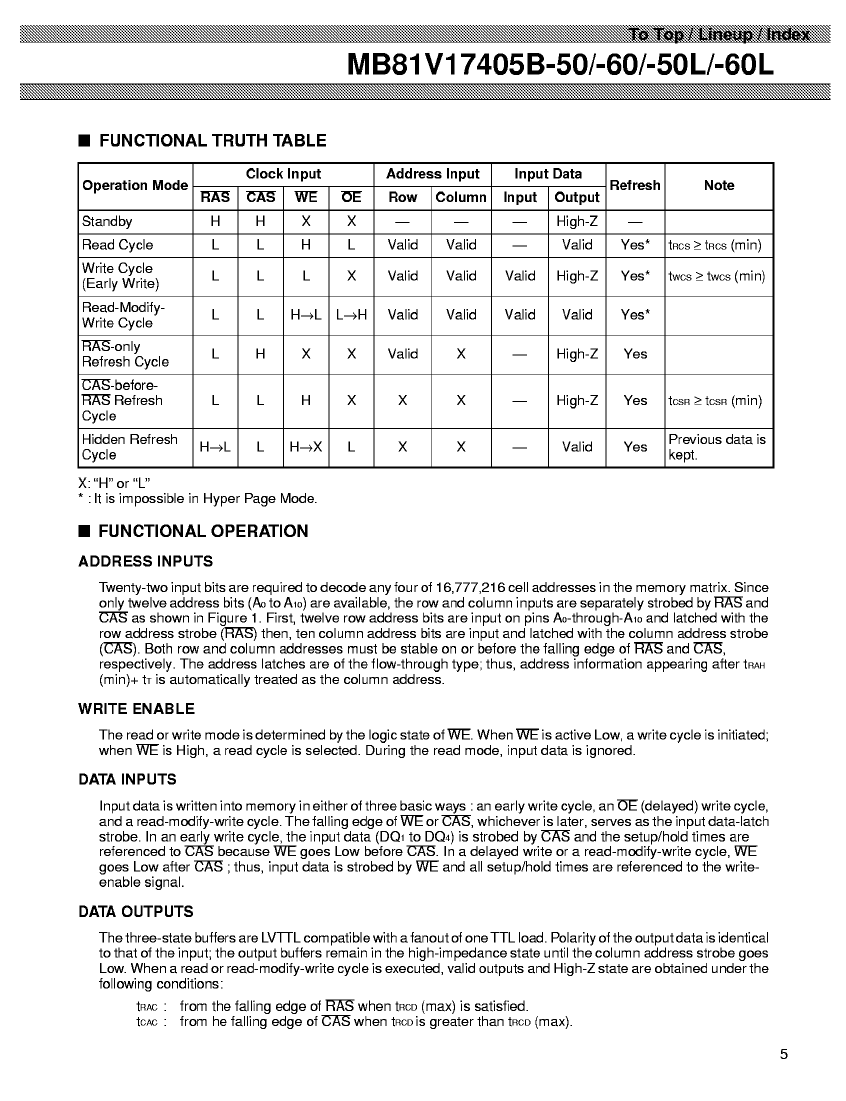

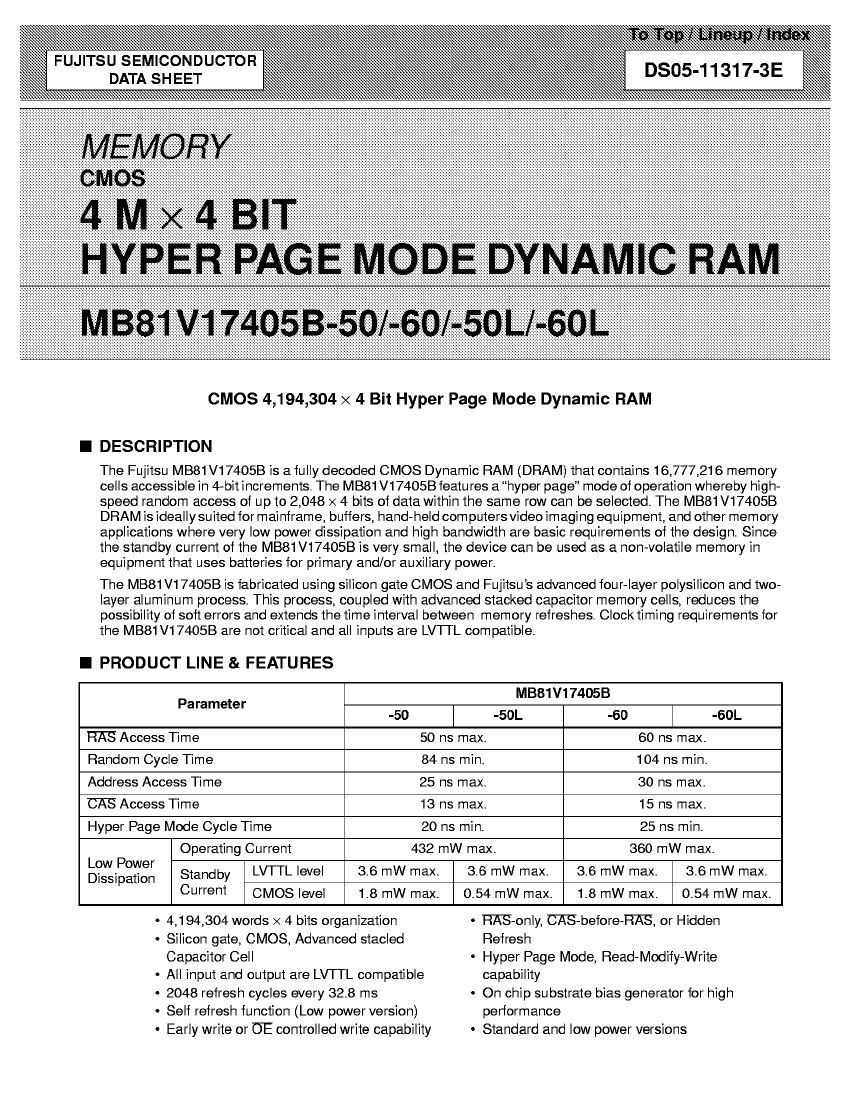

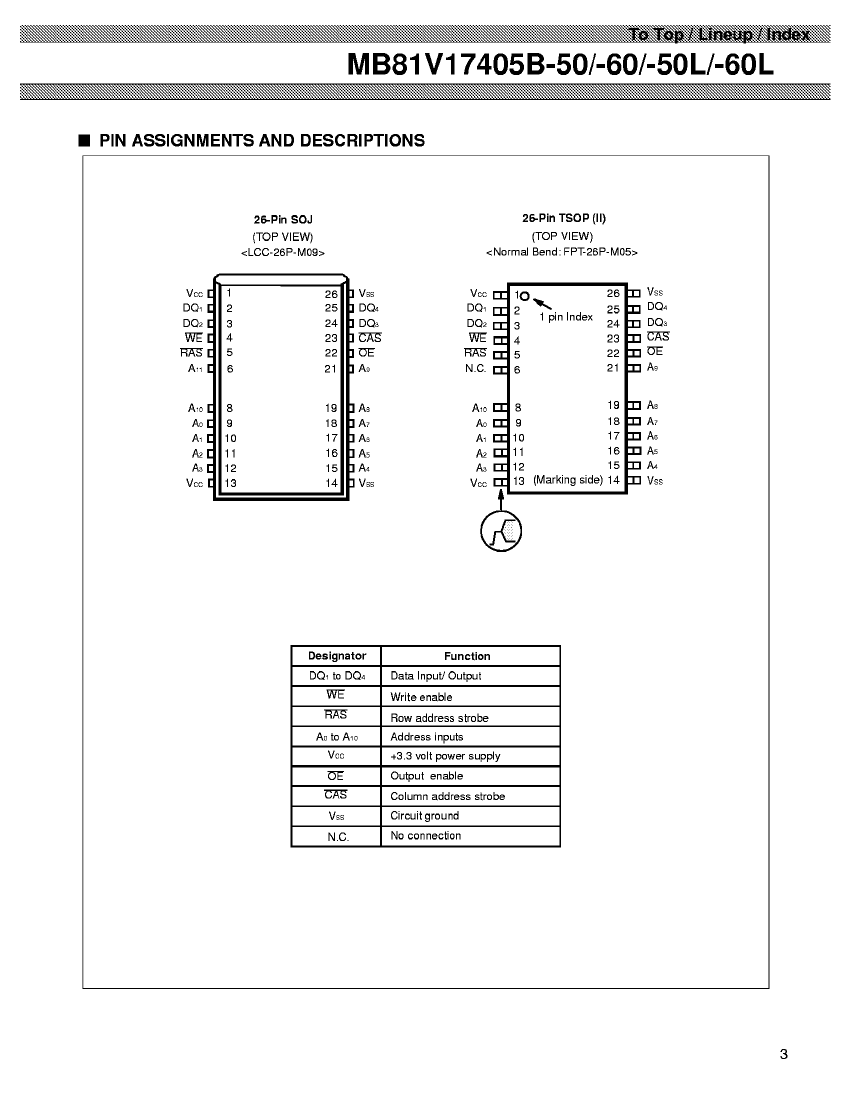

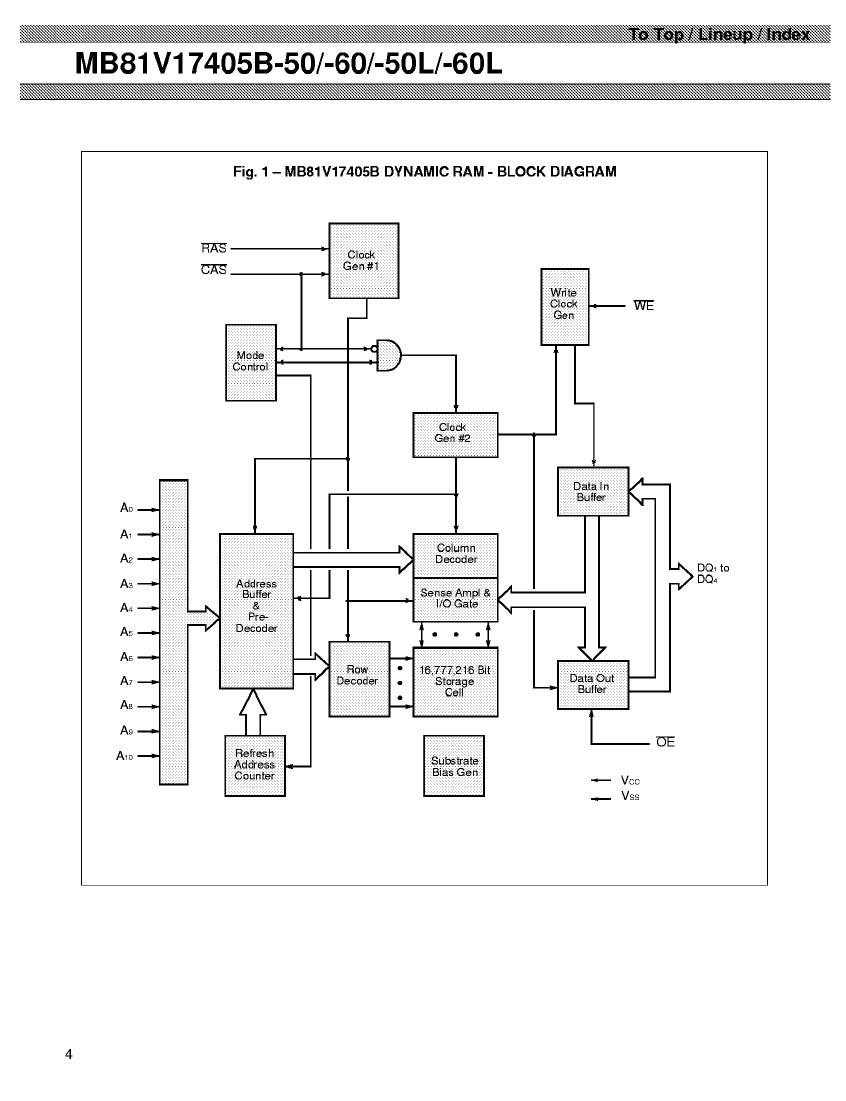

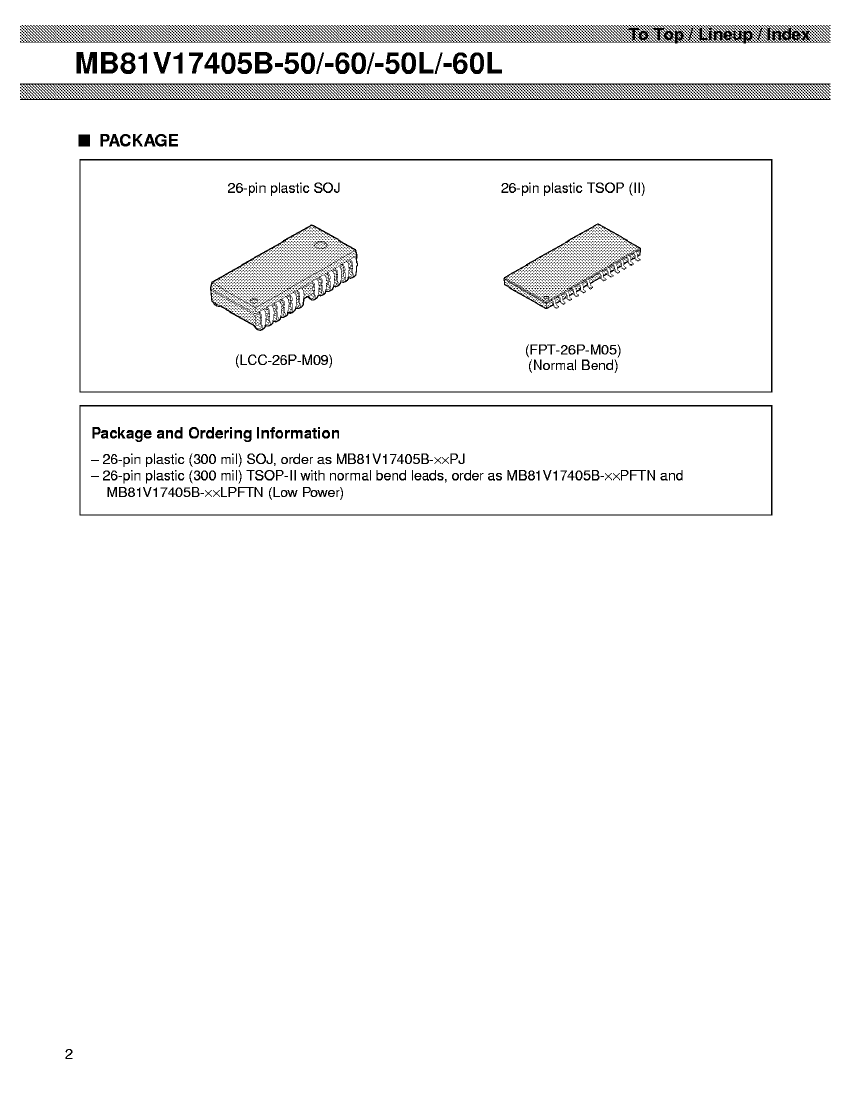

Preview

Download Datasheet

View All

MB81V17405B-50PJ Related Products

	MB81V17405B-50PJ	MB81V17405B-50LPFTN	MB81V17405B-60PJ	MB81V17405B-50PFTN	MB81V17405B-60LPFTN
Description	EDO DRAM, 4MX4, 50ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-26/24	EDO DRAM, 4MX4, 50ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, TSOP2-26/24	EDO DRAM, 4MX4, 60ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-26/24	4MX4 EDO DRAM, 50ns, PDSO24, 0.300 INCH, PLASTIC, TSOP2-26/24	EDO DRAM, 4MX4, 60ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, TSOP2-26/24
package instruction	SOJ, SOJ24/26,.34	TSOP2,	SOJ, SOJ24/26,.34	TSOP2, TSOP24/26,.36	TSOP2,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	50 ns	50 ns	60 ns	50 ns	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEELF REFRESH
JESD-30 code	R-PDSO-J24	R-PDSO-G24	R-PDSO-J24	R-PDSO-G24	R-PDSO-G24
length	17.15 mm	17.14 mm	17.15 mm	17.14 mm	17.14 mm
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM
memory width	4	4	4	4	4
Number of functions	1	1	1	1	1
Number of ports	1	1	1	1	1
Number of terminals	24	24	24	24	24
word count	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000	4000000	4000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4MX4	4MX4	4MX4	4MX4	4MX4
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	TSOP2	SOJ	TSOP2	TSOP2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.75 mm	1.2 mm	3.75 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	GULL WING	J BEND	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Is it Rohs certified?	incompatible	-	incompatible	incompatible	-
Maker	FUJITSU	FUJITSU	FUJITSU	-	FUJITSU
I/O type	COMMON	-	COMMON	COMMON	-
JESD-609 code	e0	-	e0	e0	-
Output characteristics	3-STATE	-	3-STATE	3-STATE	-
Encapsulate equivalent code	SOJ24/26,.34	-	SOJ24/26,.34	TSOP24/26,.36	-
power supply	3.3 V	-	3.3 V	3.3 V	-
refresh cycle	2048	-	2048	2048	-
self refresh	NO	-	NO	NO	-
Maximum standby current	0.0005 A	-	0.0005 A	0.0005 A	-
Maximum slew rate	0.12 mA	-	0.1 mA	0.12 mA	-
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	TIN LEAD	-
