Card
Connectors
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Current Rating:
Soldering Temp.:
Series CNS
PCMCIA II Slot - Double Deck (SMT Type)
Part Number
(Details)
1,000MΩ min.
500V ACrms for 1 minute
40mΩ max.
0.5A per contact
Rear socket: 220°C / 40 sec.,
240°C peak
CNS
Series
D = Double Deck
-
D T P - A RR - 1 3 - A -1
PCB Mounting Style:
T = Top
B = Bottom
Materials and Finish
PBT, glass filled (UL94V-0)
Phosphor Bronze
Header:
Card side - Au 0.3µm over Ni 2.0µm
Rear side - Au flash over Ni 2.0µm
Rear Socket:
Mating side - Au 0.2µm over Ni 1.0µm
Solder side - Au flash over Ni 1.0µm
Plate:
Stainless Steel
Side Contact: Phosphor Bronze
Plating:
Au over Ni
Insulator:
Contact:
Plating:-
Voltage Style:
P = 3.3V / 5V Card
A = Plastic Lever
B = Metal Lever
C = Foldable Lever
D = 2 Step Lever
E = Without Ejector
Eject Lever Positions:
RR = Top Right / Bottom Right
RL = Top Right / Bottom Left
LL = Top Left / Bottom Left
LR = Top Left / Bottom Right
*Height of Stand-off:
1 = 0mm
4 = 2.2mm
Nut Insert:

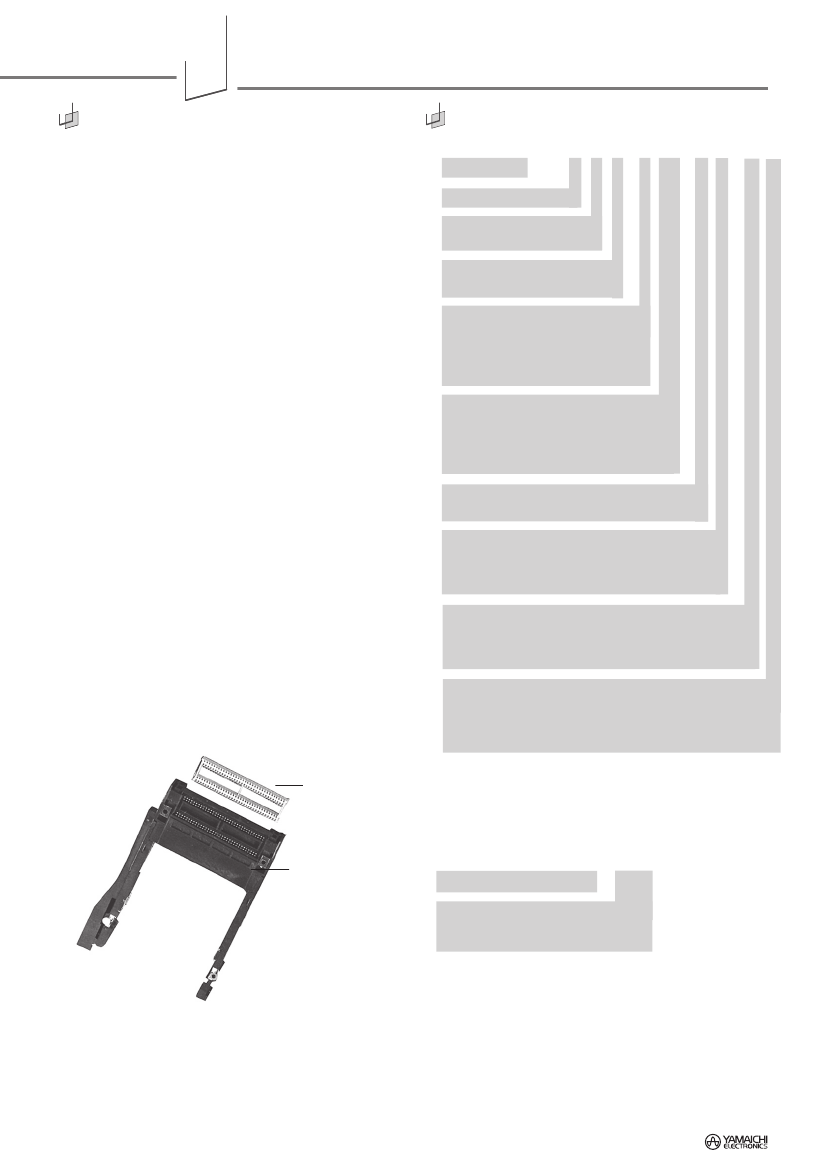

Features
SMT connector makes assembly and rework easier
Small, light and low profile connector meets
all kinds of PC card system requirements
Various product combinations single
or double deck, right or left eject lever,
polarization styles, various stand-off heights,
fully supports the customer’s design needs
Convenience of PC card removal with
push type eject leve
8 = 5.0mm
0 = None (on request)
1 = Header (on request)
2 = Guide (on request)
3 = Header / Guide (standard)
Shield Plate: A = None
B = Top
C = Bottom
D = Top / Bottom
Kapton Film:
no mark = None
1 = Top
2 = Bottom
3 = Top and Bottom
Rear Socket
*Stand-off products 0.0 and 2.2mm are subject to a
minimum order quantity of 1,120 pcs.
Part Number (Details) for Rear Socket
Connector
PCMCIA - 1088
Packing Number
-
*
Available Types
1 = With Kapton Film (Tray)
9 = With Kapton Film (Tape & Reel)
A-48
Connectors
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
Trading Division
Series CNS
PCMCIA II Slot - Double Deck (SMT Type)
Example: Double Deck SMT Fixing with 2.2mm Stand-off
Card
Connectors

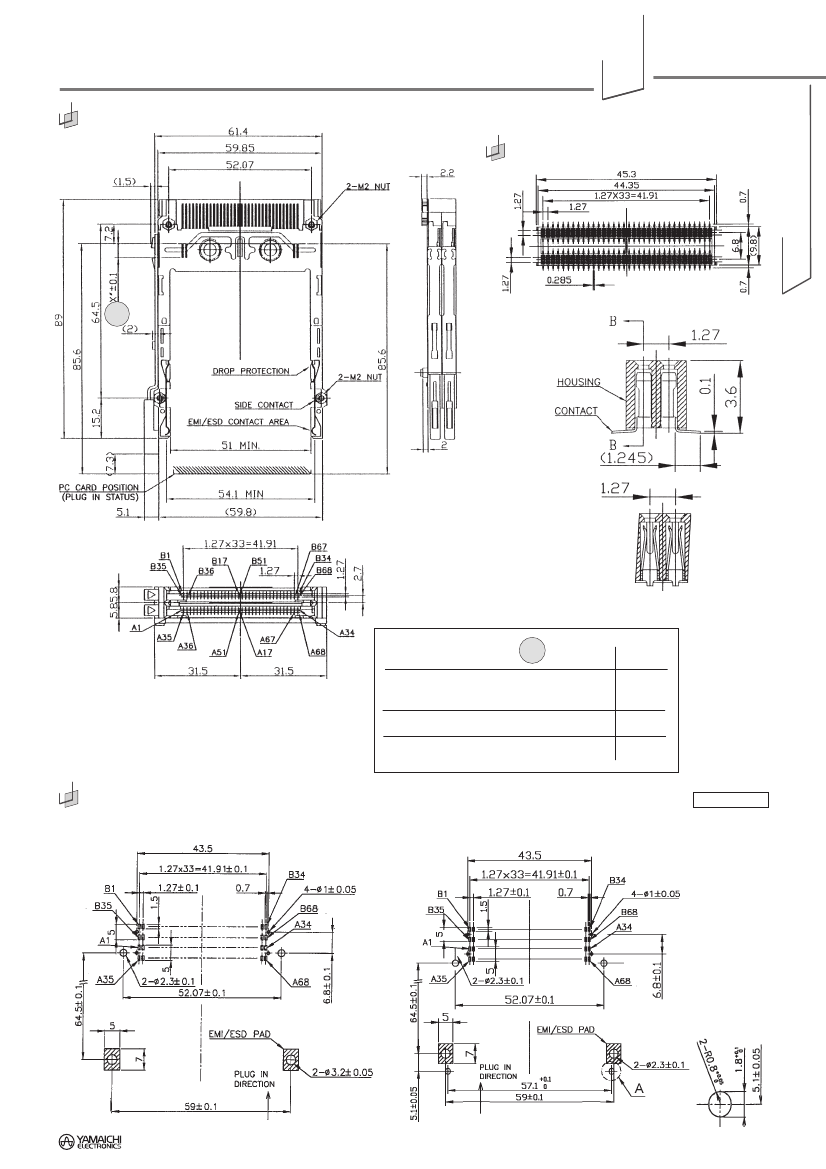

Rear Socket Section Details
A
Section A - A
Section B - B
Contact Dimensions at
A
Length
5.00 ±0.1
3.50 ±0.1
4.25 ±0.1
Contacts A1, A17, A34, A35, A51 and A68
B1, B17, B34, B35, B51 and D68
Contacts A36 and A67, B36 and B67
All other contacts
Example PCB Layout
With Stand-off
Without Stand-off
Top View
Detail A
Trading Division
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
Connectors
A-49
PCMCIA II Slot
51mcu
