BSX45-10LEADFREE

Description
Small Signal Bipolar Transistor, 1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-39, TO-39, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size505KB,2 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric Compare View All

BSX45-10LEADFREE Overview

Small Signal Bipolar Transistor, 1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-39, TO-39, 3 PIN

BSX45-10LEADFREE Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerCentral Semiconductor
Parts packaging codeTO-39
package instructionCYLINDRICAL, O-MBCY-W3
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
Maximum collector current (IC)1 A
Collector-based maximum capacity25 pF
Collector-emitter maximum voltage40 V
ConfigurationSINGLE
Minimum DC current gain (hFE)25
JEDEC-95 codeTO-39
JESD-30 codeO-MBCY-W3
JESD-609 codee3
Number of components1
Number of terminals3
Maximum operating temperature200 °C
Minimum operating temperature-65 °C
Package body materialMETAL
Package shapeROUND
Package formCYLINDRICAL
Peak Reflow Temperature (Celsius)260
Polarity/channel typeNPN
Maximum power consumption environment0.8 W
Maximum power dissipation(Abs)6.25 W
Certification statusNot Qualified
surface mountNO
Terminal surfaceMatte Tin (Sn)
Terminal formWIRE
Terminal locationBOTTOM
Maximum time at peak reflow temperature10
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)50 MHz
Maximum off time (toff)850 ns
Maximum opening time (tons)200 ns
VCEsat-Max1 V
BSX45, -10, -16
BSX46, -10, -16
BSX47, -10
SILICON
NPN TRANSISTORS
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR BSX45 series types
are silicon NPN epitaxial transistors designed for general
purpose amplifier and switching applications.
MARKING: FULL PART NUMBER

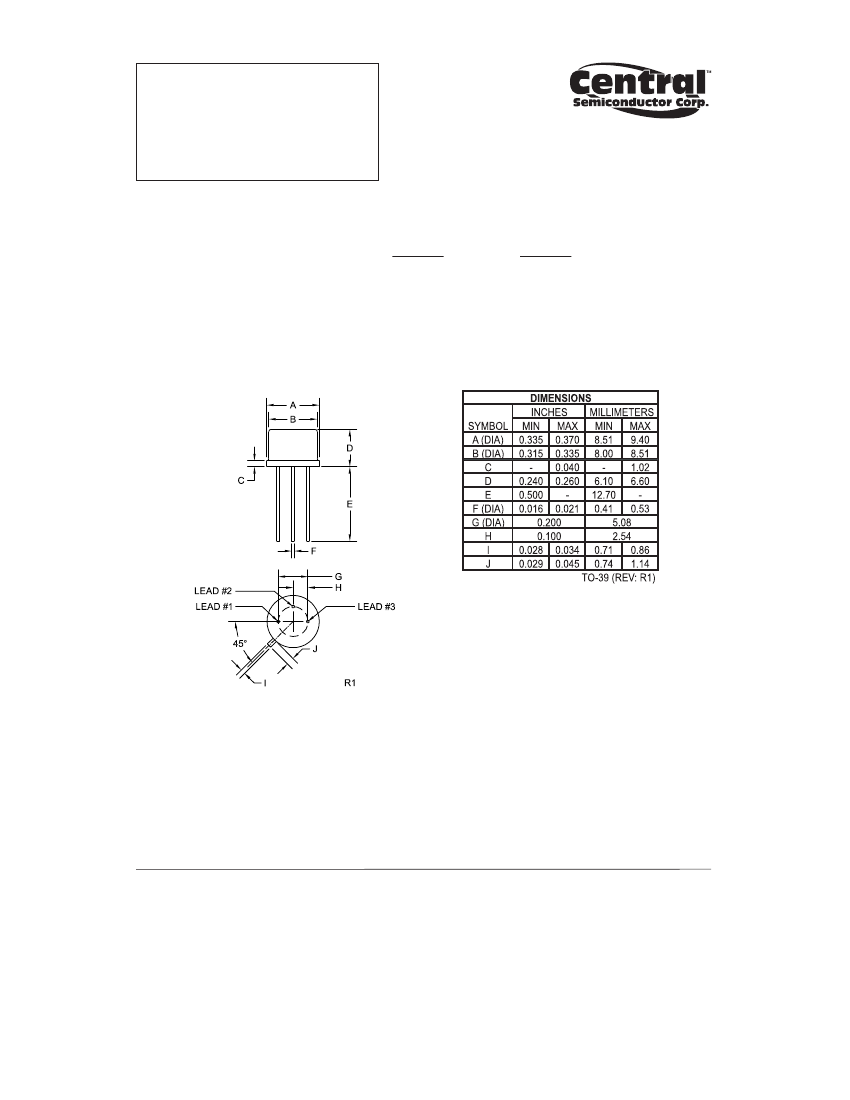

TO-39 CASE
MAXIMUM RATINGS:
(TA=25°C)
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Collector Current
Peak Base Current
Power Dissipation (TC=25°C)
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
Thermal Resistance
SYMBOL
VCBO
VCEO
VEBO
IC
ICM
IBM
PD
PD
TJ, Tstg
Θ
JC
Θ
JA
BSX45
80
40
BSX46
100
60
7.0
1.0
1.5
200
6.25
0.8
-65 to +200
28
219
BSX47
120
80
UNITS
V
V
V
A
A
mA
W
W
°C
°C/W
°C/W
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
BSX45
BSX46
SYMBOL
TEST CONDITIONS
MIN MAX
MIN MAX
ICBO
VCB=60V
-
30
-
30
ICBO
VCB=60V, TA=150°C
-
10
-
10
ICBO
VCB=80V
-
-
-
-
ICBO
IEBO
VCE(SAT)
VCE(SAT)
VBE(ON)
VBE(ON)
VBE(ON)
fT
Cc
Ce
ton
toff
NF
VCB=80V, TA=150°C
VEB=5.0V
IC=1.0A, IB=100mA
IC=500mA, IB=25mA
VCE=1.0V, IC=100mA
VCE=1.0V, IC=500mA
VCE=1.0V, IC=1.0A
VCE=10V, IC=50mA, f=100MHz
VCB=10V, IE=0, f=1.0MHz
VEB=0.5V, IC=0, f=1.0MHz
IC=100mA, IB1=IB2=5.0mA
IC=100mA, IB1=IB2=5.0mA
VCE=5.0V, IC=100μA, RS=1.0kΩ
f=1.0kHz, BW=200Hz
-
-
-
-
-
0.75
-
50
-
-
-
-
-
10
1.0
-
1.0
1.5
2.0
-
25
80
200
850
-
-
-
-
-
0.75
-
50
-
-
-
-
-
10
1.0
-
1.0
1.5
2.0
-
20
80
200
850
BSX47
MIN MAX
-
-
-
-
-
30
-
-
-
-
-
0.75
-
50
-
-
-
-
10
10
-
0.9
1.0
1.5
2.0
-
15
80
200
850
UNITS
nA
μA
nA
μA
nA
V
V
V
V
V
MHz
pF
pF
ns
ns
dB
3.5 TYP
3.5 TYP
3.5 TYP
R1 (24-October 2013)

BSX45-10LEADFREE Related Products

BSX45-10LEADFREE BSX46-10LEADFREE BSX47-10LEADFREE BSX46-16LEADFREE BSX45LEADFREE BSX45-16LEADFREE BSX46LEADFREE BSX47LEADFREE
Description Small Signal Bipolar Transistor, 1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-39, TO-39, 3 PIN Small Signal Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-39, TO-39, 3 PIN Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-39, TO-39, 3 PIN Small Signal Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-39, TO-39, 3 PIN Small Signal Bipolar Transistor, 1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-39, TO-39, 3 PIN Small Signal Bipolar Transistor, 1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-39, TO-39, 3 PIN Small Signal Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-39, TO-39, 3 PIN Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-39, TO-39, 3 PIN
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to
Maker Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor
Parts packaging code TO-39 TO-39 TO-39 TO-39 TO-39 TO-39 TO-39 TO-39
package instruction CYLINDRICAL, O-MBCY-W3 CYLINDRICAL, O-MBCY-W3 CYLINDRICAL, O-MBCY-W3 CYLINDRICAL, O-MBCY-W3 CYLINDRICAL, O-MBCY-W3 CYLINDRICAL, O-MBCY-W3 CYLINDRICAL, O-MBCY-W3 CYLINDRICAL, O-MBCY-W3
Contacts 3 3 3 3 3 3 3 3
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Maximum collector current (IC) 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A
Collector-emitter maximum voltage 40 V 60 V 80 V 60 V 40 V 40 V 60 V 80 V
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Minimum DC current gain (hFE) 25 25 25 35 25 35 25 25
JEDEC-95 code TO-39 TO-39 TO-39 TO-39 TO-39 TO-39 TO-39 TO-39
JESD-30 code O-MBCY-W3 O-MBCY-W3 O-MBCY-W3 O-MBCY-W3 O-MBCY-W3 O-MBCY-W3 O-MBCY-W3 O-MBCY-W3
JESD-609 code e3 e3 e3 e3 e3 e3 e3 e3
Number of components 1 1 1 1 1 1 1 1
Number of terminals 3 3 3 3 3 3 3 3
Maximum operating temperature 200 °C 200 °C 200 °C 200 °C 200 °C 200 °C 200 °C 200 °C
Package body material METAL METAL METAL METAL METAL METAL METAL METAL
Package shape ROUND ROUND ROUND ROUND ROUND ROUND ROUND ROUND
Package form CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL
Peak Reflow Temperature (Celsius) 260 260 260 260 260 260 260 260
Polarity/channel type NPN NPN NPN NPN NPN NPN NPN NPN
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
surface mount NO NO NO NO NO NO NO NO
Terminal surface Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) MATTE TIN (315) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn)
Terminal form WIRE WIRE WIRE WIRE WIRE WIRE WIRE WIRE
Terminal location BOTTOM BOTTOM BOTTOM BOTTOM BOTTOM BOTTOM BOTTOM BOTTOM
Maximum time at peak reflow temperature 10 10 10 10 10 10 10 10
transistor applications SWITCHING SWITCHING SWITCHING SWITCHING SWITCHING SWITCHING SWITCHING SWITCHING
Transistor component materials SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON
Nominal transition frequency (fT) 50 MHz 50 MHz 50 MHz 50 MHz 50 MHz 50 MHz 50 MHz 50 MHz
Maximum off time (toff) 850 ns 850 ns 850 ns 850 ns 850 ns 850 ns 850 ns 850 ns
Maximum opening time (tons) 200 ns 200 ns 200 ns 200 ns 200 ns 200 ns 200 ns 200 ns
Collector-based maximum capacity 25 pF 20 pF 15 pF - 25 pF 25 pF 20 pF 15 pF
Minimum operating temperature -65 °C -65 °C -65 °C - -65 °C -65 °C -65 °C -65 °C
Maximum power consumption environment 0.8 W 0.8 W 0.8 W - 0.8 W 0.8 W 0.8 W 0.8 W
Maximum power dissipation(Abs) 6.25 W 6.25 W 6.25 W - 6.25 W 6.25 W 6.25 W 6.25 W
VCEsat-Max 1 V 1 V 0.9 V - 1 V 1 V 1 V 0.9 V
