BUT12

Description

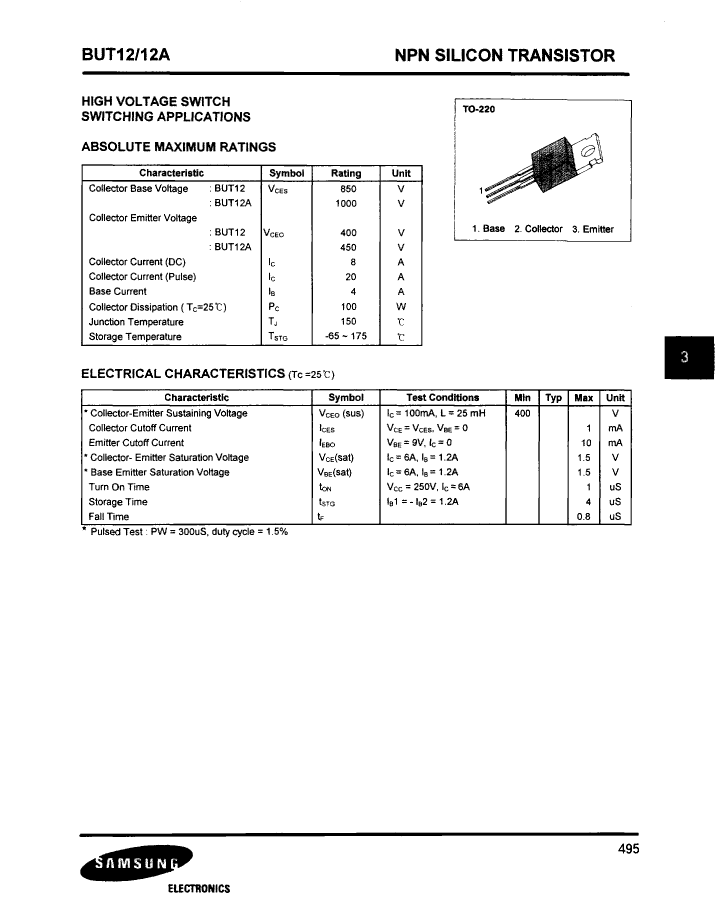

Power Bipolar Transistor, 8A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size27KB,1 Pages
ManufacturerSAMSUNG
Websitehttp://www.samsung.com/Products/Semiconductor/
Download Datasheet Parametric Compare View All

BUT12 Overview

Power Bipolar Transistor, 8A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN

BUT12 Parametric

Parameter NameAttribute value
MakerSAMSUNG
Parts packaging codeSFM
package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Reach Compliance Codeunknown
Maximum collector current (IC)8 A
Collector-emitter maximum voltage400 V
ConfigurationSINGLE
Minimum DC current gain (hFE)10
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Polarity/channel typeNPN
Maximum power dissipation(Abs)125 W
Certification statusNot Qualified
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
transistor applicationsSWITCHING
Transistor component materialsSILICON

BUT12 Related Products

BUT12 BUT12A
Description Power Bipolar Transistor, 8A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN Power Bipolar Transistor, 8A I(C), 450V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN
Maker SAMSUNG SAMSUNG
Parts packaging code SFM SFM
package instruction FLANGE MOUNT, R-PSFM-T3 FLANGE MOUNT, R-PSFM-T3
Contacts 3 3
Reach Compliance Code unknown unknown
Maximum collector current (IC) 8 A 8 A
Collector-emitter maximum voltage 400 V 450 V
Configuration SINGLE SINGLE
Minimum DC current gain (hFE) 10 10
JEDEC-95 code TO-220AB TO-220AB
JESD-30 code R-PSFM-T3 R-PSFM-T3
Number of components 1 1
Number of terminals 3 3
Maximum operating temperature 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT
Polarity/channel type NPN NPN
Maximum power dissipation(Abs) 125 W 125 W
Certification status Not Qualified Not Qualified
surface mount NO NO
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE
transistor applications SWITCHING SWITCHING
Transistor component materials SILICON SILICON
