MOS-EDR5655+: DescriptionVoltage Controlled Oscillator, 1600MHz Min, 1739MHz Max; CategoryPassive components oscillator; File Size96KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MOS-EDR5655+ Overview

Voltage Controlled Oscillator, 1600MHz Min, 1739MHz Max

MOS-EDR5655+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknown
Maximum control voltage	6 V
Minimum control voltage	0.5 V
JESD-609 code	e4
Modulation sensitivity	37 MHz/V
Installation features	SURFACE MOUNT
offset frequency	1 kHz
Maximum operating frequency	1739 MHz
Minimum operating frequency	1600 MHz
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	2 dBm
phase noise	-78 dBc/Hz
physical size	9.525mm x 9.525mm x 3.327mm
Maximum slew rate	25 mA
Nominal supply voltage	5 V
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

Engineering Development Model

Voltage Controlled Oscillator

Important Note

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

Please click "Back", and then click "Contact Us" for Applications support.

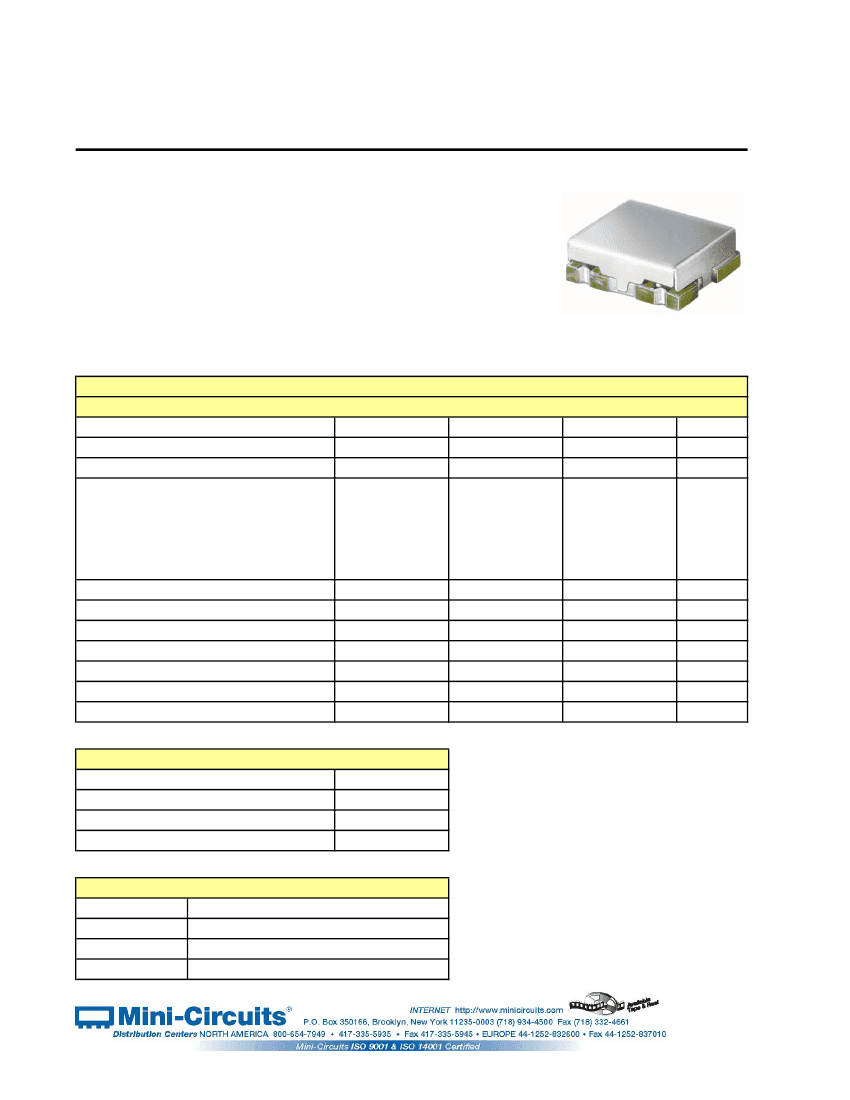

CASE STYLE : CZ682

MOS-EDR5655

ELECTRICAL SPECIFICATIONS 50Ω

Parameter

Frequency

Tuning

Voltage

Power Output

Min.

1600

0.5

Typ.

Max.

1739

-78

-103

-124

-144

27 - 37

-31

11500

Units

MHz

dBm

dBc/Hz

MHz

MHz/V

dBc

kHz

Phase Noise

at 1 kHz offset

at 10 KHz offset

at 100 KHz offset

at 1000 kHz offset

Pulling at 12 dBr PK-PK all phases

Pushing at Vcc=5V±0.25V

Tuning Sensitivity

Harmonic Suppression

3 dB Modulation Bandwidth

Supply Voltage

Supply Current

MAXIMUM RATINGS

Operating Temperature

Storage Temperature

Absolute Supply Voltage (Vcc)

Absolute Tuning Voltage (Vtune)

-14

-55°C to 85°C

-55°C to 100°C

+7V

+8V

RF OUT

VCC

V-TUNE

GROUND

PIN CONNECTIONS

2,4,6,7,8

REV. X1

MOS-EDR5655

60522

MOS-EDR5655+ Related Products

	MOS-EDR5655+	MOS-EDR5655
Description	Voltage Controlled Oscillator, 1600MHz Min, 1739MHz Max	Voltage Controlled Oscillator, 1600MHz Min, 1739MHz Max
Is it lead-free?	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	unknown
Maximum control voltage	6 V	6 V
Minimum control voltage	0.5 V	0.5 V
JESD-609 code	e4	e0
Modulation sensitivity	37 MHz/V	37 MHz/V
Installation features	SURFACE MOUNT	SURFACE MOUNT
offset frequency	1 kHz	1 kHz
Maximum operating frequency	1739 MHz	1739 MHz
Minimum operating frequency	1600 MHz	1600 MHz
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR	VOLTAGE CONTROLLED OSCILLATOR
Output Power	2 dBm	2 dBm
phase noise	-78 dBc/Hz	-78 dBc/Hz
physical size	9.525mm x 9.525mm x 3.327mm	9.525mm x 9.525mm x 3.327mm
Maximum slew rate	25 mA	25 mA
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)
