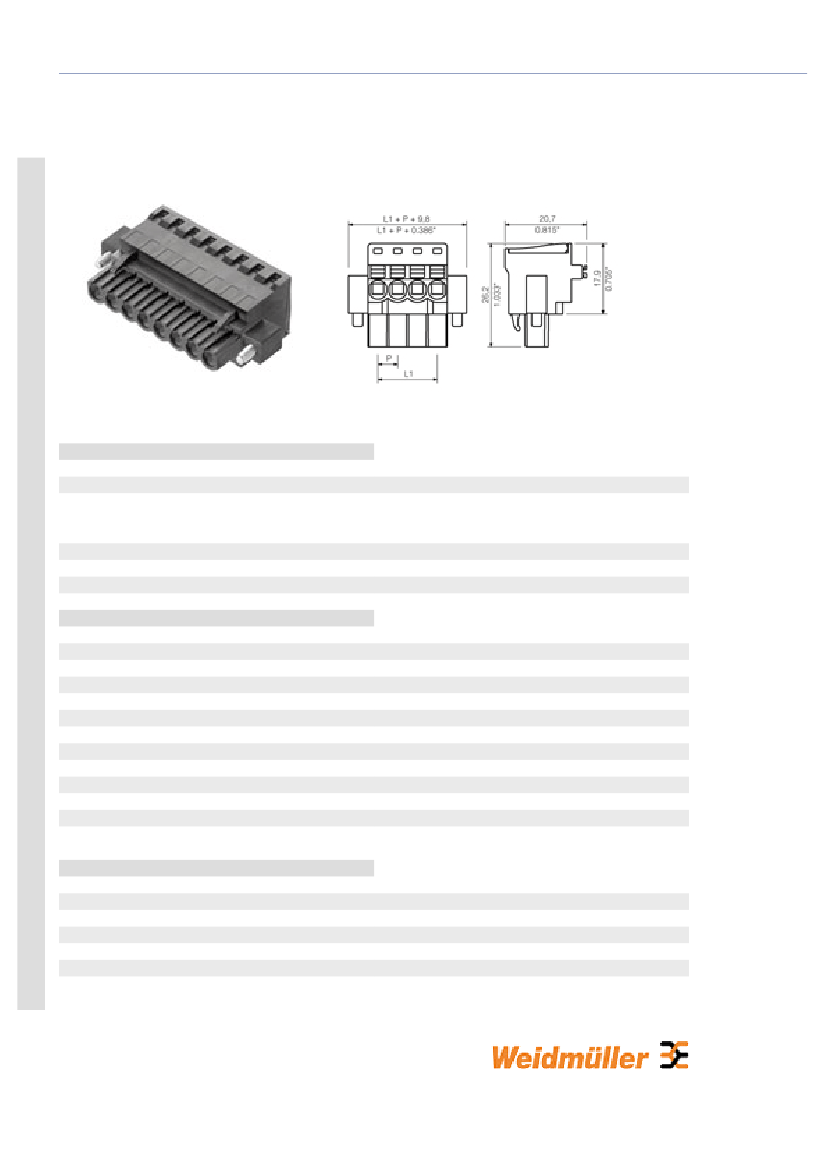

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Female PUSH IN socket block with spring connection in 5.00/5.08 pitch | BLF 5.00-5.08/90/270 | BLF 5.08/270F SN
Connectable conductors
Clamping range, min.
Clamping range, max.
Conductor connection cross-section AWG, min.
Conductor connection cross-section AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Stranded, max. H07V-R
Stranded, min. H07V-R
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
w. wire end ferrule, DIN 46228 pt 1, min
with wire end ferrule, DIN 46228 pt 1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
with plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. of poles (Tu=20°C)
Rated current, max. No. of poles (Tu=20°C)
Rated current, no. of poles (Tu=40°C), min.
Rated current, no. of poles (Tu=40°C), max.
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage at overvoltage category/pollution
degree III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
Approvals
Approvals institutes
Classifications
eClass 6.0
Notes
Notes
0.13 mm²
3.31 mm²
AWG 26
AWG 12
0.2 mm²
2.5 mm²
2 mm²
0 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
2.4 mm x 1.5 mm
18.5 A
6A
12.5 A
6A
400 V
320 V
250 V
4 kV
4 kV
4 kV
3 x 1s with 120 A
CSA; CURUS
27-26-07-08
Similar products
Order No.
1982120000
Part designation
BLF 5.08/02/270F SN BK BX
Version
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 2, 270°, Box
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Female PUSH IN socket block with spring connection in 5.00/5.08 pitch | BLF 5.00-5.08/90/270 | BLF 5.08/270F SN
1982130000
1982140000
1982150000
1982170000
1982180000
1982190000
1982200000
1982210000
1982220000
1982230000
1982240000
1982250000
1982260000
1982270000
1982280000
1982290000
1982300000
BLF 5.08/03/270F SN BK BX
BLF 5.08/04/270F SN BK BX
BLF 5.08/05/270F SN BK BX
BLF 5.08/07/270F SN BK BX
BLF 5.08/08/270F SN BK BX
BLF 5.08/09/270F SN BK BX
BLF 5.08/10/270F SN BK BX
BLF 5.08/11/270F SN BK BX
BLF 5.08/12/270F SN BK BX
BLF 5.08/13/270F SN BK BX
BLF 5.08/14/270F SN BK BX
BLF 5.08/15/270F SN BK BX
BLF 5.08/16/270F SN BK BX
BLF 5.08/17/270F SN BK BX
BLF 5.08/18/270F SN BK BX
BLF 5.08/19/270F SN BK BX
BLF 5.08/20/270F SN BK BX
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 3, 270°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 4, 270°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 5, 270°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 7, 270°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 8, 270°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 9, 270°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 10, 270°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 11, 270°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 12, 270°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 13, 270°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 14, 270°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 15, 270°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 16, 270°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 17, 270°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 18, 270°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 19, 270°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5.08 mm, No. of poles: 20, 270°, Box
-3-
