product has no designed protection against radioactive rays
1/24
TSZ02201-0F5F0C100100-1-2
22.Feb.2016 Rev.001

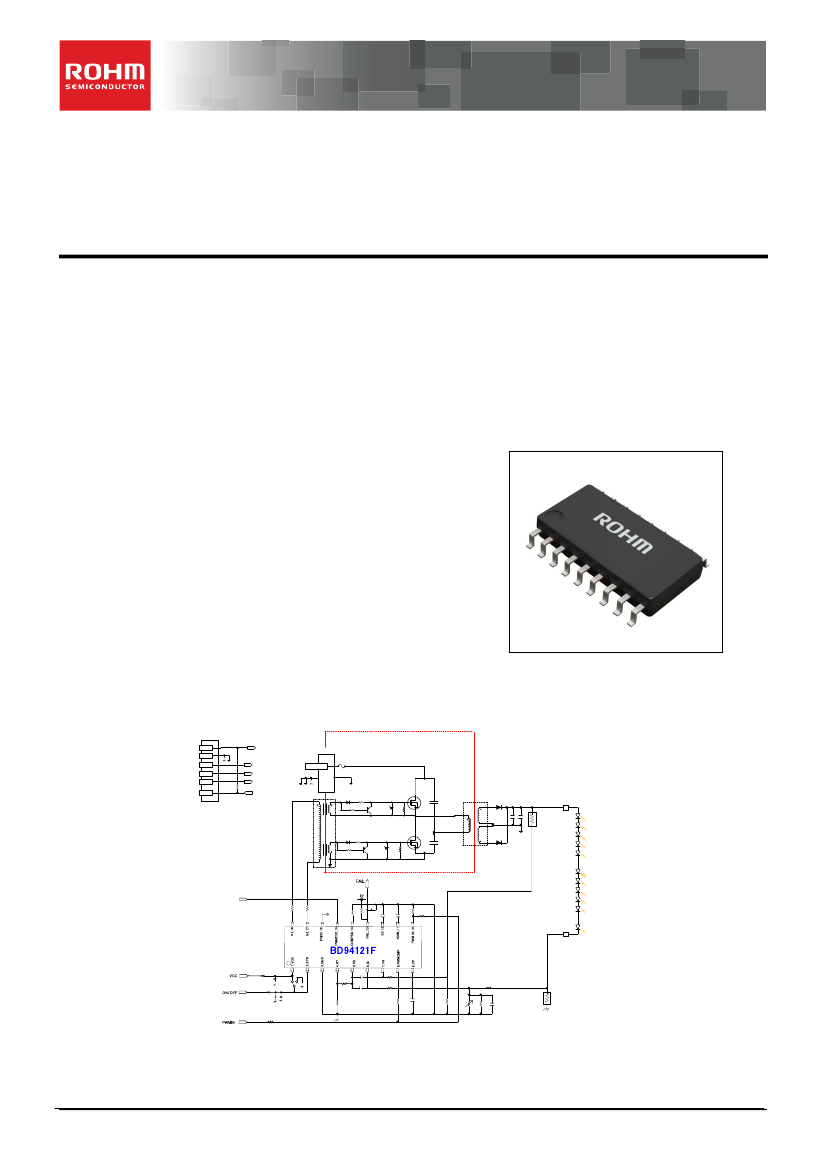

BD9412F
Contents
General Description ....................................................................................................................................................1
Features .......................................................................................................................................................................1
Absolute Maximum Ratings.......................................................................................................................................3
Pin Function Description .........................................................................................................................................10
Detection Condition List of the Protection Functions ..........................................................................................15
Behavior List of the Protect Function ....................................................................................................................15
Application Example ................................................................................................................................................16
Ordering Information ................................................................................................................................................22
Physical Dimension, Tape and Reel Information ...................................................................................................23
Revision History .......................................................................................................................................................24
(Note 1) Derating in done 5.5 mW/°C for operating above Ta≥25°C (Mount on 1-layer 70.0mm x 70.0mm x 1.6mm board)
Caution:
Operating the IC over the absolute maximum ratings may damage the IC. The damage can either be a short circuit between pins or an open circuit
between pins and the internal circuitry. Therefore, it is important to consider circuit protection measures, such as adding a fuse, in case the IC is operated over
the absolute maximum ratings.

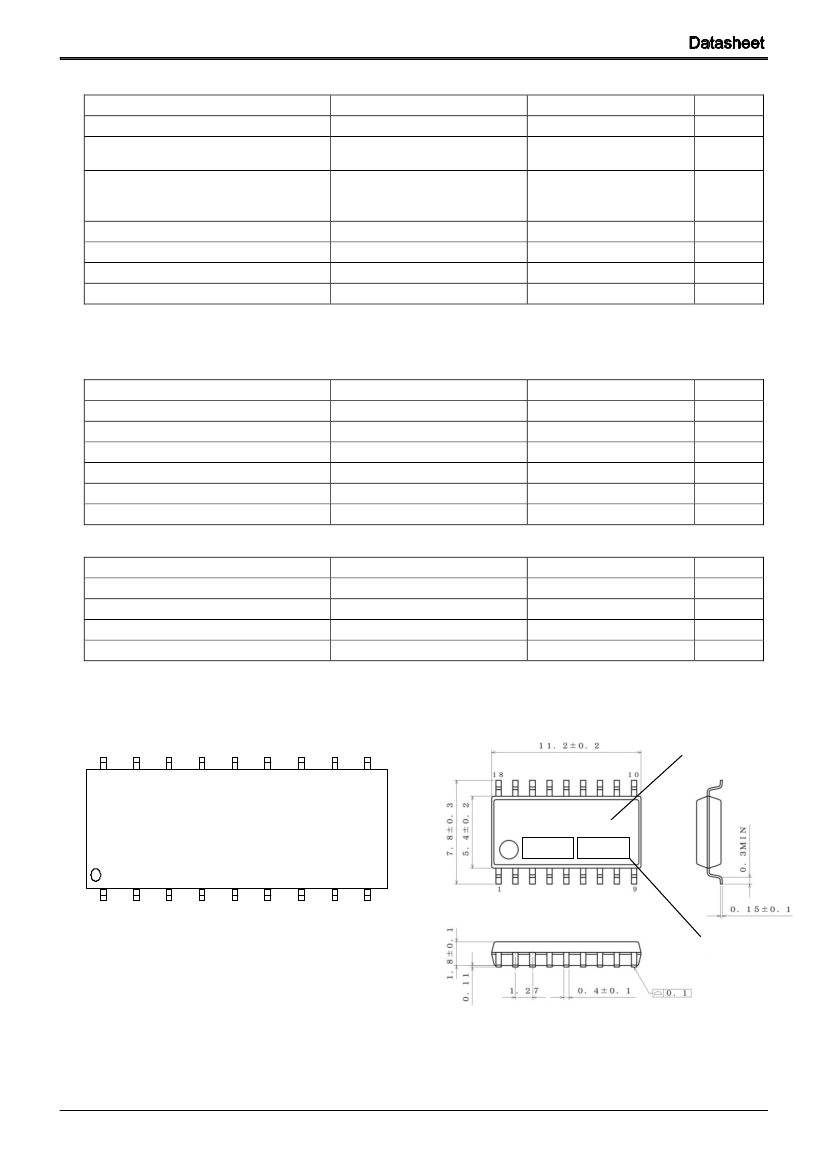

Recommended Operating Conditions
(Ta= -40°C to +85°C)
Parameter
Power Supply Voltage
PWMIN Input Frequency Range
Oscillation Frequency
PWM2DC Input Voltage Range
ADIM Input Voltage Range
ADIM Range with Linearity IS
Symbol
V
CC
f
PWMIN
f
OUT
f
PWM2DC
V
ADIM
V
ADIMLIN
Range
9.0 to 18.0
60 to 500
30 to 300
0.09 to 30
0 to 5
0.5 to 2.1
Unit
V
Hz
kHz
kHz
V
V
External Components Recommended Range
(Ta= -40°C to +85°C)
Parameter
RT Connection Resistance
CP Connection Capacitance
ADIM Connection Capacitance
SS Connection Capacitance
Symbol
R
RT
C
CP
C
ADIM
C
SS
Range
20 to 200
0.01 to 2.2
0.22 to 10
0.01 to 0.1
(Note 2)
(Note 2)
(Note 2)
Unit
kΩ
µF
µF
µF
(Note 2) Please set connection capacitance above Min value of Recommended Range according to temperature characteristic and DC bias characteristic.
