KFPC050X-V1-6: DescriptionCard Edge Connector, 6 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size375KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric View All

KFPC050X-V1-6 Overview

Card Edge Connector, 6 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT

KFPC050X-V1-6 Parametric

Parameter Name	Attribute value
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

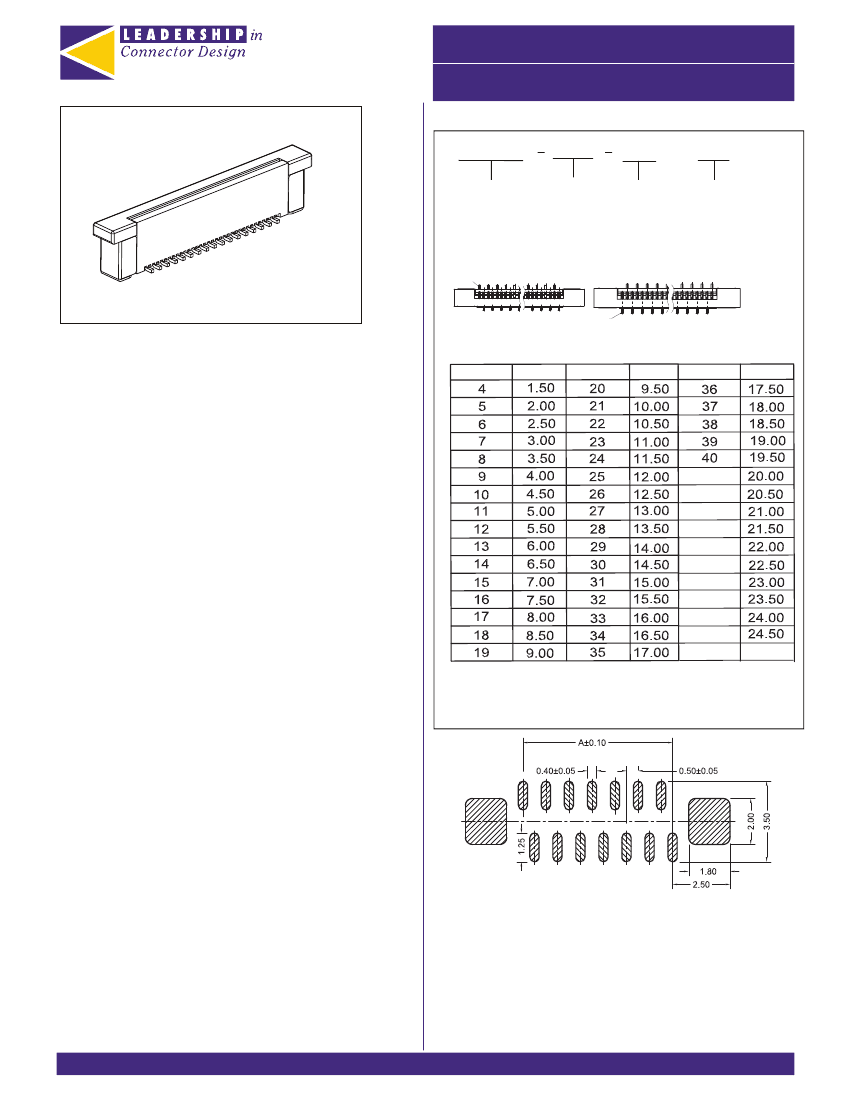

0.5 FPC/FFC SMD Side Entry

KYCON

RoHS

KFPC050X-V Series

Ordering Information

Series

Style

Contacts

Packaging

Series

KFPC050X -

0.5 FPC/FFC SMD Side Entry

Style

Pin 1

Pin #1

KFPC050X Series

0.5 FPC/FFC SMD Side Entry

Features

•

Flexible Flat Connector (FFC) and

Flexible Printed Connector (FPC) offered.

•

0.5mm Pitch version.

•

Pin counts from 4 to 50 Available

•

Offered as Zero Insertion Force (ZIF)

V1 ZIF Pin Orientation

V2 ZIF Pin Orientation

Contacts

No of Pin

DimA

No of Pin DimA

No of Pin

DimA

Performance Specifications

Material and Finish

Housing

:High Temp plastic (UL94V-0)

Contact

: Phosphor Bronze

Plated

: Tin Plated

Electrical Characteristics

Current Rating :

0.5A AC/DC

Voltage Rating :

50V AC/DC

Resistance :

20m ohm.max.

Insulstion Resistance :50M

ohm.Min.

Withstanding Voltage :500V

AC for one minute

Operating Temperature Range :

-25ºC to +85ºC

Packaging

Blank - Bulk

C-T - Tape and Reel with Cap for pick and place

V1 and V2 PCB Layout Reference

2007

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
