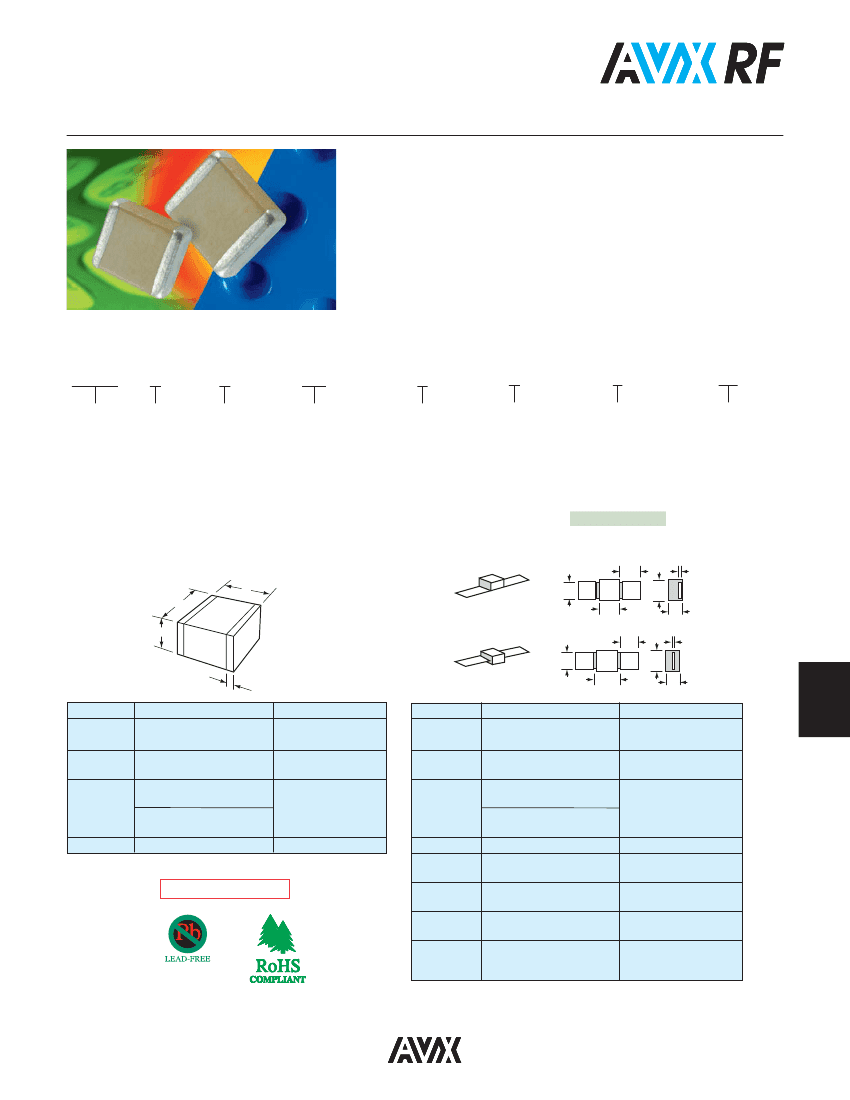

Hi-Q
®
High RF Power
MLC Surface Mount Capacitors
For 600V to 7200V Applications
PRODUCT OFFERING
Hi-Q
®
, high RF power, surface mount MLC capacitors from AVX
Corporation are characterized with ultra-low ESR and dissipation factor
at high frequencies. They are designed to handle high power and
high voltage levels for applications in RF power amplifiers, inductive
heating, high magnetic field environments (MRI coils), medical and
industrial electronics.
HOW TO ORDER
HQCC
AVX
Style
HQCC
HQCE
HQLC
HQLE
A
Voltage
300V = 9
500V = 7
1000V = A
1500V = S
2500V = W
3600V = J
5000V = K
7200V = M
A
Temperature
Coefficient
C0G = A
P90 = M
271
J
A
Test Level
A = Standard
T
1A
Capacitance Code
Capacitance
(2 significant digits
Tolerance
+ no. of zeros)
B = 0.1pf (<8.2pF)
Examples:
C = ±0.25pF (<8.2pF)
4.7 pF = 4R7
D = ±0.50pF (<8.2pF)
10 pF = 100
F = ±1% ( 10pF)
100 pF = 101
G = ±2%
1,000 pF = 102
J = ±5%
K = ±10%
M = ±20%
Termination*
Packaging
T = Plated Ni and Sn
1A = 7" Reel*
(RoHS Compliant)
6 = Waffle Pack
J = 5% Min Pb
7 = Plated Ni and Au
*HQCC & HQCE
A = Axial Ribbon
only
M = Microstrip
H = Cu/Sn (Non-Magnetic)
**RoHS compliant
MICROSTRIP
L
L
W
L
L
W
T
T
L
L
L
W
L
W
L
T
DIMENSIONS
W
T
millimeters (inches)
L
T
L
AXIAL RIBBON
t
STYLE
(L) Length
(W) Width
(T) Thickness
Max.
HQCC
5.84 +0.51 -0.25
(0.230 +0.020 -0.010)
6.35 ± 0.38
(0.250 ± 0.015)
3.68 (0.145) max. for
capacitance values ≤ 680pF
4.19 (0.165) max. for
capacitance values > 680pF
1.20 ± (0.040) max.
HQCE
9.65 +0.38 -0.25
(0.380 +0.015 -0.010)
9.65 ± 0.25
(0.380 ± 0.010)
4.32 (0.170) max.
STYLE
(L) Length
(W) Width
(T) Thickness
Max.
HQLC
6.22 ± 0.64
(0.245 ± 0.025)
6.35 ± 0.38
(0.250 ±0.015)
3.68 (0.145) max. for
capacitance values ≤ 680pF
4.19 (0.165) max. for
capacitance values ≤ 680pF
N/A
12.7 min.
(0.500)
6.10 ± 0.127
(0.240 ± 0.005)
0.102 ±0.025
(0.004 ± 0.001)
High Purity Silver Leads
Leads are attached with
High Temperature Solder
HQLE
9.65 +0.89 -0.25
(0.380 +0.035 -0.010)
9.65 ± 0.25
(0.380 ± 0.010)
4.32 (0.170) max.
6
(Y) Overlap
1.02 ± (0.040) max.
Not RoHS Compliant
(Y) Overlap
(LL) Lead
Length
(WL) Lead
Width
(TL) Lead
Thickness
Lead
Material
LEAD-FREE COMPATIBLE
COMPONENT
N/A
19.05
(0.750)
8.89 ± 0.25
(0.350 ±0.010)
0.25 ± 0.13
(0.010 ±0.005)
High Purity Silver Leads
Leads are attached with
High Temperature Solder
For RoHS compliant products,
please select correct termination style.
135
Hi-Q
®
High RF Power
MLC Surface Mount Capacitors
For 600V to 7200V Applications
DIELECTRIC PERFORMANCE CHARACTERISTICS
Capacitance Range
Capacitance Tolerances
Dissipation Factor 25°C
Operating Temperature Range
Temperature Characteristic
Insulation Resistance
Dielectric Strength
1.0pF to 2,700pF
(25°C, 1.0 ±0.2 Vrms at 1kHz, for ≤ 1000 pF use 1MHz)
±0.10pF, ±0.25pF, ±0.50pF, ±1%, ±2%, ±5%, ±10%, ±20%
0.1% Max (+25°C, 1.0 ±0.2 Vrms at 1kHz, for ≤ 1000 pF use 1MHz)
-55°C to +125°C
C0G: 0 ± 30 ppm/°C (-55°C to +125°C), P90: 90 ± 30 ppm/°C (-55°C to +125°C)
100K MΩ min. @ +25°C and 500VDC
10K MΩ min. @ +125°C and 500VDC
250% of WVDC for capacitors rated at 500 volts DC or less for 5 seconds.
150% of WVDC for capacitors rated at 1250 volts DC or less for 5 seconds.
120% of WVDC for capacitors rated above 1250 volts DC or less for 5 seconds.
HQCC CAPACITANCE VALUES (A DIELECTRIC)
Cap
Code
1R0
1R2
1R5
1R8
2R2
2R7
3R3
3R9
4R7
5R6
6R8
Cap
(pF)
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
Tol.
Rated
WVDC
Cap
Code
8R2
100
120
150
180
220
270
330
390
470
560
Cap
(pF)
8.2
10
12
15
18
22
27
33
39
47
56
Tol.
B, C, D
Rated
WVDC
Cap
Code
680
820
101
121
151
181
221
271
331
391
Cap
(pF)
68
82
100
120
150
180
220
270
330
390
Tol.
Rated
WVDC
Cap
Code
471
561
681
821
102
122
152
182
222
272
Cap
(pF)
470
560
680
820
1000
1200
1500
1800
2200
2700
Tol.
Rated
WVDC
1500
1000
F, G, J
K, M
500
300
B, C, D
2500
F, G, J
K, M
2500
F, G, J
K, M
2500
1500
HQCC CAPACITANCE VALUES (M DIELECTRIC)
Cap
Code
1R0
1R1
1R2
1R3
1R4
1R5
1R6
1R7
1R8
1R9
2R0
2R1
2R2
2R4
2R5
3R0
3R3
3R6
3R9
4R3
4R7
Cap
(pF)
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
Tol.
Rated
WVDC
Cap
Code
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
160
180
200
220
240
270
300
330
360
Cap
(pF)
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
Tol.
Rated
WVDC
Cap
Code
390
430
470
510
560
620
680
750
820
910
101
111
121
131
151
161
181
201
221
241
271
Cap
(pF)
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
220
240
270
Tol.
Rated
WVDC
Cap
Code
301
331
361
391
431
471
511
561
621
681
751
821
911
102
112
122
152
182
222
242
272
Cap
(pF)
300
330
360
390
430
470
510
560
260
680
750
820
910
1000
1100
1200
1500
1800
2220
2400
2700
Tol.
Rated
WVDC
1500
B, C, D
6
B, C, D
2500
2500
F, G, J
K, M
2500
F, G, J
K, M
1000
F, G, J
K, M
500
300
HQCE CAPACITANCE VALUES (A DIELECTRIC)
Cap
Code
1R0
1R2
1R5
1R8
2R2
2R7
3R3
3R9
4R7
5R6
6R8
8R2
100
120
Cap
(pF)
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
Tol.
Rated WVDC
Standard Extended
C, D
3600
7200
G, J,
K, M
Cap
Code
150
180
220
270
330
390
470
560
680
820
101
121
151
181
Cap
(pF)
15
18
22
27
33
39
47
56
68
82
100
120
150
180
Tol.
Rated WVDC
Standard Extended
7200
G, J,
K, M
3600
5000
Cap
Code
221
271
331
391
471
561
681
821
102
122
152
182
222
Cap
(pF)
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
Tol.
Rated WVDC
Standard Extended
3600
G, J,
K, M
2500
NA
1000
136
Hi-Q
®
High RF Power
MLC Surface Mount Capacitors
For 600V to 7200V Applications

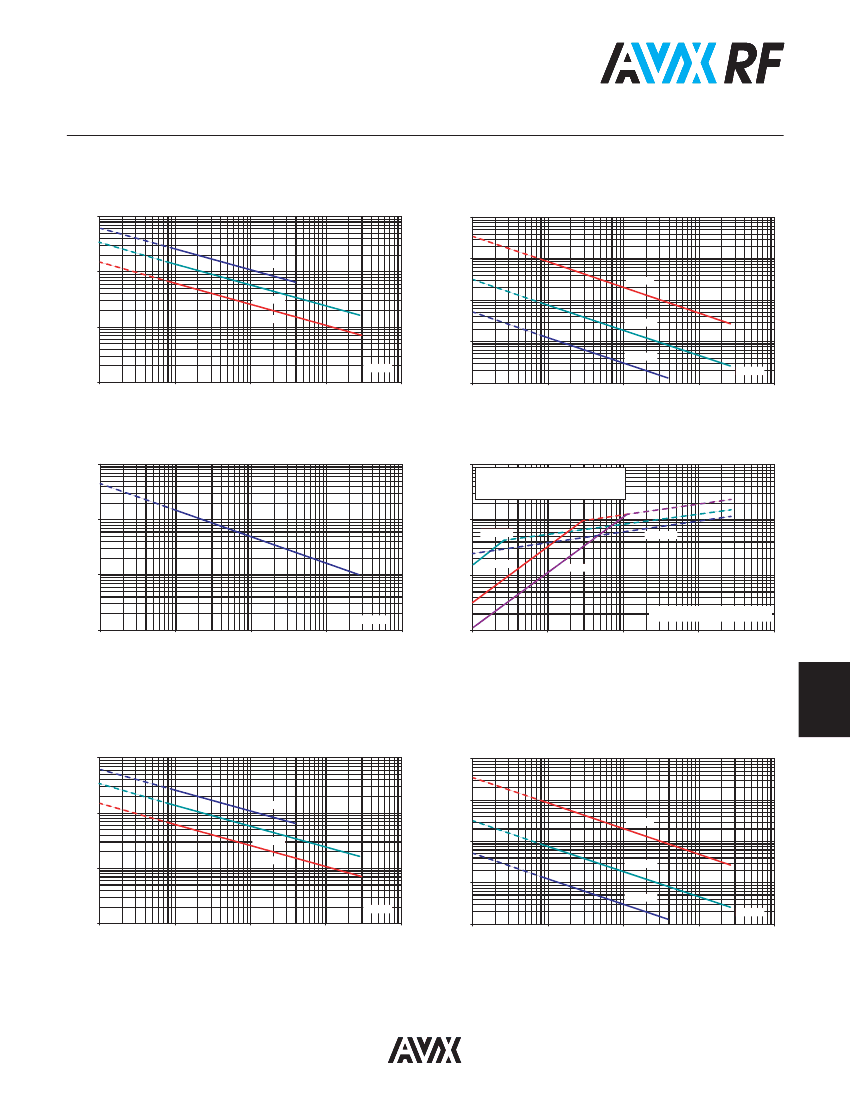

HQCC PERFORMANCE CHARACTERISTICS (A DIELECTRIC)
1
ESR VS. CAPACITANCE
HQCC
100000
Q VS. CAPACITANCE
HQCC
ESR (Ohms)
0.1
500 MHz
10000
30 MHz
150 MHz
0.01
30 MHz
1000
150 MHz
100
500 MHz
(Typical)
0.001
1
10
100
1000
10000
10
1
10
100
1000
Q
(Typical)
10000
Capacitance (pF)
Capacitance (pF)
10000
SERIES RESONANCE VS. CAPACITANCE
HQCC
100
CURRENT RATING VS. CAPACITANCE
HQCC
The current rating is based on a 65°C mounting
surface and a device thermal resistance ( ) of
15°C/W. A power dissipation of 4W will result
in a case temperature of 125°C.
1000
RMS Current (Amps)
Frequency (MHz)
10
150 MHz
500 MHz
30 MHz
1
100
10 MHz
(Typical)
10
1
10
100
1000
10000
0.1
1
10
100
Dotted line = Power dissipation limited
Solid line = Voltage limited (Vrms)
1000
10000
Capacitance (pF)
Capacitance (pF)
HQCC PERFORMANCE CHARACTERISTICS (M DIELECTRIC)
1
6
Q VS. CAPACITANCE
HQCC
ESR VS. CAPACITANCE
HQCC
100000
ESR (Ohms)
0.1
500 MHz
10000
30 MHz
150 MHz
0.01
30 MHz
1000
150 MHz
100
500 MHz
(Typical)
0.001
1
10
100
1000
10000
10
1
10
100
1000
Q
(Typical)
10000
Capacitance (pF)
Capacitance (pF)
137
Hi-Q
®
High RF Power
MLC Surface Mount Capacitors
For 600V to 7200V Applications
SERIES RESONANCE VS. CAPACITANCE
HQCC
CURRENT RATING VS. CAPACITANCE
HQCC
The current rating is based on a 65°C mounting
surface and a device thermal resistance ( ) of
15°C/W. A power dissipation of 4W will result
in a case temperature of 125°C.
10000
100
1000
RMS Current (Amps)
Frequency (MHz)
10
150 MHz
500 MHz
30 MHz
1
100
10 MHz
(Typical)
10
1
10
100
1000
10000
0.1
1
10
100
Dotted line = Power dissipation limited
Solid line = Voltage limited (Vrms)
1000
10000
Capacitance (pF)
Capacitance (pF)
1.5
CAPACITANCE CHANGE VS. TEMPERTURE
HQCC
TC = +90 ±30 PPM/ºC
% Change in Capacitance
1
0.5
0
-0.5
-1
-55
-35
-15
5
25
45
65
85
105
125
Temperature (ºC)
6
HQCE PERFORMANCE CHARACTERISTICS
1
ESR VS. CAPACITANCE
HQCE
100000
Q VS. CAPACITANCE
HQCE
ESR (Ohms)
10000
0.1
30 MHz
1000
30 MHz
Q
(Typical)
0.01
1
10
100
1000
100
1
10
100
(Typical)
1000
Capacitance (pF)
(1.0 pF to 400 pF)
Capacitance (pF)
(1.0 pF to 400 pF)
138
Hi-Q
®
High RF Power
MLC Surface Mount Capacitors
For 600V to 7200V Applications
ESR VS. CAPACITANCE
HQCE
Q VS. CAPACITANCE
HQCE
0.1
1000
ESR (Ohms)
30 MHz
30 MHz
0.01
100
Q
(Typical)
0.001
100
1000
10000
10
100
1000
(Typical)
10000
Capacitance (pF)
(430 pF to 2200 pF)
Capacitance (pF)
(430 pF to 2200 pF)
10000
SERIES RESONANCE VS. CAPACITANCE
HQCE
100
CURRENT RATING VS. CAPACITANCE
HQCE
The current rating is based on a 65°C mounting
surface and a device thermal resistance ( ) of
12°C/W. A power dissipation of 5W will result
in a case temperature of 125°C.
Frequency (MHz)
1000
RMS Current (Amps)
10
100
1
30 MHz
10 MHz
2 MHz
(Typical)
10
1
10
100
1000
10000
0.1
1
10
Dotted line = Power dissipation limited
Solid line = Voltage limited (Vrms)
100
1000
Capacitance (pF)
Capacitance (pF)
(1.0 pF to 400 pF)
100
CURRENT RATING VS. CAPACITANCE
HQCE
The current rating is based on a 65°C mounting
surface and a device thermal resistance ( ) of
12°C/W. A power dissipation of 5W will result
in a case temperature of 125°C.
100
CURRENT RATING VS. CAPACITANCE
HQCE
The current rating is based on a 65°C mounting
surface and a device thermal resistance ( ) of
12°C/W. A power dissipation of 5W will result
in a case temperature of 125°C.
6
RMS Current (Amps)
30 MHz
10
2 MHz
RMS Current (Amps)
10 MHz
10
30 MHz
10 MHz
1
2 MHz
Dotted line = Power dissipation limited
Solid line = Voltage limited (Vrms)
Dotted line = Power dissipation limited
Solid line = Voltage limited (Vrms)
1
100
1000
10000
0.1
1
10
100
1000
Capacitance (pF)
(430 pF to 2200 pF)
Capacitance (pF)
(1.0 pF to 180 pF)
139
京公网安备 11010802033920号
EEWORLD
