IMS1203A-45M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> IMS1203A-45M

IMS1203A-45M: Description4KX1 STANDARD SRAM, 45ns, DFP18, FORMED, FP-18; Categorystorage storage; File Size244KB，9 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

IMS1203A-45M Overview

4KX1 STANDARD SRAM, 45ns, DFP18, FORMED, FP-18

IMS1203A-45M Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DFP
package instruction	FORMED, FP-18
Contacts	18
Reach Compliance Code	not_compliant
ECCN code	3A001.A.2.C
Maximum access time	45 ns
I/O type	SEPARATE
JESD-30 code	R-XDFP-F18
JESD-609 code	e0
length	10.973 mm
memory density	4096 bit
Memory IC Type	STANDARD SRAM
memory width	1
Number of functions	1
Number of ports	1
Number of terminals	18
word count	4096 words
character code	4000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	4KX1
Output characteristics	3-STATE
Exportable	NO
Package body material	UNSPECIFIED
encapsulated code	DFP
Encapsulate equivalent code	FL18,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.235 mm
Maximum standby current	0.005 A
Minimum standby current	4.5 V
Maximum slew rate	0.08 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.194 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

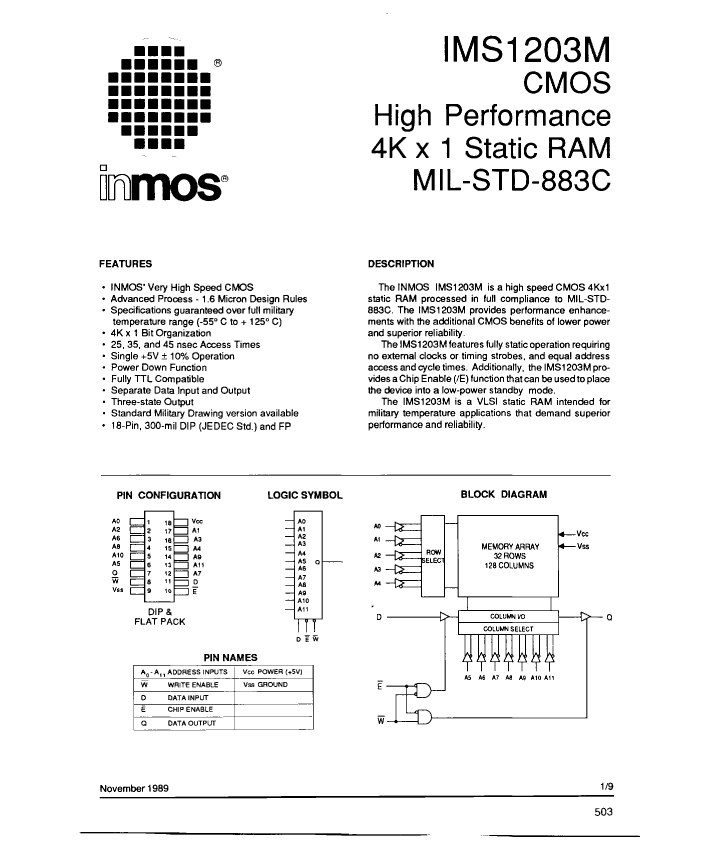

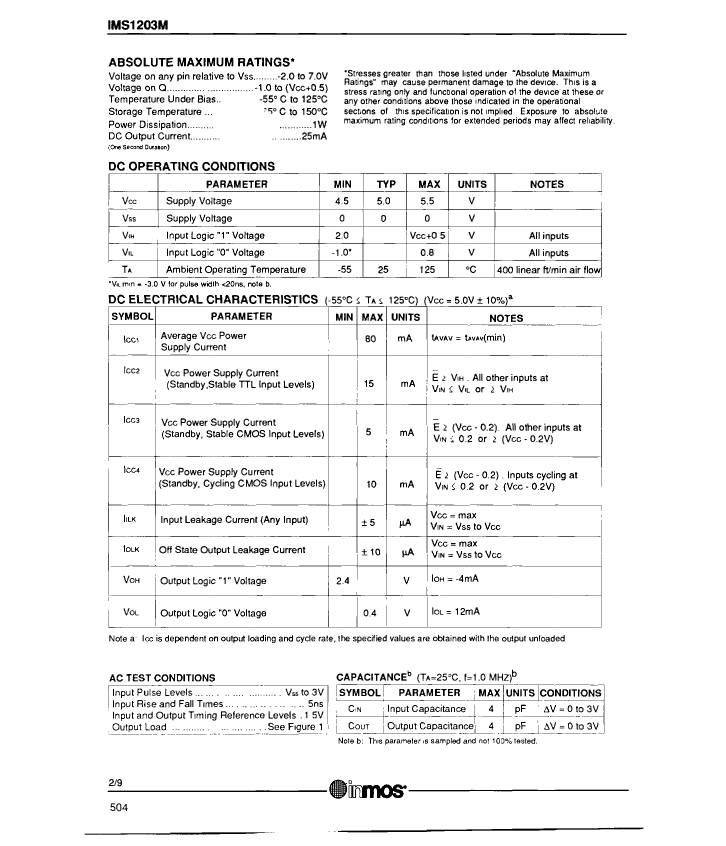

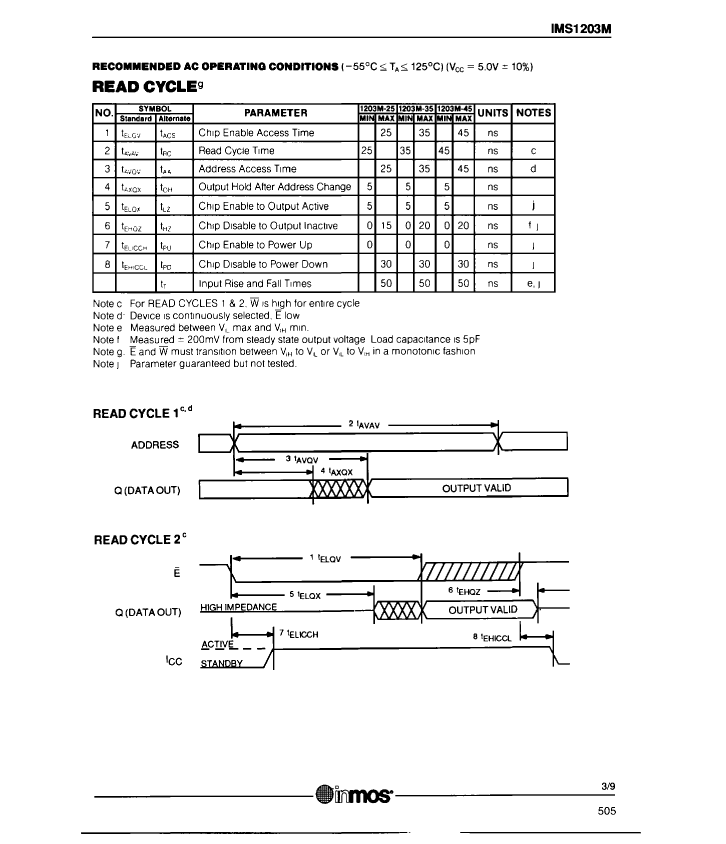

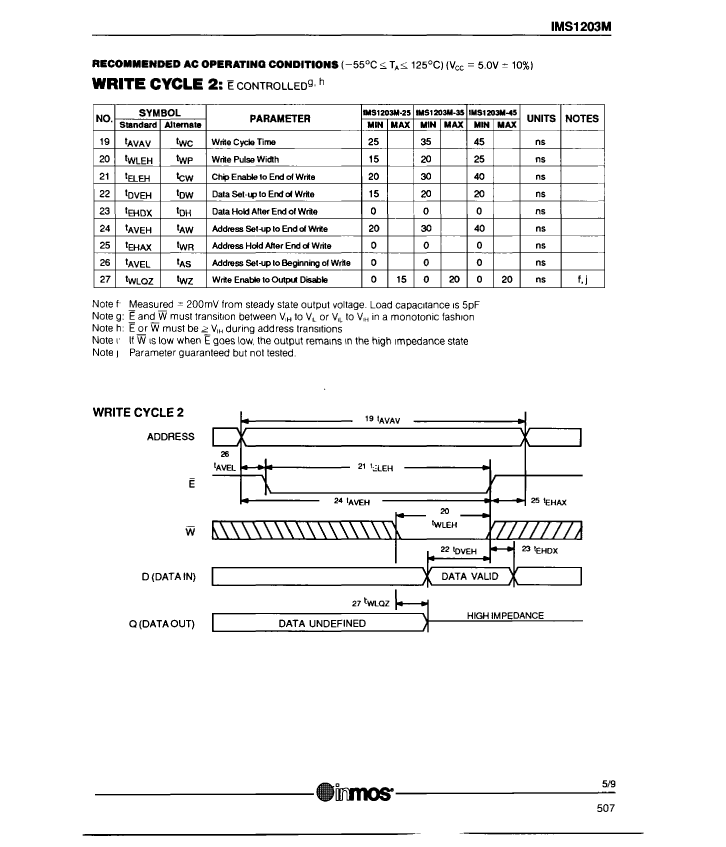

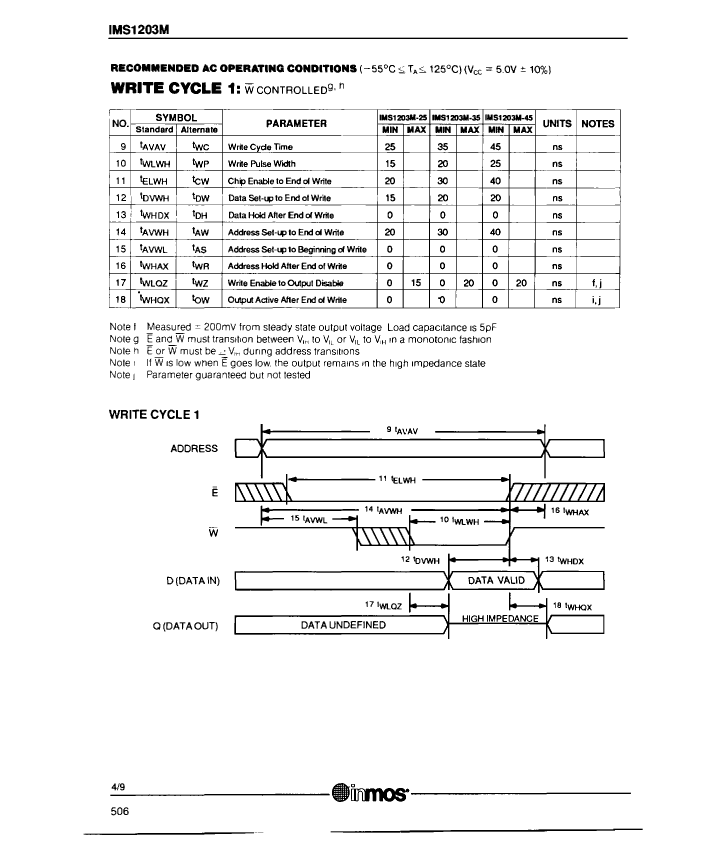

Preview

Download Datasheet

View All

IMS1203A-45M Related Products

	IMS1203A-45M	5962-8751301XC	IMS1203S-25M	5962-8751301VC	5962-8751302XC	5962-8751303VC	5962-8751303XC	5962-8751302VC	IMS1203A-25M	IMS1203S-45M
Description	4KX1 STANDARD SRAM, 45ns, DFP18, FORMED, FP-18	4KX1 STANDARD SRAM, 25ns, CDFP18, FP-18	4KX1 STANDARD SRAM, 25ns, CDIP18, 0.300 INCH, SIDE BRAZED, CERAMIC, DIP-18	4KX1 STANDARD SRAM, 25ns, CDIP18, 0.300 INCH, CERAMIC, DIP-18	4KX1 STANDARD SRAM, 35ns, CDFP18, FP-18	4KX1 STANDARD SRAM, 45ns, CDIP18, 0.300 INCH, CERAMIC, DIP-18	4KX1 STANDARD SRAM, 45ns, CDFP18, FP-18	4KX1 STANDARD SRAM, 35ns, CDIP18, 0.300 INCH, CERAMIC, DIP-18	4KX1 STANDARD SRAM, 25ns, DFP18, FORMED, FP-18	4KX1 STANDARD SRAM, 45ns, CDIP18, 0.300 INCH, SIDE BRAZED, CERAMIC, DIP-18
Parts packaging code	DFP	DFP	DIP	DIP	DFP	DIP	DFP	DIP	DFP	DIP
package instruction	FORMED, FP-18	DFP,	DIP, DIP18,.3	DIP,	DFP,	DIP,	DFP,	DIP,	FORMED, FP-18	0.300 INCH, SIDE BRAZED, CERAMIC, DIP-18
Contacts	18	18	18	18	18	18	18	18	18	18
Reach Compliance Code	not_compliant	unknown	not_compliant	unknown	unknown	unknown	unknown	unknown	_compli	not_compliant
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum access time	45 ns	25 ns	25 ns	25 ns	35 ns	45 ns	45 ns	35 ns	25 ns	45 ns
JESD-30 code	R-XDFP-F18	R-CDFP-F18	R-CDIP-T18	R-CDIP-T18	R-CDFP-F18	R-CDIP-T18	R-CDFP-F18	R-CDIP-T18	R-XDFP-F18	R-CDIP-T18
JESD-609 code	e0	e4	e0	e4	e4	e4	e4	e4	e0	e0
length	10.973 mm	10.973 mm	22.86 mm	22.86 mm	10.973 mm	22.86 mm	10.973 mm	22.86 mm	10.973 mm	22.86 mm
memory density	4096 bit	4096 bit	4096 bit	4096 bit	4096 bit	4096 bit	4096 bit	4096 bit	4096 bi	4096 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	1	1	1	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1	1	1
Number of terminals	18	18	18	18	18	18	18	18	18	18
word count	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words
character code	4000	4000	4000	4000	4000	4000	4000	4000	4000	4000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	4KX1	4KX1	4KX1	4KX1	4KX1	4KX1	4KX1	4KX1	4KX1	4KX1
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DFP	DIP	DIP	DFP	DIP	DFP	DIP	DFP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	IN-LINE	IN-LINE	FLATPACK	IN-LINE	FLATPACK	IN-LINE	FLATPACK	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	YES	NO	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	GOLD	Tin/Lead (Sn/Pb)	GOLD	GOLD	GOLD	GOLD	GOLD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal pitch	1.194 mm	1.194 mm	2.54 mm	2.54 mm	1.194 mm	2.54 mm	1.194 mm	2.54 mm	1.194 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	STMicroelectronics	-	STMicroelectronics	-	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Base Number Matches	-	1	1	1	1	1	1	1	-	-
