ERA14EB332U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> ERA14EB332U

ERA14EB332U: DescriptionFixed Resistor, Metal Film, 0.25W, 3300ohm, 150V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 1210, CHIP; CategoryPassive components The resistor; File Size117KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

ERA14EB332U Overview

Fixed Resistor, Metal Film, 0.25W, 3300ohm, 150V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 1210, CHIP

ERA14EB332U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	SMT, 1210
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Chip
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.6 mm
Package length	3.2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	2.5 mm
method of packing	TR, EMBOSSED, 7 INCH
Rated power dissipation(P)	0.25 W
Rated temperature	70 °C
resistance	3300 Ω
Resistor type	FIXED RESISTOR
size code	1210
surface mount	YES
technology	METAL FILM
Temperature Coefficient	25 ppm/°C
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND
Tolerance	0.1%
Operating Voltage	150 V

Preview

Download Datasheet

View All

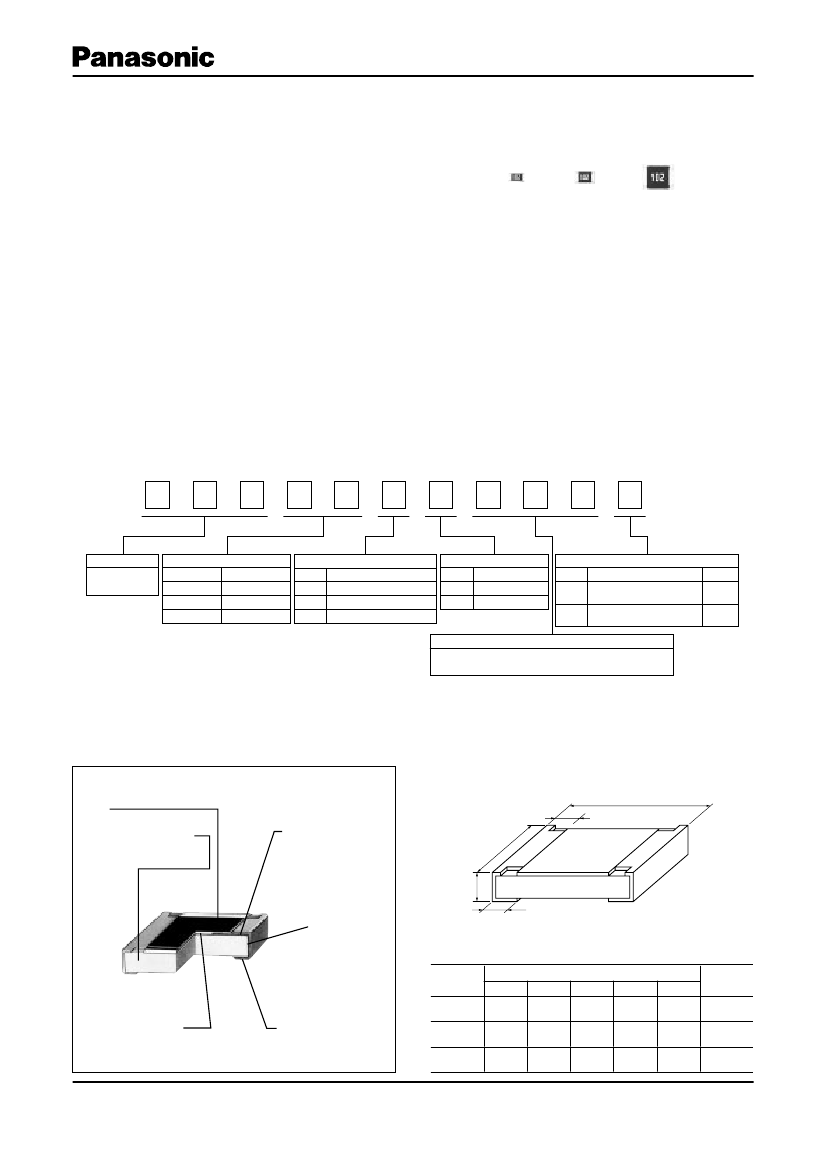

Metal Film Chip Resistors, Rectangular Type

Metal Film Chip Resistors,

Rectangular Type

0603, 0805, 1210

Type:

ERA 3Y, 6Y, 14

■

Features

●

Small size and lightweight

●

High reliability

Low T.C.R. & current noise, excellent non-linearity

●

Suitable for both reﬂow and ﬂow soldering

●

Reference Standards

IEC 60115-8, JIS C 5201-8, EIAJ RC-2133A

■

Explanation of Part Numbers

Product Code

Metal Film

Chip Resistors

Size, Power Rating

Type: inches Power Rating

0.063 W

3Y : 0603

0.1 W

6Y : 0805

0.25 W

14 : 1210

Temperature Coefficient

T.C.R.

Code

–6

±25

10 /°C (ppm/°C)

±50

–6

/°C (ppm/°C)

±100

–6

/°C (ppm/°C)

Resistance Tolerance

Code

Tolerance

±0.1

±0.5

Code

Packaging Methods

Packaging

Punched Carrier Taping

4 mm pitch

Embossed Carrier Taping

4 mm pitch

Type

ERA3Y

ERA6Y

ERA14

Resistance Value

The first two digits are significant figures of resistance

and the third one denotes number of zeros following.

■

Construction

Protective coating

■

Dimensions in mm (not to scale)

Electrode (Inner)

Alumina substrate

Electrode

(Between)

Type

(inches)

ERA3Y

(0603)

Electrode (Outer)

ERA6Y

(0805)

ERA14

(1210)

Dimensions (mm)

1.60

2.00

3.20

±0.20

0.80

1.25

2.50

±0.20

0.30

0.40

0.50

±0.20

0.30

±0.20

0.45

±0.10

Mass (Weight)

[g/1000 pcs.]

High reliability

metal film

±0.20

±0.10

±0.25

0.40

0.50

±0.25

0.50

0.60

±0.10

±0.20

±0.10

Design and speciﬁcations are each subject to change without notice. Ask factory for the current technical speciﬁcations before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Mar. 2008

Safety Precautions

(Common precautions for Fixed Resistors)

• When using our products, no matter what sort of equipment they might be used for, be sure to make a written

agreement on the speciﬁ cations with us in advance. The design and speciﬁ cations in this catalog are subject

to change without prior notice.

• Do not use the products beyond the speciﬁcations described in this catalog.

• This catalog explains the quality and performance of the products as individual components. Before use, check

and evaluate their operations when installed in your products.

• Install the following systems for a failsafe design to ensure safety if these products are to be used in equipment

where a defect in these products may cause the loss of human life or other signiﬁcant damage, such as damage to

vehicles (au to mo bile, train, vessel), trafﬁ c lights, medical equipment, aerospace equipment, elec tric heating

appliances, combustion/gas equipment, rotating equipment, and disaster/crime prevention equipment.

Systems equipped with a protection circuit and a protection device

Systems equipped with a redundant circuit or other system to prevent an unsafe status in the event of a single fault

(1) Precautions for use

• These products are designed and manufactured for general and stan dard use in general elec tron ic

equipment (e.g. AV equipment, home electric ap plianc es, ofﬁ ce equipment, information and com mu ni cation

equipment)

• These products are not intended for use in the following special conditions. Before using the products, carefully

check the effects on their quality and performance, and determine whether or not they can be used.

1. In liquid, such as water, oil, chemicals, or organic solvent

2. In direct sunlight, outdoors, or in dust

3. In salty air or air with a high concentration of corrosive gas, such as Cl

, H

S, NH

, SO

, or NO

4. Electric Static Discharge (ESD) Environment

These components are sensitive to static electricity and can be damaged under static shock (ESD).

Please take measures to avoid any of these environments.

Smaller components are more sensitive to ESD environment.

5. Electromagnetic Environment

Avoid any environment where strong electromagnetic waves exist.

6. In an environment where these products cause dew condensation

7. Sealing or coating of these products or a printed circuit board on which these products are mounted, with resin

or other materials

• These products generate Joule heat when energized. Carefully position these products so that their heat will not

affect the other components.

• Carefully position these products so that their temperatures will not exceed the category temperature range due

to the effects of neighboring heat-generating components. Do not mount or place heat-generating components or

inﬂammables, such as vinyl-coated wires, near these products .

• Note that non- cleaning solder, halogen-based highly active ﬂ ux, or water-soluble ﬂ ux may deteriorate the

performance or reliability of the products.

• Carefully select a ﬂ ux cleaning agent for use after soldering. An unsuitable agent may deteriorate the

performance or reliability. In particular, when using water or a water-soluble cleaning agent, be careful not to leave

water residues. Otherwise, the insulation performance may be deteriorated.

(2) Precautions for storage

The performance of these products, including the solderability, is guaranteed for a year from the date of arrival at your

company, provided that they remain packed as they were when delivered and stored at a temperature of 5 °C to 35 °

C and a relative humidity of 45 % to 85 %.

Even within the above guarantee periods, do not store these products in the following conditions. Otherwise, their

electrical performance and/or solderability may be deteriorated, and the packaging materials (e.g. taping materials)

may be deformed or deteriorated, resulting in mounting failures.

1. In salty air or in air with a high concentration of corrosive gas, such as Cl

, H

S, NH

, SO

, or NO

2. In direct sunlight

Package markings include the product number, quantity, and country of origin.

In principle, the country of origin should be indicated in English.

Oct. 2007

– ER3 –
