The BPF-C550+ is an ultra wide band filter in a small shielded package (size of 0.87" x 0.80" x 0.25") fabricated
using SMT technology. This filter offers sharp roll-off and good rejection for use in receiver front end applications.
Key Features
Feature
Sharp roll-off
Advantages
BPF-C550+ attenuates spurious signals and rejects harmonics for wide band of frequency.
Good VSWR over ultra wide
bandwidth
This filter maintains typical 1.5 VSWR over ultra wide passband frequency range making this filter
easier to integrate into receiver and transmitter RF chains with less concerns for in band frequency
ripple.
Small size, 0.87" x 0.80" x 0.25"
The unique surface mount package enables the BPF-C550+ to be used in compact design.
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Page 1 of 3
Mini-Circuits
®
Bandpass Filter
50Ω
Features
•
•
•
•
Sharp roll-off
Ultra wide bandwidth
Good VSWR
Miniature shielded package
Pass Band
Parameter
Center Frequency
Insertion Loss
VSWR
Insertion Loss
VSWR
Insertion Loss
VSWR
F#
—
F1-F2
F1-F2
DC-F3
DC-F3
F4-F5
F4-F5
Surface Mount
BPF-C550+
CASE STYLE: HU1186
100 to 1000 MHz
Electrical Specifications at 25°C
Frequency (MHz)
—
100-1000
100-1000
DC-80
DC-80
1200-2000
1200-2000
Min.
—
—
—
35
—
30
—
Typ.
550
1.1
1.5
46
20
39
20
Max.
—
2.2
2.1
—
—
—
—
Unit
MHz
dB
:1
dB
:1
dB
:1
Applications
•
•
•
•
Test and measurement
Receiver front end applications
Cellular network
Civil aircraft communication radio
Stop Band, Lower
Stop Band, Upper
Maximum Ratings
Operating Temperature
Storage Temperature
RF Power Input
-40°C to 85°C
-55°C to 100°C
1W
Functional Schematic
Permanent damage may occur if any of these limits are exceeded.
Typical Performance Data at 25°C
Frequency
(MHz)
1.0
50.0
80.0
83.5
85.5
88.0
92.0
100.0
550.0
1000.0
1090.0
1112.0
1120.0
1133.0
1149.0
1200.0
1350.0
1500.0
1800.0
2000.0
Insertion Loss
(dB)
104.03
68.47
54.18
30.52
20.18
10.30
3.15
1.11
0.42
0.85
3.01
9.84
13.67
20.55
30.36
46.91
44.37
65.83
43.14
42.26
BPF-C550+
INSERTION LOSS (Full band)
VSWR
(:1)
203.05
120.93
21.35
12.73
8.56
4.68
2.19
1.14
1.29
1.17
1.61
5.59
7.94
11.45
14.60
20.01
25.02
25.38
25.65
25.13
Frequency
(MHz)
100
150
200
250
300
350
400
450
500
550
600
650
700
750
800
850
900
950
975
1000
Group Delay
(nsec)
25.74
4.59
3.29
2.22
1.74
1.48
1.33
1.24
1.19
1.18
1.18
1.21
1.26
1.32
1.40
1.52
1.74
1.96
2.35
2.71
Typical Frequency Response
FREQUENCY (MHz)
DC
INSERTION LOSS (dB)
F3
F1
F2
F4
F5
BPF-C550+
INSERTION LOSS (Pass band)
0
0
INSERTION LOSS (dB)
+RoHS Compliant
The +Suffix identifies RoHS Compliance. See our web site
for RoHS Compliance methodologies and qualifications
20
40
60
80
100
INSERTION LOSS (dB)
5
10
15
20
0.0
1.0
2.0
100
550
1000
0
500
1000
1500
FREQUENCY (MHz)
2000
0
300
600
900
FREQUENCY (MHz)
1200
BPF-C550+
VSWR
1000
26
BPF-C550+
GROUP DELAY
100
1.5
1.0
GROUP DELAY (ns)
2.0
21
16
11
6
1
VSWR
100
550
1000
10
1
0
500
1000
1500
FREQUENCY (MHz)
2000
100
250
400
550
700
850
1000
FREQUENCY (MHz)
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
REV.OR
M156103
BPF-C550+
EDU2116_1
URJ
170405
Page 2 of 3
Bandpass Filter
BPF-C550+

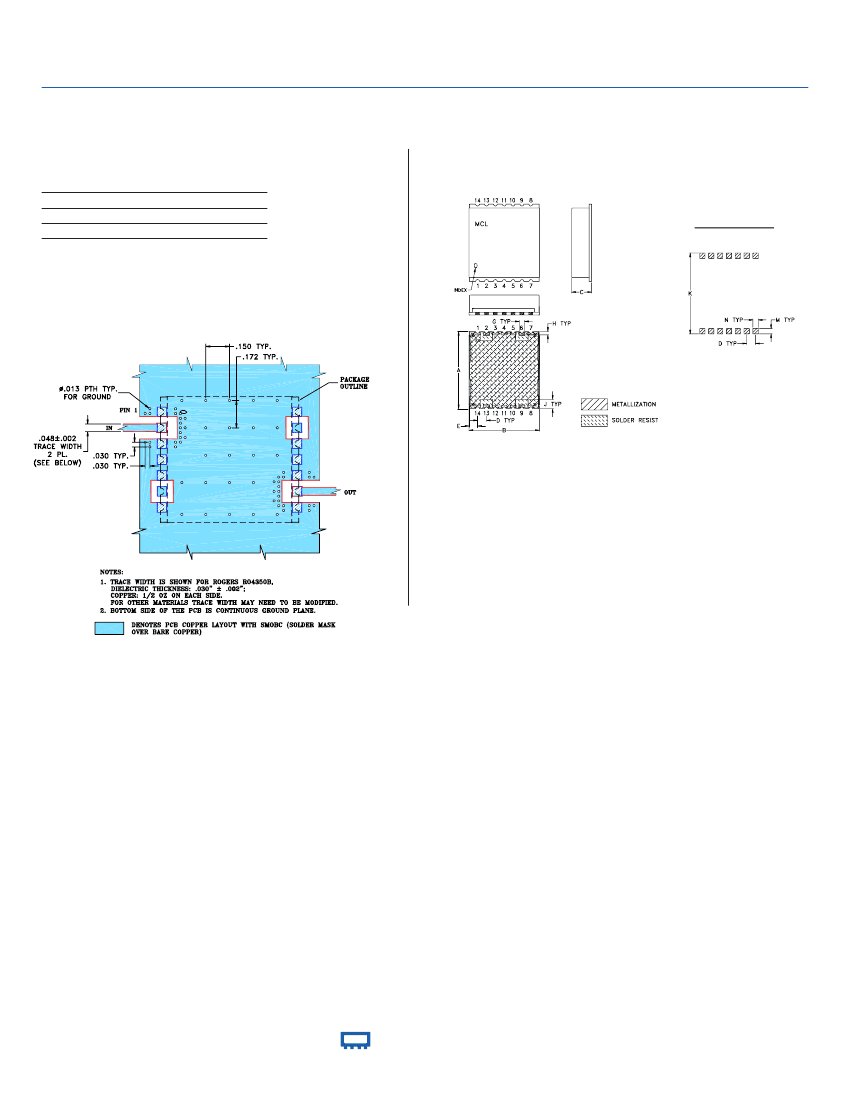

Outline Drawing
2
9
Pad Connections
INPUT
OUTPUT
GROUND
NOT CONNECTED
1,3,4,5,7,8,10,11,12,14
6,13
PCB Land Pattern
Demo Board MCL P/N: TB-500+
Suggested PCB Layout (PL-294)
Suggested Layout,
Tolerance to be within
±.002
Outline Dimensions (
inch
)
mm
A
.870
22.10
J
.105
2.67
B
.800
20.32
K
.910
23.11
C
.25
6.35
L
--
--
D
.100
2.54
M
.060
1.52
E
.097
2.46
N
.060
1.52
F
--
--
P
--
--
G
.060
1.52
H
.040
1.02
wt
grams
2.85
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
