BFCN-1560+

Description
Ceramic BPF, 1560MHz, CERAMIC, CASE FV1206-1, 6 PIN
CategoryAnalog mixed-signal IC    filter
File Size219KB,1 Pages
ManufacturerMini-Circuits
Websitehttps://www.minicircuits.com
Environmental Compliance
Download Datasheet Parametric View All

BFCN-1560+ Overview

Ceramic BPF, 1560MHz, CERAMIC, CASE FV1206-1, 6 PIN

BFCN-1560+ Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMini-Circuits
package instructionCERAMIC, CASE FV1206-1, 6 PIN
Reach Compliance Codecompliant
ECCN codeEAR99
Maximum attenuation frequency (+/- delta f)545000 kHz
Attenuation frequency (+/-Δf) - minimum value540000 kHz
Attenuation at maximum frequency30 dB
Attenuation@frequency min20 dB
average input power1.5 W
Center frequency or cutoff frequency (fo/fc)1560 MHz
filter typeCERAMIC BPF
high0.91 mm
Input/output impedance50 OHM
Maximum insertion loss5 dB
length3.2 mm
Installation typeSURFACE MOUNT
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
physical sizeL3.2XB1.6XH0.91 (mm)/L0.126XB0.063XH0.036 (inch)
voltage standing wave ratio1.7
width1.6 mm
+RoHS Compliant
The +Suffix identifies RoHS Compliance. See our web site
for RoHS Compliance methodologies and qualifications

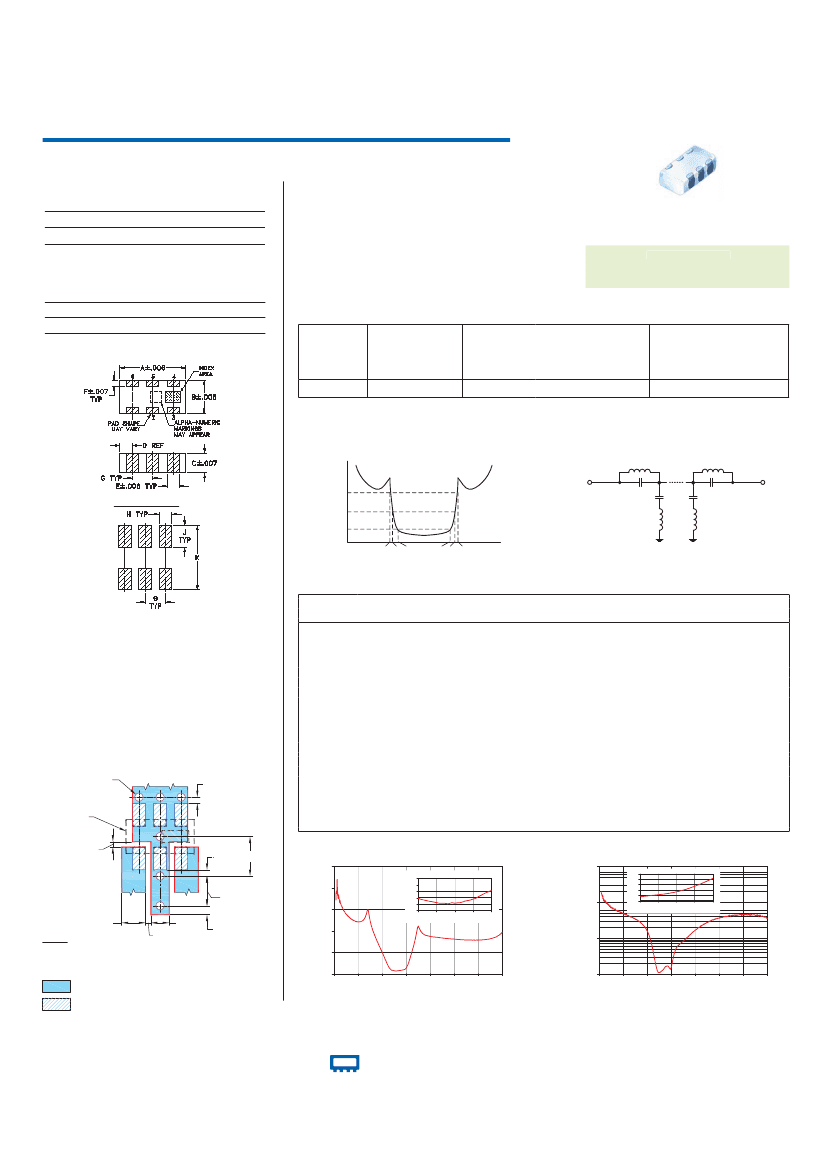

BFCN-1560+
INSERTION LOSS
100
1000
3.0
2.9
2.8
2.7
2.6
2.5
1500
1530
1560
1590
1620
1.5
1.4
1.3
1.2
1.1
1.0
1500
BFCN-1560+
VSWR
INSERTION LOSS (dB)
80
60
40
20
0
0
600
1200
100
VSWR
1530
1560
1590
1620
10
1
1800
2400
3000
3600
4200
0
600
1200
1800
2400
3000
3600
4200
FREQUENCY (MHz)
FREQUENCY (MHz)
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
Mini-Circuits
®
P.O. Box 35166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
