Specifications
.039 [1.00] SMT Strip Socket
9800S Series Sockets
Insulator Material: LCP 94V-O UL Recognized.
Contact Material: Phosphor Bronze
Contact Plating: Gold over .000050” Ni
(See contact plating options).
Insulation Resistance:
5000 M ohms min.
Dielectric Withstand Voltage: 500 VAC
Current Rating:
1 AMP
Operating Temperature:
-40°C To +105°C
Contact Resistance:
20 m ohms max.
Max. Processing Temp.:
230°C for 60 seconds
UL File Numbers:
E146967 & E176234
SUGGESTED MATING CONNECTOR
98XX-AX-01-XX (PAGE F-01)

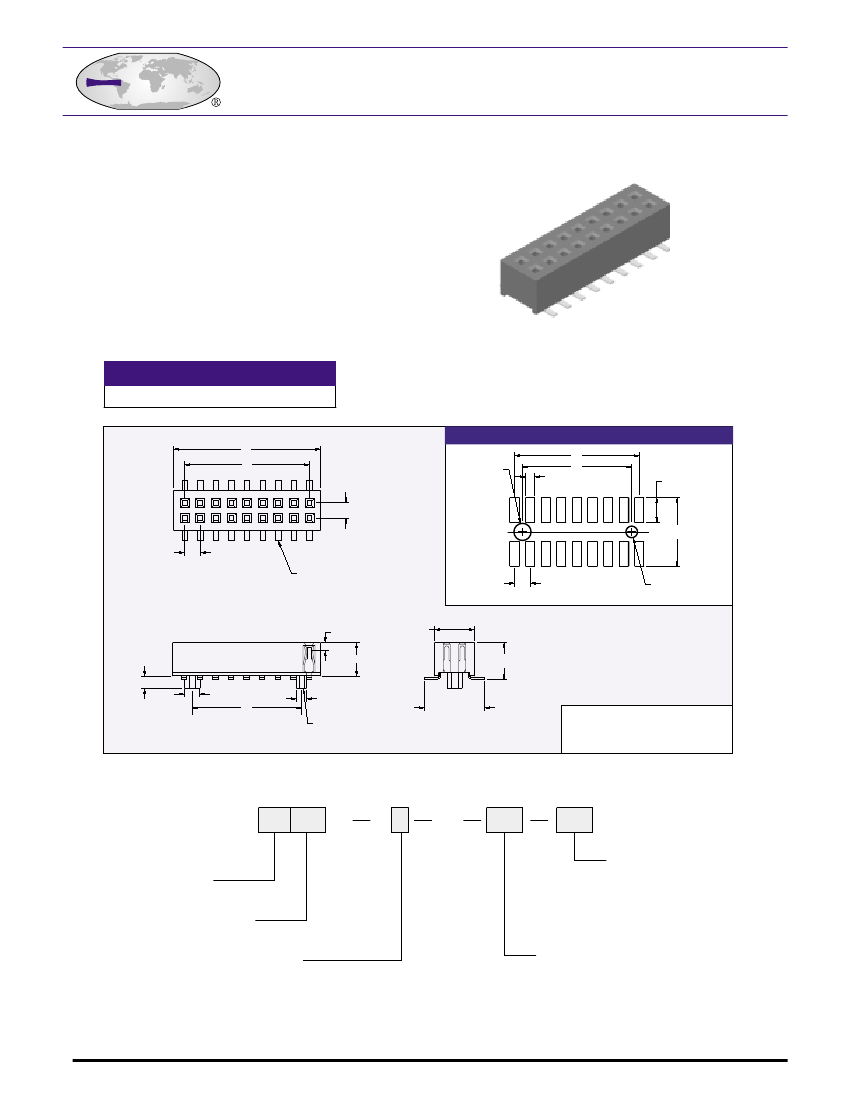

PCB LAYOUT
A
B
Ø.043 [1.10]
B
C
.022 [.56]
.071 [1.80]
.039 [1.00]
.189 [4.80]
.039 [1.00]
.012 [.30] x.004 [.10]
.039 [1.00]
Ø.029 [.74]
.022 [.57]
.084 [2.12]
.030 [.75]
.039 [1.00]
C
.025 [.64]
LOCATING PEGS
(OPTIONAL)
.100 [2.54]
.087 [2.22]
.150 [3.81]
A
= .017 + .039 x No. of Pos.
B
= .039 x (No. of Cont./2 -1)
C
= .039 x (No. of Cont./2 -2)
DIMENSIONS ARE IN INCHES & [MM]
PART NUMBERING
98 XX S
SERIES CODE
.039 SOCKET
A X
01
XX
XX
PACKAGING
TR
= TAPE & REEL PACKAGING
PP
= PICK AND PLACE PAD
BLANK = STANDARD PACKAGING
CONSULT FACTORY FOR
TR
AND
PP
PACKAGING AVAILABILITY
NO. OF CONTACTS
06 - 60
100 =
01
LOCATING PEG
CONTACT PLATING
.000050” Nickel underplate
MATING
TAIL
Au Flash
03
= Au Flash
15µ”Au
85
= 15µ”Au
30µ”Au
90
= 30µ”Au
1
= WITH LOCATING PEG
0
= WITHOUT LOCATING PEG
