F.CQ.AA.2680.ZB.000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> F.CQ.AA.2680.ZB.000

F.CQ.AA.2680.ZB.000: DescriptionMains Power Connector, 2A, 250V, Male, Solder Terminal, Plug; CategoryThe connector The connector; File Size504KB，2 Pages; ManufacturerNissei Electric Co.,Ltd.

Download Datasheet Parametric View All

F.CQ.AA.2680.ZB.000 Overview

Mains Power Connector, 2A, 250V, Male, Solder Terminal, Plug

F.CQ.AA.2680.ZB.000 Parametric

Parameter Name	Attribute value
Maker	Nissei Electric Co.,Ltd.
Reach Compliance Code	unknown
Other features	STANDARD: IEC/EN 60320; VDE, FASTON
Body/casing type	PLUG
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	2A, 250V
Manufacturer's serial number	F.CQ
Installation type	PANEL
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	3

Preview

Download Datasheet

View All

IEC Inlet Filters

With fuse holders

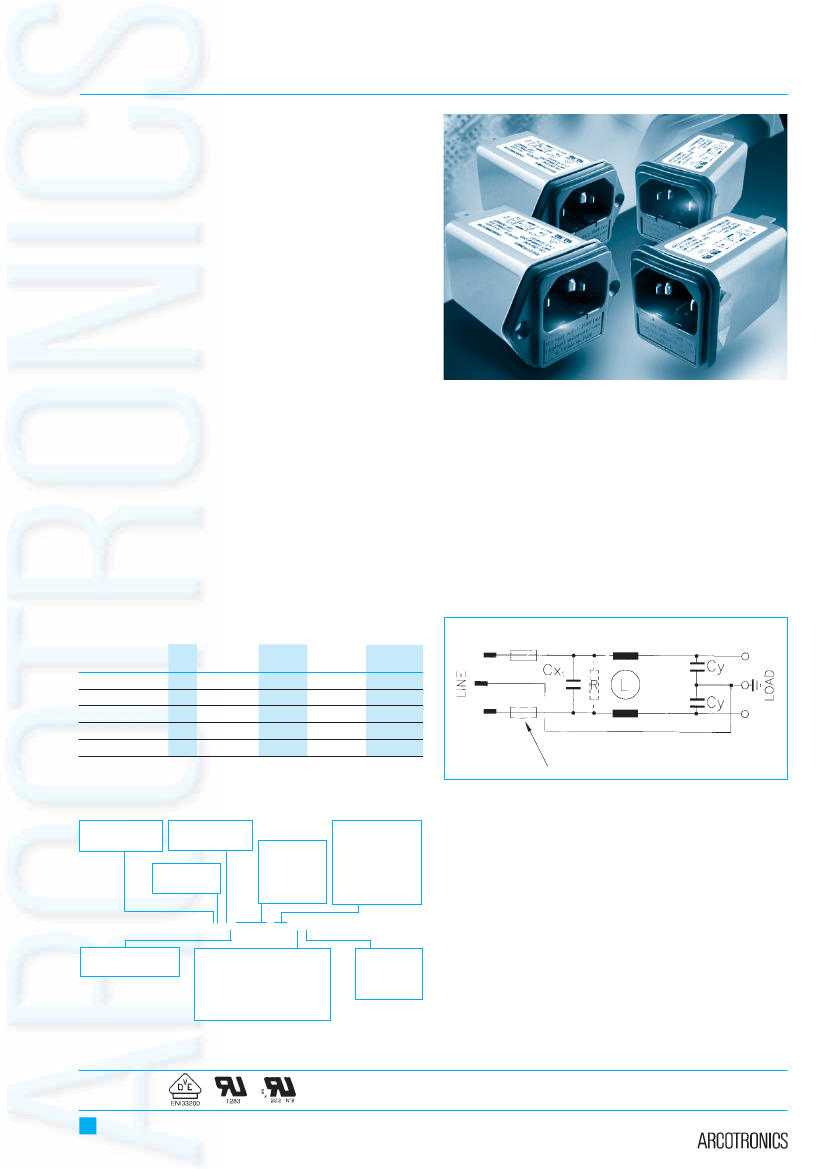

A range of chassis mount IEC 60320 inlet power entry modules which

combine single or twin fuse holders and a high level of suppression,

within a compact and lightweight enclosure.

Cost effective solution for business, consumer, medical

equipment, VDUs, computers, vending machines and many other

general purpose applications.

F.BP-F.BQ-F.CP-F.CQ

series

•

Snap-in or screw fit

•

Current ratings from 1A to 10A

•

Integral single or twin fuse holder

•

Compact, lightweight design

•

Medical versions available

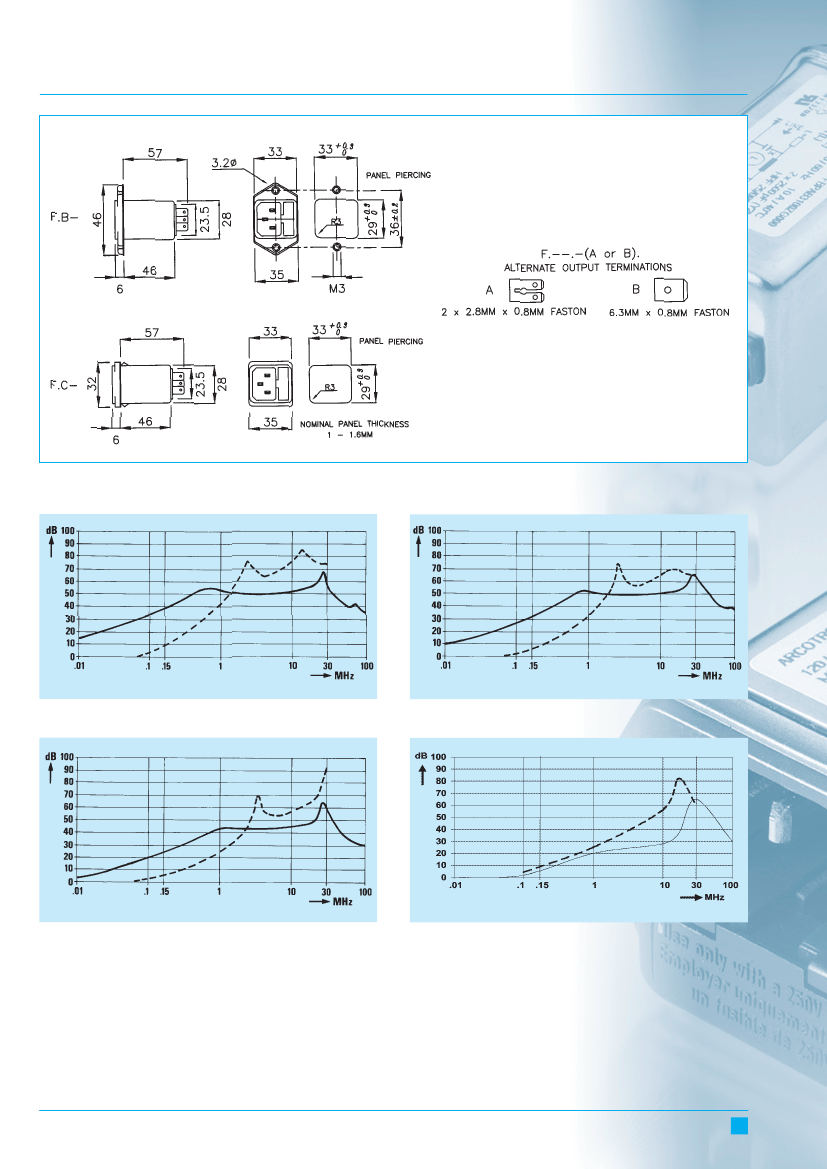

Mechanical Specifications

Manufacture:

metal case with built-in power line connector

according to IEC 60320 & EN 60320 and fuse

holder for 1 (F.-P) or 2 (F.-Q) fuses 5 x 20mm (IEC).

Connections:

IEC 60320 - Standard plug (INPUT);

faston 2x2.8 x 0.5mm or 6.3 x 0.8mm (OUTPUT);

ground terminal connected to case.

Mounting:

F.B- screw mounting, F.C- Snap-in mounting.

Climatic category:

Electrical Specifications

Rated voltage (V

max 250V, 50/60Hz

Rated current (I

Voltage test (2

.):

referred to room temperature = 40°C

line to ground 3000Vdc or 1800Vac

line to line 1700Vdc

HPF (25/085/21):

Temperature range: -25°C to +85°C

Leakage current (I

at 220V, 50Hz, max value

Filter Range

Code

F.--.AB.2680.ZA.100

F.--.AB.2680.ZB.100

F.--.AB.2680.ZC.100

F.--.AB.2680.ZF.100

F.--.AB.2680.ZG.100

(A)

(mH)

2x10

2x4

2x1.5

2x0.8

2x0.13

(µF)

0.068

(pF)

2x2200

(mA)

2x0.2

Circuit diagram

Only for F.BQ and F.CQ

Available Variants

B = Screw mounting

C = Snap-in mounting

A = Standard Version

M = Medical Version

, L & CCT.

CCT A VALUES

1A, 10mH,

2A, 4mH,

4A, 1.5mH

6A, 0.8mH

10A, 0.13mH

P = Single Fuse

Q = Double Fuse

X Capacitance

2100 = 0.010uF

2470 = 0.047uF

2680 = 0.068uF

3100 = 0.1uF

F. --.-- - - - -. - -. - - 0

A = 2x2.8mm x 0.8 faston

B = 6.3mm x 0.8 faston

Y Capacitance

0 = 2500pF

1 = 2200pF

2 = RESERVED

3 = RESERVED

4 = 150pF

Current Leakage

2x0.23 mA

2x0.20 mA

–

2x0.014 mA

Resistor

0 = no resistor

1 = 1MΩ

2 = 2.2MΩ
