POWER RELAY
1 POLE— 8 A
(MEDIUM LOAD CONTROL)
RoHS compliant
JS SERIES
n
FEATURES
l
l
l
l
l
l
l
l
l
l
UL, CSA, VDE, SEV, SEMKO, FIMKO, NEMKO, DEMKO,
ÖVE, CQC, BSI compliance
UL class B (130°C) insulation
1 form A (SPST-NO) or 1 form C (SPDT) contact
Low profile and space saving—Height: 12.5 mm
—Mounting space: 290 mm
2
High sensitivity in small package
—Operating power .............
110 to 140 mW
—Nominal power ................ 220 to 290m W
High isolation in small package
—Insulation distance : 8 mm
(between coil and contacts)
—Dielectric strength : 5,000 VAC
—Surge strength
: 10,000 V
Plastic materials
—UL 94 flame class V-0
—UL CTI level class 2
Plastic sealed type
Various contact material options
RoHS compliant since date code: 0438B9, 0434R - Please see page 7 for more information
JS – 12
(a) (*) (b)
M
(c)
E – K
(d)
(e)
T – (V3)*
(f)
(j)
n
ORDERING INFORMATION
[Example]
(a)
(b)
(c)
(d)
Series Name
Nominal Voltage
Contact Arrangement
Contact Material
JS : JS Series
Refer to the COIL DATA CHART
Nil : 1 form C (SPDT)
M : 1 form A (SPST-NO)
Nil : Gold plate silver cadmium oxide
D : Silver nickel
E : Silver cadmium oxide
F : Gold plate silver nickel
N : Gold plate silver tin oxide
K : Plastic sealed type
Nil: 3.2 mm
T : 5.0 mm (only JS-MN, MD, MF)
Nil: 0.3µ gold overlay (available with Nil, N and F contact)
V3: 3µ gold overlay for lower current applications (available with Nil, N)
and not available for T (5.0mm type)
(e)
(f)
(j)
Enclosure
Construction
For low current application
Note: Actual marking omits the hyphen (-) of (*)
*: V3 is marked at different place from P/N.
1
JS SERIES
n
PART NUMBERS
1. Terminal Pitch: 3.2mm
Order P/N
JS-5M ( )-K(-V3)
JS-6M ( )-K(-V3)
JS-9M ( )-K(-V3)
JS-12M ( )-K(-V3)
JS-18M ( )-K(-V3)
JS-24M ( )-K(-V3)
JS-48M ( )-K(-V3)
JS-60M ( )-K(-V3)
JS-5 ( )-K(-V3)
JS-6 ( )-K(-V3)
JS-9 ( )-K(-V3)
JS-12 ( )-K(-V3)
JS-18 ( )-K(-V3)
JS-24 ( )-K(-V3)
JS-48 ( )-K(-V3)
JS-60 ( )-K(-V3)
JS
Series
Voltage
5
6
9
12
18
24
48
60
5
6
9
12
18
24
48
60
Series
Voltage
5
6
9
JS
12
18
24
48
60
Maximum
voltage*
1
11.8 VDC
14.1 VDC
21.2 VDC
28.3 VDC
42.4 VDC
56.6 VDC
105.6 VDC
132.0 VDC
Coil resistance
(±10%)
112 Ω
160 Ω
360 Ω
660 Ω
1,455 Ω
2,350 Ω
8,000 Ω
12,500 Ω
Must operate
voltage*
2
3.5 VDC
4.2 VDC
6.3 VDC
8.5 VDC
12.7 VDC
16.8 VDC
33.4 VDC
41.7 VDC
Must release
voltage*
2
0.5 VDC
0.6 VDC
0.9 VDC
1.2 VDC
1.8 VDC
2.4 VDC
4.8 VDC
6.0 VDC
Nominal
Power
225 mW
225 mW
225 mW
220 mW
225 mW
245 mW
290 mW
290 mW
M: 1 form A
N:
Gold plate silver
+ tin oxide
K
T: 5.0 mm
Contact
Arrangement
Contact material
Enclosure
Terminal
Pitch
Nil: 1 form C
M: 1 form A
Nil:
Gold plate +
silver cadmium
oxide
E:
Silver cadmium
oxide
N:
Gold plate silver
tin oxide
F:
Gold plate silver
nickel
D:
Silver nickel
K: Plastic
Seal
3.2 mm
Contact
Arrangement
Contact material
Enclosure
Terminal
Pitch
Special
Gold plate
Nil: 0.3
µm
V3: 3 µm
2. Terminal Pitch: 5.0mm
Order P/N
JS-5MN-K
JS-6MN-K
JS-9MN-K
JS-12MN-K
JS-18MN-K
JS-24MN-K
JS-48MN-K
JS-60MN-K
n
COIL DATA CHART
Coil
voltage
5
6
9
12
18
24
48
60
Nominal
voltage
5 VDC
6 VDC
9 VDC
12 VDC
18 VDC
24 VDC
48 VDC
60 VDC
Note : All values in the table are measured at 20°C.
*1: No contact current at 20°C.
*2: Specified values are subject to pulse wave voltage.
2
JS SERIES
n
SPECIFICATIONS
Item
Non-V3 type
JS ( )-E-K, JS ( )-K,
JS ( )-N-K, JS ( )-F-K,
JS ( )-D-K
Contact
Arrangement
Material
Configuration
Resistance (initial)
Rating
Max. carrying current
Max. switching power
Max. switching voltage
Min. switching load
Coil
Nominal power (at 20°C)
Operate power (at 20°C)
Operating temperature (at 20°C)
Time value
Life
Operate
Release (without diode)
Mechanical
Electrical
Vibration
resistance
Shock
resistance
Weight
Misoperation
Endurance
Misoperation
Endurance
AC rated load
DC rated load
0.3µ Ag plated
Single,
Max. 100mΩ 1A, 6VDC)
8A 250 VAC / 24 VDC
10A
2,000 VA / 192 W
400 VAC/ 150 VDC
100 mA 5 VDC
220 to 290 mW
110 to 140 mW
-40°C to +85°C (no frost)
Max. 10 ms (at nominal voltage, without bounce)
Max. 5 ms (at nominal voltage, without bounce)
Min. 20x10
6
operations
Min. 100x10
6
operations (JS-( )N-K min. 10x10
3
ops.)
Min. 100x10
6
operations (JS-( )N-K min. 10x10
3
ops.)
10 to 55 Hz at double amplitude of 1.65 mm
10 to 55 Hz at double amplitude of 3.3 mm
Min. 100 m/s
2
(11±1 ms)
Approx. 8 g
Min. 1,000 m/s
2
(6±1 ms)
10 mA 5 VDC
Max. 30mΩ (1A 6VDC)
V3 type
JS ( )-K, JS ( )N-K
1 Form C (SPDT), 1 Form A (SPST-NO)
3µ Ag plated
n
INSULATION
Items
Resistive (at 500 VDC)
Dielectric Strength
Open contacts
Coil and contacts
Surge strength (coil and contacts)
Clearance / crepage
Isolation (DIN EN 61810-1 VDE 0435)
Voltage
Pollution
Isolation material group
Isolation category / Reference voltage (VDE 01106)
Min. 1,000 MΩ
1,000 VAC (50/60 Hz) 1 min.
5,000 VAC (50/60 Hz) 1 min.
10,000 V (1.2 x 50 µs standard wave)
8 mm / 8 mm
250 V
3
III a
C / 250V
3
JS SERIES
n
SAFETY STANDARD (VDE 01106)
Type
UL
CSA
Compliance
UL 508
E 56140
C22.2 No. 14
LR 35579
Contact rating
Flammability: UL 94-V0 (plastics)
Contact material: Nil, E
8 A 24 VDC (resistive) 100k
8 A, 250 VDC (resistive) 100k
10 A, 30 VDC (resistive)
10 A, 250 VAC (resistive)
1/4 HP, 125 V/ 250 VAC
1/3 HP, 125 VAC
1/2 HP, 250 VAC
Pilot duty: C150, B300
Pilot duty: 0.27A, 250VDC
8 A 250 VAC (cos Ø=1)
8 A 24 VDC (0 ms)
Rated Voltage (V): 250
Rated Current (A): 8 (2)
or 8
N
8 A 24 VDC (resistive) 100k
8 A, 250 VDC (resistive) 100k
10 A, 30 VDC (resistive)
10 A, 250 VAC (resistive)
1/4 HP, 125 V/ 250 VAC
1/3 HP, 125 VAC
1/2 HP, 250 VAC
Pilot duty: A300, B300
C150, R300
VDE
SEMKO
0435, 0631, 0700
EN 61058-1 + A1: 1993
EN 61095:1993 + A11
Also complies with SEV, ÖVE, FIMKO, BSI, CQC, NEMKO, DEMKO
n

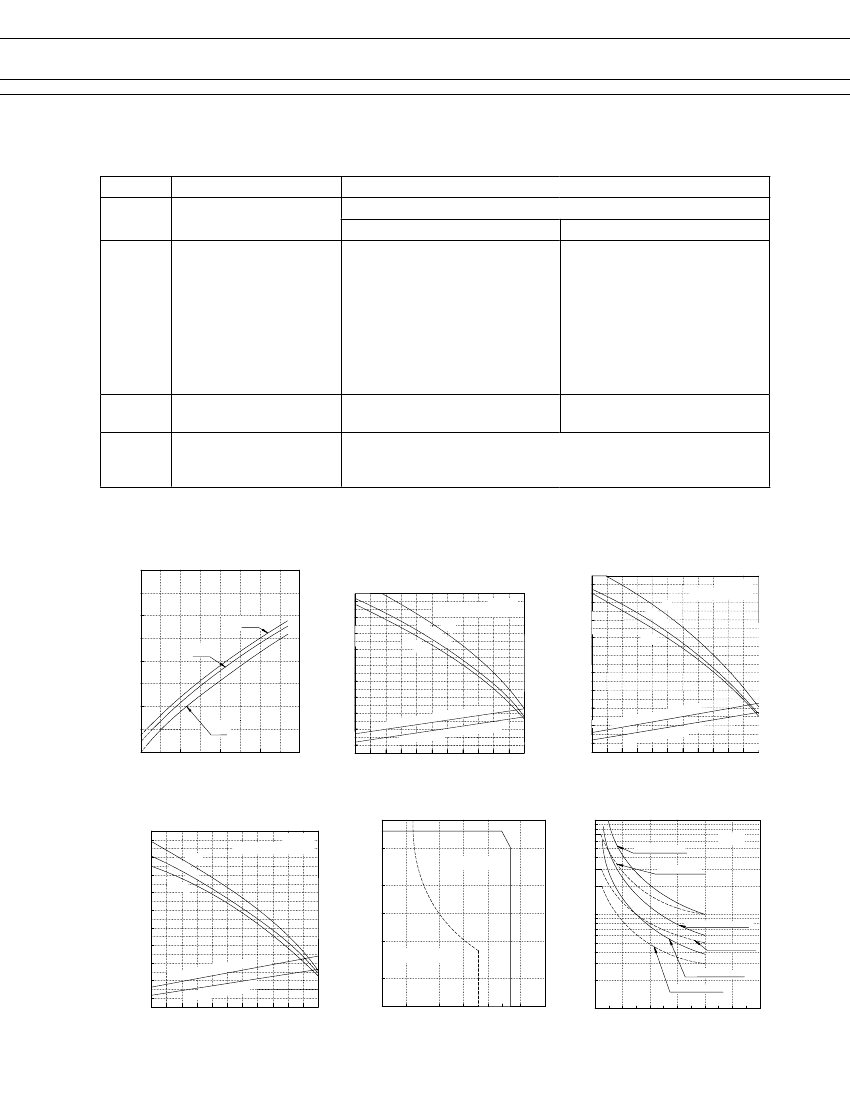

CHARACTERISTIC DATA
Nominal Voltage
Multiplying Factor
80
Temperature
Rise (deg.)
Operating Range
2.4
1.8
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0
JS type
(5 to 18VDC coil)
0A
Nominal Voltage
Multiplying Factor
Coil Temperature Rise
JS
Operating Range
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0
il)
(hot co
voltage
operate
)
Must
ool coil
ltage
(c
rate vo
pe
Must o
60
10A
8A
10
8A
A
10
A
8A
0A
JS type
(DC24V coil)
40
20
0A
0
0
0.2
0.4
0.6
0.8
il)
(hot co
oltage
erate v
p
)
Must o
ool coil
ltage
(c
rate vo
pe
Must o
20
40
60
80
100
Coil Power (W)
Nominal Voltage
Multiplying Factor
Operating Range
2.4
1.8
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0
Must o
perate
volta
coil)
ge (hot
coil)
Ambient Temperature (ºC)
10
5
Ambient Temperature (ºC)
100
50
20
40
60
80
100
Nominal Voltage
Multiplying Factor
Maximum Switching Power
Life Curves
250VAC resistive
24VDC resistive
JS type
JS
MN
10A
2
1
Operation (x10
3
)
0A
8A
JS type
(48 to 60 VDC)
AC resistive load
20
10
5
250VAC cosφ=0.7
24VDC τ=7ms
250VAC cosφ=0.4
24VDC τ=15ms
0
2
4
6
8
10
12
0.5
DC resistive load
Must o
perate
(cool
voltage
0.2
0.1
2
20
30 40
60
80
100
10
20
50
100
200
500
Ambient Temperature (ºC)
Voltage
(V)
Contact Current (A)
4
JS SERIES
n

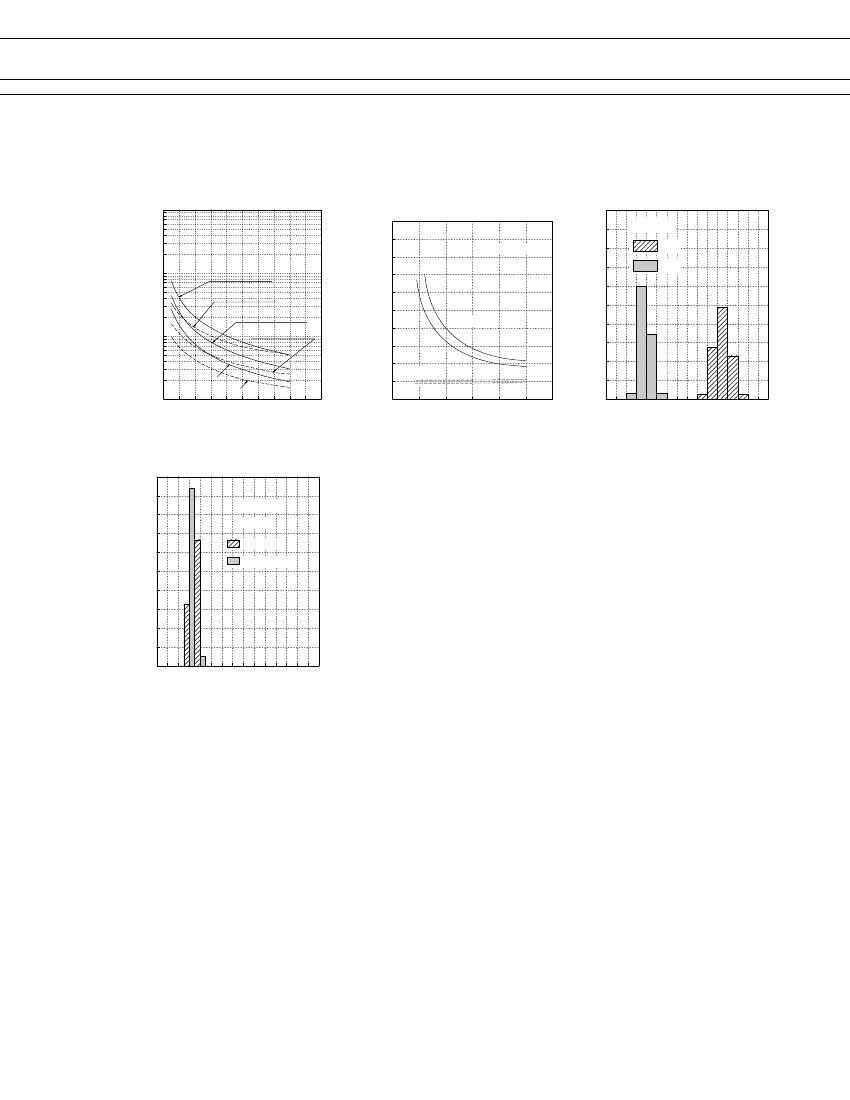

REFERENCE DATA
Life Curves
1000
500
300
200
100
50
30
20
10
5
3
2
1
0
250VAC cosφ=0.4
24VDC L/R=15ms
1
2
3
4
5
6
7
8
9
10
Contact Current (A)
250VAC cosφ=1
JS type
N
20
18
16
14
JS-12E-KT
Timing
Distribution of Operate & Release Voltage
100
90
80
70
JS-12-K
n=100
Operate
Release
Operation (x10
3
)
Distribution (%)
0.4
0.5
0.6
Time (ms)
24VDC L/R=1ms
250VAC cosφ=0.7
24VDC L/R=7ms
12
10
8
6
4
2
0
0
60
50
40
30
20
10
Operate
Release
0.1
0.2
0.3
0
Coil Power (W)
0
10
20
30
40
50
60
70
Nominal Voltage
Multiplying Factor (%)
100
90
80
Distribution of Contact Resistance
JS-12-K
n=50
Distribution (%)
70
60
50
40
30
20
10
0
0
2
4
6
Make
Break
8
10
12
14
Contact Resistance (Ω)
5
