MSPLC6.5AE3: DescriptionTrans Voltage Suppressor Diode, 1500W, 6.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-202AA, HERMETIC SEALED, METAL GLASS, DO-13, 2 PIN; CategoryDiscrete semiconductor diode; File Size362KB，6 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric View All

MSPLC6.5AE3 Overview

Trans Voltage Suppressor Diode, 1500W, 6.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-202AA, HERMETIC SEALED, METAL GLASS, DO-13, 2 PIN

MSPLC6.5AE3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Microsemi
Parts packaging code	DO-13
package instruction	O-MALF-W2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum breakdown voltage	7.98 V
Minimum breakdown voltage	7.22 V
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-202AA
JESD-30 code	O-MALF-W2
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Package body material	METAL
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Guideline	MIL-19500
Maximum repetitive peak reverse voltage	6.5 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

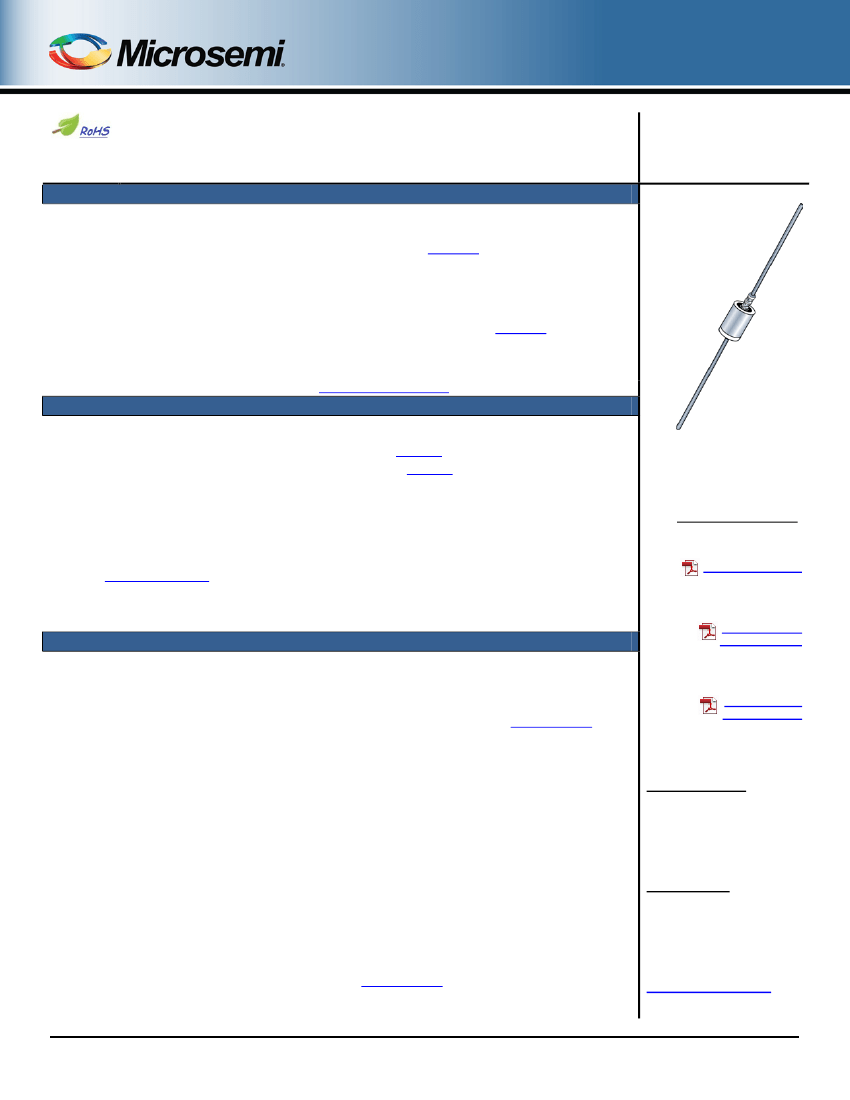

LC6.5 – LC170A

1500 Watt Low Capacitance

Transient Voltage Suppressor

DESCRIPTION

This hermetically sealed Transient Voltage Suppressor (TVS) product family includes a

rectifier diode element in series and in the opposite direction. This allows it to present a very

low (< 100 pF) capacitance to the system it is protecting (see

Figure 2).

The low capacitance

of these devices makes them particularly useful for protecting lines carrying high frequency

signals. They are also useful in protecting from the secondary effects of lightning in airborne

avionics per IEC61000-4-5, RTCA/DO-160G, and ARINC 429. If bidirectional transient

capability is required, two of these low capacitance TVS devices may be used in parallel in

opposite directions (anti-parallel) for complete ac protection as shown in

Figure 4.

Available

Screening in

reference to

MIL-PRF-19500

available

Important:

For the latest information, visit our website

http://www.microsemi.com.

FEATURES

•

Unidirectional low-capacitance TVS series for flexible thru-hole mounting.

For bidirectional applications, use two in anti-parallel (see

Figure 4).

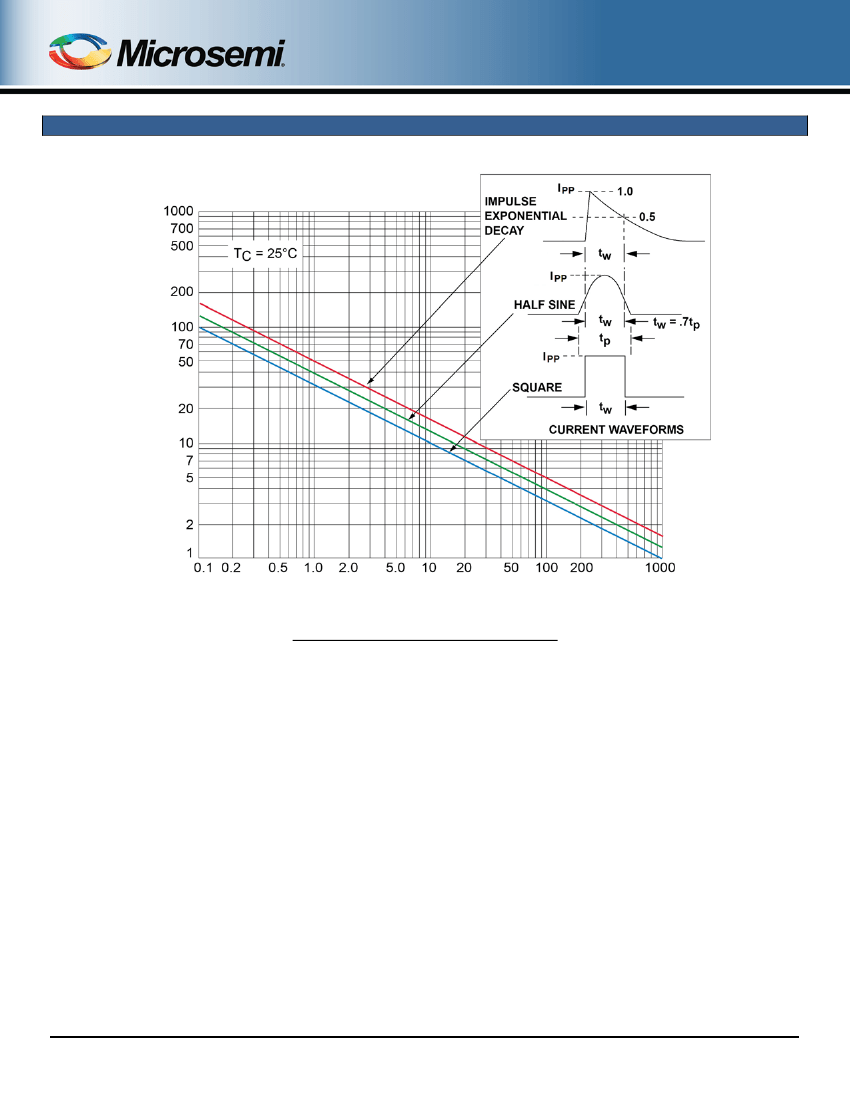

Suppresses transients up to 1500 watts @ 10/1000 µs (see

Figure 1).

Clamps transients in less than 100 pico seconds (theoretical for unidirectional).*

Working voltage (V

) range 6.5 V to 170 V.

5% and 10% tolerance versions available.

Hermetic sealed DO-13 metal package.

Screening options available in reference to MIL-PRF-19500.

(See

Part Nomenclature

for all available options.)

RoHS compliant versions available.

*measurement limitation

DO-202AA (DO-13)

Package

Also available in:

Case 1 package

(plastic equivalent)

LCE6.5 – LCE170A

DO-215AB package

(Gull wing surface mount)

SMCGLCE6.5 –

SMCGLCE170A

APPLICATIONS / BENEFITS

•

Protection from switching transients and induced RFI.

Low capacitance for data line protection up to 1 MHz.

Protection for fast data rate lines in aircraft up to:

RTCA/DO-160G Level 5 Waveform 4 and Level 2 Waveform 5A (also see

MicroNote 130)

ARINC 429, Part 1, paragraph 2.4.1.1 up to bit rates of 100 kb/s

ESD & EFT protection per IEC 61000-4-2 and -4-4.

Secondary lightning protection per IEC61000-4-5 with 42 ohms source impedance:

Class 1: LC6.5 to LC170A

Class 2: LC6.5 to LC150A

Class 3: LC6.5 to LC70A

Class 4: LC6.5 to LC36A

Secondary lightning protection per IEC61000-4-5 with 12 ohms source impedance:

Class 1 : LC6.5 to LC90A

Class 2: LC6.5 to LC45A

Class 3: LC6.5 to LC22A

Class 4: LC6.5 to LC11A

Secondary lightning protection per IEC61000-4-5 with 2 ohms source impedance:

Class 2: LC6.5 to LC20A

Class 3: LC6.5 to LC10A

Inherently radiation hard as described in Microsemi

MicroNote 050.

DO-214AB package

(J-bend surface mount)

SMCJLCE6.5 –

SMCJLCE170A

•

MSC – Lawrence

6 Lake Street,

Lawrence, MA 01841

Tel: 1-800-446-1158 or

(978) 620-2600

Fax: (978) 689-0803

MSC – Ireland

Gort Road Business Park,

Ennis, Co. Clare, Ireland

Tel: +353 (0) 65 6840044

Fax: +353 (0) 65 6822298

Website:

www.microsemi.com

•

T4-LDS-0293, Rev. 1 (5/6/13)

Page 1 of 6
