DDME43W2P-NMB-K52 datasheet, PDF

DDME43W2P-NMB-K52: DescriptionD Type Connector, 43 Contact(s), Male, Solder Lug Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size506KB，3 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

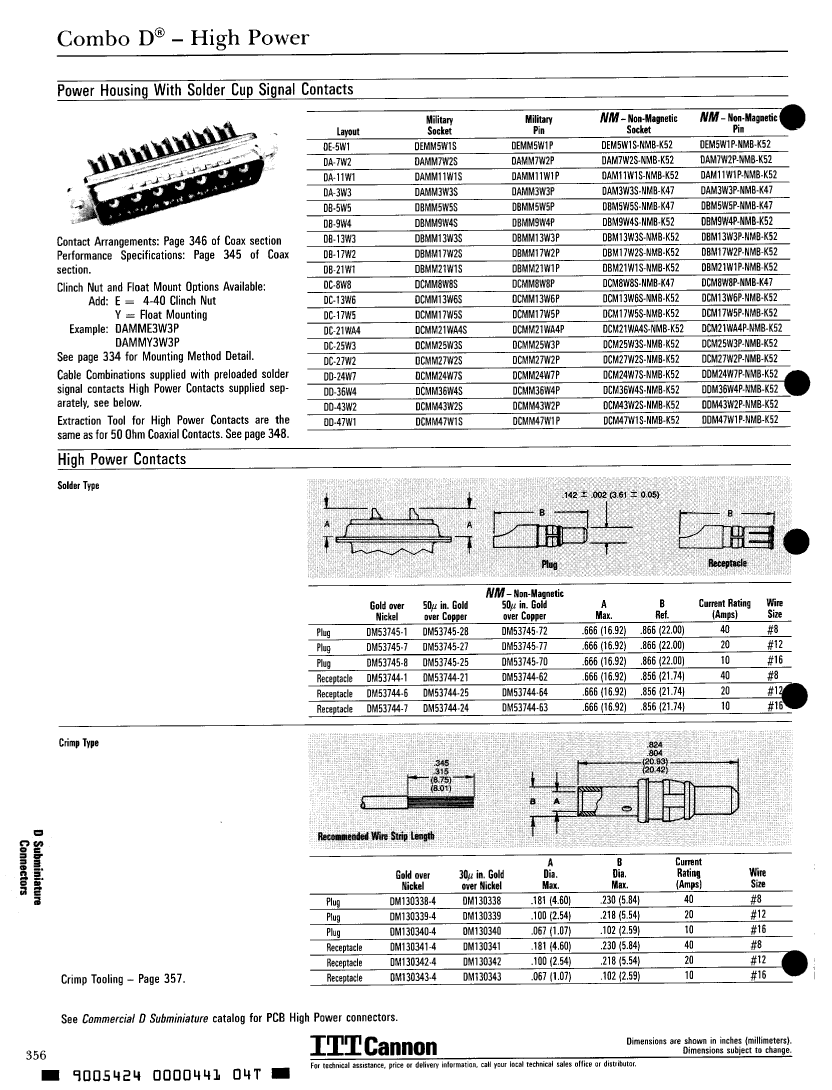

DDME43W2P-NMB-K52 Overview

D Type Connector, 43 Contact(s), Male, Solder Lug Terminal, #4-40, Receptacle

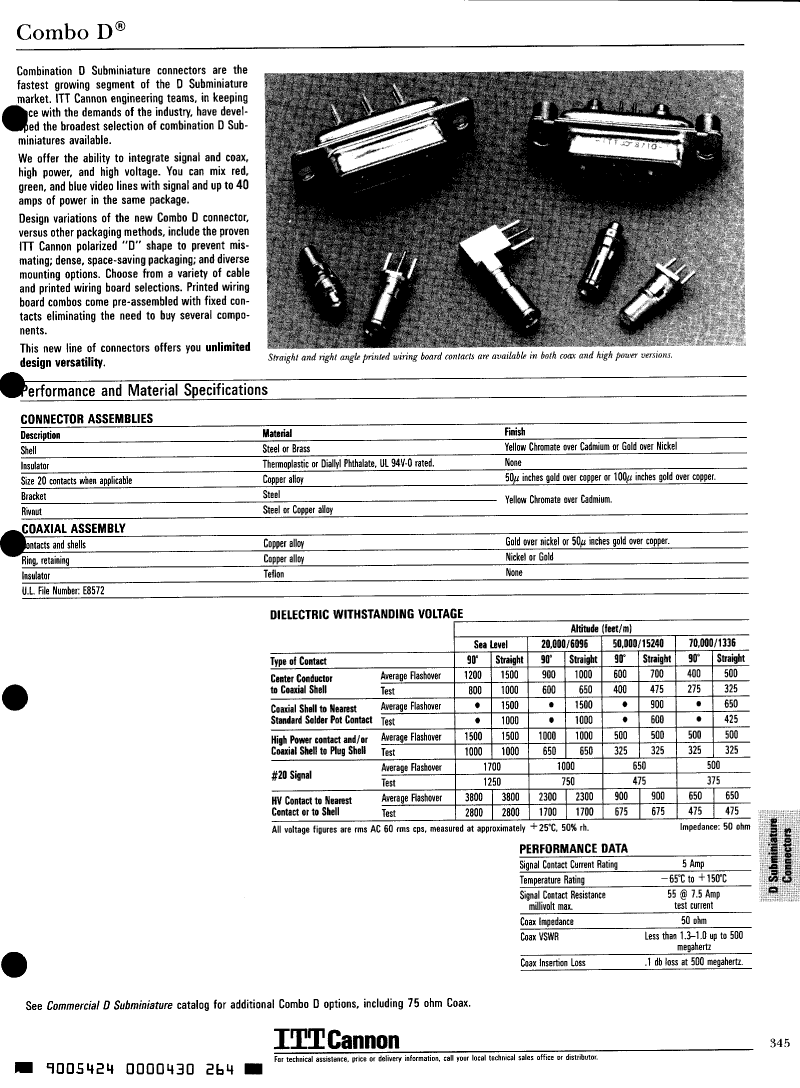

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	NON-MAGNETIC

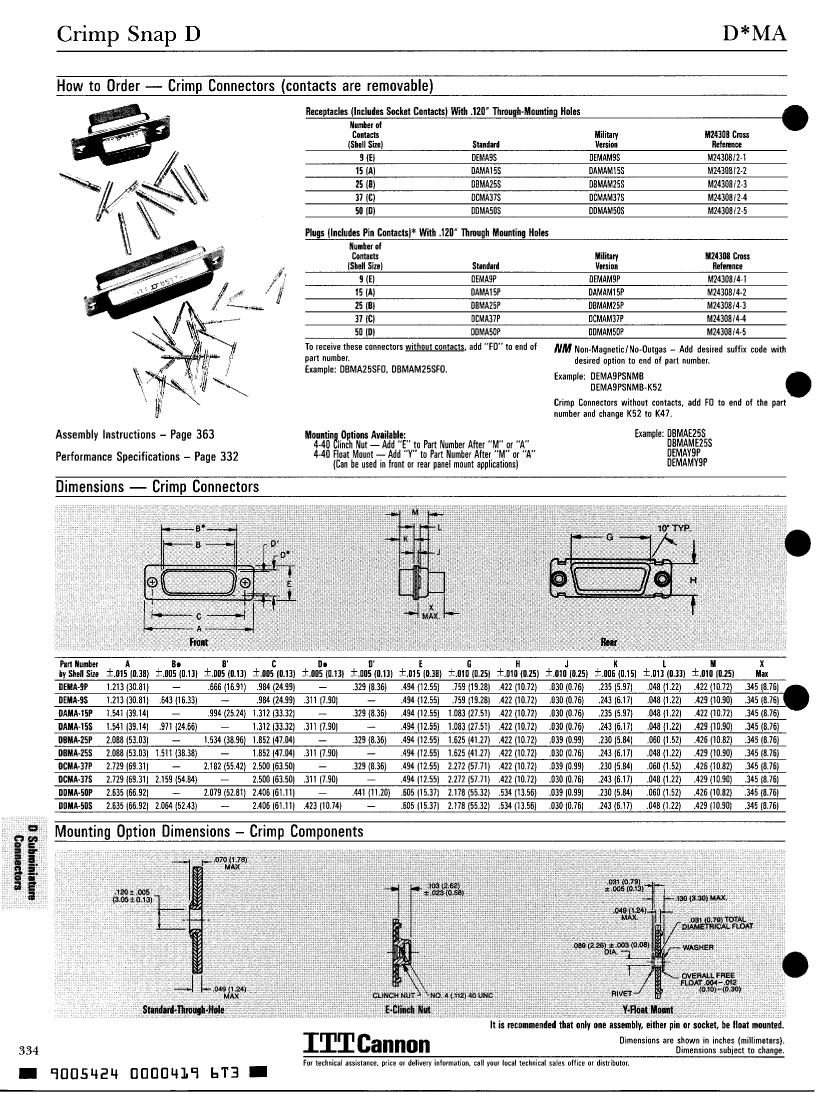

body width	0.605 inch
body length	2.635 inch
Body/casing type	RECEPTACLE
Contact arrangement	S41C2
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	55 mΩ
Contact style	HYBRID
Dielectric withstand voltage	1000VAC V
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	DDM
Mixed contacts	YES
Installation option 1	#4-40
Installation option 2	CLINCH NUT
Installation type	PANEL
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	CADMIUM/YELLOW CHROMATE
Shell material	STEEL
Termination type	SOLDER LUG
Total number of contacts	43

	DDME43W2P-NMB-K52	DDME43W2S-NMB-K52
Description	D Type Connector, 43 Contact(s), Male, Solder Lug Terminal, #4-40, Receptacle	D Type Connector, 43 Contact(s), Male, Solder Lug Terminal, #4-40, Receptacle
Reach Compliance Code	compliant	compliant
Other features	NON-MAGNETIC	NON-MAGNETIC
body width	0.605 inch	0.605 inch
body length	2.635 inch	2.635 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Contact arrangement	S41C2	S41C2
Contactor design	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI
Contact point gender	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY
Contact resistance	55 mΩ	55 mΩ
Contact style	HYBRID	HYBRID
Dielectric withstand voltage	1000VAC V	1000VAC V
insulator material	DIALLYL PHTHALATE	DIALLYL PHTHALATE
Manufacturer's serial number	DDM	DDM
Mixed contacts	YES	YES
Installation option 1	#4-40	#4-40
Installation option 2	CLINCH NUT	CLINCH NUT
Installation type	PANEL	PANEL
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C
Rated current (signal)	5 A	5 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Shell surface	CADMIUM/YELLOW CHROMATE	CADMIUM/YELLOW CHROMATE
Shell material	STEEL	STEEL
Termination type	SOLDER LUG	SOLDER LUG
Total number of contacts	43	43
