CD5518B thru CD5546B
Zener Diode Chip Series
Rev. V2
Features
•
All Junctions Completely Protected with Silicon
Dioxide
•
0.5 W Capability with Proper Heat Sinking
•
Electrically Equivalent to 1N5518B
-
1N5546B

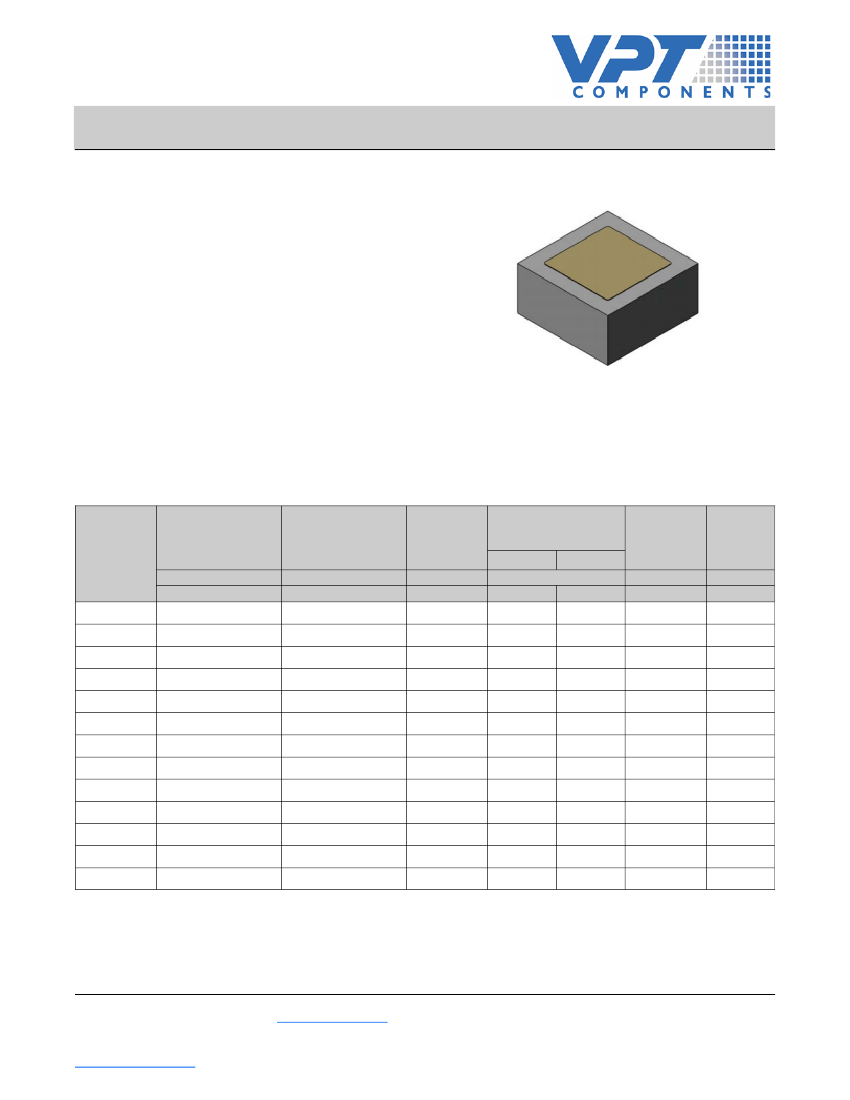

Die
Description
These 0.5 W zener diodes are electrically equivalent
to the 1N5518B
-
1N5546B series diodes. They are
compatible with all wire bonding and die attach
techniques with the exception of solder reflow.
These diodes are available in JANHC and JANKC
per MIL-PRF-19500/437.
Electrical Specifications: T
A
= +25°C
Zener
Voltage
V
Z
@ I
ZT
(Note 1)
Nominal
V
Zener
Test
Current
l
ZT
mAdc
Zener
Impedance
Z
ZT
@ l
ZT
(Note 2)
Maximum
Ohms
Reverse
Leakage
Current
I
R
V
R
Maximum
mAdc
V
Regulation
Factor
ΔV
Z
(Note 3)
V
Low
V
Z
Current
I
ZL
mAdc
Part#
CD5518B
CD5519B
CD5520B
CD5521B
CD5522B
CD5523B
CD5524B
CD55258
CD5526B
CD5527B
CD5528B
CD5529B
CD5530B
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10.0
20
20
20
20
10
5.0
3.0
1.0
1.0
1.0
1.0
1.0
1.0
26
24
22
18
22
26
30
30
30
35
40
45
60
5.0
3.0
1.0
3.0
2.0
2.0
2.0
1.0
1.0
0.5
0.5
0.1
0.05
1.0
1.0
1.0
1.5
2.0
2.5
3.5
5.0
6.2
6.8
7.5
8.2
9.1
0.90
0.90
0.90
0.75
0.60
0.65|
0.30
0.20
0.10
0.05
0.05
0.05
0.10
2.0
2.0
2.0
2.0
1.0
0.25
0.25
0.01
0.01
0.01
0.01
0.01
0.01
(Continued next page)
* Restrictions on Hazardous Substances, European Union Directive 2011/65/EU.
1
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
www.vptcomponents.com
CD5518B thru CD5546B
Zener Diode Chip Series
Rev. V2
Electrical Specifications: T
A
= +25°C
Zener
Voltage
V
Z
@ I
ZT
(Note 1)
Nominal
V
Zener
Test
Current
l
ZT
mAdc
Zener
Impedance
Z
ZT
@ l
ZT
(Note 2)
Maximum
Ohms
Reverse
Leakage
Current
I
R
V
R
Maximum
mAdc
V
Regulation
Factor
ΔV
Z
(Note 3)
V
Low
V
Z
Current
I
ZL
mAdc
Part#
CD5531B
CD5532B
CD5533B
CD5534B
CD5535B
CD5536B
CD5537B
CD5538B
CD5539B
CD5540B
CD5541B
CD5542B
CD5543B
CD5544B
CD5545B
CD5546B
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
19.0
20.0
22.0
24.0
25.0
28.0
30.0
33.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1·0
1.0
80
90
90
100
100
100
100
100
100
100
100
100
100
100
100
100
0.05
0.05
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
9.9
10.8
11.7
12.6
13.5
14.4
15.3
16.2
17.1
18.0
19.8
21.6
22.4
25.2
27.0
29.7
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.25
0.30
0.35
0.40
0.45
0.50
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
1. Suffix "B" voltage range equals nominal Zener voltage. + 5%. Suffix "A" equals + 10 %. "C" suffix=.± 2 % and "D" suffix= + 1 %.No Suffix
equals + 20 %. Zener voltage is read using a pulse measurement, 10 milliseconds maximum.
2. Zener impedance is derived by superimposing on lZT a 60 Hz rms ac current equal to 10 % of IZT.
3.
ΔVZ
is the maximum difference between VZ-@ IZT and VZ at IZL measured with the device junction in thermal equilibrium at an ambient
temperature of +25°C ±3°C.
2
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
www.vptcomponents.com
CD5518B thru CD5546B
Zener Diode Chip Series
Rev. V2
Absolute Maximum Ratings
4,5
Forward Voltage
Operating Temperature
Storage Temperature
1.5 V @ 200 mA
-65°C
to +175°C
-65°C
to +175°C

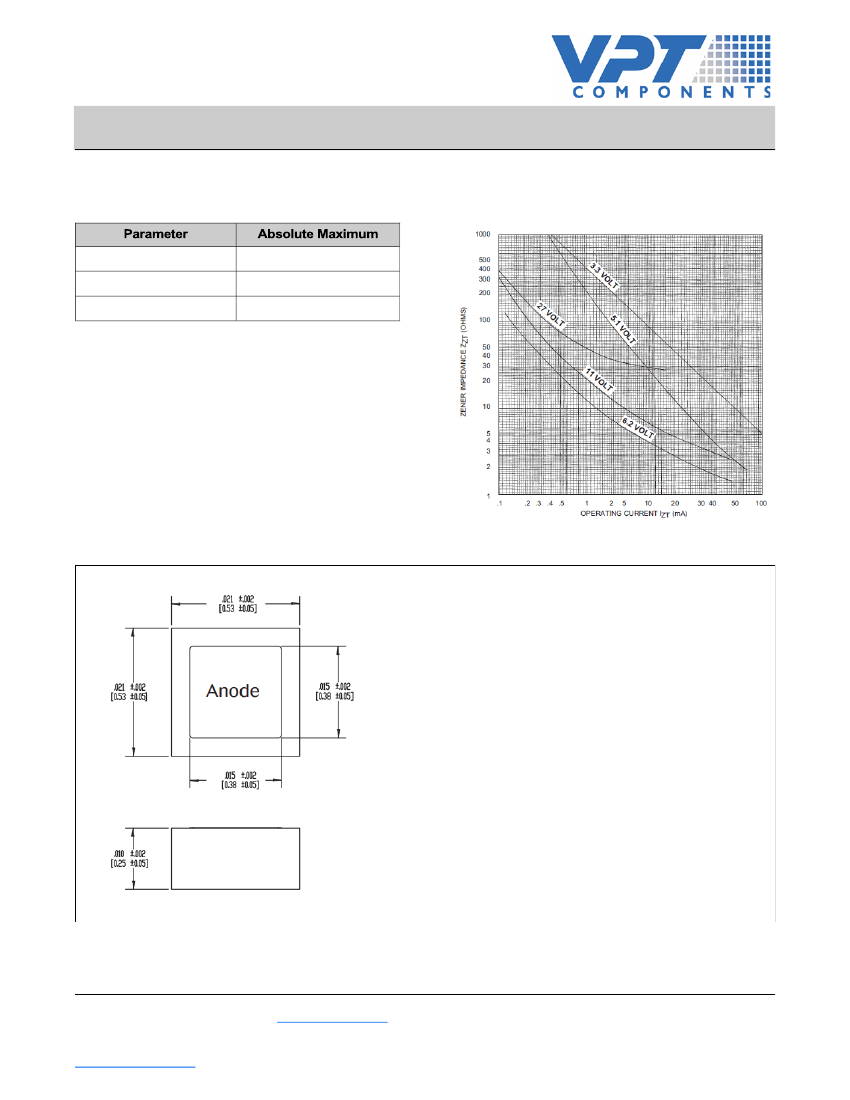

Zener Impedance vs. Operating Current
4. Exceeding any one or combination of these limits may cause
permanent damage to this device.
5. VPT Components does not recommend sustained operation
near these survivability limits.
Die
Top: (anode) AL
Back: (cathode) Au
AL Thickness:
25,000 Å Minimum
Gold Thickness:
4,000 Å Minimum
Chip Thickness:
10 mils
Circuit Layout Data: For Zener operation, cathode must be
operated positive with respect to anode.
Metallization:
3
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
www.vptcomponents.com
CD5518B thru CD5546B
Zener Diode Chip Series
Rev. V2
