808B-FREQ-HK0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 808B-FREQ-HK0

808B-FREQ-HK0: DescriptionHCMOS Output Clock Oscillator, 4MHz Min, 54MHz Max, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size214KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

808B-FREQ-HK0 Overview

HCMOS Output Clock Oscillator, 4MHz Min, 54MHz Max, ROHS COMPLIANT, SMD, 4 PIN

808B-FREQ-HK0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	10%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Maximum operating frequency	54 MHz
Minimum operating frequency	4 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 1.05mm
longest rise time	5 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

HCMOS 5x3.2mm 3.3V SMD Oscillator

Model: F537 / F539 SERIES

Page 1 of 2

RoHS Compliant / Pb Free

Rev. 4/28/2008

http://www.foxonline.com/need_a_sample.htm

FEATURES

•

3.3V Operation

HCMOS Output

Low Power Consumption

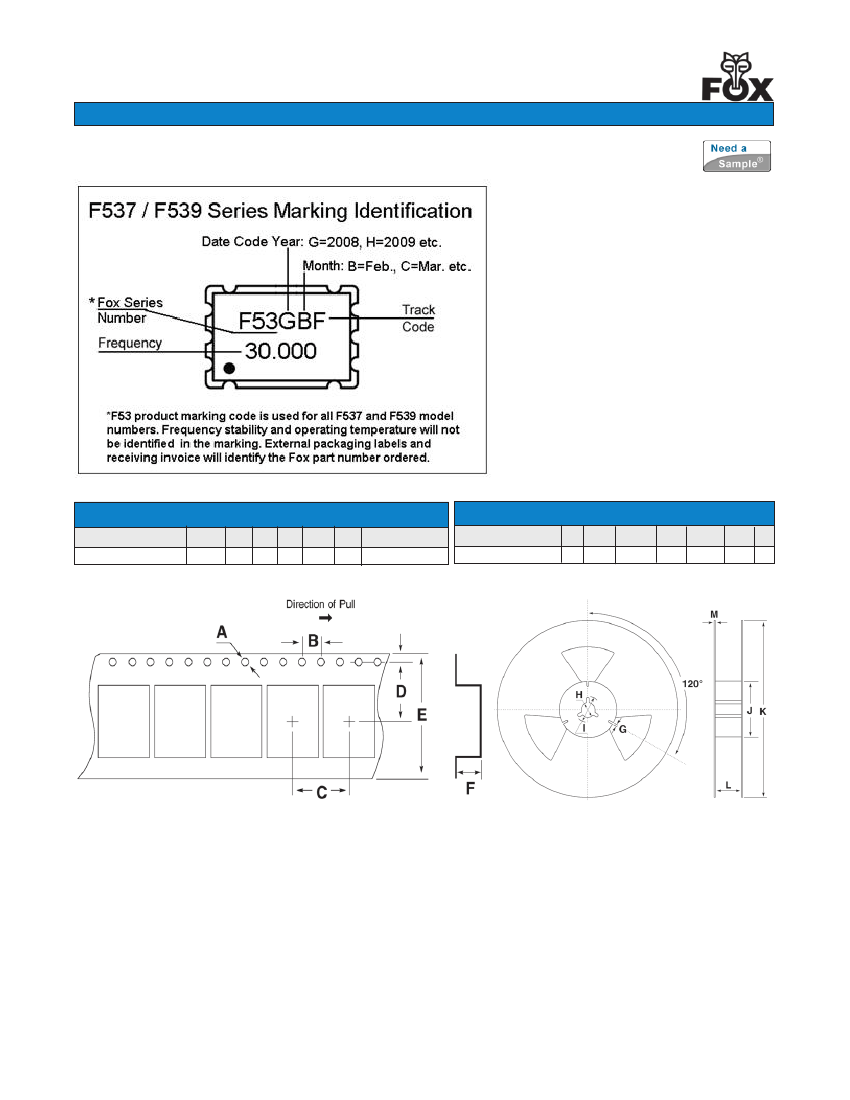

Tape and Reel

(1,000 pcs. STD)

• PART nUMbER SELECTIOn

Learn More - Internet Required

Part Number

807A-Frequency-xxxxx

807B-Frequency-xxxxx

807C-Frequency-xxxxx

808A-Frequency-xxxxx

808B-Frequency-xxxxx

808C-Frequency-xxxxx

Model

Number

F537F

F537K

F537R

F539F

F539K

F539R

Frequency

Operating

Stability

Temperature (ºC)

±15PPM

-20 ~ +70

±15PPM

-30 ~ +85

±15PPM

-40 ~ +85

±10PPM

-20 ~ +70

±10PPM

-30 ~ +85

±10PPM

-40 ~ +85

Frequency

Range (MHz)

4.000 - 54.000

5.0 ±0.2

3 .2±0 .2

1.05 ±0.1

• ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range (F

)

Storage Temperature Range (T

stg

)

Supply Voltage

)

Input Current

)

Output Symmetry (50% V

)

Rise Time (10% ~ 90% V

) (T

)

Fall Time (90% ~ 10% V

) (T

)

Output Voltage

)

Output Current

)

Output Load

(HCMOS)

Standby Current

Start-up Time

)

Output Disable Time

Output Enable Time

Phase Noise

Period Jitter

Maximum Soldering Temp / Time

Moisture Sensitivity Level (MSL)

Termination Finish

MAX

(unless otherwise noted)

4.000 ~ 54.000 MHz

-40ºC ~ +85ºC

3.3V ± 5%

7mA

45% ~ 55%

5nS

10% V

90% V

Min

4mA Min

-4mA Min

15pF

10µa

10mS

100nS

10mS

-140Bc/Hz Typ. @ 10kHz offset

3pS RMS Typ.

260ºC / 10 Seconds

T est P o ints.

N o C o nn ect.

1 .6

0.7

2.6

1 .1

R e com m e nded

S o ld er P ad Layout

1.6

1.0

2 .6

1 .3

Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, reflow,

and one year aging.

An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.

Notes:

*A 0.01µF capacitor should be placed between V

(Pin 4) and GND (Pin 2) to

minimize power supply line noise.

*Dimensional drawing is for reference to critical specifications defined by size measurements.

Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may vary.

All specifications subject to change without notice.

All dimensions are in millimeters.

Pin Connection

#1 E/D

#2 GND

#3 Output

#4 V

• EnAbLE / DISAbLE FUnCTIOn

OUTPUT (Pin 3)

Pin 1

ACTIVE

OPEN

ACTIVE

'1' Level V

≥

70% V

High Z

'0' Level V

≤

30% V

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |

Taiwan

Tel: +886.2.22073427 Fax +886.2.22073486

Japan

Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
