838-FREQ-AF0

Description
HCMOS Output Clock Oscillator, 1MHz Min, 80MHz Max, ROHS COMPLIANT, SMD, 4 PIN
CategoryPassive components    oscillator
File Size469KB,2 Pages
ManufacturerFOX [Fox Electronics]
Environmental Compliance
Download Datasheet Parametric View All

838-FREQ-AF0 Overview

HCMOS Output Clock Oscillator, 1MHz Min, 80MHz Max, ROHS COMPLIANT, SMD, 4 PIN

838-FREQ-AF0 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerFOX [Fox Electronics]
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time6 ns
Frequency Adjustment - MechanicalNO
frequency stability100%
JESD-609 codee4
Installation featuresSURFACE MOUNT
Maximum operating frequency80 MHz
Minimum operating frequency1 MHz
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
Oscillator typeHCMOS
Output load15 pF
physical size2.1mm x 1.7mm x 0.8mm
longest rise time6 ns
Maximum supply voltage2.75 V
Minimum supply voltage2.25 V
Nominal supply voltage2.5 V
surface mountYES
maximum symmetry55/45 %
Terminal surfaceGold (Au) - with Nickel (Ni) barrier
HCMOS 2.0x1.6mm 2.5V SMD Oscillator
Model: F140 SERIES
Page 1 of 2
RoHS Compliant / Pb Free
Rev. 3/9/2011
http://www.foxonline.com/need_a_sample.htm
FEATURES
• 2.5V Operation
• Standby Function

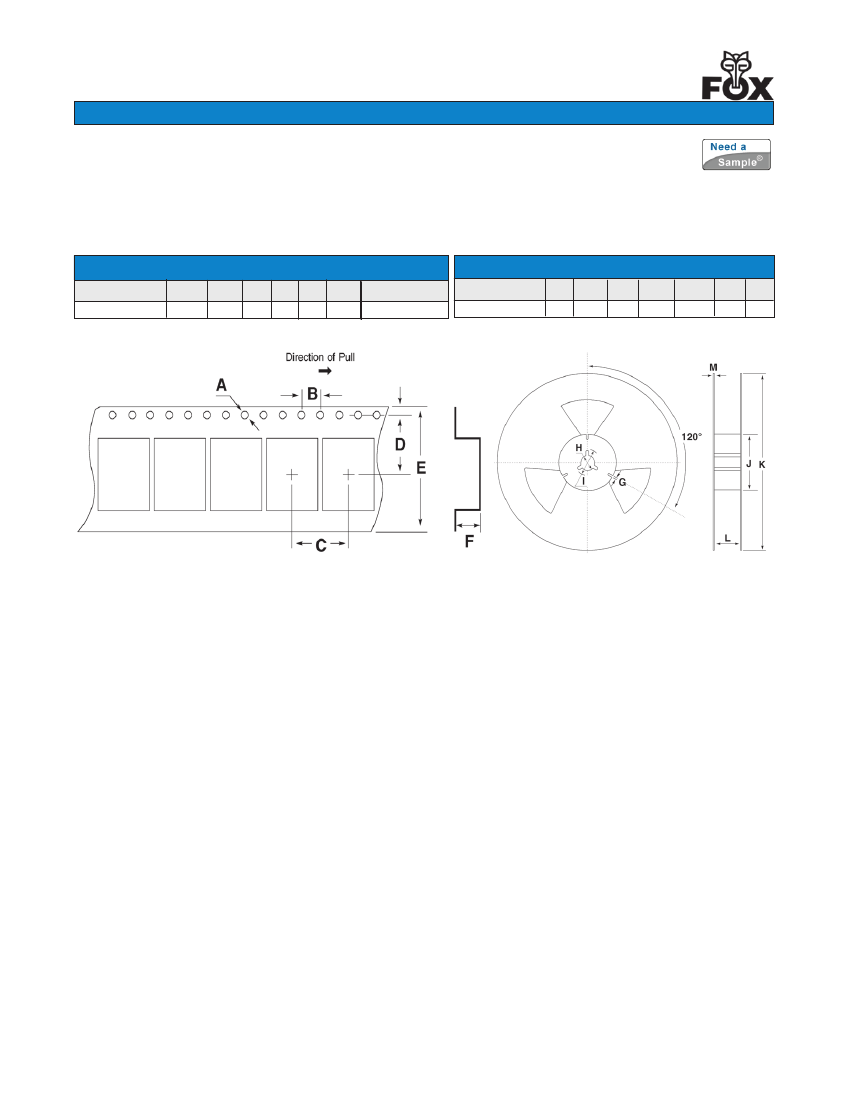

• Tape and Reel
(3,000 pcs. STD)
• PART nUMbER SELECTIOn
Learn More - Internet Required
Part Number
838-Frequency-xxxxx
838A-Frequency-xxxxx
838B-Frequency-xxxxx
838C-Frequency-xxxxx
838D-Frequency-xxxxx
Model Frequency
Operating
Number Stability Temperature (ºC)
±100PPM
1
-20 ~ +70
F140
-40 ~ +85
F140R
±100PPM
1
±50PPM
1
-20 ~ +70
F145
1
-40 ~ +85
F145R
±50PPM
±25PPM
2
-10 ~ +60
F146
Frequency
Range (MHz)
1.000 ~ 80.000
1.000 ~ 80.000
1.000 ~ 80.000
1.000 ~ 80.000
1.000 ~ 80.000
#4
T op V iew
2 .1 M ax
#3
1 .7 M ax
• ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (F
o
)
Storage Temperature Range (T
stg
)
Supply Voltage
(V
dd
)
Input Current
(I
dd
)
1.000000 ~ 40.000000 MHz
40.000001 ~ 60.000000 MHz
60.000001 ~ 80.000000 MHz
Output Symmetry (50% V
dd
)
Rise Time (10% ~ 90% V
dd
)
Fall Time (90% ~ 10% V
dd
)
Output Voltage
(V
ol
)
(V
oh
)
Output Current
(I
ol
)
(I
oh
)
Output Load
(HCMOS)
Standby Current
Start-up Time
(T
s
)
Output Disable Time
3
Output Enable Time
3
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
1
D o t de notes
pin1.
#1
#2
0 .8 M ax
MAX
(unless otherwise noted)
1.000~ 80.000 MHz
-40ºC ~ +85ºC
2.5V ± 10%
5mA
10mA
15mA
45% ~ 55%
6nS
6nS
10% V
dd
90% V
dd
Min
4mA Min
-4mA Min
15pF
10µA
3mS
50uS
3mS
260ºC ±5ºC / 5 Seconds
1
Au over Ni
0 .5
0 .6
#1
#4
0 .7
#2
0 .5
B ottom
V iew
#3
R e com m ended
S old er P ad La yout
0 .75
0 .65
0 .35
0 .55
All dimensions are in millimeters.
Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change,
reflow freq. shift and one year aging.
2
Inclusive of 25ºC tolerance and operating temperature range.
3
An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.
Notes: A 0.01µF capacitor should be placed between V
dd
(Pin 4) and GND (Pin2) to minimize
power supply noise.
Dimensional drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may
vary.
All specifications subject to change without notice.
Pin Connection
#1 E/D
#2 GND
#3 Output
#4 V
dd
• EnAbLE / DISAbLE FUnCTIOn
Pin 1
OUTPUT (Pin 3)
OPEN
3
ACTIVE
'1' Level V
ih
70% V
dd
ACTIVE
'0' Level V
il
30% V
dd
High Z
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
www.foxonline.com
EMEA
Tel: +44 .11283.568153 |
Canada
+1.888.438.2369 |
Asia
Hong Kong Tel: +852.2854.4285 |
Japan
Tel: +81.3.3374.2079
© 2011 FOX ELECTRONICS | ISO9001:2008 Certified
