CD3823 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> CD3823

CD3823: DescriptionZener Diode, 3.9V V(Z), 10%, 1W, Silicon, Unidirectional, DIE-2; CategoryDiscrete semiconductor diode; File Size121KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

CD3823 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD3823	-	-	View	Buy Now

CD3823 Overview

Zener Diode, 3.9V V(Z), 10%, 1W, Silicon, Unidirectional, DIE-2

CD3823 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
Parts packaging code	DIE
package instruction	DIE-2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	S-XXUC-N2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	UNCASED CHIP
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Nominal reference voltage	3.9 V
surface mount	YES
technology	ZENER
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	10%
Working test current	64 mA

Preview

Download Datasheet

View All

• 1N3821A THRU 1N3828A AVAILABLE IN

JANHC

• PER MIL-PRF-19500/115

• 1 WATT CAPABILITY WITH PROPER HEAT SINKING

• ALL JUNCTIONS COMPLETELY PROTECTED WITH SILICON DIOXIDE

• COMPATIBLE WITH ALL WIRE BONDING AND DIE ATTACH TECHNIQUES,

WITH THE EXCEPTION OF SOLDER REFLOW

CD3821

thru

CD3828A

MAXIMUM RATINGS

Operating Temperature: -65°C to +175°C

Storage Temperature: -65°C to +175°C

Forward Voltage @ 200mA: 1.2 volts maximum

ELECTRICAL CHARACTERISTICS @ 25°C

CDI

TYPE

NUMBER

(NOTE 1)

NOMINAL

ZENER

VOLTAGE

VZ @ 1ZT

(NOTE 2)

VOLTS

CD3821

CD3821A

CD3822

CD3822A

CD3823

CD3823A

CD3824

CD3824A

CD3825

CD3825A

CD3826

CD3826A

CD3827

CD3827A

CD3828

CD3828A

3.3

3.6

3.9

4.3

4.7

5.1

5.6

6.2

OHMS

ZENER

TEST

CURRENT

1ZT

MAXIMUM ZENER IMPEDANCE

ZZT @ 1ZT

ZZK @ IZK=1mA

MAX. DC

ZENER

CURRENT

MAX. REVERSE

LEAKAGE CURRENT

lR @ VR

Backside is Cathode

(NOTE 3)

OHMS

400

500

550

600

700

276

252

238

213

194

178

162

146

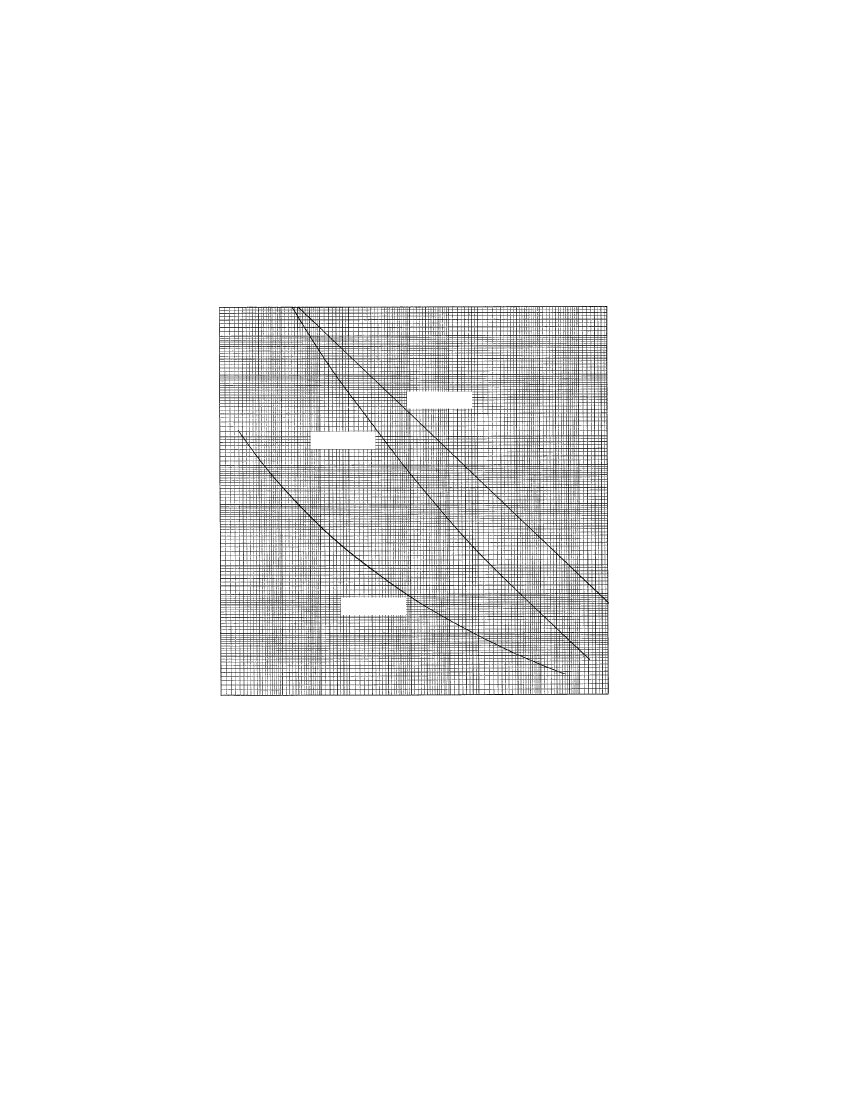

FIGURE 1

100

VOLTS

DESIGN DATA

METALLIZATION:

Top: (Anode).................... .Al

Back: (Cathode).............. ...Au

AL THICKNESS.......

....25,000

Min

GOLD THICKNESS........4,000

Min

CHIP THICKNESS..................10

Mils

CIRCUIT LAYOUT DATA:

For Zener operation, cathode

must be operated positive with

respect to anode.

TOLERANCES:

ALL

Dimensions + 2 mils

NOTE 1

NOTE 2

NOTE 3

Zener voltage range equals nominal voltage + 5% for “A” Suffix No Suffix denotes + 10%.

"C" suffix denotes + 2%, "D" suffix denotes + 1%.

Zener voltage is read using a pulse measurement, 10 milliseconds maximum.

Zener impedance is derived by superimposing on 1

A 60Hz rms a.c. current equal

to 10% of 1 .

6 LAKE STREET, LAWRENCE,

PHONE (978) 620-2600

WEBSITE: http://www.microsemi.com

M A S S A C H U S E T T S 01841

FAX (978) 689-0803

187
