BZY97C82 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZY97C82

BZY97C82: DescriptionZener Diode, 82V V(Z), 6.67%, 1.5W, Silicon, Unidirectional, DO-15, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size74KB，5 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

BZY97C82 Overview

Zener Diode, 82V V(Z), 6.67%, 1.5W, Silicon, Unidirectional, DO-15, PLASTIC PACKAGE-2

BZY97C82 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fagor Electrónica
Parts packaging code	DO-15
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	100 Ω
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.5 W
Certification status	Not Qualified
Nominal reference voltage	82 V
surface mount	NO
technology	ZENER
Terminal form	WIRE
Terminal location	AXIAL
Maximum voltage tolerance	6.67%
Working test current	10 mA

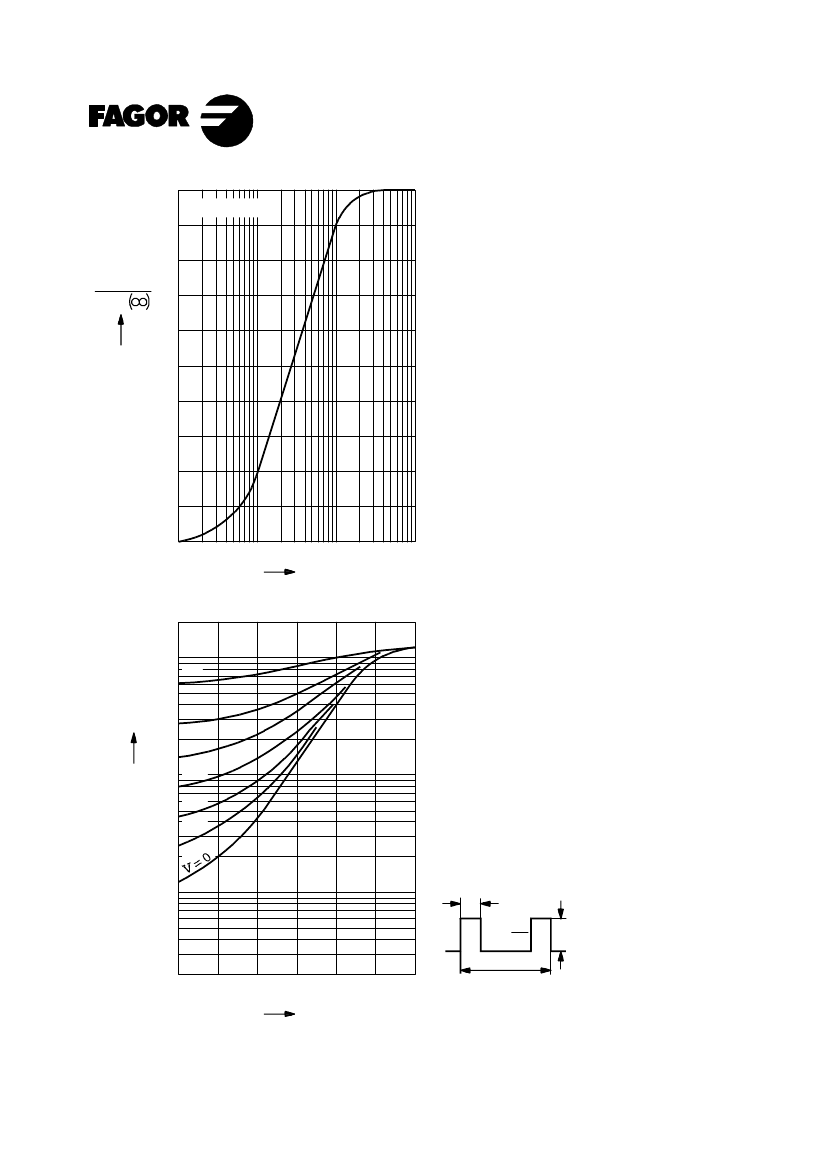

Preview

Download Datasheet

View All

BZY97C10........ BZY97C200

1.5 W Zener Diodes

Dimensions in mm.

DO-15

(Plastic)

Voltage

10 to 200 V

Power

1.5 W

6.35

± 0.2

58.5 min.

Mounting instructions

1. Min. distance from body to soldering point,

4 mm.

2. Max. solder temperature, 350°C.

3. Max. soldering time, 3.5 sec.

4. Do not bend lead at a point closer than

2 mm. to the body.

•

Diffused junction

•

The plastic material carries

U/L recognition 94 V-0

•

Terminals: Axial Leads

•

Polarity: Color band denotes cathode

Maximum Ratings, according to IEC publication No. 134

tot

ZSM

stg

Power dissipation at Tamb = 60

Non repetitive peak zener dissipation

(t = 10 ms.)

Operating temperature range

Storage temperature range

1.5 W

40 W

– 55 to + 150 °C

Electrical Characteristics at Tamb = 25°C

thj-a

Max. forward voltage drop at I

= 1.0 A

Max. thermal resistance at 10 mm.

lead length

1.1 V

60° C/W

Apr - 00

BZY97C82 Related Products

	BZY97C82	BZY97C62	BZY97C43	BZY97C13	BZY97C75	BZY97C33	BZY97C12	BZY97C24
Description	Zener Diode, 82V V(Z), 6.67%, 1.5W, Silicon, Unidirectional, DO-15, PLASTIC PACKAGE-2	Zener Diode, 62V V(Z), 6.45%, 1.5W, Silicon, Unidirectional, DO-15, PLASTIC PACKAGE-2	Zener Diode, 43V V(Z), 6.98%, 1.5W, Silicon, Unidirectional, DO-15, PLASTIC PACKAGE-2	Zener Diode, 13V V(Z), 6.42%, 1.5W, Silicon, Unidirectional, DO-15, PLASTIC PACKAGE-2	Zener Diode, 75V V(Z), 6.04%, 1.5W, Silicon, Unidirectional, DO-15, PLASTIC PACKAGE-2	Zener Diode, 33V V(Z), 6.06%, 1.5W, Silicon, Unidirectional, DO-15, PLASTIC PACKAGE-2	Zener Diode, 12V V(Z), 5.39%, 1.5W, Silicon, Unidirectional, DO-15, PLASTIC PACKAGE-2	Zener Diode, 24V V(Z), 5.79%, 1.5W, Silicon, Unidirectional, DO-15, PLASTIC PACKAGE-2
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15
package instruction	O-PALF-W2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	O-PALF-W2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2
Contacts	2	2	2	2	2	2	2	2
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
Maximum dynamic impedance	100 Ω	80 Ω	45 Ω	10 Ω	100 Ω	15 Ω	7 Ω	15 Ω
JEDEC-95 code	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Humidity sensitivity level	1	1	1	1	1	1	1	1
Number of components	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	1.5 W	1.5 W	1.5 W	1.5 W	1.5 W	1.5 W	1.5 W	1.5 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	82 V	62 V	43 V	13 V	75 V	33 V	12 V	24 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum voltage tolerance	6.67%	6.45%	6.98%	6.42%	6.04%	6.06%	5.39%	5.79%
Working test current	10 mA	10 mA	10 mA	50 mA	10 mA	25 mA	50 mA	25 mA
Maker	Fagor Electrónica	-	-	-	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica
