CMPD2004SLEADFREE datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> CMPD2004SLEADFREE

CMPD2004SLEADFREE: DescriptionRectifier Diode, 2 Element, 0.225A, 300V V(RRM), Silicon, SOT-23, 3 PIN; CategoryDiscrete semiconductor diode; File Size585KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CMPD2004SLEADFREE Overview

Rectifier Diode, 2 Element, 0.225A, 300V V(RRM), Silicon, SOT-23, 3 PIN

CMPD2004SLEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Parts packaging code	SOT-23
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	0.225 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum power dissipation	0.35 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V
Maximum reverse recovery time	0.05 µs
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10

Preview

Download Datasheet

View All

CMPD2003

CMPD2003A

CMPD2003C

CMPD2003S

CMPD2004

CMPD2004A

CMPD2004C

CMPD2004S

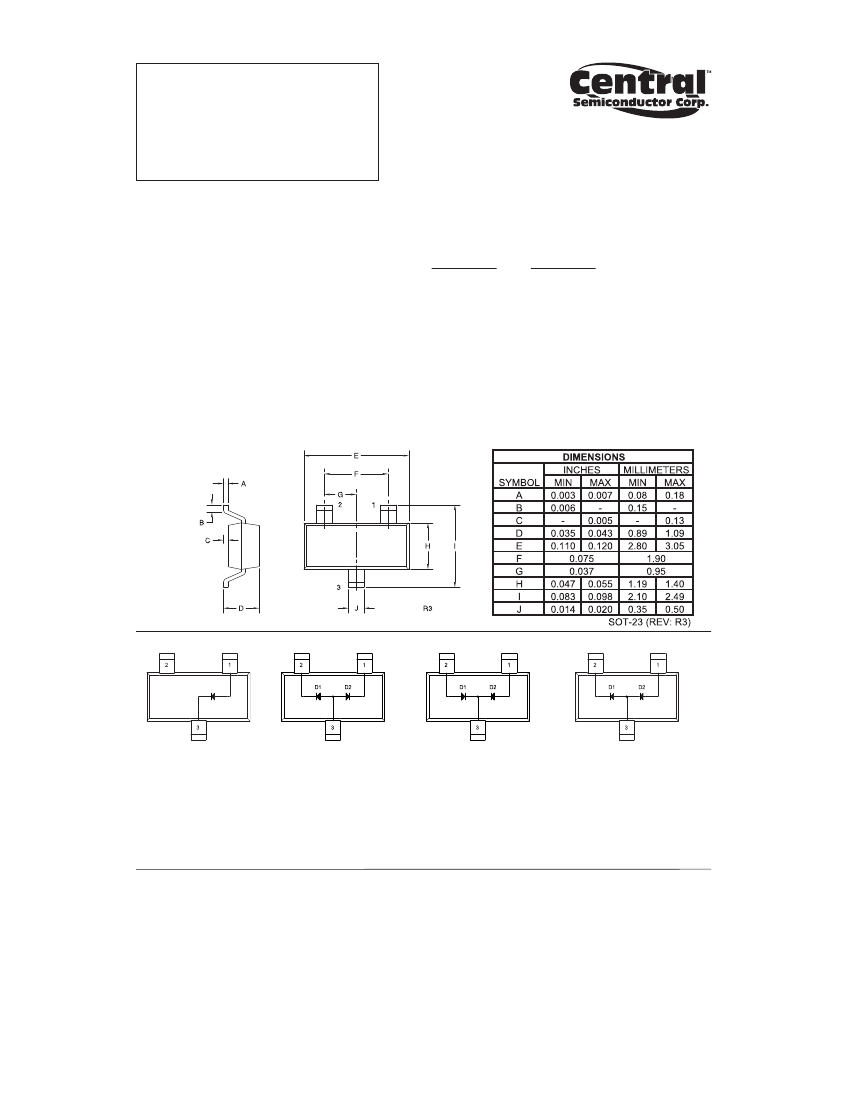

w w w. c e n t r a l s e m i . c o m

SURFACE MOUNT

HIGH VOLTAGE

SILICON SWITCHING DIODE

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMPD2003,

CMPD2003A, CMPD2003C, CMPD2003S, CMPD2004,

CMPD2004A, CMPD2004C and CMPD2004S types

are silicon switching diodes manufactured by the

epitaxial planar process, designed for applications

requiring high voltage capability.

SOT-23 CASE

The following configurations are available:

CMPD2003

SINGLE

CMPD2003A

DUAL, COMMON ANODE

CMPD2003C

DUAL, COMMON CATHODE

CMPD2003S

DUAL, IN SERIES

CMPD2004

SINGLE

CMPD2004A

DUAL, COMMON ANODE

CMPD2004C

DUAL, COMMON CATHODE

CMPD2004S

DUAL, IN SERIES

MARKING

CODE:

A82

8A2

C3C

C3S

D53

DB8

DB7

DB6

CMPD2003

CMPD2003A

CMPD2003C

MAXIMUM RATINGS:

(TA=25°C)

Continuous Reverse Voltage

Peak Repetitive Reverse Voltage

Average Forward Current

Continous Forward Current

Peak Repetitive Forward Current

Peak Forward Surge Current, tp=1.0μs

Peak Forward Surge Current, tp=1.0s

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

SYMBOL

VRRM

IFRM

IFSM

TJ, Tstg

CMPD2003S

200

250

200

250

625

4.0

1.0

350

CMPD2004

CMPD2004A

CMPD2004C

CMPD2004S

240

300

200

225

UNITS

°C

°C/W

-65 to +150

357

R9 (25-January 2010)
