MD82289-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MD82289-8

MD82289-8: DescriptionBus Arbiter/Continuous Signal Generator, MOS, CDIP20; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，23 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

MD82289-8 Overview

Bus Arbiter/Continuous Signal Generator, MOS, CDIP20

MD82289-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T20
JESD-609 code	e0
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum slew rate	120 mA
Nominal supply voltage	5 V
surface mount	NO
technology	MOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	SYSTEM INTERFACE LOGIC, BUS ARBITER AND CONTINUOUS SIGNAL GENERATOR

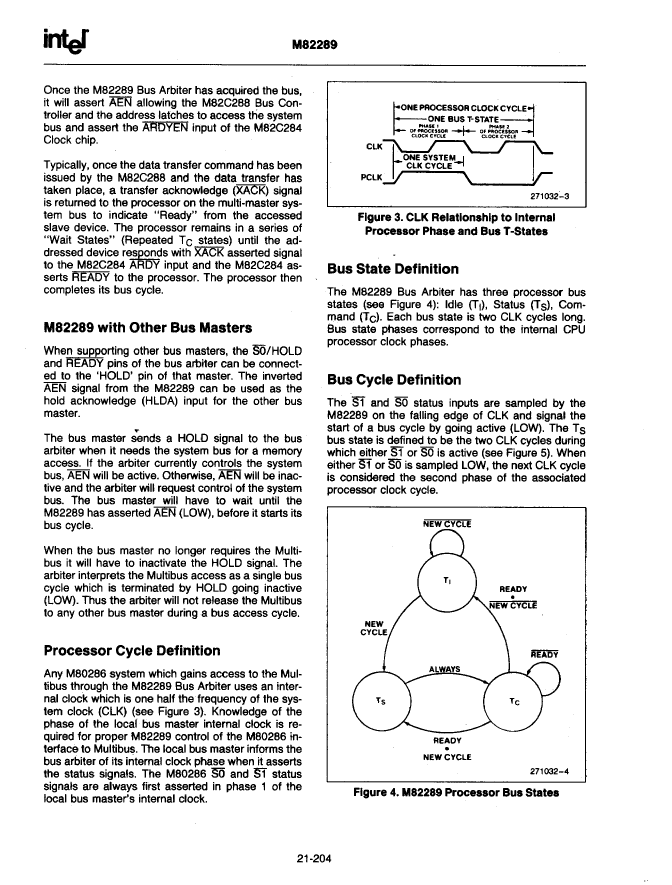

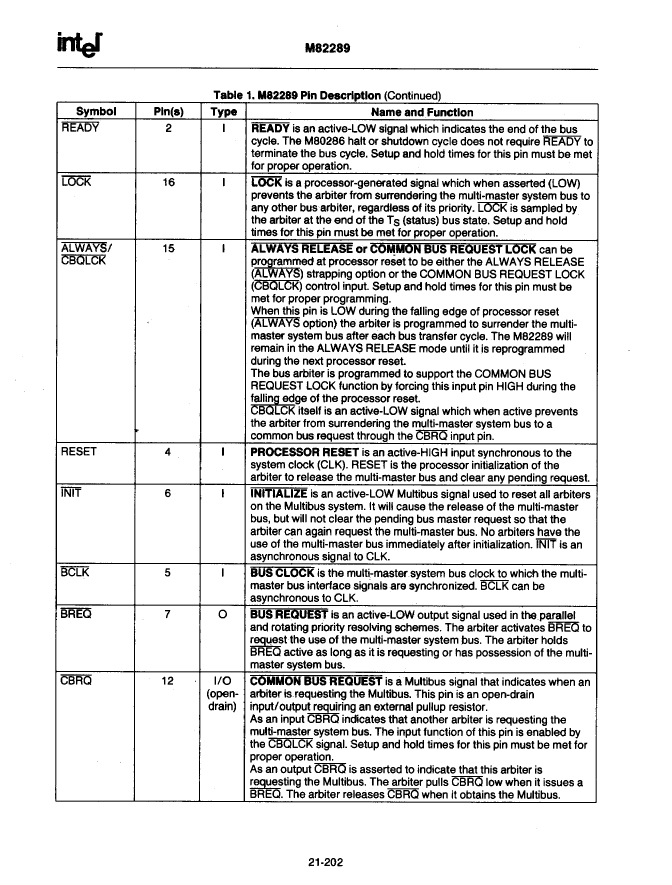

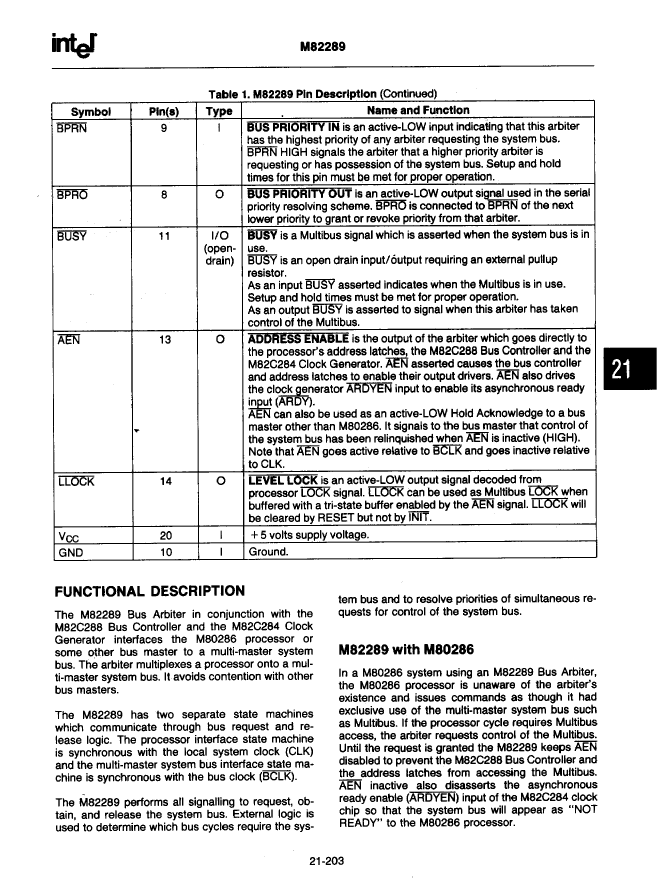

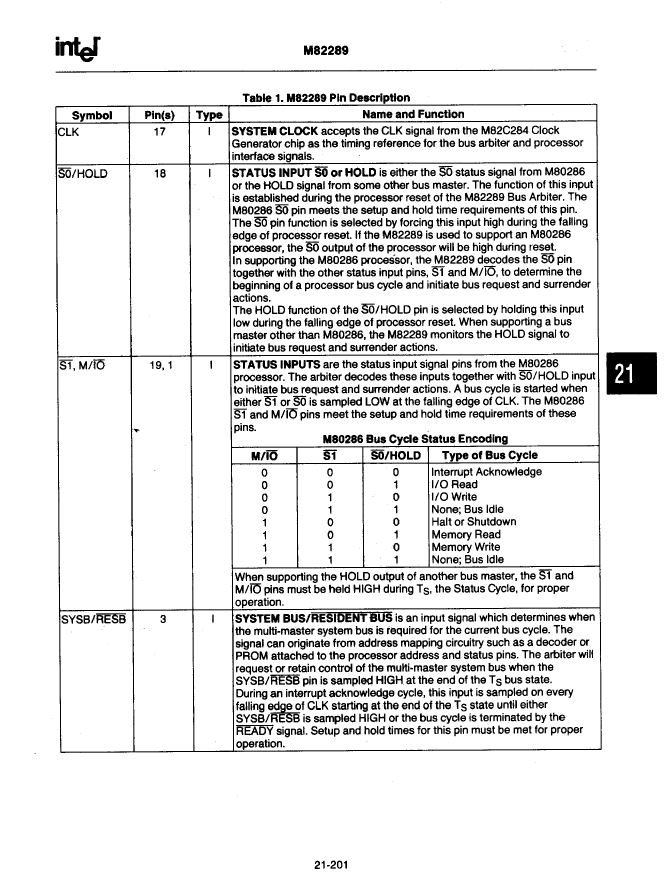

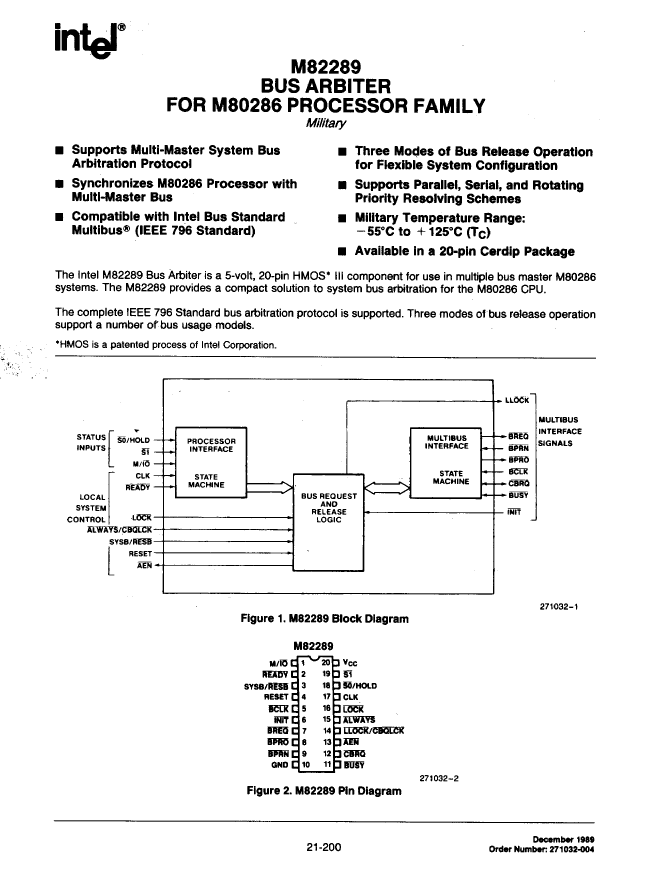

Preview

Download Datasheet

View All

MD82289-8 Related Products

	MD82289-8	MD82289-8/B	D82289	MD82289-6	MD82289-6/B	D82289-8	QD82289-8	QP82289-8	P82289	P82289-8
Description	Bus Arbiter/Continuous Signal Generator, MOS, CDIP20	Bus Arbiter/Continuous Signal Generator, MOS, CDIP20	Bus Arbiter/Continuous Signal Generator, MOS, CDIP20	Bus Arbiter/Continuous Signal Generator, MOS, CDIP20	Bus Arbiter/Continuous Signal Generator, MOS, CDIP20	Bus Arbiter/Continuous Signal Generator, MOS, CDIP20	Bus Arbiter/Continuous Signal Generator, MOS, CDIP20	Bus Arbiter/Continuous Signal Generator, MOS, PDIP20	Bus Arbiter/Continuous Signal Generator, MOS, PDIP20	Bus Arbiter/Continuous Signal Generator, MOS, PDIP20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
JESD-30 code	R-XDIP-T20	R-XDIP-T20	R-XDIP-T20	R-XDIP-T20	R-XDIP-T20	R-XDIP-T20	R-XDIP-T20	R-PDIP-T20	R-PDIP-T20	R-PDIP-T20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	20	20	20	20	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	70 °C	125 °C	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS
Temperature level	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	SYSTEM INTERFACE LOGIC, BUS ARBITER AND CONTINUOUS SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, BUS ARBITER AND CONTINUOUS SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, BUS ARBITER AND CONTINUOUS SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, BUS ARBITER AND CONTINUOUS SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, BUS ARBITER AND CONTINUOUS SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, BUS ARBITER AND CONTINUOUS SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, BUS ARBITER AND CONTINUOUS SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, BUS ARBITER AND CONTINUOUS SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, BUS ARBITER AND CONTINUOUS SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, BUS ARBITER AND CONTINUOUS SIGNAL GENERATOR
Maker	Intel	Intel	Intel	Intel	Intel	Intel	Intel	Intel	-	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified	Not Qualified
