91-21UYC/S530-A6/TR10 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 91-21UYC/S530-A6/TR10

91-21UYC/S530-A6/TR10: DescriptionSingle Color LED, Brilliant Yellow, Water Clear, T-3/4, 1.9mm, ROHS COMPLIANT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size247KB，10 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric View All

91-21UYC/S530-A6/TR10 Overview

Single Color LED, Brilliant Yellow, Water Clear, T-3/4, 1.9mm, ROHS COMPLIANT, SMD, 2 PIN

91-21UYC/S530-A6/TR10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EVERLIGHT
package instruction	ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compliant
color	BRILLIANT YELLOW
color@wavelength	Amber
Configuration	SINGLE
Maximum forward current	0.025 A
Maximum forward voltage	2.4 V
Lens type	WATER CLEAR
Nominal luminous intensity	1454.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	2.7 mm
method of packing	TAPE AND REEL 7\"
peak wavelength	591 nm
Maximum reverse voltage	5 V
shape	ROUND
size	1.9 mm
surface mount	YES
T code	T-3/4
Terminal surface	NOT SPECIFIED
perspective	25 deg

Preview

Download Datasheet

View All

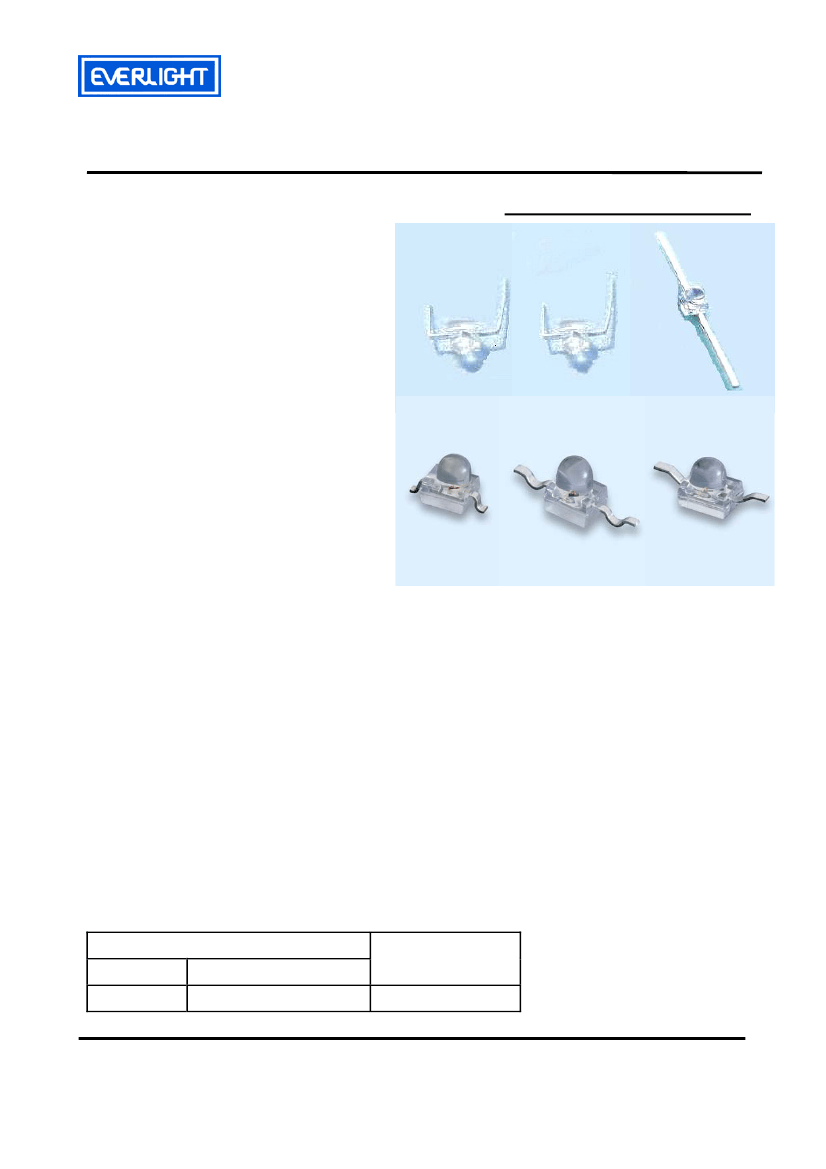

EVERLIGHT ELECTRONICS CO.,LTD.

Technical Data Sheet

1.9mm Round Subminiature Lead LEDs

91-21UYC/S530-XX/XXX

Features

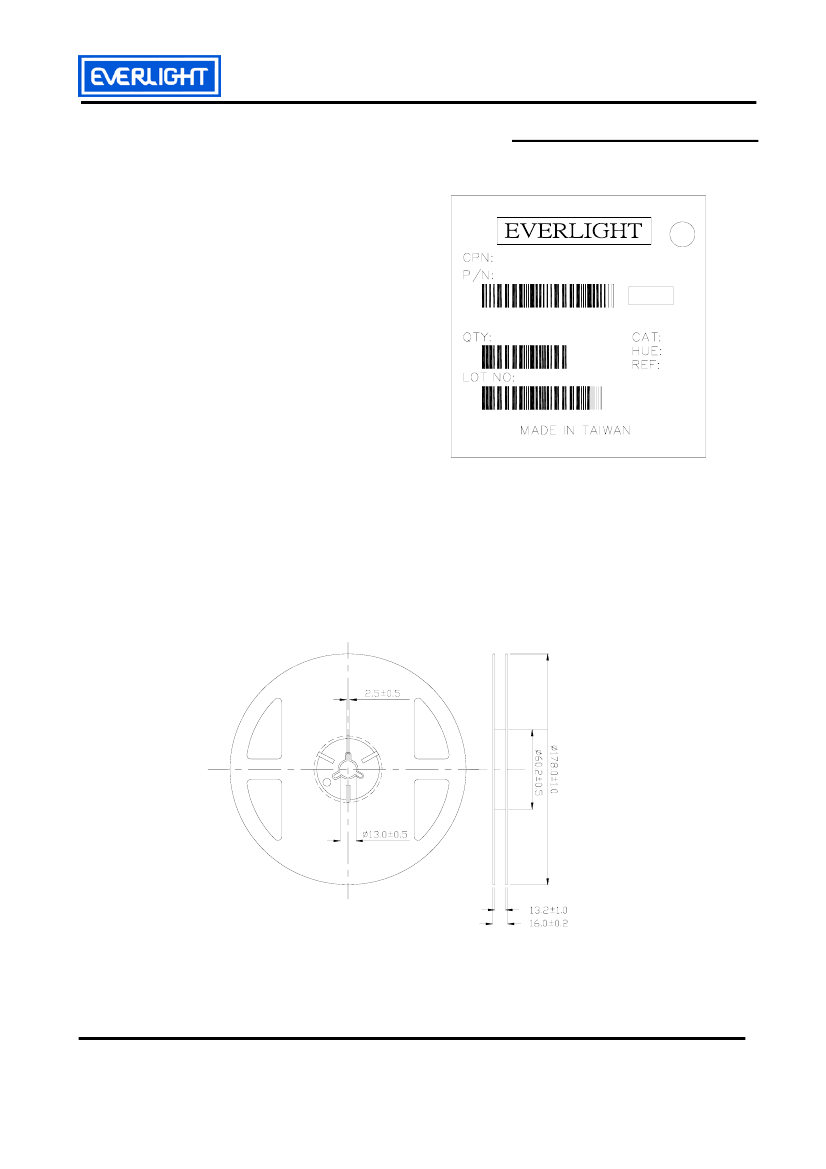

․Package

in 12mm tape on 7"

diameter reels.

․Compatible

with automatic

placement equipment.

․EIA

Std. package.

․Mono-color

type.

․Pb-free

․The

product itself will remain within

RoHS compliant version.

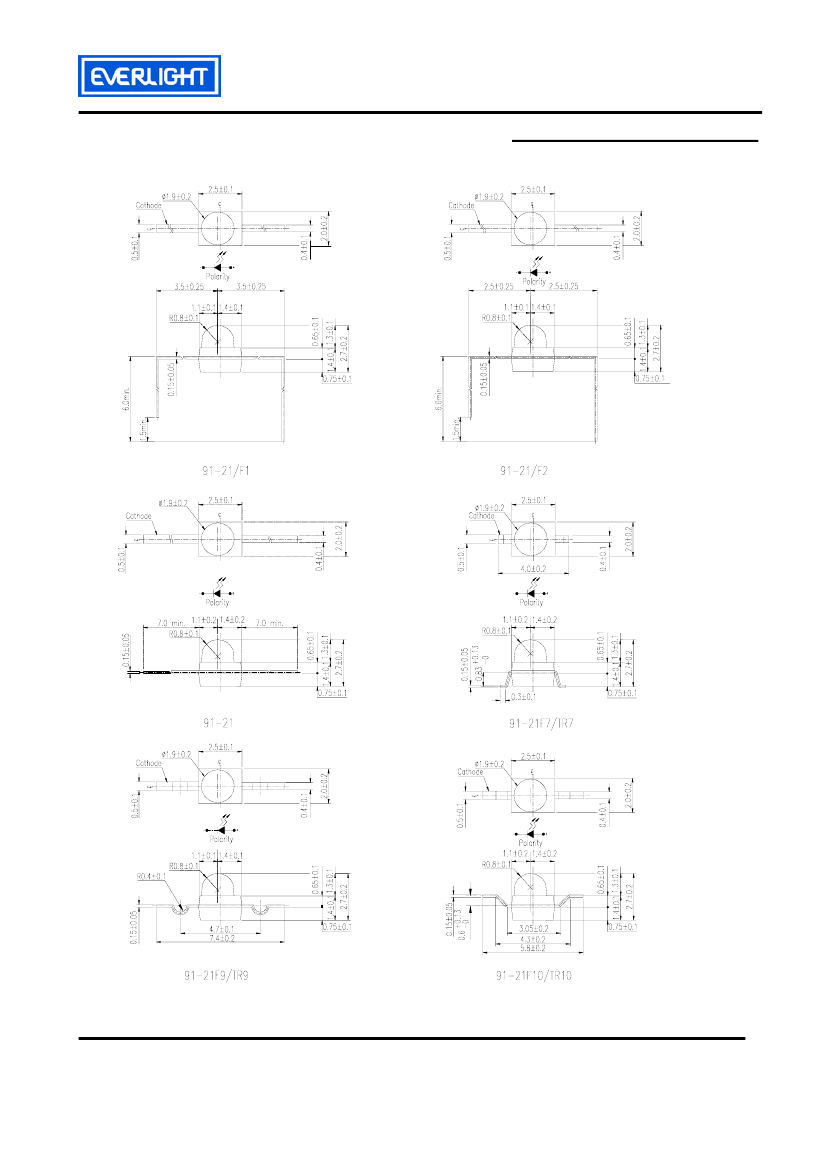

91-21

Descriptions

․The

91-21 SMD taping is much

smaller than leaded components .

Thus enable smaller board size.

F7/TR7

Higher packing density. Reduced

storage space and finally smaller equipment

to be obtained.

․Besides,

light weight makes them

ideal for miniature applications.

․Furthermore

by automation assembly

machines the accuracy is anticipated.

F9/TR9

F10/TR10

Applications

․Small

indicator for indoor applications.

․Flat

backlight for LCD, switches and symbols.

․Indicator

and backlight in office equipment.

․Indicator

and backlight for battery driven

equipment.

․Indicator

and backlight for audio and video equipment.

․Automotive

: backlighting in dashboards and switches.

․Telecommunication：indicator

and backlighting in telephone and fax.

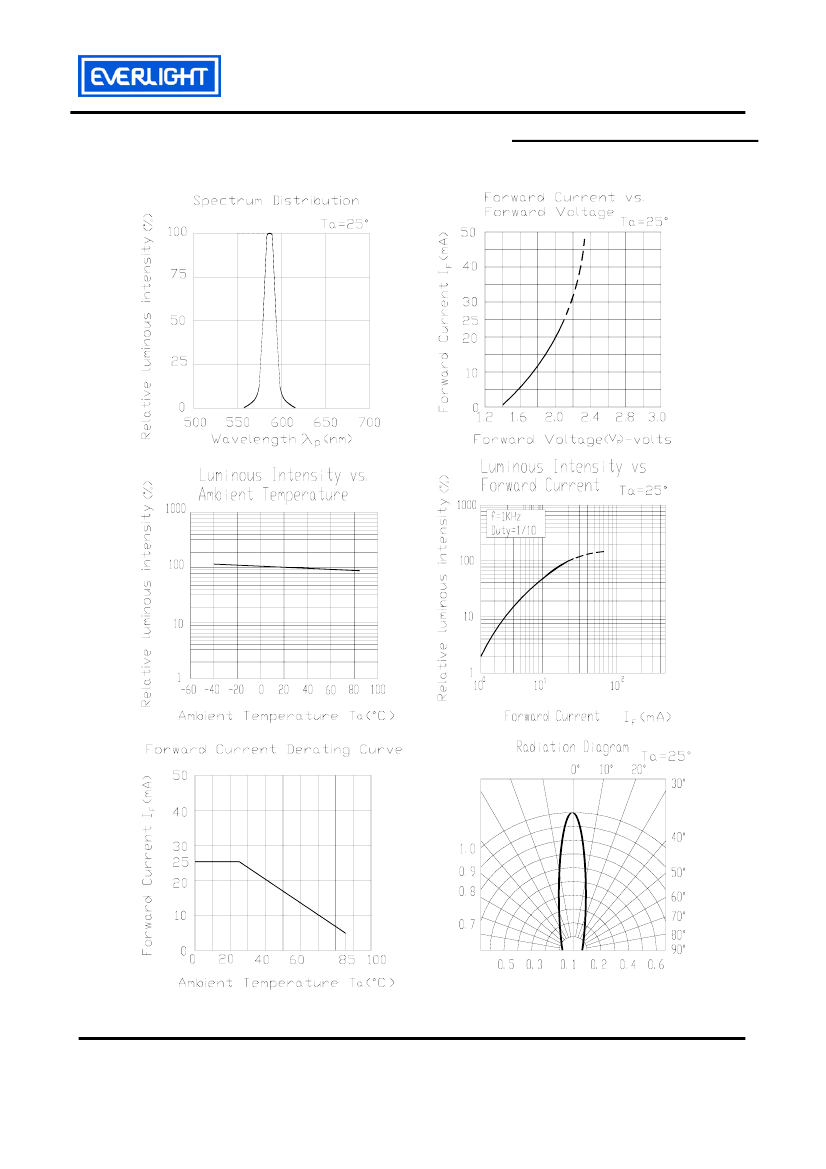

Device Selection Guide

Chip

Material

AlGaInP

Emitted Color

Brilliant Yellow

Lens Color

Water Clear

Everlight Electronics Co., Ltd.

Device No. : DLE-912-302

http://www.everlight.com

Prepared date:07-29-2005

Rev. 2.1

Page: 1 of 10

Prepared by: Forrest Chen
