2SA900 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SA900

2SA900: DescriptionTrans GP BJT PNP 18V 1A 3-Pin TO-126B-A1; CategoryDiscrete semiconductor The transistor; File Size68KB，2 Pages; ManufacturerNew Jersey Semiconductor; Websitehttp://www.njsemi.com

Download Datasheet Parametric View All

2SA900 Overview

Trans GP BJT PNP 18V 1A 3-Pin TO-126B-A1

2SA900 Parametric

Parameter Name	Attribute value
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknow
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	18 V
Configuration	SINGLE
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

, U

na.

20 STERN AVE.

SPRINGFIELD, NEW JERSEY 07081

U.S.A.

TELEPHONE: (973) 376-2922

(212)227-6005

FAX: (973) 376-8960

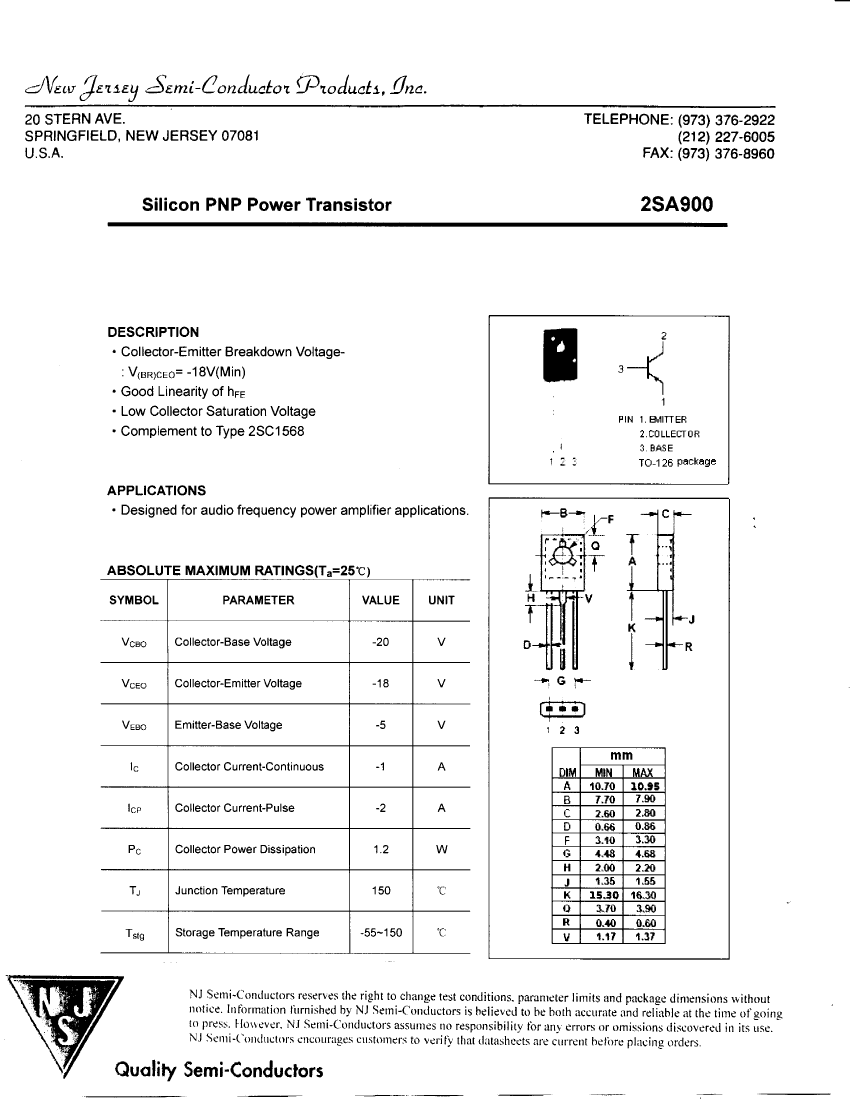

Silicon PNP Power Transistor

2SA900

DESCRIPTION

• Collector-Emitter Breakdown Voltage-

: V

(BR

)CEO=-18V(Min)

• Good Linearity of I>E

• Low Collector Saturation Voltage

• Complement to Type 2SC1568

PIN 1.BMITTER

2.COLLECTOR

3. BASE

TO-126 package

APPLICATIONS

• Designed for audio frequency power amplifier applications.

-B--

~*1

(

;

K ~*

•

ABSOLUTE MAXIMUM RATINGS(T

=25'C)

SYMBOL

PARAMETER

VALUE

UNIT

k~j

*-R

D—

VCBO

Collector-Base Voltage

-20

~\ r

t—

VCEO

Collector-Emitter Voltage

-18

— *"

VEBO

Emitter-Base Voltage

-5

1 1 ••""»"'

• * *

•

M ^ H

^ B

WIN

10.70

7.70

2.60

0.66

3.10

4.4&

2 3

Collector Current-Continuous

-1

ICP

Collector Current-Pulse

-2

DIM

MAX

10.95

7.90

2.30

0,36

3.30

4.68

2.20

1.55

16,30

3.90

0.60

1.37

Collector Power Dissipation

1.2

Junction Temperature

150

•c

Tstg

Storage Temperature Range

-55-150

2.00

1.35

15.30

3.JO

0.40

1.17

NJ Semi-Conductors reserves the right to change test conditions, parameter limits and package dimensions without

notice. Information furnished by NJ Semi-Conductors is believed to be both accurate and reliable at the time of soil

to press. However. NJ Semi-Conductors assumes no responsibility for any errors or omissions discovered in its use.

NJ Semi-Conductors encourages customers to verify that datasheets are current before placing orders.

Quality Semi-Conductors
