FPH-3101G: DescriptionBoard Connector, 31 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking Mech, Blue Insulator, Receptacle; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

FPH-3101G Overview

Board Connector, 31 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking Mech, Blue Insulator, Receptacle

FPH-3101G Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.331 inch
subject depth	0.445 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	FPH
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	31
UL Flammability Code	94V-0

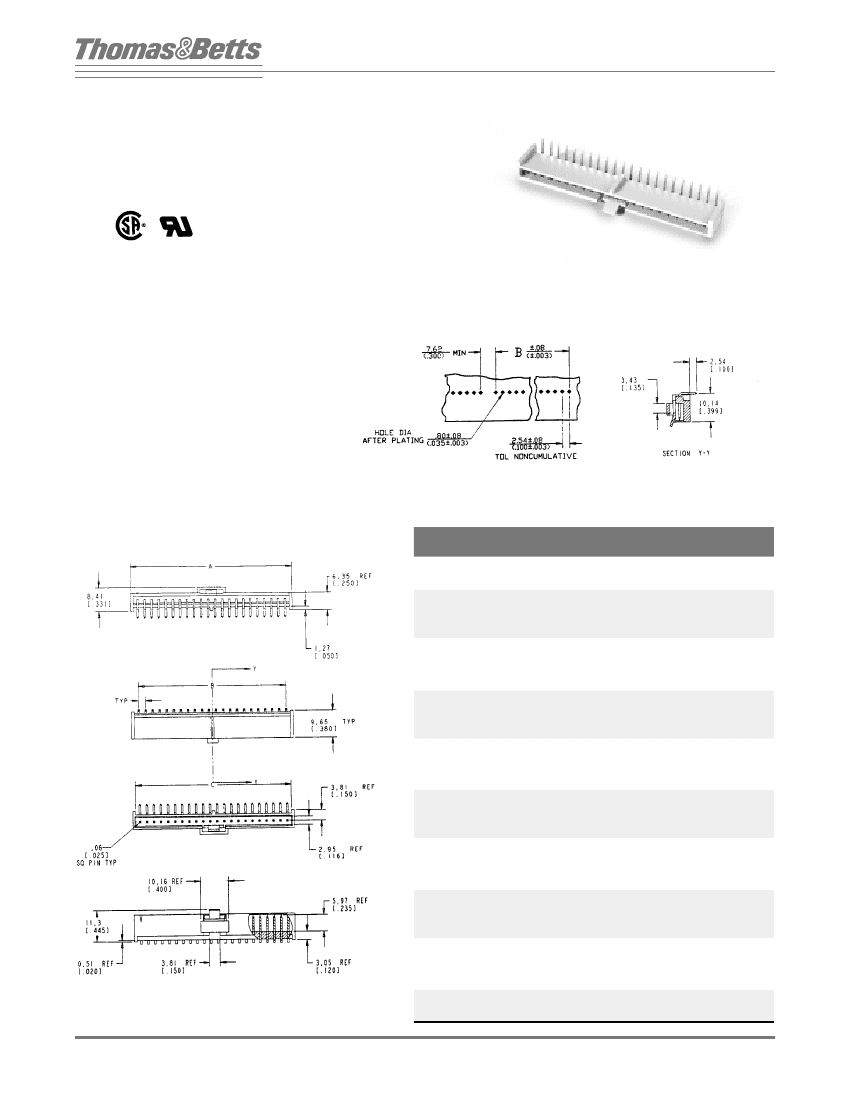

Preview

Download Datasheet

View All

Flexible Interconnections

Flexpac

FLEXPAC

LOCKING HEADER,

SINGLE ROW

RIGHT ANGLE CONTACTS

.100" CENTER SPACING

LR49571

E60980

HYSICAL

ROPERTIES

NSULATION

ATERIAL

Thermoplastic rated 94V-0

OLOR

Blue

ONTACT

ATERIAL

Phosphor Bronze

ONTACT

LATING

Contact Area, .000030" Gold over

.000050" nickel, PCB Area: .000150" Tin over

.000050" nickel

LECTRICAL

ROPERTIES

URRENT

ATING

3 amps

NSULATION

ESISTANCE

>1 x 10

0hms @ 500 VDC

DWV:

> 500 VRMS at sea level

NVIRONMENTAL

ROPERTIES

EMPERATURE

ATING

- 40˚C TO 105°C

UL A

PPROVAL

E47817

ATING

ONNECTOR

See pages 175, 177

Ordering Information

GOLD CONTACT

PLATING

FPH-0501G

FPH-0601G

FPH-0701G

FPH-0801G

FPH-0901G

FPH-1001G

FPH-1101G

FPH-1201G

FPH-1301G

FPH-1401G

FPH-1501G

FPH-1601G

FPH-1701G

FPH-1801G

FPH-1901G

FPH-2001G

FPH-2101G

FPH-2201G

FPH-2301G

FPH-2401G

FPH-2501G

FPH-2601G

FPH-2701G

FPH-2801G

FPH-2901G

FPH-3001G

FPH-3101G

FPH-3201G

TIN CONTACT

PLATING

FPH-0501T

FPH-0601T

FPH-0701T

FPH-0801T

FPH-0901T

FPH-1001T

FPH-1101T

FPH-1201T

FPH-1301T

FPH-1401T

FPH-1501T

FPH-1601T

FPH-1701T

FPH-1801T

FPH-1901T

FPH-2001T

FPH-2101T

FPH-2201T

FPH-2301T

FPH-2401T

FPH-2501T

FPH-2601T

FPH-2701T

FPH-2801T

FPH-2901T

FPH-3001T

FPH-3101T

FPH-3201T

NO. OF

POS.

15.24 (.600)

17.78 (.700)

20.32 (.800)

22.86 (.900)

25.40 (1.000)

27.94 (1.100)

30.48 (1.200)

33.02 (1.300)

35.56 (1.400)

38.10 (1.500)

40.64 (1.600)

43.18 (1.700)

45.72 (1.800)

48.26 (1.900)

50.80 (2.000)

53.34 (2.100)

55.88 (2.200)

58.42 (2.300)

60.96 (2.400)

63.50 (2.500)

66.04 (2.600)

68.58 (2.700)

71.12 (2.800)

73.66 (2.900)

76.20 (3.000)

78.74 (3.100)

81.28 (3.200)

83.82 (3.300)

DIMENSIONS

10.16 (.400)

12.70 (.500)

15.24 (.600)

17.78 (.700)

20.32 (.800)

22.86 (.900)

25.40 (1.000)

27.94 (1.100)

30.48 (1.200)

33.02 (1.300)

35.56 (1.400)

38.10 (1.500)

40.64 (1.600)

43.18 (1.700)

45.72 (1.800)

48.26 (1.900)

50.80 (2.000)

53.34 (2.100)

55.88 (2.200)

58.42 (2.300)

60.96 (2.400)

63.50 (2.500)

66.04 (2.600)

68.58 (2.700)

71.12 (2.800)

73.66 (2.900)

76.20 (3.000)

78.74 (3.100)

13.11 (.516)

15.65 (.616)

18.19 (.716)

20.73 (.816)

23.27 (.916)

25.81 (1.016)

28.35 (1.116)

30.89 (1.216)

33.43 (1.316)

35.97 (1.416)

38.51 (1.516)

41.05 (1.616)

43.59 (1.716)

46.13 (1.816)

48.67 (1.916)

51.21 (2.016)

53.75 (2.116)

56.29 (2.216)

58.83 (2.316)

61.37 (2.416)

63.91 (2.516)

66.45 (2.616)

68.99 (2.716)

71.53 (2.816)

74.07 (2.916)

76.61 (3.016)

79.15 (3.116)

81.69 (3.216)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).
