LB-302VF1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LB-302VF1

LB-302VF1: DescriptionSmart/Normal 7 Seg Numeric LED Display, 2-Character, Red, 7.62mm; CategoryLED optoelectronic/LED photoelectric; File Size45KB，2 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

LB-302VF1 Overview

Smart/Normal 7 Seg Numeric LED Display, 2-Character, Red, 7.62mm

LB-302VF1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Reach Compliance Code	unknown
color	RED
color@wavelength	Red
Configuration	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT
Display height	7.62 mm
Number of characters	2
Number of functions	2
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	650 nm

Preview

Download Datasheet

View All

LED displays

High efficiency, two-digit numeric

displays

LB-302 FP / FP1 Series

The LB-302 FP and LB-302 FP1 series

were designed to meet the need for

multi-digit numeric displays. These two-

digit LED numeric displays have a char-

acter height of 7.62 mm.

FFeatures

1) Height of character : 7.62 mm.

2) High efficiency in a compact pack-

age.

3) Common anode and common cath-

ode configurations are available for

red, orange, yellow and green.

4) Illuminating or non-illuminating dots

can be selected.

5) The package surface is painted

black and the segments are milky

white.

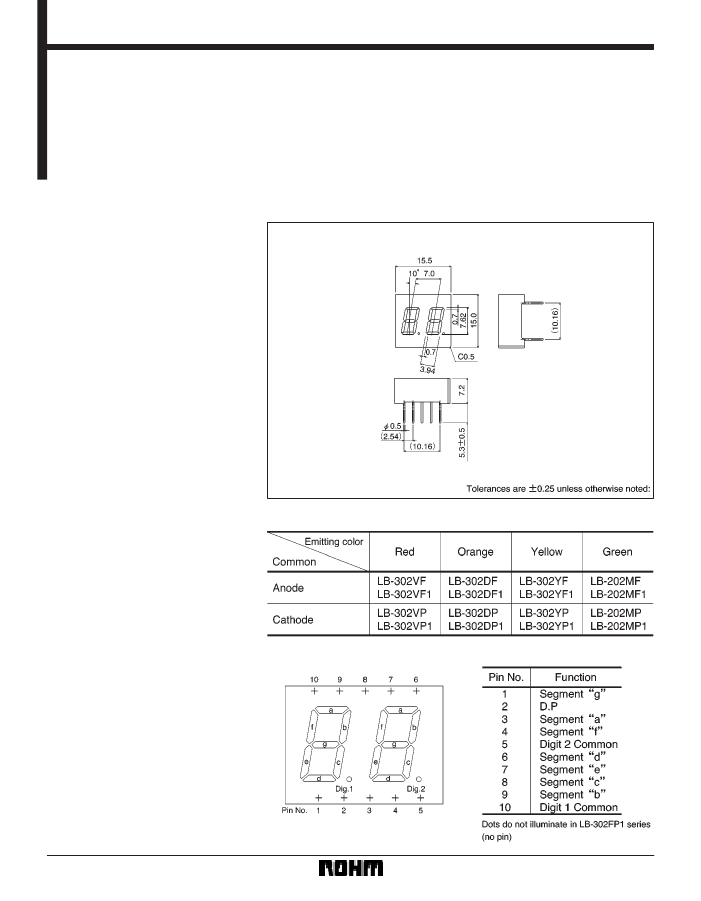

FSelection

guide

FExternal

dimensions (Units: mm)

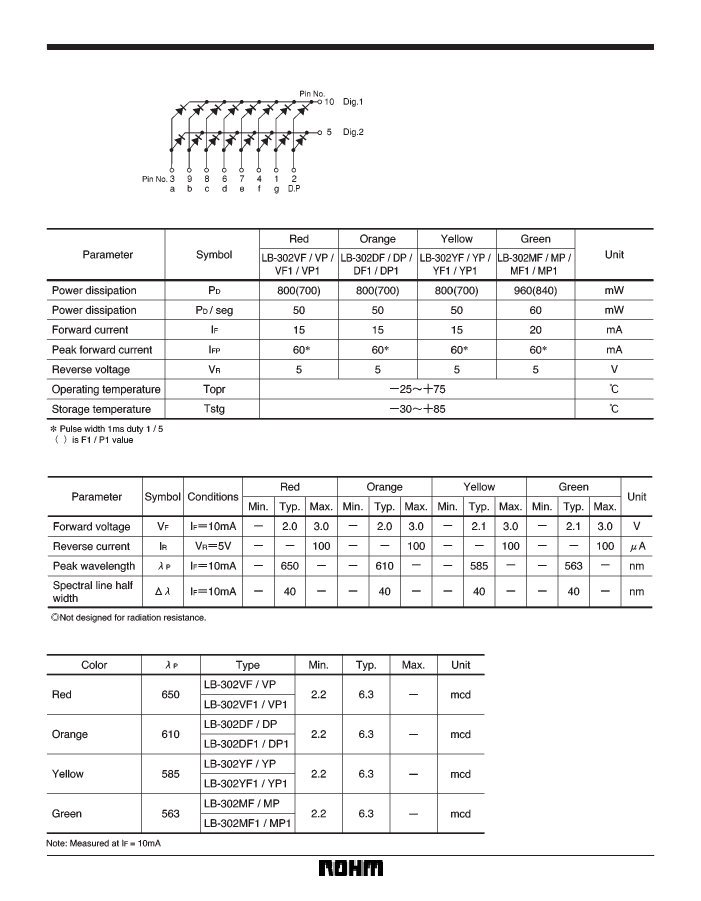

FPin

assignments

195
