FPH-4022G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> FPH-4022G

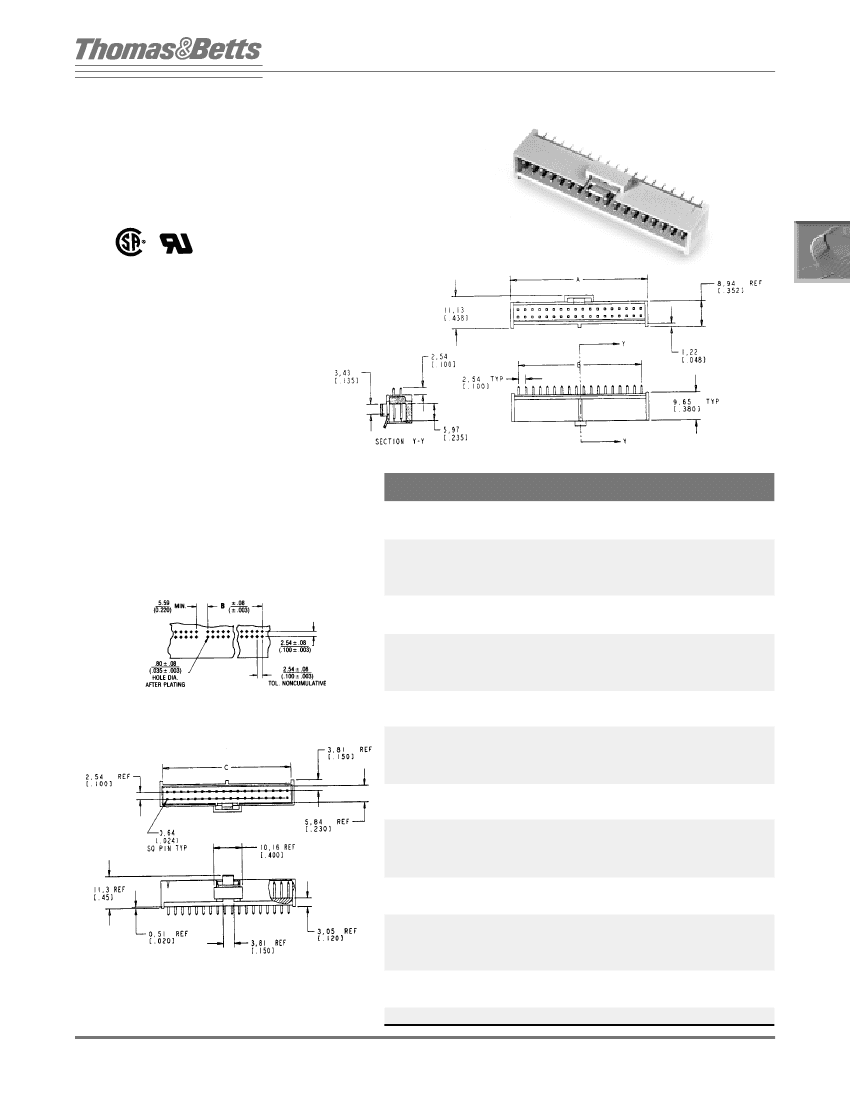

FPH-4022G: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking Mech, Blue Insulator, Receptacle; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

FPH-4022G Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking Mech, Blue Insulator, Receptacle

FPH-4022G Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH STANDOFFS
body width	0.438 inch
subject depth	0.445 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	FPH
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

Flexible Interconnections

Flexpac

FLEXPAC

LOCKING HEADER

DOUBLE ROW

STRAIGHT CONTACTS

.100" X .100" CENTER SPACING

LR49571

E60980

HYSICAL

ROPERTIES

NSULATION

ATERIAL

Thermoplastic, rated 94V-0

OLOR

Blue

ONTACT

ATERIAL

Phosphor Bronze

ONTACT

LATING

contact area .000030" gold over

.000050" nickel, PCB Area: .000150" tin over

.000050" nickel

LECTRICAL

ROPERTIES

URRENT

ATING

3 amps

NSULATION

ESISTANCE

> 1 x 10

0hms @ 500 VDC

DWV:

> 500 VRMS at sea level

NVIRONMENTAL

ROPERTIES

EMPERATURE

ATING

- 40˚C TO 105°C

UL A

PPROVAL

E47817

Ordering Information

GOLD CONTACT

PLATING

TIN CONTACT

PLATING

NO. OF

POS.

DIMENSIONS

ATING

ONNECTOR

See pages 176

FPH-1022G

FPH-1222G

FPH-1422G

FPH-1622G

FPH-1822G

FPH-2022G

FPH-2222G

FPH-2422G

FPH-2622G

FPH-2822G

FPH-3022G

FPH-3222G

FPH-3422G

FPH-3622G

FPH-3822G

FPH-4022G

FPH-4222G

FPH-4422G

FPH-4622G

FPH-4822G

FPH-5022G

FPH-5222G

FPH-5422G

FPH-5622G

FPH-5822G

FPH-6022G

FPH-6222G

FPH-6422G

FPH-1022T

FPH-1222T

FPH-1422T

FPH-1622T

FPH-1822T

FPH-2022T

FPH-2222T

FPH-2422T

FPH-2622T

FPH-2822T

FPH-3022T

FPH-3222T

FPH-3422T

FPH-3622T

FPH-3822T

FPH-4022T

FPH-4222T

FPH-4422T

FPH-4622T

FPH-4822T

FPH-5022T

FPH-5222T

FPH-5422T

FPH-5622T

FPH-5822T

FPH-6022T

FPH-6222T

FPH-6422T

15.24 (.600)

17.78 (.700)

20.32 (.800)

22.86 (.900)

25.40 (1.000)

27.94 (1.100)

30.48 (1.200)

33.02 (1.300)

35.56 (1.400)

38.10 (1.500)

40.64 (1.600)

43.18 (1.700)

45.72 (1.800)

48.26 (1.900)

50.80 (2.000)

53.34 (2.100)

55.88 (2.200)

58.42 (2.300)

60.96 (2.400)

63.50 (2.500)

66.04 (2.600)

68.58 (2.700)

71.12 (2.800)

73.66 (2.900)

76.20 (3.000)

78.74 (3.100)

81.28 (3.200)

83.82 (3.300)

10.16 (.400)

12.70 (.500)

15.24 (.600)

17.78 (.700)

20.32 (.800)

22.86 (.900)

25.40 (1.000)

27.94 (1.100)

30.48 (1.200)

33.02 (1.300)

35.56 (1.400)

38.10 (1.500)

40.64 (1.600)

43.18 (1.700)

45.72 (1.800)

48.26 (1.900)

50.80 (2.000)

53.34 (2.100)

55.88 (2.200)

58.42 (2.300)

60.96 (2.400)

63.50 (2.500)

66.04 (2.600)

68.58 (2.700)

71.12 (2.800)

73.66 (2.900)

76.20 (3.000)

78.74 (3.100)

13.11 (.516)

15.65 (.616)

18.19 (.716)

20.73 (.816)

23.27 (.916)

25.81 (1.016)

28.35 (1.116)

30.89 (1.216)

33.43 (1.316)

35.97 (1.416)

38.51 (1.516)

41.05 (1.616)

43.59 (1.716)

46.13 (1.816)

48.67 (1.916)

51.21 (2.016)

53.75 (2.116)

56.29 (2.216)

58.83 (2.316)

61.37 (2.416)

63.91 (2.516)

66.45 (2.616)

68.99 (2.716)

71.53 (2.816)

74.07 (2.916)

76.61 (3.016)

79.15 (3.116)

81.69 (3.216)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).

181
