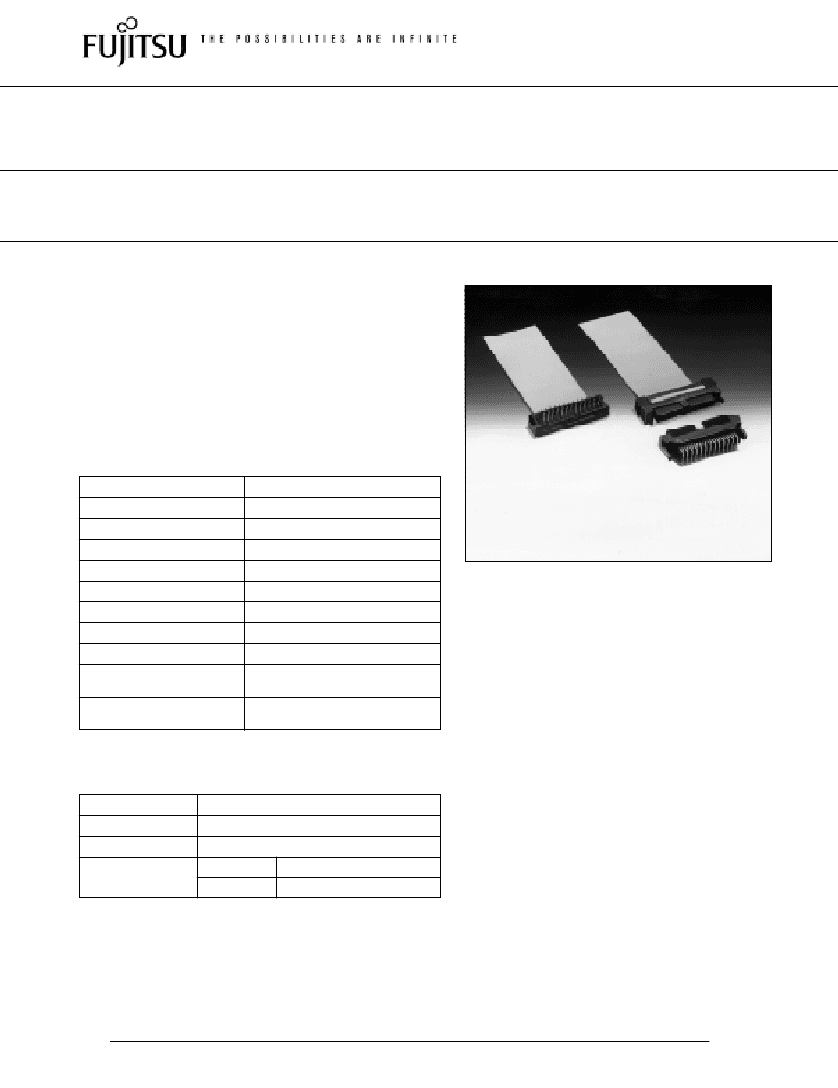

BOARD-TO-CABLE CONNECTION
210 SERIES (FOR FLAT CABLE CONNECTION)
s
FEATURES
• 1.27 mm (0.050 in.) pitch contact arrangement in two
rows enables high-density mounting.
• Connectors with 30 to 80 contacts are available.
• 0.635 mm (0.025 in.) pitch flat cables can be used
(solid wires).
• Insulation is UL-approved (94V-0) and is washable.
s
SPECIFICATIONS
Item
Operating temperature range
Current rating
Voltage rating
Contact resistance
Insulation resistance
Dielectric withstand voltage
Insertion force
Withdrawal force
Applicable wire
Applicable PC board
(standard)
Specifications
–55°C to +105°C
0.5 A
AC 250 V
35 mΩ max. (DC 6 V, 0.1 A)
1000 MΩ min. (DC 500 V)
AC 500 V for 1 minute
4 kg max. (10 pins)
250 g min. (10 pins)
0.635 mm (0.025 in.) flat cable
AWG #30 (solid wires)
Thickness: 0.8 to 1.6 mm (0.031 to
0.063 in.)
s
MATERIALS
Item
Insulator
Conductor
Plating
Materials
Polyester (UL94V-0)
Copper alloy
Contact
Terminal
Gold plating
Palladium plating
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
1
210 Series (For Flat Cable Connection)
s
ORDERING CODE
FCN-21 7 J 050-G / 0
With a board lock or other feature
Plating
G: Gold plating
P: Palladium plating
Number of contacts: 30, 34, 30, 50, 60, and 80
Body
J: Socket
P: Direct-insertion plug
Tail type
4: PC board mounting straight type
7: Insulation displacement connection
210 series connector
Fujitsu connector
s
APPLICATION
FCN-215Q0xx-G/0
FCN-217JOxx-G/0
FCN-214POxx-P/0
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
2
210 Series (For Flat Cable Connection)
IDC SOCKET (FOR 0.635 MM (0.025 IN.) PITCH FLAT CABLES)
s

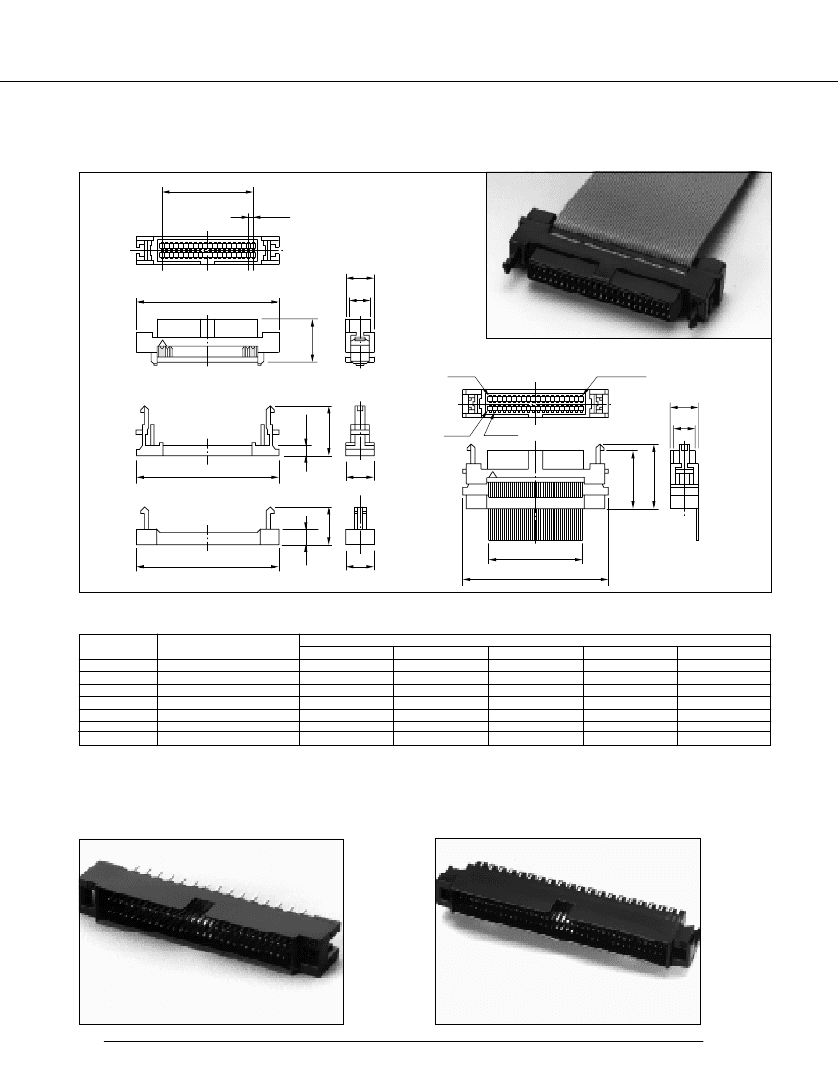

DIMENSIONS
B
1.27 (0.050)
C
7.6
(0.299)
5.9
(0.232)
11.7
(0.460)
Body
Connection diagram
No. 2
End terminal
2.7
(0.106)
13.2
(0.519)
No. 1
No. 3
7.6
(0.299)
5.9
(0.232)
A
4
(0.157)
Strain
relief
10
(0.393)
C
7.6
(0.299)
D
A
15.7
(0.618)
17.2
(0.677)
Cover
Unit: mm (in.)
s
PART NUMBERS AND DIMENSIONS
Number of
contacts
30
34
40
50
60
80
100
Part number
FCN-217J030-G/0
FCN-217J034-G/0
FCN-217J040-G/0
FCN-217J050-G/0
FCN-217J060-G/0
FCN-217J080-G/0
FCN-217J080-G/0
A
33.43 (1.316)
35.97 (1.416)
39.78 (1.566)
46.13 (1.816)
52.48 (2.066)
65.18 (2.566)
77.83 (3.066)
B
17.78 (0.700)
20.32 (0.800)
24.13 (0.950)
30.48 (1.200)
36.83 (1.450)
49.53 (1.950)
62.23 (2.450)
Dimensions: mm (in.)
C
31.83 (1.253)
34.37 (1.353)
38.18 (1.503)
44.53 (1.753)
50.88 (2.003)
63.58 (2.503)
76.28 (3.003)
D
20.68 (0.814)
23.22 (0.914)
27.03 (1.064)
33.38 (1.314)
39.73 (1.564)
52.43 (1.064)
65.13 (2.564)
E
19.05 (0.750)
21.59 (0.850)
25.40 (1.000)
31.75 (1.250)
38.10 (1.500)
50.80 (2.000)
63.50 (2.500)
See page 2-19 for IDC tools.
s
MATING HEADER
(Straight) FCN-214Qxxx-G/0 (xxx: number of contacts)
(Right-angle) FCN-215Qxxx-G/0 (xxx: number of contacts)
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
3
210 Series (For Flat Cable Connection)

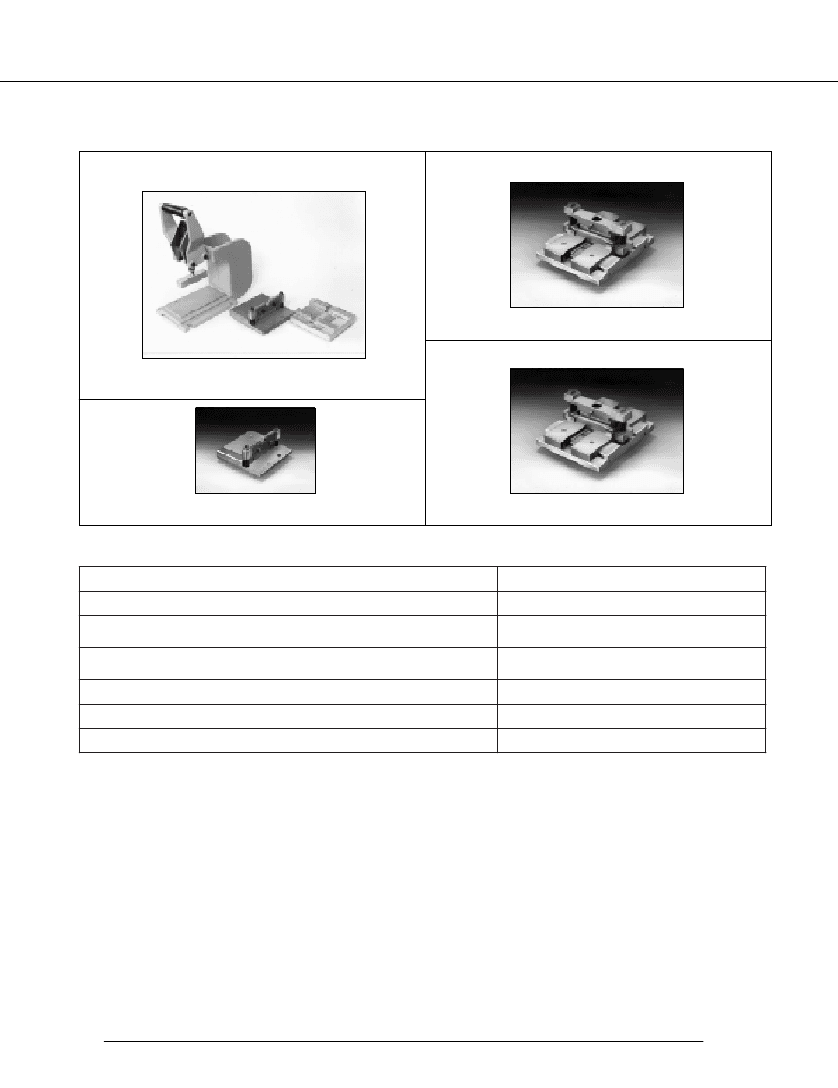

IDC TOOLS
Hand press
Locator plate (for sockets)
FCN-217T-T032/H
Locator plate (for PC board mounting plugs)
FCN-707T-T101/H
Cable cutter
FCN-707T-T001/H
FCN-217T-T034/H
Tool Name
Cable cutter (common)
Hand Press (common)
To be used with locator plate FCN-217T-T032/H and FCN-217T-T034/H
Hand Press (special)
To be used with locator plate FCN-217T-T073/H
Locator Plate (socket) (FCN-217J
ttt
- Series) (special)
Locator Plate (socket) (FCN-217J
ttt
- Series) (common)
Locator Plate (PCB plug) (FCN-217P
ttt
- Series)
Part Number
FCN-707T-T001/H
FCN-707T-T101/H
FCN-707T-T107/H
FCN-217T-T073/H (80 and 100 position)
FCN-217T-T032/H (30 thru 60 position)
FCN-707T-T034/H
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
4
210 Series (For Flat Cable Connection)
s
CONNECTION PROCEDURE (OUTLINE)
1. Set the cable cutter on the hand press, then cut the
flat cable to length.
2. Set the locator plate on the hand press, then make
connection (IDC).
s

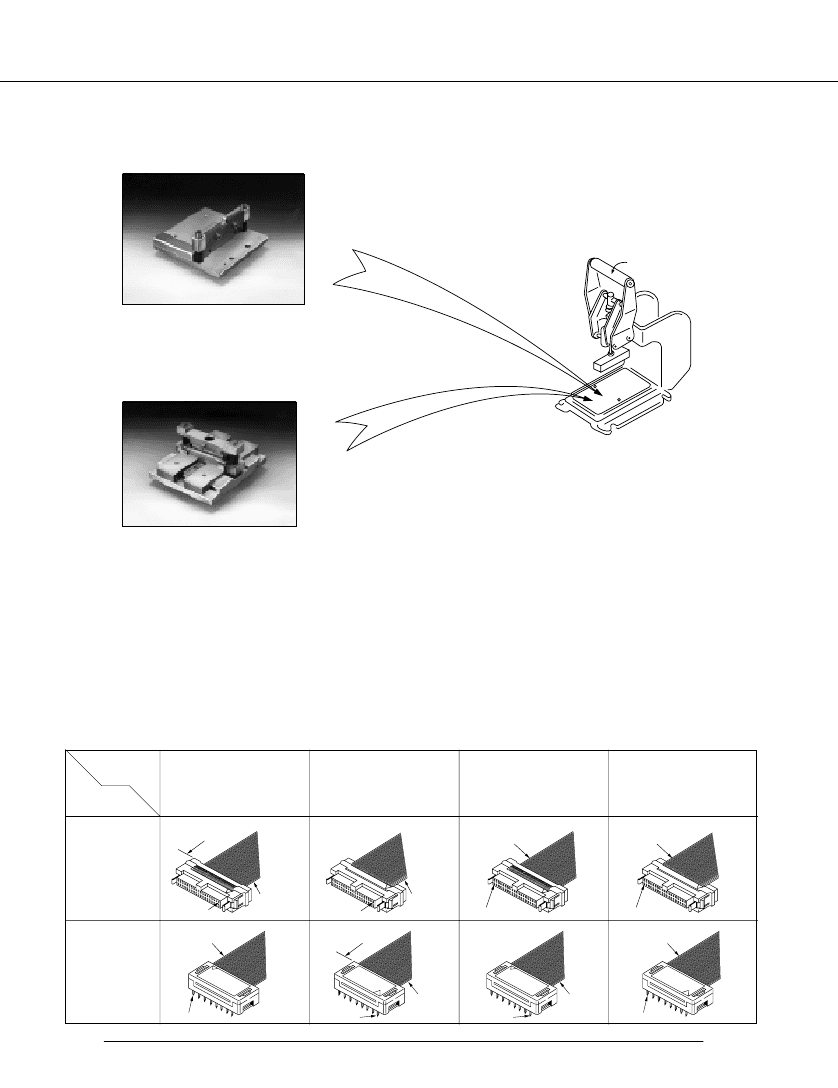

CONNECTION TYPES
• Flat cable connection types
There are several types of connection of a connector
and flat cable. Select a connection method from those
in the figures below according to your application.
Fujitsu will assemble the connector as specified.
• Cable length
The length of each cable is defined as shown in the
figures below and represented in units of cm (in.). The
minimum cable length is 7 cm (2.756 in.). The specified
tolerance of cable length is
±10%
(±5 mm (0.197 in.)
min.) for L ##< 10 cm (3.937 in.),
±1
cm (0.394 in.) for
100 cm (39.370 in.) ##> L ##> 10 cm (3.937 in.),
±(L/
100 cm + 2 cm) (L/100 in. + 0.787 in.) for 100 cm
(39.370 in.) ##< L ##< 1800 cm (708.661 in.), and
±20
cm (7.874 in.) for L ##> 1800 cm (708.661 in.).
Connection
type
Connector
name
L cm
No.1
No.2
No.3
No.4
1st cable
1st cable
210 series
socket
1st cable
1st cable
1st cable
1st cable
L cm
1st cable
1st cable
1st cable
1st cable
210 series PC
board
mounting plug
1st cable
4th cable
1st cable
4th cable
1st cable
2nd cable
