L132CB/4GD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L132CB/4GD

L132CB/4GD: DescriptionSINGLE COLOR LED ARRAY, GREEN, 5.3 mm; CategoryLED optoelectronic/LED photoelectric; File Size140KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

L132CB/4GD Overview

SINGLE COLOR LED ARRAY, GREEN, 5.3 mm

L132CB/4GD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
Reach Compliance Code	unknown
color	GREEN
color@wavelength	Green
Configuration	SEPARATE, 4 ELEMENTS
Maximum forward current	0.025 A
Maximum forward voltage	2.8 V
Lens type	DIFFUSED
minimum luminous intensity	0.0008 cd
Nominal luminous intensity	2.0 mcd
Installation features	RADIAL MOUNT
Number of functions	4
Number of LEDs in the array	4
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	8.6 mm
method of packing	BULK
peak wavelength	565 nm
shape	RECTANGULAR
size	5.3 mm
surface mount	NO
Terminal surface	NOT SPECIFIED
Terminal pitch	2.3 mm
perspective	110 deg

Preview

Download Datasheet

View All

1.8x5.3mm 2,3,4,5 ELEMENTS LED ARRAYS

L132CB/2 SERIES

L132CB/3 SERIES

L132CB/4 SERIES

L132CB/5 SERIES

Features

COLORS

Description

The Bright Red source color devices are made with

Gallium Phosphide Red Light Emitting Diode.

The High Efficiency Red and Orange source color devices

are made with Gallium Arsenide Phosphide on Gallium

Phosphide Orange Light Emitting Diode.

The Green and Super Bright Green source color devices

are made with Gallium Phosphide Green Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

mitting Diode.

CAN BE MIXED IN A SINGLE

HOUSING.

2,3,4,5

EASY

ELEMENTS.

FOR LEVEL INDICATORS.

INSTALLATION.

SUITABLE

RATING : 94V-0.

MATERIAL: TYPE 66 NYLON.

HOUSING

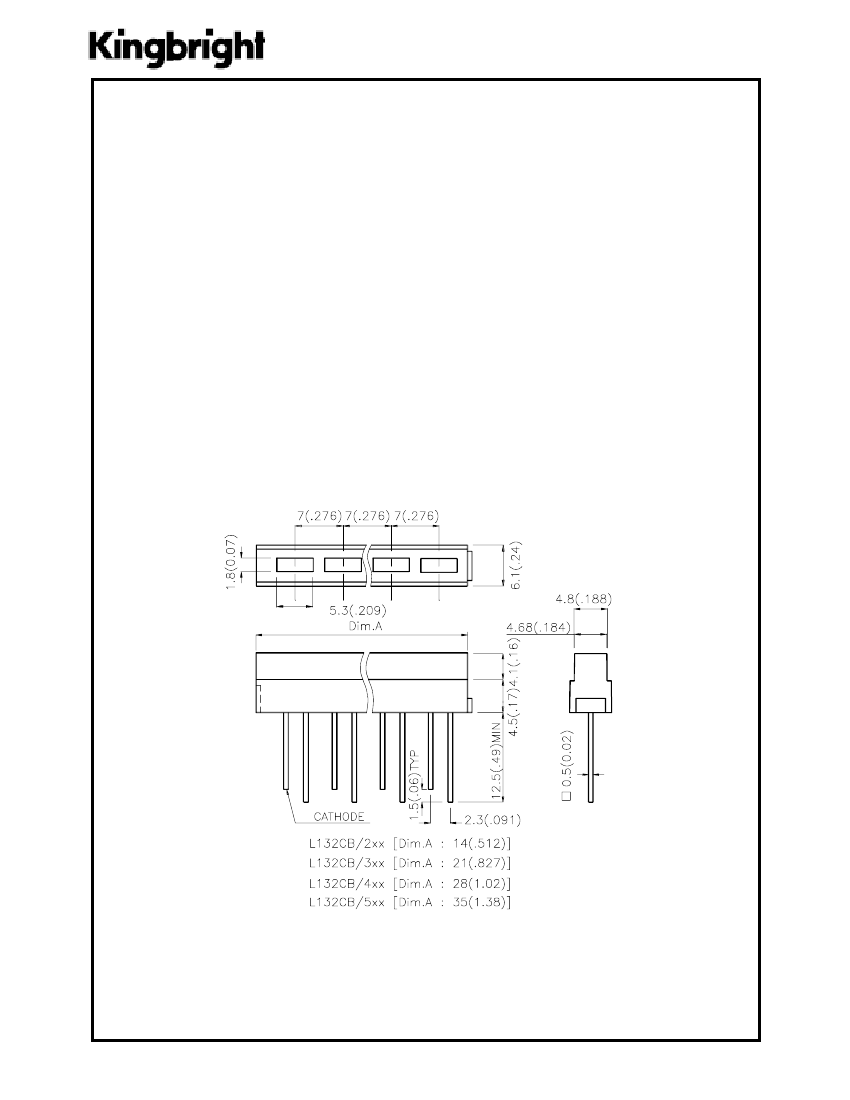

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: CDA0635

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: NOV/04/2001

DRAWN: Y.F.XU

PAGE: 1 OF 5
