T-1 (3mm) SUPER BRIGHT LED LAMPS
L7104SEx SUPER BRIGHT ORANGE
L7104SYx SUPER BRIGHT YELLOW
Features
!
ULTRA
!
BOTH
Description
The Super Bright Orange and Super Bright Yellow source color
devices are made with DH InGaAlP on GaAs substrate Light
MATERIAL EFFICIENCY.
Emitting Diode.
BRIGHTNESS.
DIFFUSED AND WATER CLEAR LENS ARE
AVAILABLE.
!
OUTSTANDING
!
RELIABLE
!
IC
AND RUGGED.
COMPATIBLE/LOW CURRENT CAPABILITY.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
Digitally signed by
YANGSHOUFEN
cn=YANGSHOUFEN,
ou=KINGBRIHGT,
o=42, c=US
Date: 2001.11.12
16:22:20 +08'00'
Reason: Document is
certified
SPEC NO: CDA0750
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/12/2001
DRAWN: S.H.CHEN
PAGE: 1 OF 4
Selection Guide
Par t No .
Dic e
L en s Ty p e
Iv (m c d )
@ 20 m A
Min .
L7104SEC
L7104SET
L7104SED
L7104SYC
L7104SYT
L7104SYD
SUPER BRIGHT YELLOW (InGaAlP)
SUPER BRIGHT ORANGE (InGaAlP)
WATER CLEAR
ORANGE TRANS.
ORANGE DIFFUSED
WATER CLEAR
YELLOW TRANS.
YELLOW DIFFUSED
500
500
300
300
300
10 0
Ty p .
13 0 0
1300
80 0
70 0
70 0
25 0
V i ew i n g
An g l e
2θ1/2
3 4°
3 4°
40°
3 4°
3 4°
40°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
Par am et er
Peak Wavelength
Dominate Wavelength
Spectral Line Halfwidth
Capacitance
Forward Voltage
Reverse Current
D ev i c e
Super Bright Orange
Super Bright Yellow
Super Bright Orange
Super Bright Yellow
Super Bright Orange
Super Bright Yellow
Super Bright Orange
Super Bright Yellow
Super Bright Orange
Super Bright Yellow
All
Ty p .
610
590
601
588
29
28
30
25
2.0
2.0
2.5
2.5
10
Max .
Un it s
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
IF=20mA
IF=20mA
IF=20mA
VF=0V;f=1MHz
IF=20mA
V R = 5V
°
Absolute Maximum Ratings at T
)
=25°C
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Soldering Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 4mm below package base.
Su p er B r ig h t Or an g e
75
30
19 5
5
Su p er B r ig h t Yello w
12 5
30
17 5
5
-40
°
C To +85
°C
260
°
C For 5 Seconds
Un it s
mW
mA
mA
V
SPEC NO: CDA0750
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/12/2001
DRAWN: S.H.CHEN
PAGE: 2 OF 4

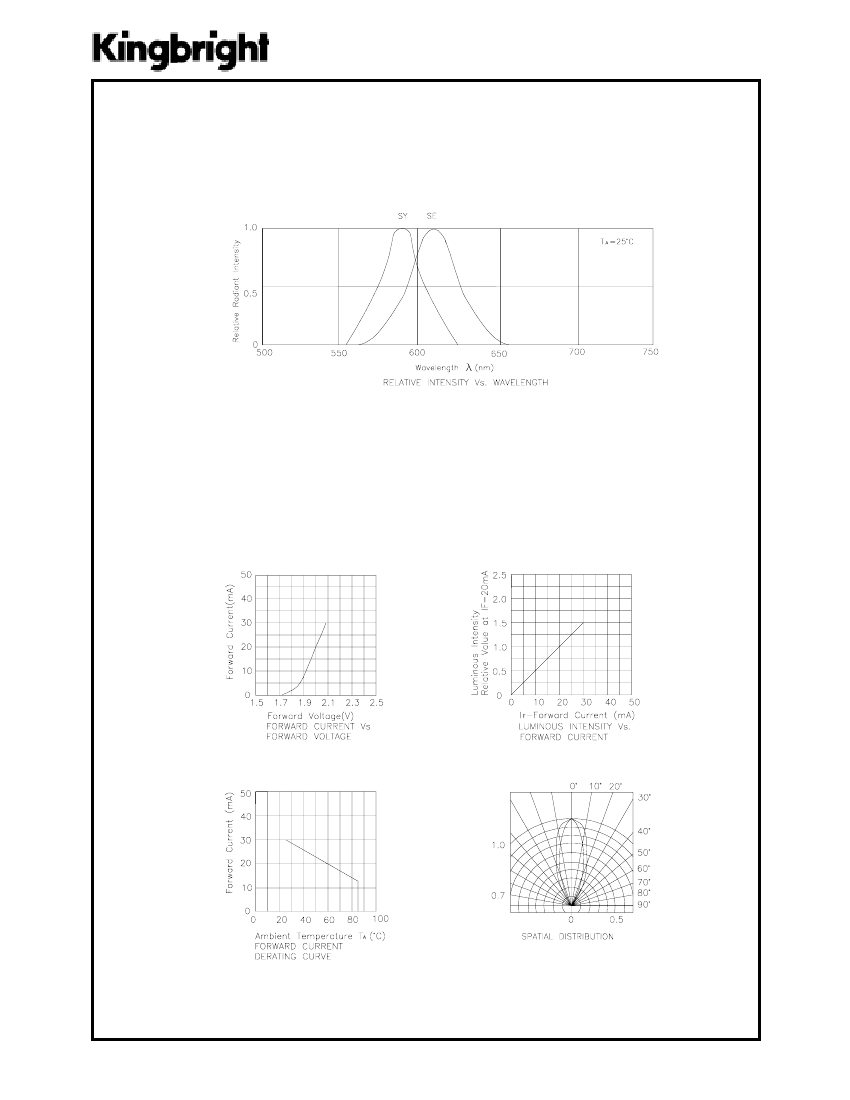

Super Bright Orange L7104SEC,L7104SET,L7104SED
SPEC NO: CDA0750
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/12/2001
DRAWN: S.H.CHEN
PAGE: 3 OF 4

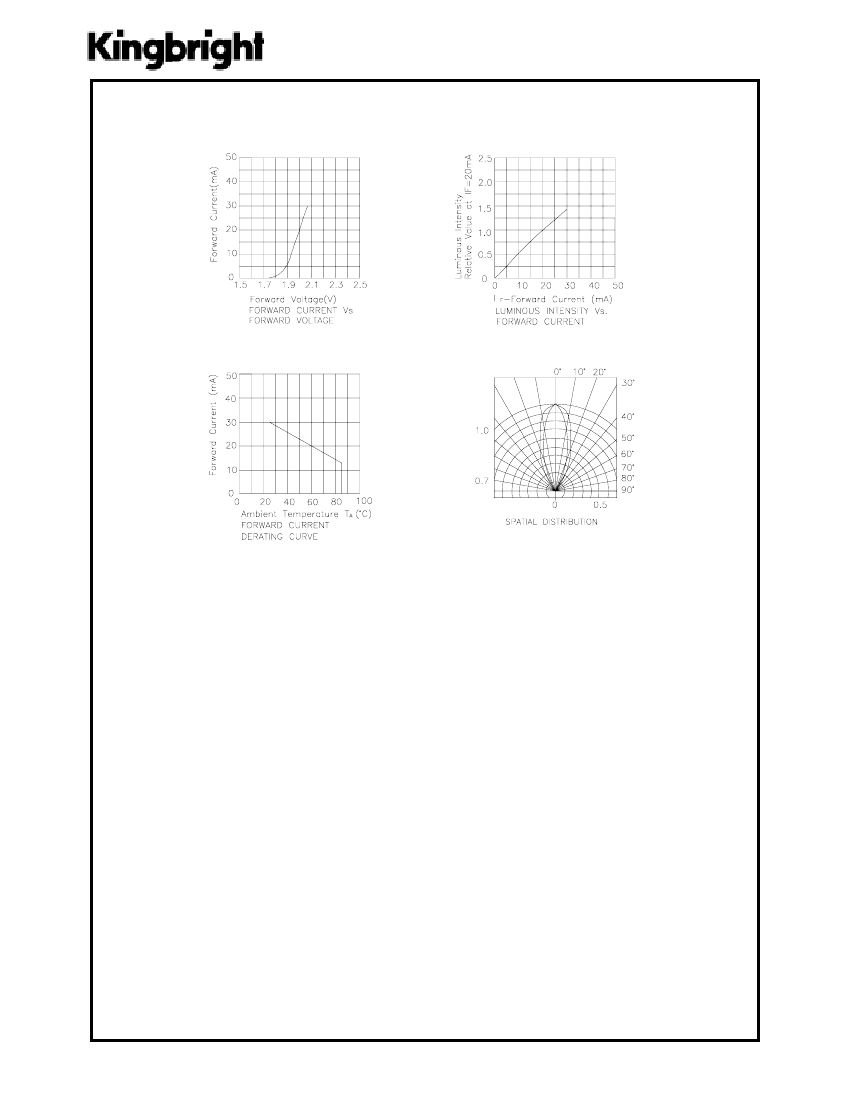

Super Bright Yellow L7104SYC,L7104SYT,L7104SYD
SPEC NO: CDA0750
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/12/2001
DRAWN: S.H.CHEN
PAGE: 4 OF 4
