DSS28

Description
Rectifier Diode,
CategoryDiscrete semiconductor    diode
File Size266KB,4 Pages
ManufacturerSangdest Microelectronics (Nanjing) Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

DSS28 Overview

Rectifier Diode,

DSS28 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSangdest Microelectronics (Nanjing) Co., Ltd.
Reach Compliance Codecompliant
Other featuresLOW POWER LOSS
applicationEFFICIENCY
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.85 V
JESD-30 codeR-PDSO-F2
Maximum non-repetitive peak forward current40 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Maximum output current2 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum repetitive peak reverse voltage80 V
Maximum reverse current500 µA
surface mountYES
technologySCHOTTKY
Terminal formFLAT
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
DSS22
THRU
DSS220
Technical Data
Data Sheet N1694, Rev. A
SINGLE PHASE 2.0AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Features
The plastic package carries Underwriters
Laboratory Flammability Classification 94V-0
Metal silicon junction, majority carrier conduction
Low power loss, high efficiency
High temperature soldering guaranteed: 260/10°C
seconds,0.375"(9.5mm) lead length, 5 lbs. (2.3kg)
tension
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon
request
DSS22 THRU DSS220

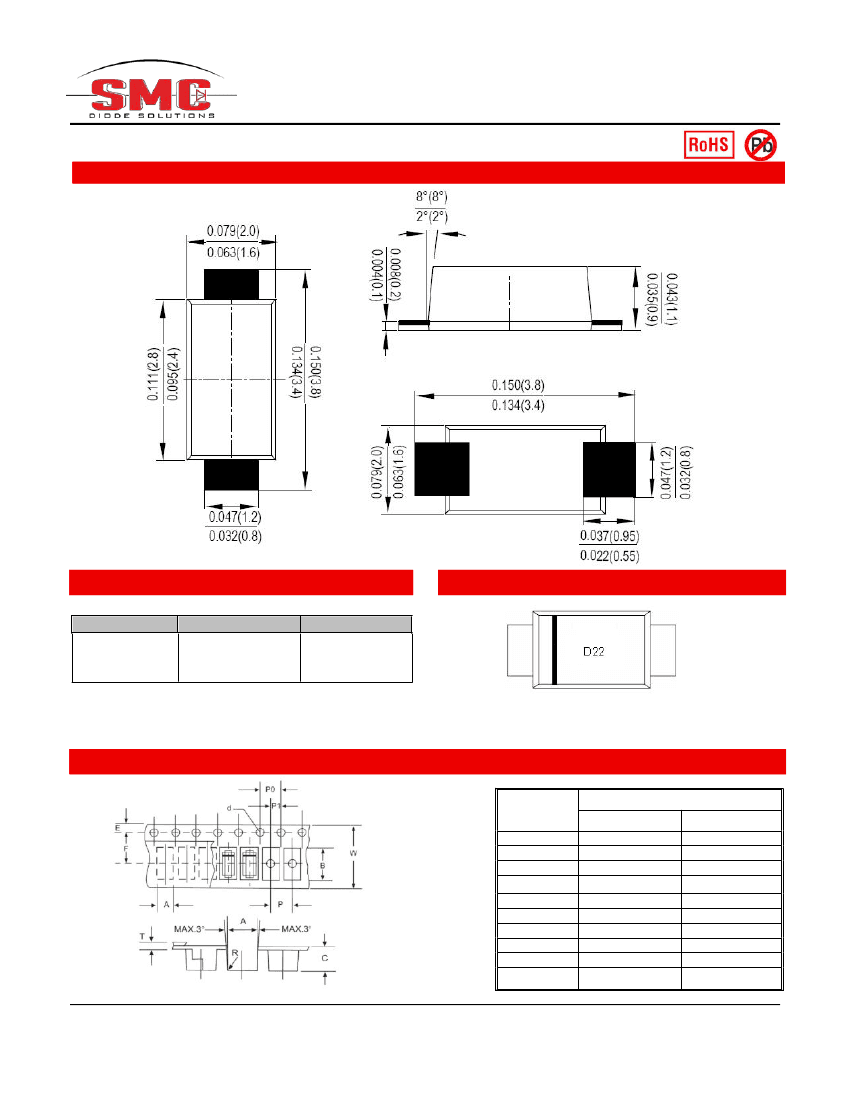

SOD-123FL
Circuit Diagram
Mechanical Data
Case: SOD-123FL, molded plastic
Terminals: Plated leads, solderable per MIL-STD-750,
Method 2026
Polarity: Color band dentes cathode end
Mounting Position: Any
Maximum Ratings and Electrical Characteristics
@T
A
=25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current at T
L
=90℃
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on
Rated load(JEDEC Method)
Forward Voltage per element @I
F
=2.0A
Peak Reverse Current T
A
=25
at rated DC blocking voltage T
A
=100
Typical Junction Capacitance (Note 1)
Typical Thermal Resistance Junction
to Ambient (Note 2)
Junction and Storage Temperature Range
Junction and Storage Temperature Range
Symbol
Code
V
RRM
V
DC
V
RMS
I
F(AV)
I
FSM
V
F
I
R
C
J
R
θJA
T
J
T
STG
0.55
10
80
75
-55 to +150
-55 to +150
DSS
22
D22
DSS
23
D23
DSS
24
D24
DSS
25
D25
DSS
26
D26
DSS
28
D28
DSS
210
D210
DSS
215
D215
DSS
220
D220
Units
V
V
V
A
A
20
20
14
30
30
21
40
40
28
50
50
35
60
60
42
2.0
40
0.70
0.5
80
80
56
100
100
70
150
150
105
200
200
140
0.85
5
40
0.92
V
mA
pF
°C/W
°C
°C
Note: 1. Measured at 1MHz and applied reverse voltage of 4V D.C

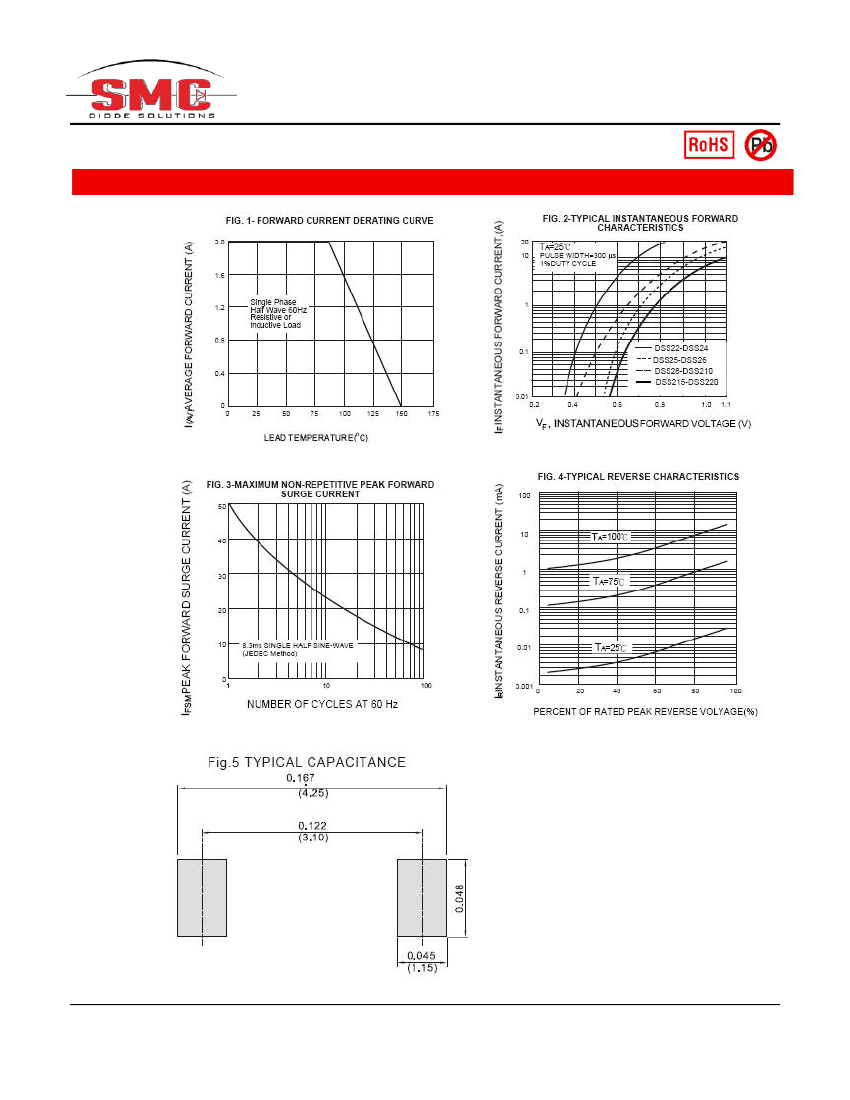

2. PCB mounted on 0.2 X 0.2" (5.0 X 5.0 mm) copper pad areas.
