SR1080K

Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 10A, 80V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, DPAK-3
CategoryDiscrete semiconductor    diode
File Size192KB,3 Pages
ManufacturerRectron
Environmental Compliance
Download Datasheet Parametric View All

SR1080K Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 10A, 80V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, DPAK-3

SR1080K Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerRectron
package instructionROHS COMPLIANT, PLASTIC, DPAK-3
Contacts3
Reach Compliance Codenot_compliant
ECCN codeEAR99
Other featuresHIGH RELIABILITY
applicationGENERAL PURPOSE
Shell connectionCATHODE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JESD-30 codeR-PSSO-G2
JESD-609 codee3
Maximum non-repetitive peak forward current150 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature150 °C
Maximum output current10 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)265
Certification statusNot Qualified
Maximum repetitive peak reverse voltage80 V
surface mountYES
technologySCHOTTKY
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED

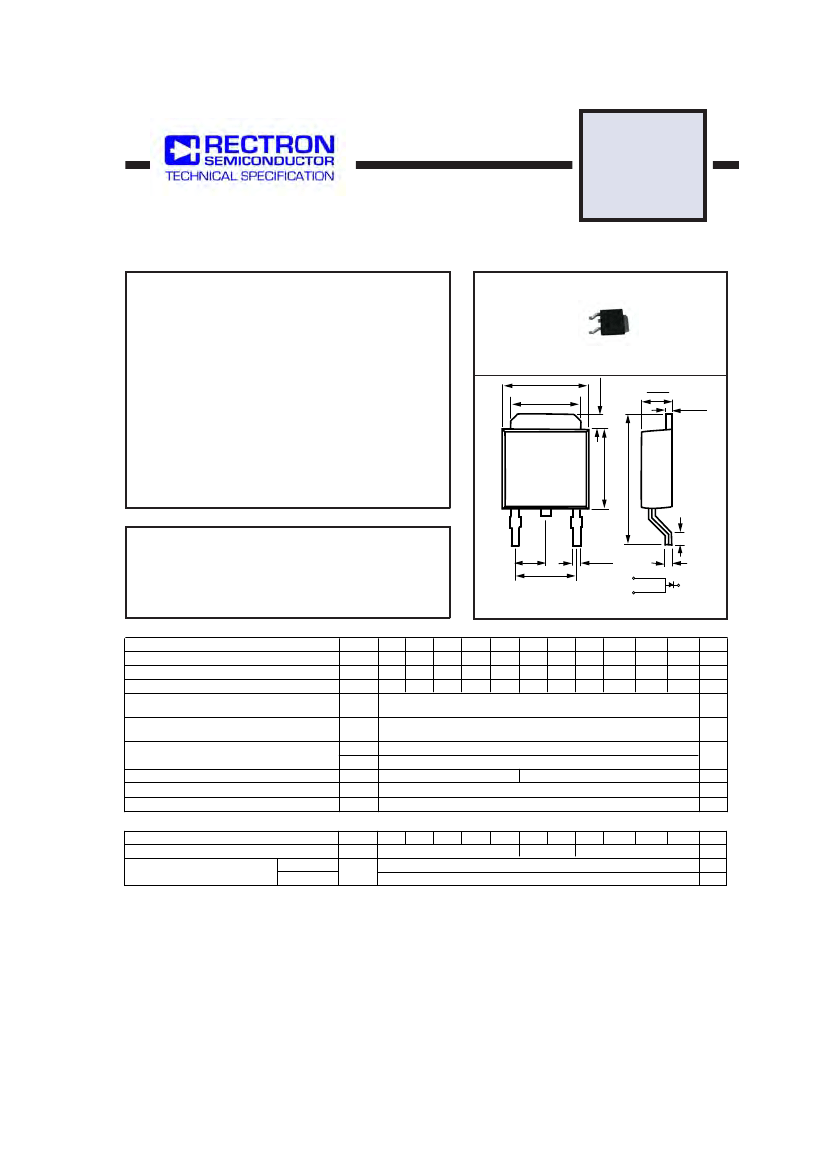

SCHOTTKY BARRIER RECTIFIER
VOLTAGE RANGE 20 to 200 Volts CURRENT 10.0 Amperes
FEATURES
*
*
*
*
*
High reliability
Low switching loss
Low forward voltage drop
High current capability
High switching capability
SR1020K
THRU
SR10200K
.051 (1.3)
.035 (0.9)
MECHANICAL DATA
* Epoxy: Device has UL flammability classification 94V-O
* Case: Molded plastic
* Lead: MIL-STD-202E method 208C guaranteed
* Mounting: position: Any
* Weight: 0.33 grams
D-PAK
.264 (6.7)
.248 (6.3)
.217 (5.5)
.201 (5.1)
.098 (2.5)
.083 (2.1)
.024 (0.6)
.016 (0.4)
PIN3
.244 (6.2)
.228 (5.8)
.398 (10.11)
.382 (9.71)
PIN1
PIN2
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
TYP .091
(2.30)
.183 (4.65)
.179 (4.55)
.031 (0.8)
.016 (0.4)
PIN 1
PIN 2
TYP 1.00
TYP .020
(0.50)
HEATSINK
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(@ T
A
=25
O
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at Derating Case Temperature
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Typical Thermal Resistance (Note 1)
Typical Junction Capacitance (Note 2)
Operating Temperature Range
Storage Temperature Range
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
R
q
JC
R
q
JA
C
J
T
J
T
STG
700
150
-55 to + 150
SR1020K SR1030K SR1035K SR1040K SR1045K SR1050K SR1060K SR1080K SR10100K SR10150K SR10200K
UNITS
Volts
Volts
Volts
Amps
Amps
0
20
14
20
30
21
30
35
25
35
40
28
40
45
32
45
50
35
50
10.0
150
2.0
60
60
42
60
80
56
80
100
70
100
150
105
150
200
140
200
C/W
pF
0
0
450
C
C
ELECTRICAL CHARACTERISTICS
(@T
A
=25
O
C unless otherwise noted)
CHARACTERISTICS
Maximum Instantaneous Forward Voltage at 10.0A DC
Maximum Average Reverse Current
at Rated DC Blocking Voltage
@T
A
= 25 C
@T
A
= 100
o
C
o
SYMBOL
V
F
I
R
SR1020K SR1030K SR1035K SR1040K SR1045K SR1050K SR1060K SR1080K SR10100K SR10150K SR10200K
UNITS
.65
.75
0.2
2
.85
Volts
mA
mA

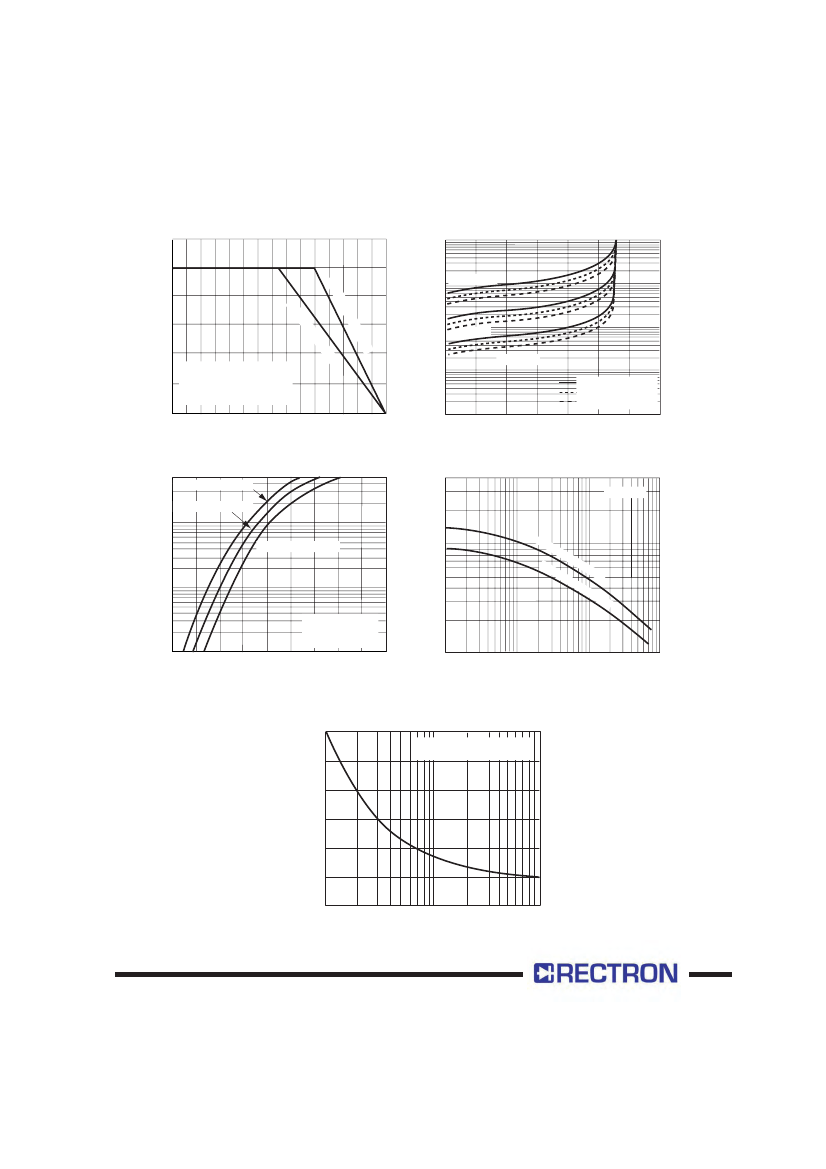

2006-12
NOTES : 1. Thermal Resistance : Heat-sink case mounted or if PCB mounted.
2. Measured at 1 MHz and applied reverse voltage of 4.0 volts.
3. "Fully ROHS compliant", "100% Sn plating (Pb-free)".
4. Suffix "R" for Reverse Polarity.
5. Suffix "S" for D2-PAK Pkg.
