PCB terminal block - PTSM 0,5/ 7-2,5-V SMD R44 - 1771143
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
PCB terminal block, Nominal current: 6 A, Nom. voltage: 160 V, Pitch: 2.5 mm, Number of positions: 7,
Connection method: Spring-cage conn., Mounting: SMD/THT/THR, Conductor/PCB connection direction: 90 °,
Color: black
Product Features
Compact low-profile SMD PCB terminal block with 2.5 mm pitch
High current carrying capacity for high power transmission
Supplied in tape-on-reel packing according to IEC 60286-3 for automated mounting
Rugged solder anchor for secure, mechanical fixing to the surface
Specifically designed for use in dedicated SMT processes
Spring-cage connection with direct plug-in technology with a release mechanism
Key commercial data
Packing unit
Minimum order quantity
GTIN
Custom tariff number
Country of origin
85369010
GERMANY
1 PCE
400 PCE
Technical data
Dimensions / positions
Length
Pitch
Dimension a
Number of positions
Pin spacing
5 mm
2.5 mm
15 mm
7
2.5 mm
Technical data
01.05.2013 Page 1 / 5
https://www.phoenixcontact.com/us/produkte/1771143
PCB terminal block - PTSM 0,5/ 7-2,5-V SMD R44 - 1771143
Technical data
Technical data
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Inflammability class according to UL 94
Stripping length
Nominal voltage, UL/CUL Use Group B
Nominal current, UL/CUL Use Group B
PTSM 0,5/..-V-SMD
IIIa
2.5 kV
2.5 kV
2.5 kV
32 V
160 V
160 V
EN-VDE
6A
0.5 mm²
6A
LCP
V0
6 mm
150 V
5A
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
0.14 mm²
0.5 mm²
0.2 mm²
0.5 mm²
0.25 mm²
0.5 mm²
24
20
26
20
Classifications
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002643
EC002643
01.05.2013 Page 2 / 5
https://www.phoenixcontact.com/us/produkte/1771143
PCB terminal block - PTSM 0,5/ 7-2,5-V SMD R44 - 1771143
Classifications
UNSPSC
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
UNSPSC 6.01
UNSPSC 7.0901
39121432
39121432
39121432
30211801
39121432
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27141109
27141109
27141190
27141190
27261101
27440401
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-20
5A
150 V
01.05.2013 Page 3 / 5
https://www.phoenixcontact.com/us/produkte/1771143
PCB terminal block - PTSM 0,5/ 7-2,5-V SMD R44 - 1771143
Approvals
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-20
5A
150 V
GOST
cULus Recognized
Accessories
Accessories
Tools
Phillips-screwdriver - SZS 0,4X2,0 - 1205202
Micro screwdriver, bladed, size: 0.4 x 2.0 x 60 mm, 2-component grip, with non-slip grip and twist cap
Drawings
01.05.2013 Page 4 / 5
https://www.phoenixcontact.com/us/produkte/1771143
PCB terminal block - PTSM 0,5/ 7-2,5-V SMD R44 - 1771143

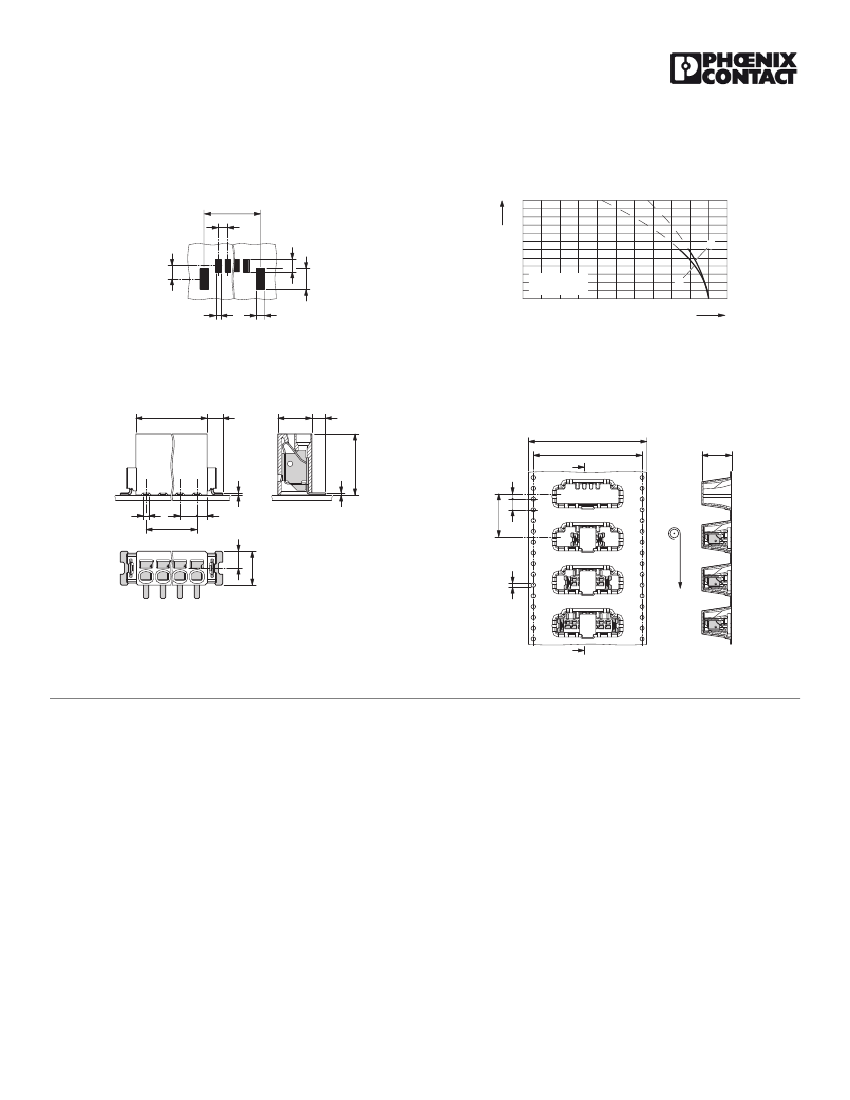

Drilling diagram
M
2,5
Diagram
Current strength [A]
12
10
8
6
4
2
0
0
1
= 0,75 mm
2
2
= 0,5 mm
20
2
3,15
1
3,4
5,6
2
40
60
80
100
1,4
2,3
Ambient temperature [°C]
Dimension M: 20.9 mm
Dimensioned drawing
a+3
2,3
5
2
Dimensioned drawing
44
40,4
11,1
0,3
0,3
9
a
2,5
16
1,5
5
0,8
2,5
1,5
© Phoenix Contact 2013 - all rights reserved
http://www.phoenixcontact.com
4
2
01.05.2013 Page 5 / 5
