29S201-303E3: DescriptionRF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size88KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/; Environmental Compliance

Download Datasheet Parametric View All

29S201-303E3 Overview

RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug,

29S201-303E3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	APPLICABLE CABLE: RG 316/U-D, INSERTION LOSS AND VSWR MAX AT 4 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF MCX CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.12 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	6 GHz
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.49
Base Number Matches	1

Preview

Download Datasheet

View All

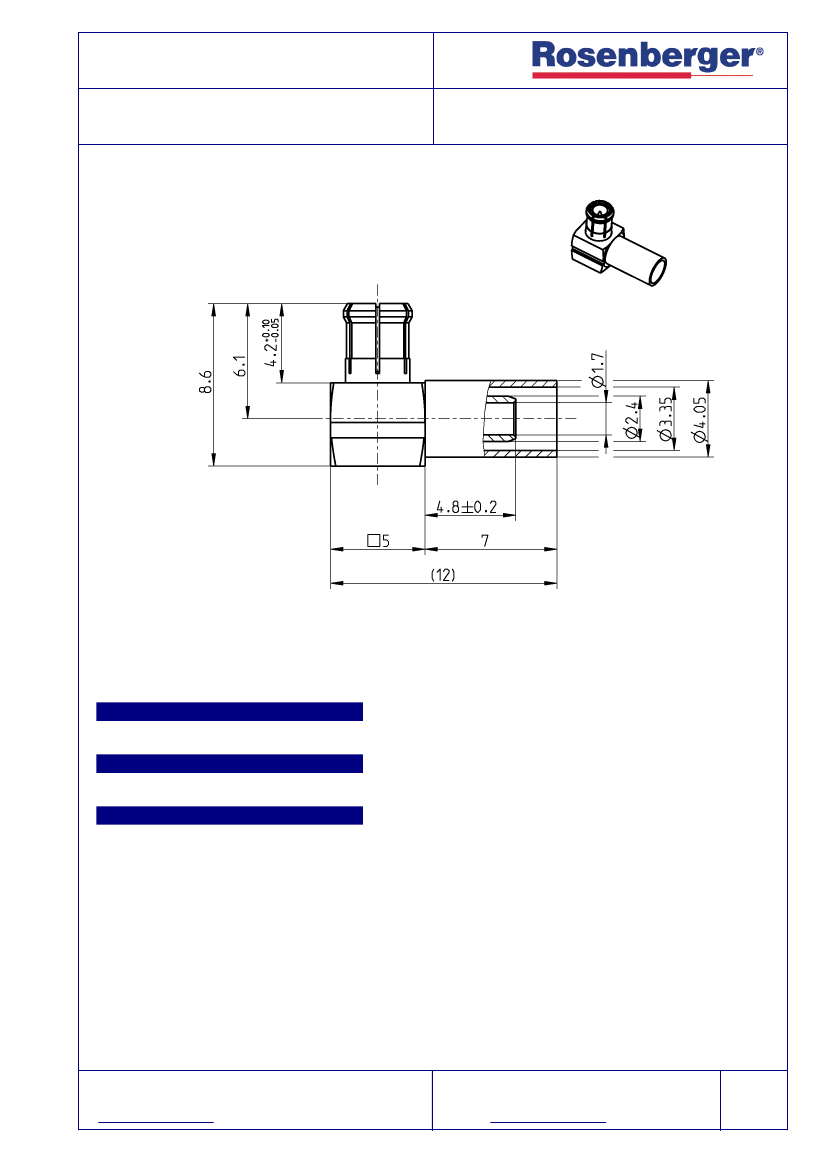

TECHNICAL DATA SHEET

MCX

RIGHT ANGLE PLUG

29S201-303E3

All dimensions are in mm; tolerances acc. ISO 2768 m-H

Interface

According to

CECC 22 220, IEC 60169-36

Documents

Assembly instruction

29 C

Material and plating

Connector parts

Center contact

Outer contact

Dielectric

Crimping sleeve

Material

Brass

Beryllium copper

PTFE

Copper

Plating

Gold, min. 1.27 m, over chemical nickel

Gold, min. 0.8 m, over chemical nickel

Gold, min. 0.15 m, over chemical nickel

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
