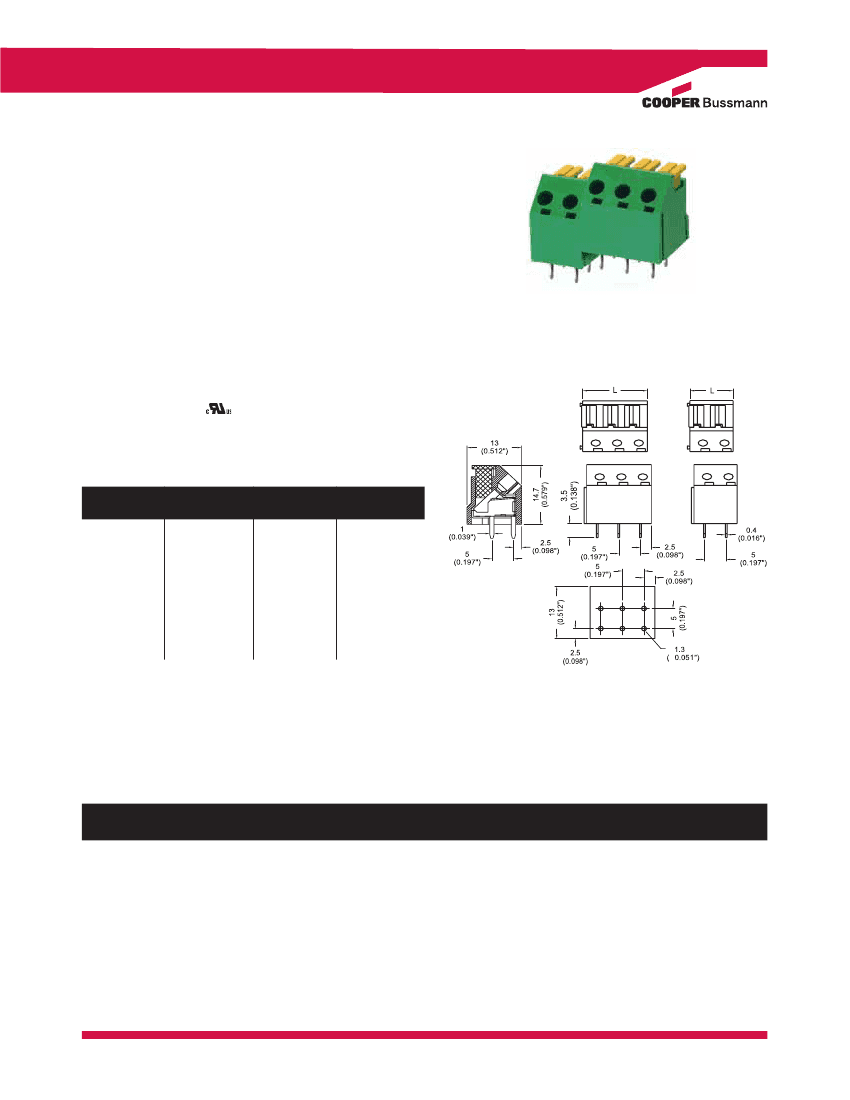

EuroMag Series PCB Mount Screwless Terminal Blocks
EM2785 Series
Euro-Mag Terminal Blocks
45° Entry; Screwless; Modular; 5.00 Centers
SPECIFICATIONS
Rating:
7A, 300V
Center Spacing:
0.197” (5.00mm)
Wire Range:
#16-22 AWG
Housing Material:
UL rated 94V0 Thermoplastic
Contact Material:
Tin-Plated Brass
Spring Material:
Stainless Steel
Operating Temperature:
105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters:
0.051" (1.30mm)
Construction:
Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
EM278505
Dimensions - mm (in)
Poles
2
3
4
5
6
7
8
9
10
11
12
13
L (mm)
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
Poles
14
15
16
17
18
19
20
21
22
23
24
L (mm)
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
PCB Hole Layout
ø
ø
To convert to inches, divide by 25.4
Part Numbering System
Series
# of Poles
EM2 7 8 5
IIIIII II
02
to
24
