L-82-516 datasheet, PDF - EEWORLD Datasheet

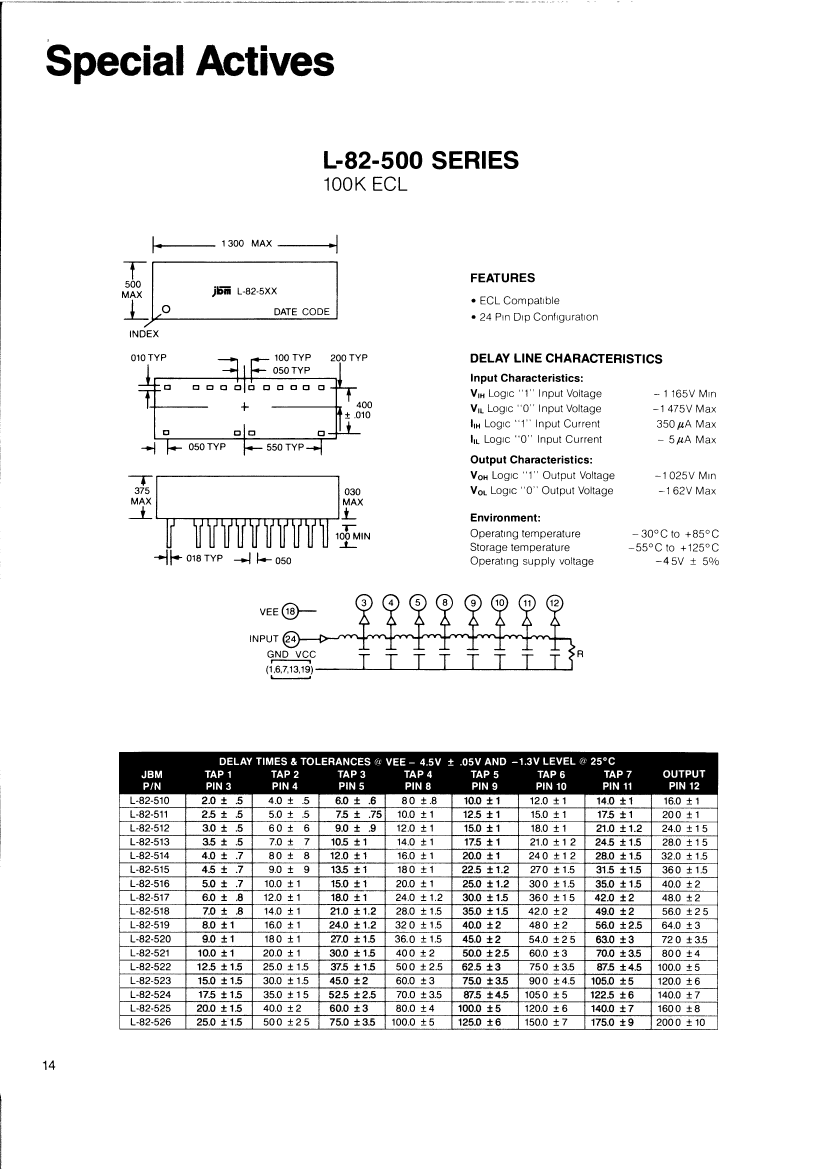

L-82-516: DescriptionActive Delay Line, 1-Func, 8-Tap, True Output, ECL, DIP-24/15; Categorylogic logic; File Size80KB，1 Pages; ManufacturerSIXNET; Websitehttp://www.sixnet.com/index.cfm

Download Datasheet Parametric View All

L-82-516 Overview

Active Delay Line, 1-Func, 8-Tap, True Output, ECL, DIP-24/15

Parameter Name	Attribute value
Maker	SIXNET
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
series	100K
JESD-30 code	R-XDIP-T15
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	8
Number of terminals	15
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	10.287 mm
surface mount	NO
technology	ECL
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	40 ns
width	10.16 mm
