74HC9015N datasheet, PDF - EEWORLD Datasheet

74HC9015N: DescriptionIC HC/UH SERIES, 9 1-INPUT NON-INVERT GATE, PDIP20, Gate; Categorylogic logic; File Size94KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

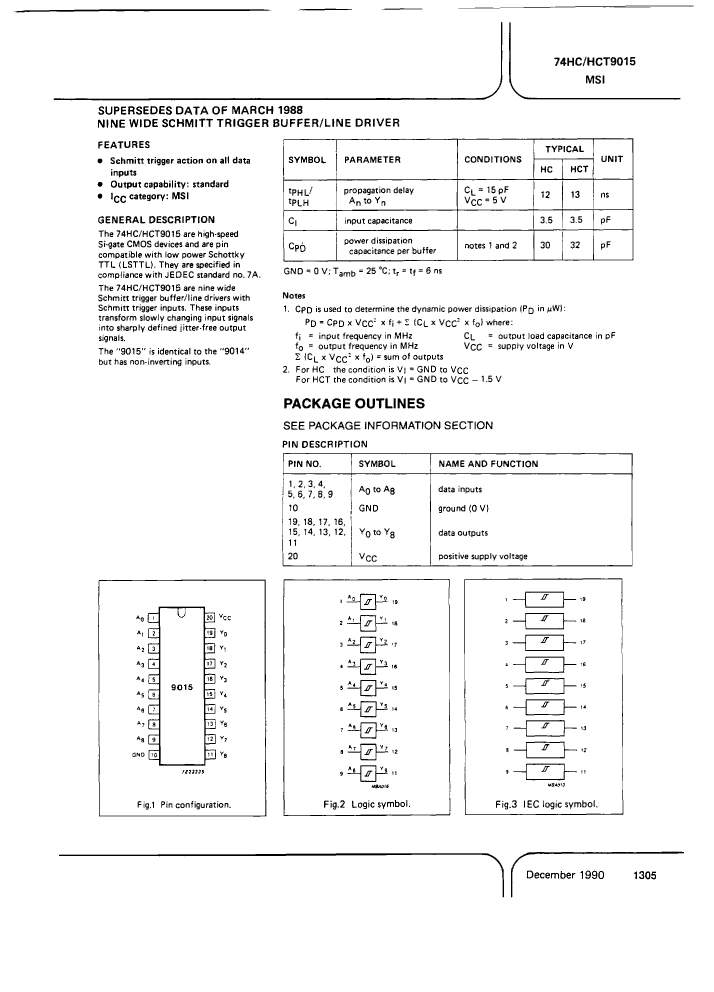

74HC9015N Overview

IC HC/UH SERIES, 9 1-INPUT NON-INVERT GATE, PDIP20, Gate

Parameter Name	Attribute value
Maker	NXP
package instruction	DIP,
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-PDIP-T20
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUFFER
Number of functions	9
Number of entries	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE

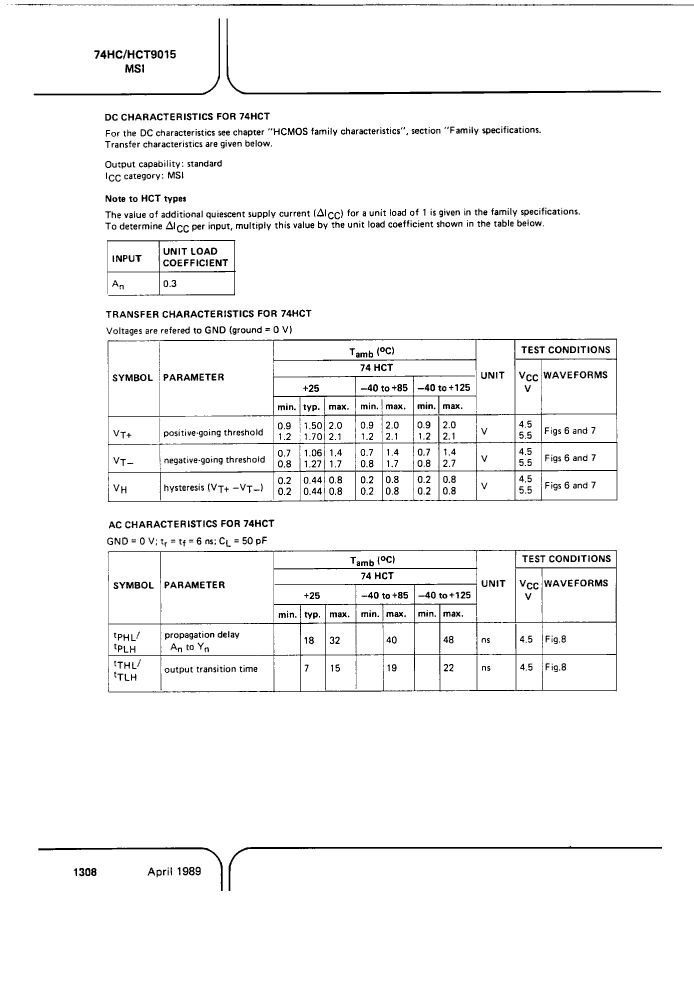

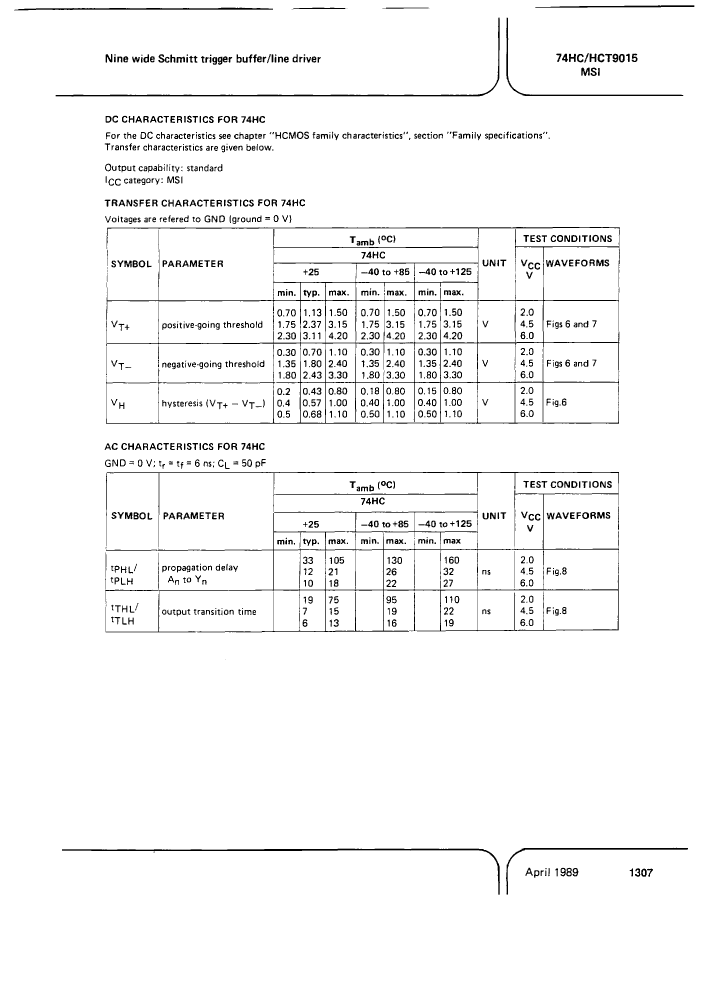

propagation delay (tpd)	32 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	THROUGH-HOLE
Terminal location	DUAL
