MKF18639-6-0-909: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking Mech, Socket; CategoryThe connector The connector; File Size47KB，1 Pages; ManufacturerStocko Contact GmbH & Co Kg; Websitehttps://www.stocko-contact.com; Environmental Compliance

Download Datasheet Parametric View All

MKF18639-6-0-909 Overview

Board Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking Mech, Socket

MKF18639-6-0-909 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Stocko Contact GmbH & Co Kg
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	POLARIZATION POST
body width	0.256 inch
subject depth	0.48 inch
body length	0.993 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
MIL compliance	NO
Manufacturer's serial number	MKF18630
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	115 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL,VDE
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

Serie /

Series

Board

Board Federleisten

Rastzapfen

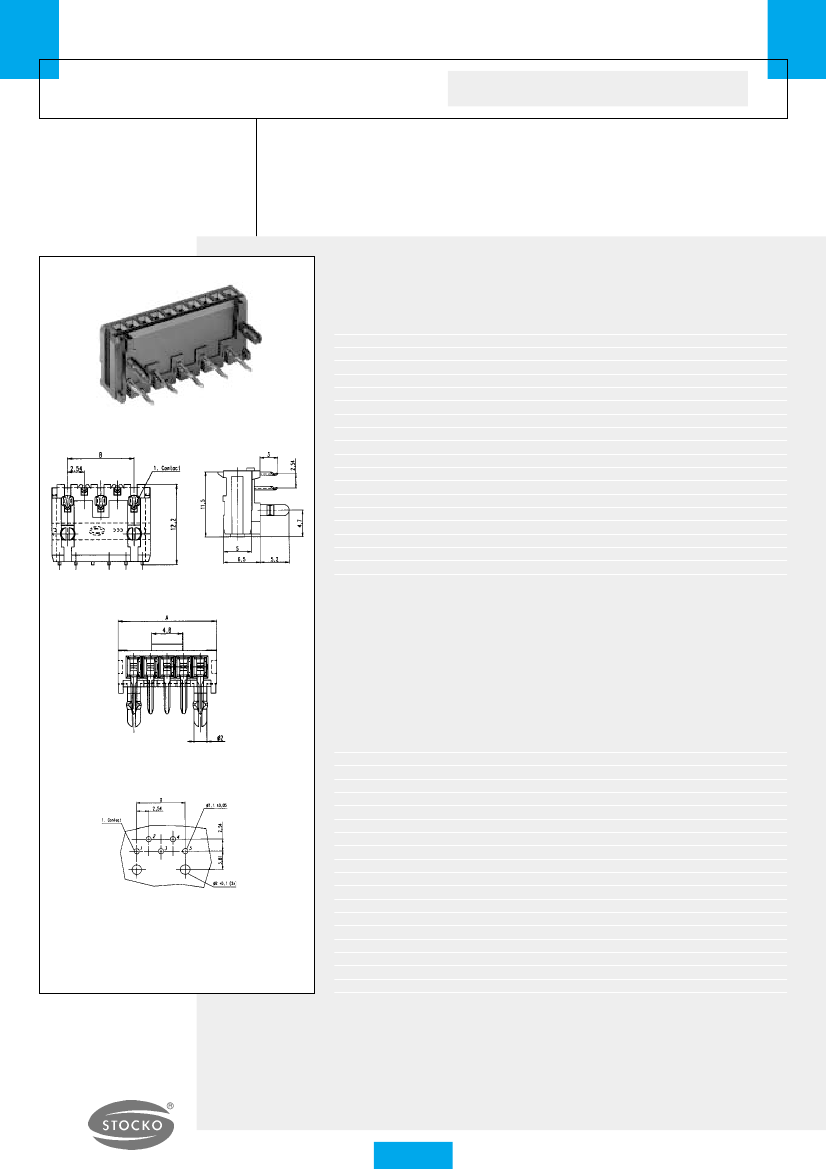

Boar d to Board F ederleisten mit Rastzapfen

MKF 18630

Board

Boar d to Boar d socket connectors with snap-in-pegs

Serie MKF 18630, liegende Ausführung, Lötstifte versetzt, verzinnte Kontakte

Series MKF 18630, horizontal version, solder pins staggered, tin plated contacts

Polzahl

Positions

Artikel-Nummer

Part number

MKF

18633 - 6 - 0 - 303

18634 - 6 - 0 - 404

18635 - 6 - 0 - 505

18636 - 6 - 0 - 606

18637 - 6 - 0 - 707

18638 - 6 - 0 - 808

18639 - 6 - 0 - 909

18640 - 6 - 0 - 1010

18641 - 6 - 0 - 1111

18642 - 6 - 0 - 1212

18643 - 6 - 0 - 1313

18644 - 6 - 0 - 1414

18645 - 6 - 0 - 1515

18646 - 6 - 0 - 1616

18647 - 6 - 0 - 1717

18648 - 6 - 0 - 1818

18649 - 6 - 0 - 1919

18650 - 6 - 0 - 2020

Abmessungen A

Dimensions A

9,98

12,52

15,06

17,60

20,14

22,68

25,22

27,76

30,30

32,84

35,38

37,92

40,46

43,00

45,54

48,08

50,62

53,16

Abmessungen B

Dimensions B

5,08

7,62

10,16

12,70

15,24

17,78

20,32

22,86

25,40

27,94

30,48

33,02

35,56

38,10

40,64

43,18

45,72

48,26

Serie MKF 18630, liegende Ausführung, Lötstifte versetzt, selektiv vergoldete Kontakte

Series MKF 18630, horizontal version, solder pins staggered, selective gold plated contacts

Polzahl

Positions

Artikel-Nummer

Part number

MKF

18633 - 6 - 1 - 303

18634 - 6 - 1 - 404

18635 - 6 - 1 - 505

18636 - 6 - 1 - 606

18637 - 6 - 1 - 707

18638 - 6 - 1 - 808

18639 - 6 - 1 - 909

18640 - 6 - 1 - 1010

18641 - 6 - 1 - 1111

18642 - 6 - 1 - 1212

18643 - 6 - 1 - 1313

18644 - 6 - 1 - 1414

18645 - 6 - 1 - 1515

18646 - 6 - 1 - 1616

18647 - 6 - 1 - 1717

18648 - 6 - 1 - 1818

18649 - 6 - 1 - 1919

18650 - 6 - 1 - 2020

Abmessungen A

Dimensions A

9,98

12,52

15,06

17,60

20,14

22,68

25,22

27,76

30,30

32,84

35,38

37,92

40,46

43,00

45,54

48,08

50,62

53,16

Abmessungen B

Dimensions B

5,08

7,62

10,16

12,70

15,24

17,78

20,32

22,86

25,40

27,94

30,48

33,02

35,56

38,10

40,64

43,18

45,72

48,26

Serie mit Lötstiften in einer Reihe auf Anfrage.

Version with single row solder pins available on request.
